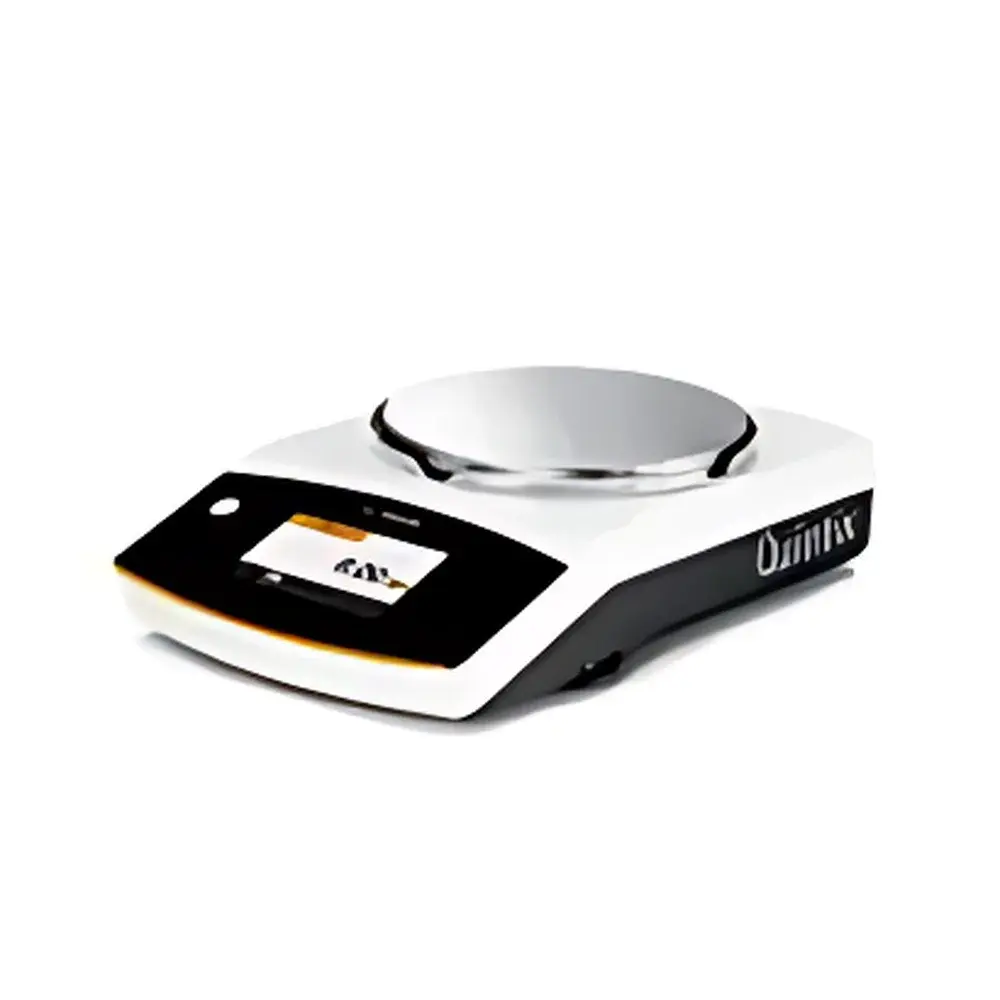

Sartorius Quintix513-1CN Precision Balance

Overview

The Sartorius Quintix513-1CN is a high-performance precision balance engineered for demanding routine laboratory applications requiring reliable 1 mg readability and robust metrological integrity. Designed and manufactured in Germany, it operates on electromagnetic force compensation (EMFC) principle — the gold-standard technology for analytical and precision weighing — ensuring exceptional long-term stability, minimal drift, and high reproducibility under variable environmental conditions. With a maximum capacity of 510 g and a repeatability of ±1 mg, the Quintix513-1CN meets stringent requirements for quantitative sample preparation, formulation, quality control testing, and reference standard handling across regulated and non-regulated environments. Its compact footprint (216 × 360 × 320 mm), lightweight aluminum alloy housing with chemically resistant surface finish, and ergonomic 4.3-inch full-color capacitive touchscreen interface collectively support efficient, error-resistant operation in multi-user laboratories.

Key Features

• isoCAL automatic internal calibration and adjustment — temperature- and time-triggered — ensures continuous traceability to national standards without manual intervention.
• FACT (Fully Automatic Calibration Technology) enables dynamic recalibration during operation when ambient temperature shifts exceed user-defined thresholds (e.g., ±1.5 °C), maintaining accuracy across diurnal lab fluctuations.
• Intuitive touch-based UI with context-sensitive help and embedded workflow guidance eliminates reliance on printed manuals; supports 12 interface languages including English, German, Spanish, Chinese, and Japanese.
• GLP-compliant direct print functionality via optional Sartorius YDP30 or YDP40 printers — generates audit-ready reports with date/time stamp, operator ID, balance ID, calibration status, and net/gross/tare values.
• MiniUSB interface enables seamless data transfer to Windows-based LIMS, ELN, or Excel without proprietary drivers; compatible with Sartorius LabX Lite for basic data logging and export.
• Robust mechanical design includes adjustable leveling feet, integrated draft shield mount, Kensington lock slot for physical security, and downward weighing port for density determination or magnetic sample handling.

Sample Compatibility & Compliance

The Quintix513-1CN accommodates a broad range of sample types — from powders and granules to small metallic components, pharmaceutical tablets, and chemical reagents — within its 120 mm diameter stainless-steel pan and 209 mm vertical clearance. Its sealed electronics and solvent-resistant housing allow safe use in fume hoods or near volatile organic solvents (cleaning with acetone permitted per manufacturer guidelines). The balance complies with ISO 9001, ISO/IEC 17025, and EU Directive 2014/31/EU (Measuring Instruments Directive). It carries China’s CMC (China Metrology Certification) and Type Approval Certificate, validating conformity to JJG 1036–2008 (Chinese verification regulation for electronic balances). While not inherently 21 CFR Part 11 compliant out-of-the-box, its audit trail capabilities (calibration history, user log, event timestamps) form a foundational layer for GxP-aligned validation protocols when deployed with LabX software.

Software & Data Management

Data integrity is reinforced through built-in timestamped event logging — capturing calibration events, zero adjustments, parameter changes, and error codes. All weighing results can be exported in CSV or PDF format directly via miniUSB to PCs running Windows 10/11. For enhanced traceability, Sartorius LabX software (sold separately) provides full 21 CFR Part 11 compliance, role-based user management, electronic signatures, and automated report generation with digital signature fields. The balance supports standardized weighing units (g, mg, ct, oz, dwt, etc.) and application-specific modes — including parts counting, percentage weighing, density determination (with optional accessories), checkweighing, and peak-hold — all configurable without firmware modification.

Applications

This balance serves as a primary weighing instrument in diverse settings: QC labs performing raw material assay and finished product release testing (per USP , Ph. Eur. 2.2.17); R&D teams conducting formulation development and stability studies; academic teaching labs where intuitive operation reduces training overhead; pharmaceutical manufacturing facilities requiring GLP/GMP documentation; precious metal refineries using carat (ct) and troy ounce (ozt) modes; and government metrology institutes conducting inter-laboratory comparisons. Its 1-second stabilization time and low-mass pan design make it especially suitable for rapid sequential weighing in high-throughput environments.

FAQ

Does the Quintix513-1CN support external calibration with certified weights?
Yes — while isoCAL provides automatic internal calibration, the balance also accepts external calibration using Class F1 or better weights via the “Calibrate” menu.
Is password protection available for configuration changes?
No — the Quintix513-1CN does not feature user-level password protection; configuration access is unrestricted. For secure environments, Sartorius LabX is recommended.
Can the balance be connected to a network or Ethernet?
No — it lacks Ethernet or Wi-Fi connectivity; data transfer is limited to miniUSB-to-PC.
What is the minimum sample weight for accurate measurement at 1 mg readability?
Per USP , the minimum weight is typically 20 × readability = 20 mg, assuming standard deviation ≤ 0.41 × readability under controlled conditions.

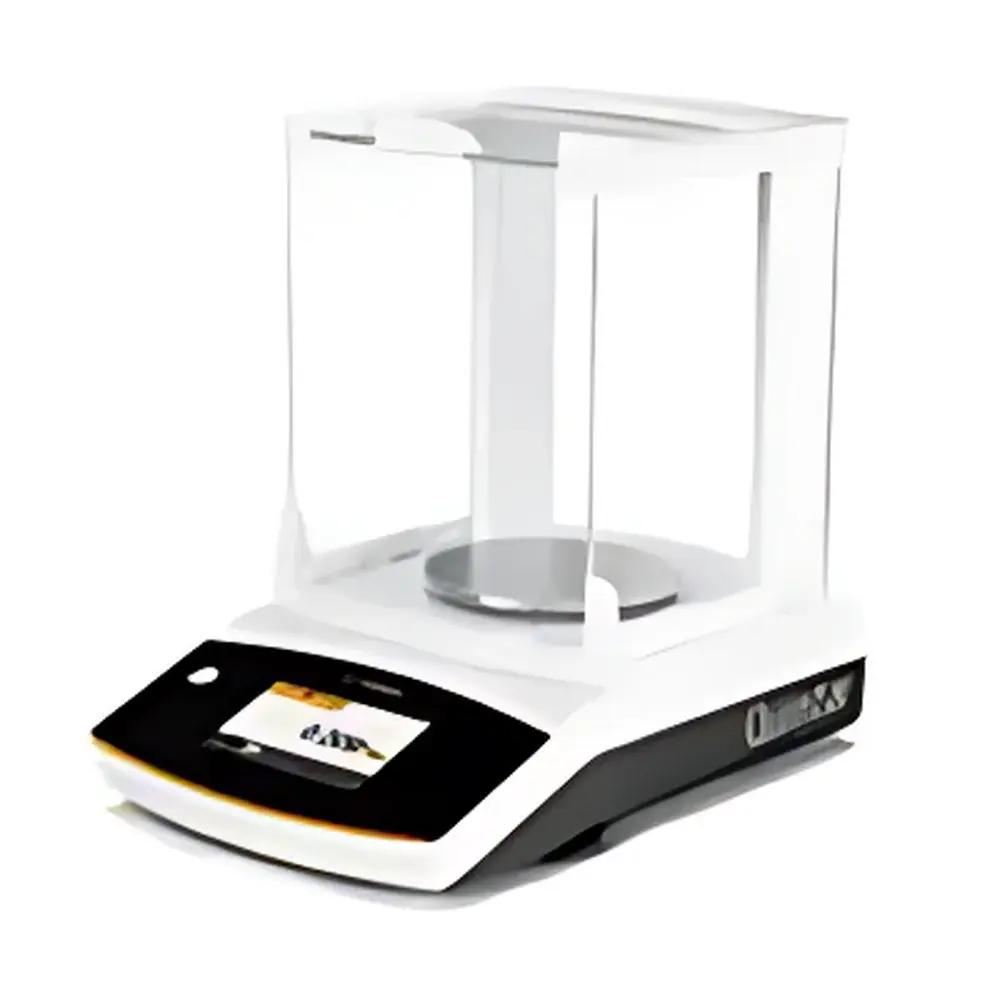

Is the draft shield included with the unit?
Yes — a transparent acrylic draft shield is supplied as standard equipment, pre-assembled and optimized for the 120 mm pan size.
