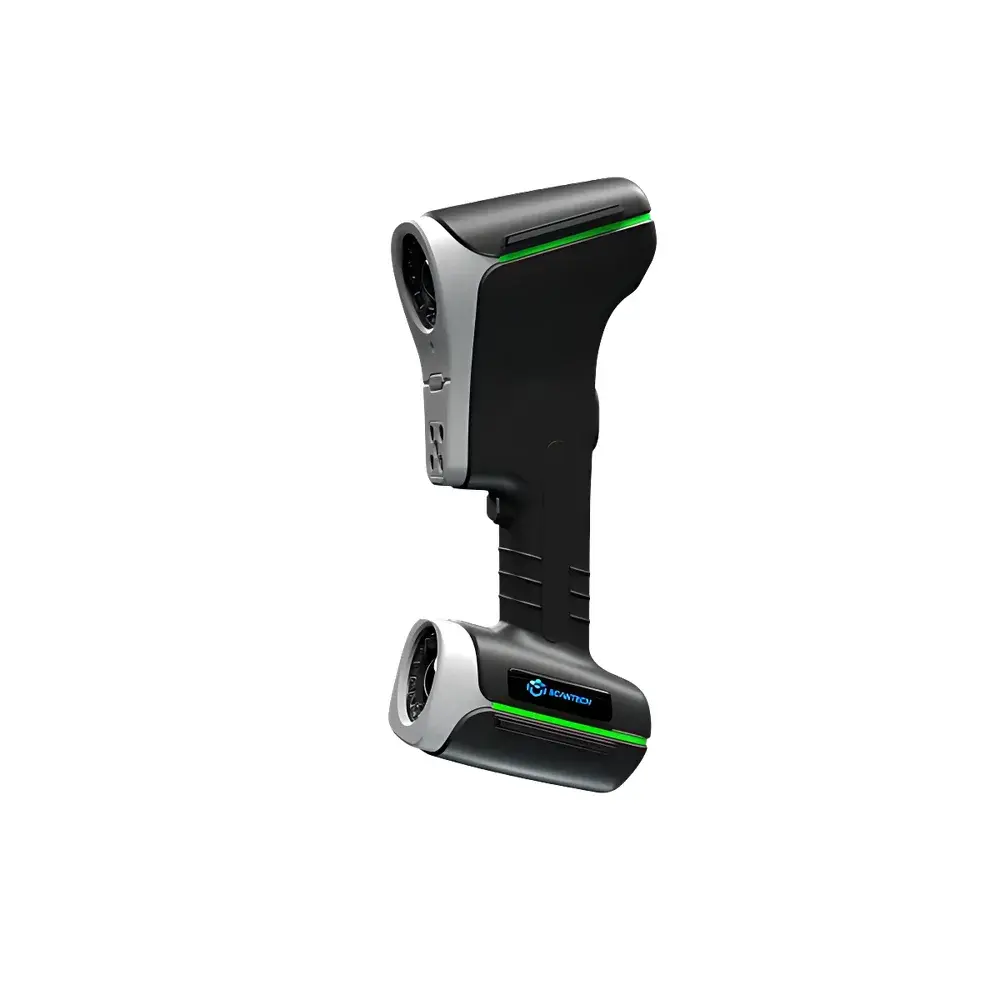

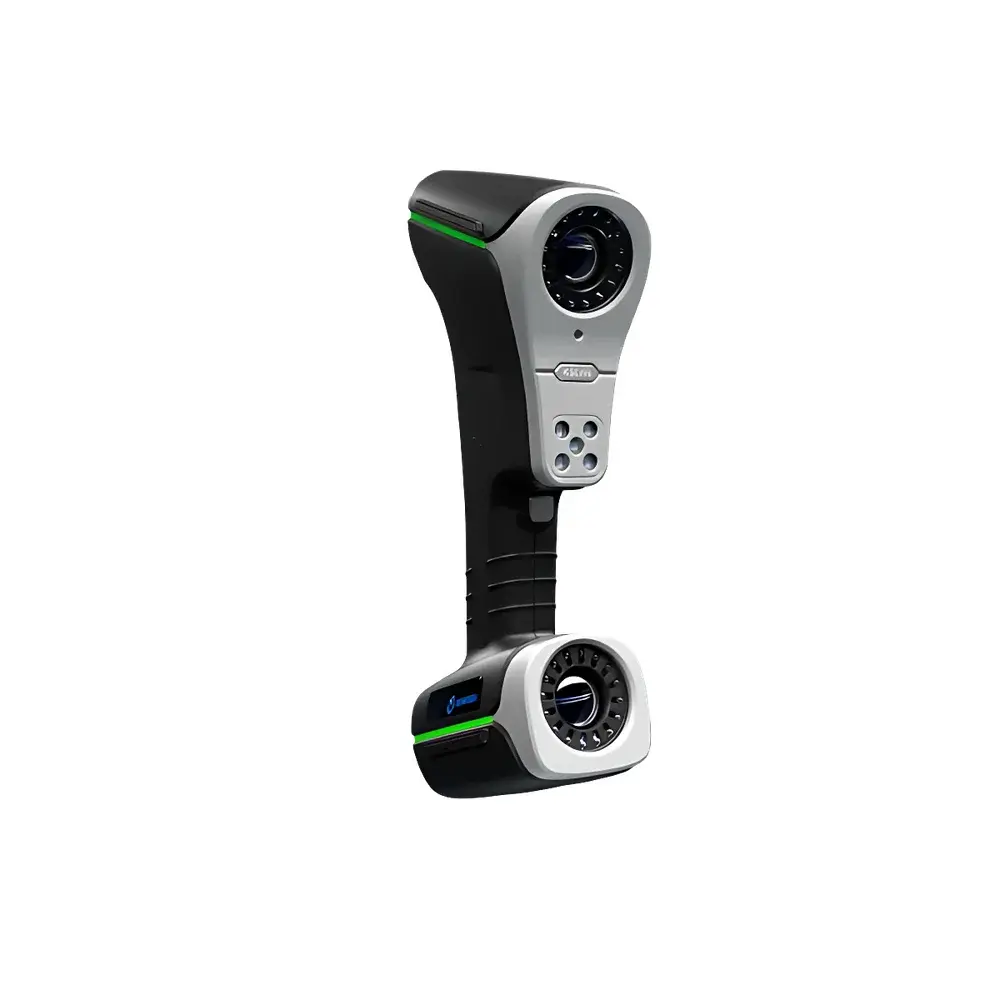

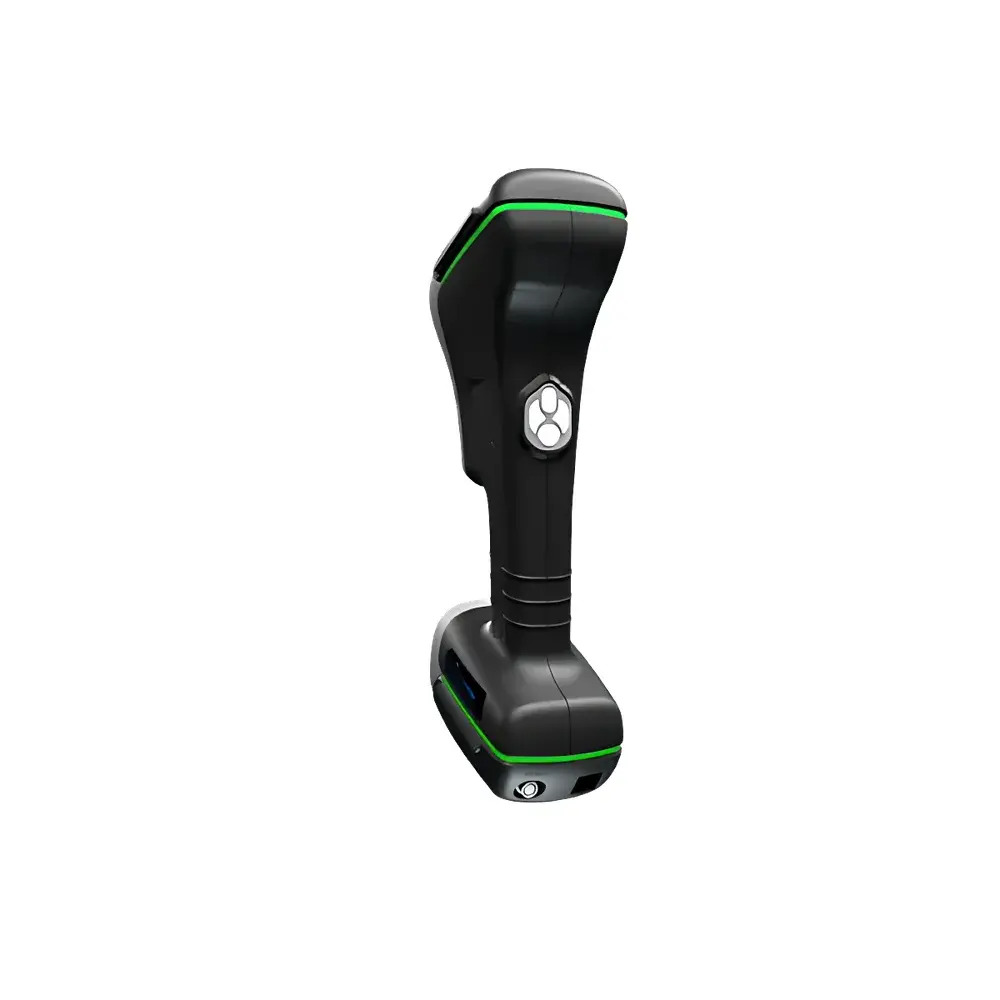

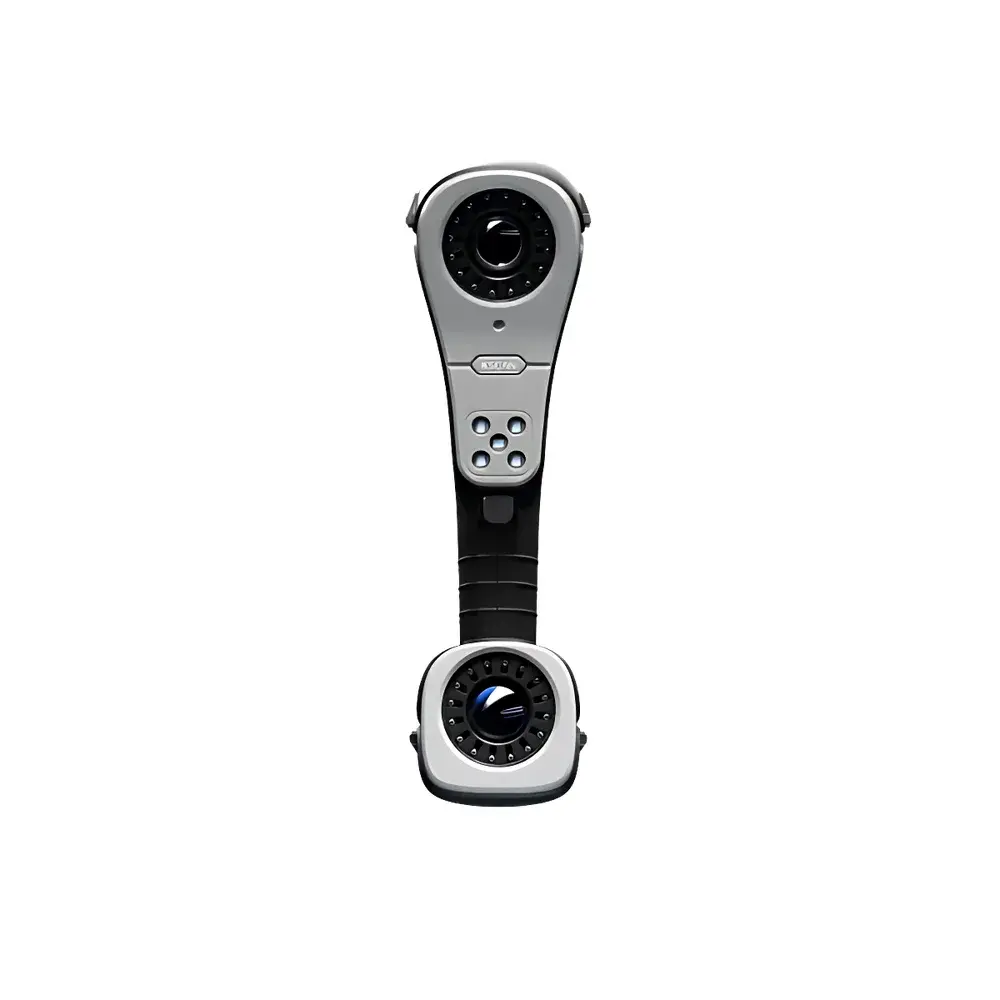

Scantech KSCAN-Magic Series Hybrid Metrology-Grade 3D Laser Scanner
| Brand | Scantech |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Laser-Based 3D Scanner |
| Model | KSCAN-Magic |
| Measurement Speed | 4,150,000 measurements/sec |
| Scanning Accuracy | 0.020 mm |
| Resolution | 0.010 mm |
| Maximum Scan Area | 1440 mm × 860 mm |
| Laser Class | Class II (Eye-Safe) |
| Built-in Photogrammetry System | Standard |
| Volumetric Accuracy | 0.015 mm + 0.030 mm/m (with 1 m high-precision reference bar) |
| Output Formats | STL, PLY, OBJ, IGS, WRL, XYZ, DAE, FBX, MA, ASC |
| Interface | USB 3.0 |
| Operating Temperature | −10 °C to 40 °C |
Overview
The Scantech KSCAN-Magic Series Hybrid Metrology-Grade 3D Laser Scanner represents a paradigm shift in non-contact optical metrology. Engineered for precision engineering and quality assurance applications, it integrates dual-wavelength laser architecture—specifically infrared (IR) parallel lasers and blue semiconductor lasers—within a single, unified sensor head. This hybrid design enables simultaneous optimization of field-of-view, depth-of-field, resolution, and measurement fidelity across diverse surface geometries and material reflectivities. Unlike conventional single-mode scanners, the KSCAN-Magic operates on four fundamental optical principles: structured-light triangulation (for blue-laser modes), active stereo photogrammetry (via its integrated global imaging system), IR-based wide-area fringe projection, and adaptive single-line profiling for occluded regions. Its metrological traceability is validated per ISO/IEC 17025-accredited procedures aligned with VDI/VDE 2634 Part 3 and JJF 1951 standards—ensuring compliance with dimensional verification requirements in aerospace, automotive, tooling, and medical device manufacturing.
Key Features
- Hybrid dual-laser architecture: Combines Class II eye-safe infrared parallel lasers (for large-area coverage up to 1440 mm × 860 mm) and high-stability blue semiconductor lasers (for high-resolution scanning down to 0.010 mm point spacing).
- Five configurable scanning modes: IR-wide-area mode, blue-crossline high-speed mode (up to 4.15M pts/sec), blue-parallel fine-detail mode, single-blue-line deep-cavity mode, and integrated photogrammetric referencing mode.
- Built-in global photogrammetry system: Enables automatic scale calibration and volumetric error compensation without external targets; supports full-volume accuracy of 0.015 mm + 0.012 mm/m when paired with the optional MSCAN-L15 photogrammetry station.
- Metrology-grade volumetric performance: Certified volumetric accuracy of 0.015 mm + 0.030 mm/m (per VDI/VDE 2634 Part 3), validated in an ISO/IEC 17025-accredited laboratory environment.
- Modular expandability: Optional K-Probe contact probe (60 Hz tracking frequency, 0.030 mm single-point repeatability) and intelligent boundary detection module enable hybrid contact/non-contact workflows compliant with ASME B89.4.22 and ISO 10360-8 protocols.
Sample Compatibility & Compliance
The KSCAN-Magic accommodates a broad spectrum of industrial components—from turbine blades and composite airframe sections to injection-molded plastic housings and orthopedic implants—without requiring surface preparation or developer spray under typical ambient lighting conditions. Its Class II laser classification ensures operator safety during routine operation, eliminating the need for interlocked enclosures or laser safety officers in most production-floor deployments. The system complies with electromagnetic compatibility (EMC) directives per EN 61326-1:2013 and meets RoHS 2011/65/EU environmental requirements. For regulated industries, raw point cloud data and mesh exports support audit-ready traceability when used with validated software configurations adhering to FDA 21 CFR Part 11 and EU Annex 11 principles—including electronic signatures, change control logs, and data integrity safeguards.
Software & Data Management
Scantech’s proprietary PolyWorks-compatible SDK and native ScanData Studio software provide full pipeline control—from real-time point cloud streaming and adaptive mesh generation to GD&T analysis, comparison against CAD nominal geometry, and automated report generation (PDF, HTML, XML). All data outputs conform to ASME Y14.5-2018 and ISO 1101 geometric tolerancing conventions. The software architecture supports deterministic timestamping, SHA-256 hash logging, and encrypted local storage—enabling GLP/GMP-aligned documentation practices. Export formats include industry-standard STL, PLY, OBJ, IGS, and ASCII XYZ, with optional plugins for direct integration into Siemens NX, CATIA V5, and Autodesk Fusion 360 environments.
Applications
- Aerospace: In-process inspection of wing ribs, engine casings, and composite layups; reverse engineering of legacy parts with no CAD history.
- Automotive: First-article inspection of Class-A surfaces, validation of die-cast components, and digital twin creation for production line simulation.
- Medical Devices: Dimensional verification of custom prosthetics, dental frameworks, and minimally invasive surgical instruments per ISO 13485 quality management systems.
- Energy & Heavy Industry: As-built surveying of piping networks, turbine blade erosion mapping, and deformation monitoring of pressure vessels under thermal load.
- Academic Research: High-fidelity digitization for computational fluid dynamics (CFD) meshing, biomechanical modeling, and heritage artifact preservation.
FAQ
What metrological standards validate the KSCAN-Magic’s accuracy claims?
Accuracy and volumetric performance are verified per ISO/IEC 17025-accredited test reports conducted in accordance with VDI/VDE 2634 Part 3 (for point-to-point distance errors) and JJF 1951 (for spatial deviation assessment). Calibration certificates include uncertainty budgets traceable to national metrology institutes.
Is photogrammetry functionality built-in or optional?
A fully integrated photogrammetry subsystem is standard on all KSCAN-Magic units, enabling automatic scale recovery and distortion correction without external cameras or target placement.
Can the scanner be used in controlled cleanroom environments?
Yes—the system operates within −10 °C to 40 °C and meets IP52 ingress protection specifications; optional filtered air purge kits are available for ISO Class 5–7 cleanrooms.
Does the system support automated inspection programming?
Via API access and PolyWorks|Inspector integration, users can script repeatable inspection routines—including feature extraction, tolerance evaluation, and pass/fail decision logic—with full revision control and audit trail logging.
What is the maximum working distance for deep-cavity scanning?
Using the dedicated single-blue-laser line mode, the system achieves stable acquisition at standoff distances up to 925 mm with a minimum focal depth of 2500 mm, enabling measurement of recessed features such as bolt holes, cooling channels, and internal gear teeth.
