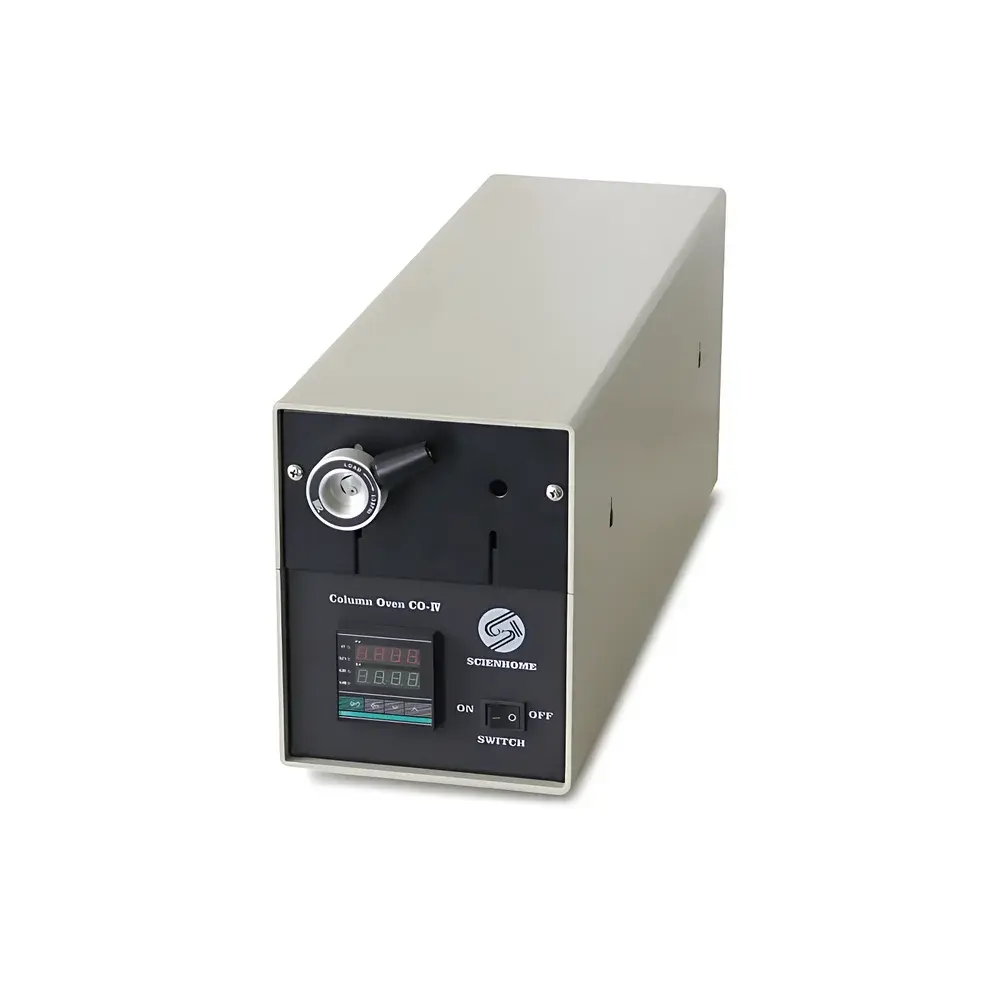

Scienhome CO-IV HPLC Column Oven

Overview

The Scienhome CO-IV HPLC Column Oven is a precision-engineered thermal management system designed specifically for high-performance liquid chromatography (HPLC) and ultra-high-performance liquid chromatography (UHPLC) applications. It maintains a stable, uniform thermal environment around analytical and preparative chromatographic columns—critical for minimizing retention time drift, preserving column efficiency, ensuring consistent peak shape, and improving inter- and intra-run reproducibility. Unlike ambient-conditioned setups, the CO-IV eliminates temperature gradients along the column axis by actively controlling heat distribution across the column body, inlet tubing, and integrated valve block. Its operation is based on resistive heating combined with advanced closed-loop thermal regulation, enabling precise isothermal conditions essential for method robustness in regulated environments such as pharmaceutical QC, environmental testing, and food safety laboratories.

Key Features

• Fuzzy Logic + PID Dual-Mode Temperature Control: Delivers rapid thermal equilibration and exceptional setpoint accuracy (±0.1°C at 50°C), with adaptive response to load changes and ambient fluctuations.
• Integrated Valve & Tubing Heating Zone: Extends thermal control beyond the column to include the injection valve and connecting capillaries—preventing cold spots and eliminating mobile-phase temperature stratification that compromises retention consistency.
• High Uniformity Thermal Chamber: Optimized airflow and heater placement ensure ≤±0.1°C deviation between column outlet, center, and inlet zones—verified per ASTM E2554 and ISO/IEC 17025 calibration guidelines.
• Over-Temperature Protection Circuitry: Independent hardware-based thermal cutoff prevents column degradation or stationary phase damage during extended operation or controller failure.
• Compact Benchtop Form Factor: Minimal footprint (440 × 170 × 140 mm) with front-accessible column loading and rear cable management—designed for seamless integration into existing HPLC racks and modular lab benches.
• Energy-Efficient Operation: Low-power 125 W consumption enables continuous 24/7 operation without excessive heat dissipation or facility cooling load.

Sample Compatibility & Compliance

The CO-IV accommodates standard stainless-steel and PEEK-packed analytical columns up to 250 mm length and 4.6 mm ID, including reversed-phase, HILIC, ion-exchange, and SEC configurations. Its internal chamber (350 × 44 × 45 mm) supports single-column or dual-column arrangements with optional bracket kits. The unit complies with IEC 61010-1:2010 for electrical safety in laboratory equipment and meets CE marking requirements for electromagnetic compatibility (EMC Directive 2014/30/EU). While not intrinsically certified for hazardous locations, its non-explosive design and absence of refrigerants make it suitable for general analytical labs operating under GLP and GMP frameworks. Temperature stability data are traceable to NIST-traceable reference thermometers and documented in accordance with FDA 21 CFR Part 11 audit trail requirements when paired with compliant LIMS or CDS software.

Software & Data Management

The CO-IV operates as a standalone analog-controlled oven with local digital display and tactile keypad interface—eliminating firmware dependencies and ensuring long-term operational reliability. Real-time temperature readout is continuously logged via RS-232 serial output (optional USB-to-serial adapter) for integration with third-party chromatography data systems (CDS) such as Thermo Chromeleon, Waters Empower, or Agilent OpenLab. Logged data includes timestamped setpoint, actual temperature, and status flags (e.g., heating active, overtemp alarm). All thermal records support CSV export for retrospective analysis, trending, and compliance reporting. No proprietary drivers or cloud connectivity are required—aligning with air-gapped lab infrastructure policies common in regulated pharmaceutical and clinical research settings.

Applications

• Method transfer and validation where column temperature is a critical process parameter (CPP)
• Retention time locking (RTL) protocols requiring sub-0.2°C thermal consistency across multiple instruments
• Temperature-dependent selectivity optimization in chiral separations and peptide mapping
• Long-duration gradient runs (>60 min) where ambient drift would otherwise induce baseline curvature
• QC release testing under pharmacopoeial monographs (USP , EP 2.2.46) mandating controlled column temperature
• Stability-indicating assays where small temperature shifts alter degradation product resolution

FAQ

Does the CO-IV support active cooling or refrigeration?
No. The CO-IV is a heating-only column oven. It maintains temperatures from ambient +5°C to 100°C and cannot sub-ambient cool.
Can it be used with UHPLC systems operating above 1000 bar?
Yes. The chamber design imposes no pressure constraints; compatibility depends solely on column hardware rating and fitting integrity.
Is calibration certificate included with shipment?
A factory calibration report (including verification at 30°C, 50°C, and 80°C) is provided. Full ISO/IEC 17025-accredited calibration is available upon request.
What is the maximum column length supported?
The internal chamber accommodates columns up to 250 mm in length with standard ferrule fittings. Extended-length brackets are available for 300 mm columns.
How is thermal uniformity verified across the column?
Uniformity is validated using three calibrated PT100 sensors positioned at inlet, center, and outlet zones under steady-state conditions per manufacturer’s SOP-TC-004.
