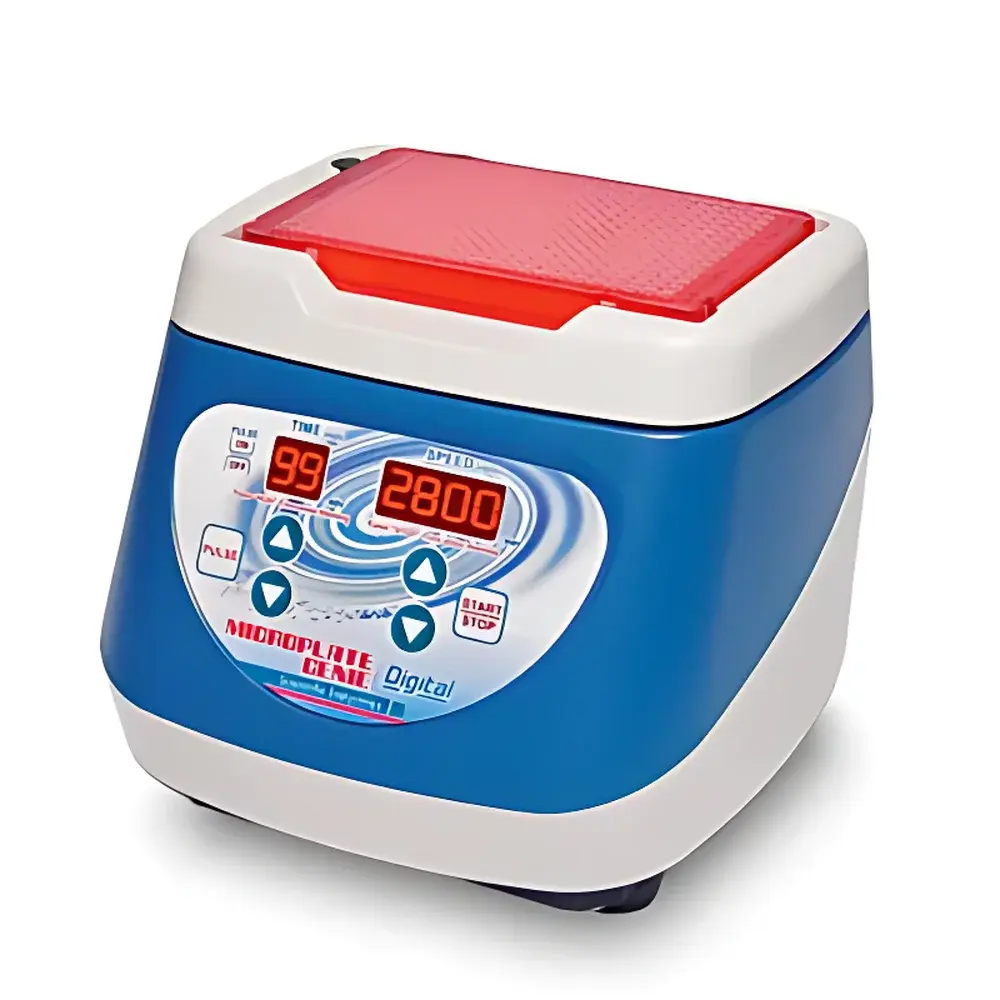

Scientific Industries Digital MicroPlate Genie Pulse Vortex Mixer

Overview

The Scientific Industries Digital MicroPlate Genie Pulse Vortex Mixer is a precision-engineered laboratory instrument designed specifically for consistent, low-thermal-impact mixing of samples in standard microplate formats. Unlike general-purpose vortex mixers, this device employs a controlled circular orbital motion with a fixed 1.0 mm orbit diameter—optimized to generate uniform shear across all wells simultaneously while minimizing convective heating. Its operation is grounded in reproducible mechanical agitation rather than turbulent fluid dynamics, making it especially suitable for temperature-sensitive applications such as enzyme reactions, nucleic acid hybridization, and pre-PCR sample homogenization. The unit is engineered for integration into high-throughput workflows where thermal stability, well-to-well consistency, and operator-defined timing precision are critical.

Key Features

• Programmable digital control interface with dual LED display for real-time monitoring of speed (rpm) and elapsed or remaining time
• Adjustable speed range from 500 to 3000 rpm, enabling optimization for low-viscosity buffers or higher-viscosity lysates and glycerol-based solutions
• Dedicated ON/REST cycling mode—user-definable pulse intervals from 0.1 seconds to 99 minutes—to actively limit cumulative thermal load during extended mixing protocols
• Passive ventilation architecture integrated into the cast iron chassis, facilitating natural convection cooling without fans or moving parts that could introduce vibration artifacts or maintenance requirements
• Rigid cast iron housing ensures mechanical stability, reduces resonance at high speeds, and provides long-term dimensional integrity under repeated loading cycles
• Universal microplate platform compatible with ANSI/SLAS-standard 96-well, 384-well, and full-skirted or semi-skirted PCR plates—including those with optical seals or adhesive films

Sample Compatibility & Compliance

The Genie Pulse supports all common microplate footprints defined by ANSI SLAS-1-2016 and ANSI SLAS-4-2016 standards. Its flat, low-profile platform accommodates plates with variable well depths (e.g., shallow PCR plates vs. deep-well storage plates) without requiring manual height adjustment. No plate clamping mechanism is used; instead, inertial coupling between the oscillating surface and plate base ensures secure engagement across speed ranges. The device complies with IEC 61010-1:2010 for electrical safety in laboratory equipment and meets RoHS 2 (2011/65/EU) material restrictions. While not classified as a medical device, its performance characteristics align with GLP-compliant sample preparation workflows where traceability of mixing parameters (speed, duration, pulse pattern) is required for audit readiness.

Software & Data Management

This is a standalone hardware instrument with no embedded firmware-based data logging or USB/Ethernet connectivity. All operational parameters are set locally via tactile membrane buttons and verified visually on the dual-segment LED display. For laboratories implementing electronic lab notebooks (ELNs) or LIMS integration, the Genie Pulse’s deterministic behavior—repeatable speed accuracy ±20 rpm, timer resolution ±0.1 s in pulse mode—enables robust protocol documentation without dependency on proprietary software. Users may record settings manually or via external timestamped video capture for SOP validation. The absence of network interfaces eliminates cybersecurity concerns associated with connected lab instruments, supporting air-gapped environments common in regulated QC/QA labs.

Applications

• Homogenization of enzymatic reaction mixtures prior to thermal cycling in qPCR and RT-qPCR workflows
• Resuspension of lyophilized reagents or cell pellets in multiwell format without cross-contamination risk
• Equilibration of immunoassay plates before ELISA plate reader measurement
• Pre-incubation mixing of magnetic bead-based nucleic acid purification protocols
• Uniform dispersion of nanoparticles or liposomal formulations across 96-well assay plates
• Low-shear blending of viscous protein solutions where centrifugal vortexing would induce foaming or denaturation

FAQ

Does the Genie Pulse support external triggering or TTL synchronization?
No. It operates exclusively via front-panel controls and does not feature input/output ports for external signal synchronization.
Can it accommodate deep-well plates (e.g., 2 mL capacity)?
Yes—provided the plate conforms to ANSI/SLAS footprint specifications and total height does not exceed 22 mm, which is the maximum clearance above the platform.
Is calibration certification available from the manufacturer?
Scientific Industries provides factory verification of speed and timer accuracy at time of shipment; formal ISO/IEC 17025 calibration services are available through authorized third-party metrology providers.
What maintenance is required?
None beyond periodic wiping of the platform surface with isopropyl alcohol; the brushless drive motor and sealed bearing assembly are rated for >20,000 hours of continuous operation.
How does the ON/REST mode differ from conventional intermittent operation?
ON/REST enables sub-second pulse resolution (down to 0.1 s), allowing precise thermal duty-cycle management—critical when mixing heat-labile enzymes or thermosensitive dyes.
