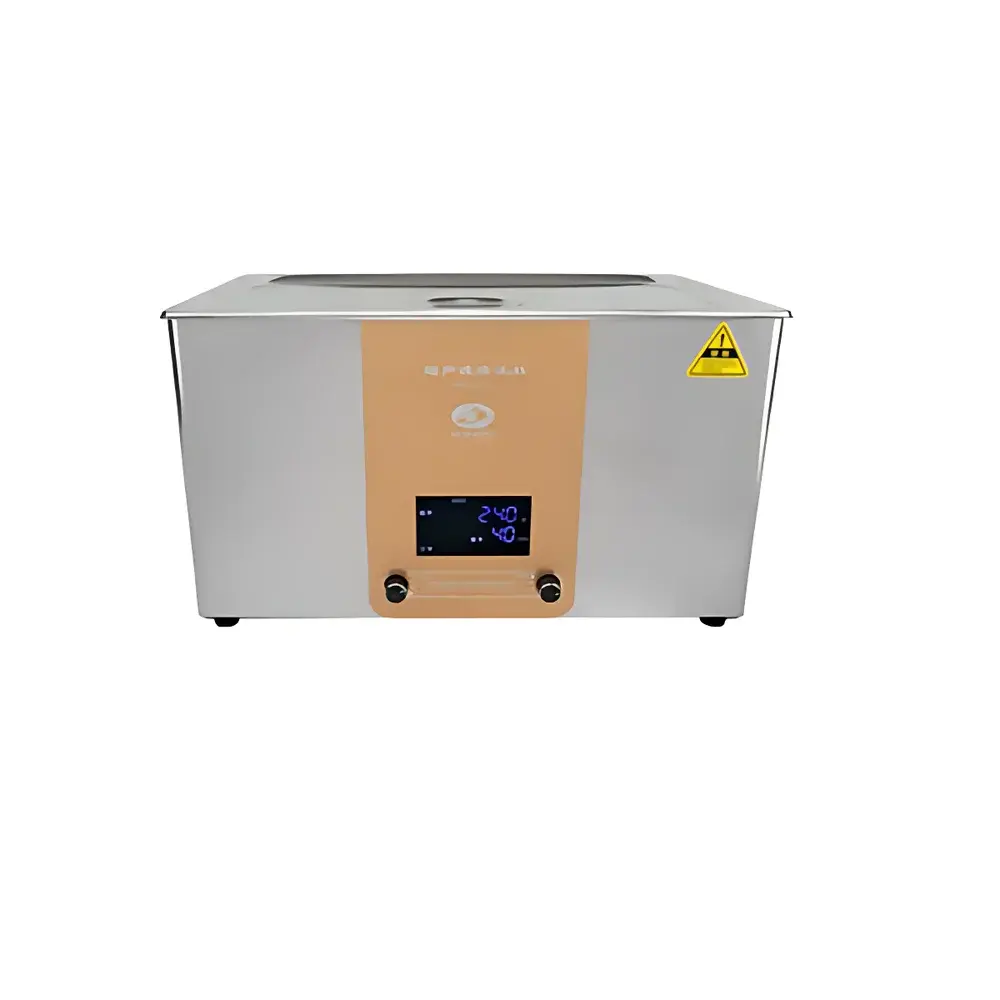

Scientz SB25-12D Digital Ultrasonic Cleaner

Overview

The Scientz SB25-12D Digital Ultrasonic Cleaner is an industrial-grade benchtop cleaning system engineered for precision and reproducibility in laboratory, quality control, and light manufacturing environments. It operates on the principle of acoustic cavitation: high-frequency ultrasonic energy (40 kHz) is transmitted via piezoelectric transducers bonded to the tank base, generating controlled microbubble formation and implosive collapse within the cleaning medium. This transient cavitation produces localized shockwaves and intense microstreaming—mechanical forces capable of dislodging particulate contaminants, organic residues, oils, and biofilms from complex geometries including blind holes, narrow lumens, and textured surfaces—without mechanical abrasion or thermal degradation. Designed for consistent performance across extended duty cycles, the SB25-12D integrates a robust stainless steel tank (500 × 300 × 150 mm internal dimensions), sealed transducer assembly, and thermally stable power supply architecture compliant with IEC 61000-3-2 harmonic emission standards.

Key Features

• Digital timer with precise 1–999 minute programmable range and real-time countdown display; retains set parameters after power interruption (non-volatile memory)
• 600 W nominal ultrasonic output delivered at 40 kHz—optimized for general-purpose cleaning of glassware, metal components, and polymer substrates
• Full stainless steel construction: AISI 304 inner tank, reinforced outer shell, and integrated sound-dampening lid for operator safety and ambient noise reduction
• Integrated drain valve with quick-connect fitting enables safe, residue-free fluid evacuation—critical for solvent-based or hazardous cleaning protocols
• Over-temperature and over-current protection circuits ensure continuous operation under variable load conditions and prevent transducer overheating
• Front-panel LED display provides intuitive status feedback for time remaining, active mode, and fault indicators (e.g., low liquid level, thermal cutoff)

Sample Compatibility & Compliance

The SB25-12D accommodates a broad spectrum of sample types and cleaning chemistries. Its 22.5 L capacity supports standard laboratory glassware (volumetric flasks, centrifuge tubes, Petri dishes), surgical instruments (scalpels, forceps, endoscope components), optical elements (lens assemblies, quartz cuvettes), and precision-engineered parts (fuel injectors, watch mechanisms, MEMS devices). Compatible with aqueous alkaline, neutral, and acidic solutions—as well as low-boiling-point solvents (e.g., isopropanol, acetone)—when used in ventilated enclosures per OSHA 1910.1200 guidelines. The unit meets CE marking requirements for electromagnetic compatibility (EMC Directive 2014/30/EU) and low-voltage safety (LVD Directive 2014/35/EU). While not certified for ISO 13485 medical device manufacturing, its design supports GLP-compliant documentation workflows when paired with external audit-trail-capable lab management software.

Software & Data Management

The SB25-12D is a standalone hardware platform with no embedded firmware-based data logging or network connectivity. All operational parameters—including elapsed time, total cycle count, and user-initiated start/stop events—are retained locally via EEPROM. For regulated environments requiring electronic records, integration with third-party laboratory information management systems (LIMS) is achievable through optional RS-232 or USB-to-serial adapters (sold separately), enabling timestamped export of session metadata. When deployed in FDA-regulated settings (e.g., pharmaceutical QC labs), users may implement procedural controls—such as written SOPs referencing timer calibration intervals (per ASTM E1938-22), periodic verification of cavitation uniformity using aluminum foil test (per ISO 13068-1), and documented maintenance logs—to satisfy 21 CFR Part 11 data integrity expectations.

Applications

• Routine decontamination of volumetric glassware, pipette tips, and filtration apparatus prior to analytical use (e.g., HPLC, ICP-MS)
• Preparation of metallographic samples and removal of polishing compounds from metallurgical specimens
• De-gassing of mobile phase solvents and buffer solutions to eliminate air bubbles affecting chromatographic baseline stability
• Cleaning of reusable surgical tools in hospital central sterile supply departments (CSSD), following AAMI ST79:2023 water quality and exposure time recommendations
• Surface preparation of semiconductor wafers and photomasks prior to thin-film deposition or lithography steps
• Restoration of optical clarity in microscope objectives and interferometric optics contaminated with hydrocarbon films or dust agglomerates

FAQ

What is the recommended cleaning solution for general laboratory glassware?
Aqueous alkaline detergents (e.g., Alconox® or Liquinox®) at 1–2% concentration, heated to 40–50 °C, provide optimal soil removal while minimizing corrosion risk to stainless steel tanks and glass surfaces.
Can the SB25-12D be used with flammable solvents?
No—this model lacks explosion-proof certification. Solvent use requires external ventilation hoods and intrinsically safe alternatives (e.g., Scientz SB-800D with optional explosion-proof option).
How often should cavitation performance be verified?
Per ISO 13068-1, perform aluminum foil erosion testing weekly for critical applications or after any transducer servicing.
Is the timer resolution adjustable in seconds or minutes?
The timer is configurable in 1-minute increments only; sub-minute precision is not supported by the current firmware.
Does the unit include a heater?
No—the SB25-12D is a non-heating model. Temperature-controlled cleaning requires the SB25-12DT variant or external water bath integration.
