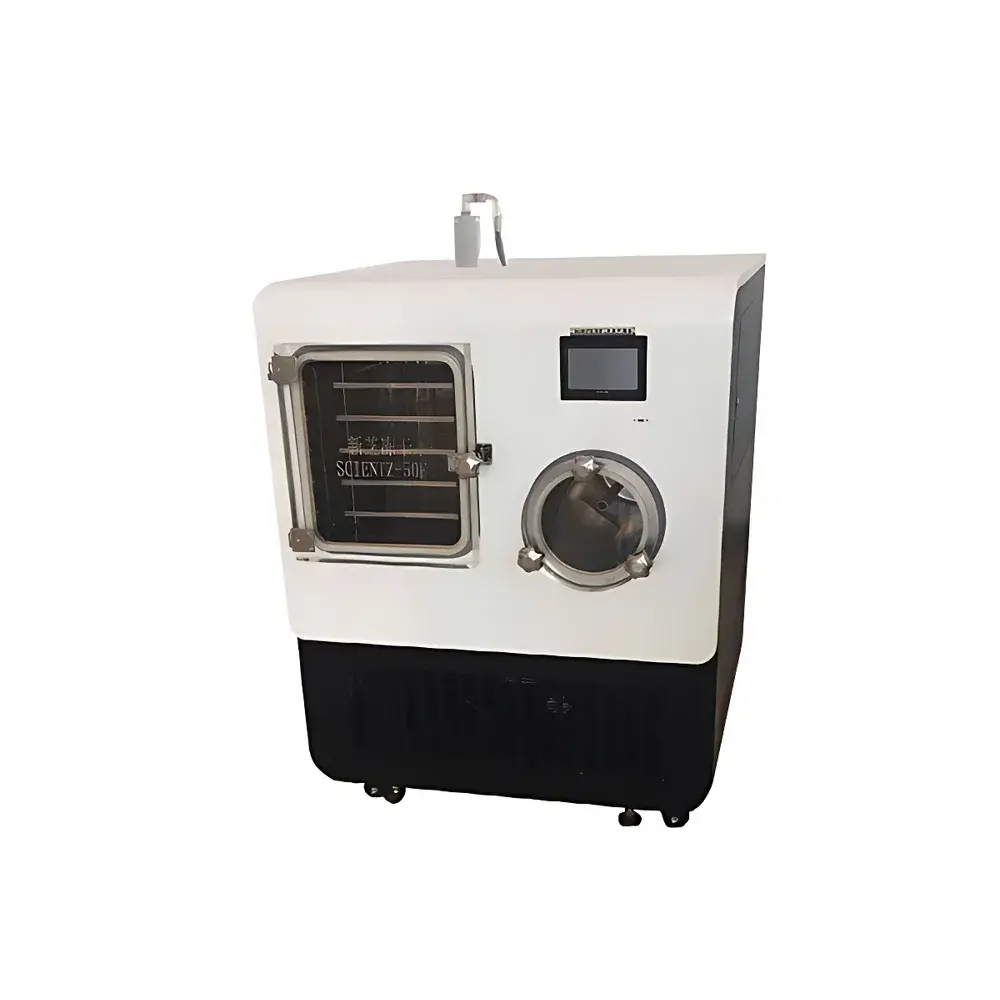

Scientz SCIENTZ-50F/B Pilot-Scale In-Situ Shelf Freeze Dryer with Hydraulic Stoppering and Silicone Oil Heating

Overview

The Scientz SCIENTZ-50F/B is a pilot-scale, in-situ shelf freeze dryer engineered for precise, reproducible lyophilization of thermally sensitive biologicals, pharmaceuticals, and high-value research materials. It operates on the principle of sublimation under deep vacuum—where frozen water transitions directly from solid to vapor without passing through the liquid phase—preserving structural integrity, bioactivity, and chemical fidelity of labile compounds. Unlike conventional air-cooled or electric-heated systems, this model integrates silicone oil as the thermal transfer medium for shelf heating and cooling, enabling high-fidelity temperature control across all process stages: pre-freezing, primary drying (sublimation), and secondary drying (desorption). Its dual-stage cascade refrigeration system achieves cold trap temperatures down to −70 °C (no load), ensuring efficient vapor capture and minimizing backstreaming during extended cycles. Designed for scalability from R&D to small-batch GMP-compliant production, the SCIENTZ-50F/B supports method development, cycle optimization, and regulatory documentation workflows required by ISO 13485, USP <1211>, and FDA 21 CFR Part 11 environments.

Key Features

• Silicone oil heating system delivering ±1 °C shelf temperature uniformity (RA ≤ 0.5 µm surface finish) and programmable ramp/soak profiles for controlled ice nucleation and drying kinetics
• Hydraulic stoppering mechanism compatible with 2R–30R vials, enabling sterile closure under vacuum without manual intervention or glovebox dependency
• Industrial-grade PLC controller with 7-inch full-color touchscreen interface, supporting up to 40 customizable protocols (each with up to 40 temperature/vacuum/time segments)
• Real-time data logging of shelf temperature, product temperature (via optional Pt100 probes), vacuum pressure, and cold trap temperature—with automatic backup on power interruption
• Dual-chamber architecture featuring corrosion-resistant stainless steel cold trap with external coil design for rapid defrosting and simplified cleaning
• Integrated vacuum regulation via precision micro-adjustment valve and optional auto-differential pressure valve to prevent pump oil backflow
• GMP-ready audit trail functionality including user-level access control (admin/operator/technician), electronic signatures, and U-disk export for offline review and 21 CFR Part 11 compliance validation

Sample Compatibility & Compliance

The SCIENTZ-50F/B accommodates diverse sample formats—including serum vials, glass flasks, Petri dishes, and custom trays—making it suitable for lyophilizing proteins, monoclonal antibodies, viral vectors, probiotics, herbal extracts, nanomaterial dispersions, and environmental matrices (e.g., soil, sludge, wastewater solids). Its inert chamber surfaces and low-particulate vacuum path meet requirements for GLP and GMP applications. All critical process parameters are traceable and exportable in CSV format, facilitating alignment with ISO 20387 (biobanking), ASTM F2476 (lyophilizer qualification), and EU Annex 15 (qualification and validation). Optional co-located lyo-monitoring tools—such as capacitance manometers, Pirani gauges, and tunable diode laser-based moisture analyzers—can be integrated for enhanced process analytical technology (PAT) readiness.

Software & Data Management

The embedded control software provides intuitive manual and automated operation modes, with real-time graphical display of all active parameters. Historical batch records include timestamps, operator IDs, alarm logs, and deviation annotations. Data persistence is ensured via non-volatile memory and optional UPS integration. Protocols can be duplicated, versioned, and transferred via USB drive for cross-site consistency. For enterprise-level deployment, the system supports Modbus TCP communication for integration into MES or LIMS platforms. Remote monitoring is available via optional web-enabled module compliant with TLS 1.2 encryption and role-based authentication.

Applications

This freeze dryer serves academic laboratories conducting formulation studies on biologics and vaccines; contract development and manufacturing organizations (CDMOs) scaling lyophilized dosage forms; national institutes performing microbial strain preservation (ATCC-style); environmental labs preparing certified reference materials from contaminated soils; and food science departments developing nutrient-retentive functional ingredients. Its robust thermal management enables reliable processing of challenging formulations—such as high-viscosity polymer solutions, low-eutectic-point excipients, or multi-phase suspensions—where precise shelf temperature ramping is essential to avoid collapse or melt-back.

FAQ

What is the maximum batch size supported by the SCIENTZ-50F/B?

The unit supports up to 10 kg of ice per 24-hour cycle, corresponding to approximately 15–20 L of aqueous solution depending on solute concentration and container geometry.

Can the system be validated for GMP use?

Yes—the hardware architecture, data integrity features, and configurable audit trail comply with FDA 21 CFR Part 11 and EU Annex 11 requirements. IQ/OQ/PQ documentation templates are available upon request.

Is pre-freezing required before loading samples?

No—its integrated shelf freezing capability allows in-situ freezing at rates controllable between −1 °C/min and −10 °C/min, eliminating reliance on external ultra-low temperature freezers.

What vacuum pump options are recommended?

Scientz-supplied corrosion-resistant scroll pumps (oil-free) or dual-stage rotary vane pumps with acid gas filtration are standard; optional nitrogen purge and oil mist filtration kits enhance longevity in aggressive solvent applications.

Does the system support PAT integration?

Yes—RS485 and Ethernet ports enable connection to third-party sensors (e.g., NIR, Raman, or tunable diode laser spectrometers) for real-time endpoint detection and dynamic cycle adjustment.
