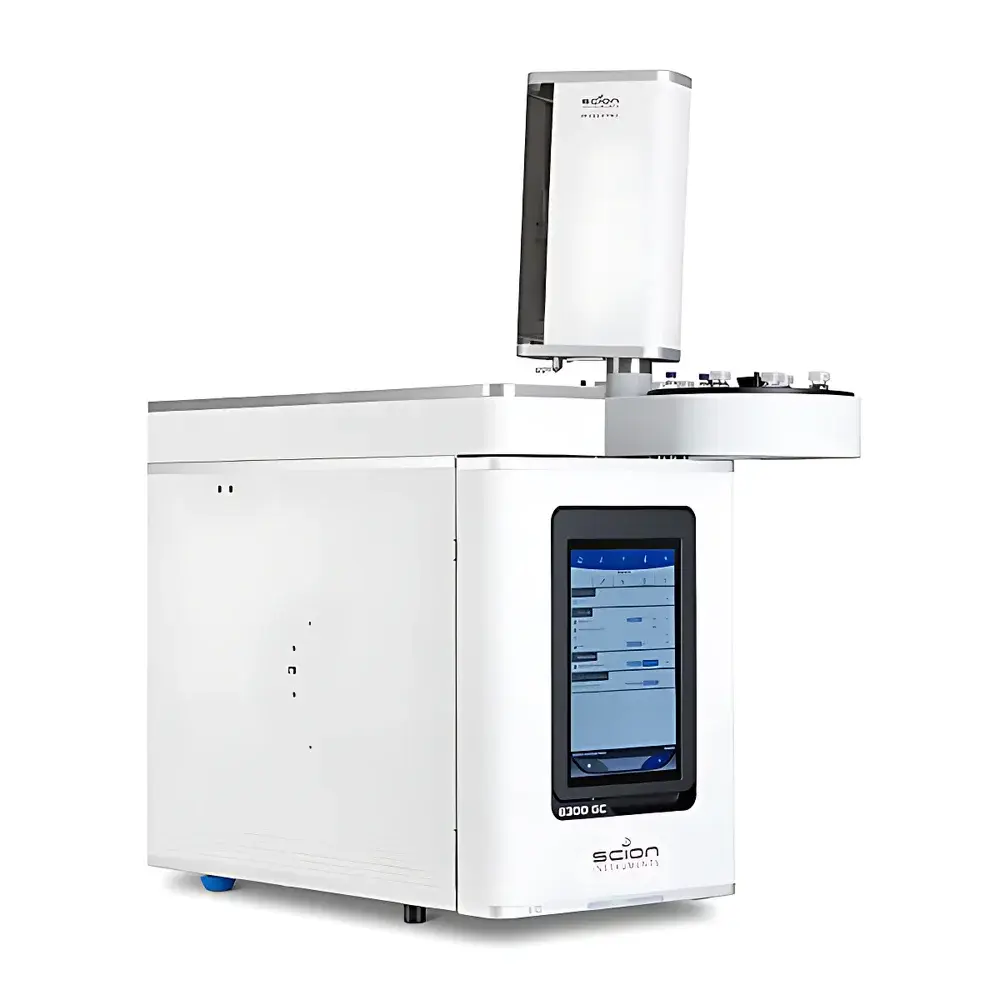

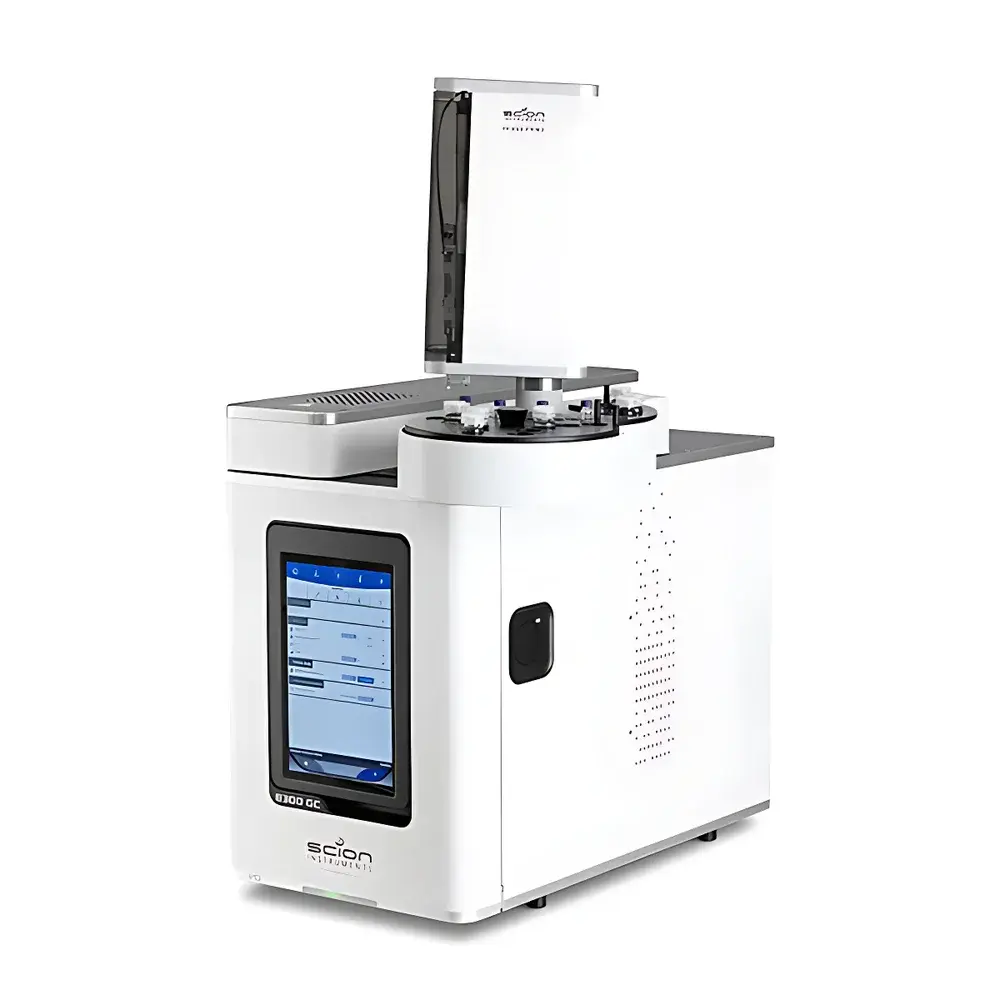

SCION 8300-GC Gas Chromatograph by Thermo Fisher Scientific (formerly Varian/Brüker heritage)

Overview

The SCION 8300-GC is a high-performance, modular laboratory gas chromatograph engineered for precision, robustness, and operational flexibility in regulated and research-intensive environments. Built upon the legacy of Varian and Bruker GC technology—now refined and manufactured by SCION Instruments in the Netherlands—the system implements advanced electronic pressure and flow control (EPC/EFC) architecture across all pneumatic modules. Its core measurement principle relies on differential separation of volatile and semi-volatile analytes within a temperature-programmable capillary column, followed by selective detection via compatible detectors (FID, TCD, ECD, NPD, or mass spectrometric interfaces). Designed for compliance-critical workflows, the 8300-GC supports full audit trail generation, method versioning, and instrument state logging aligned with GLP, GMP, and FDA 21 CFR Part 11 requirements when paired with validated software.

Key Features

• Full electronic pneumatic control (EFC) with pressure resolution down to 0.001 psi—ensuring exceptional retention time stability and inter-run reproducibility (RSD < 0.05% for retention time under optimized conditions)
• High-speed thermal management: oven ramp rates up to 170 °C/min and cooling rates up to 150 °C/min enable rapid cycle times without compromising column conditioning integrity
• Modular inlet configuration supporting up to two independently controlled injectors (split/splitless, PTV, or cool-on-column), each rated to 450 °C and programmable over 0–150 psi pressure and 0–1500 mL/min total flow

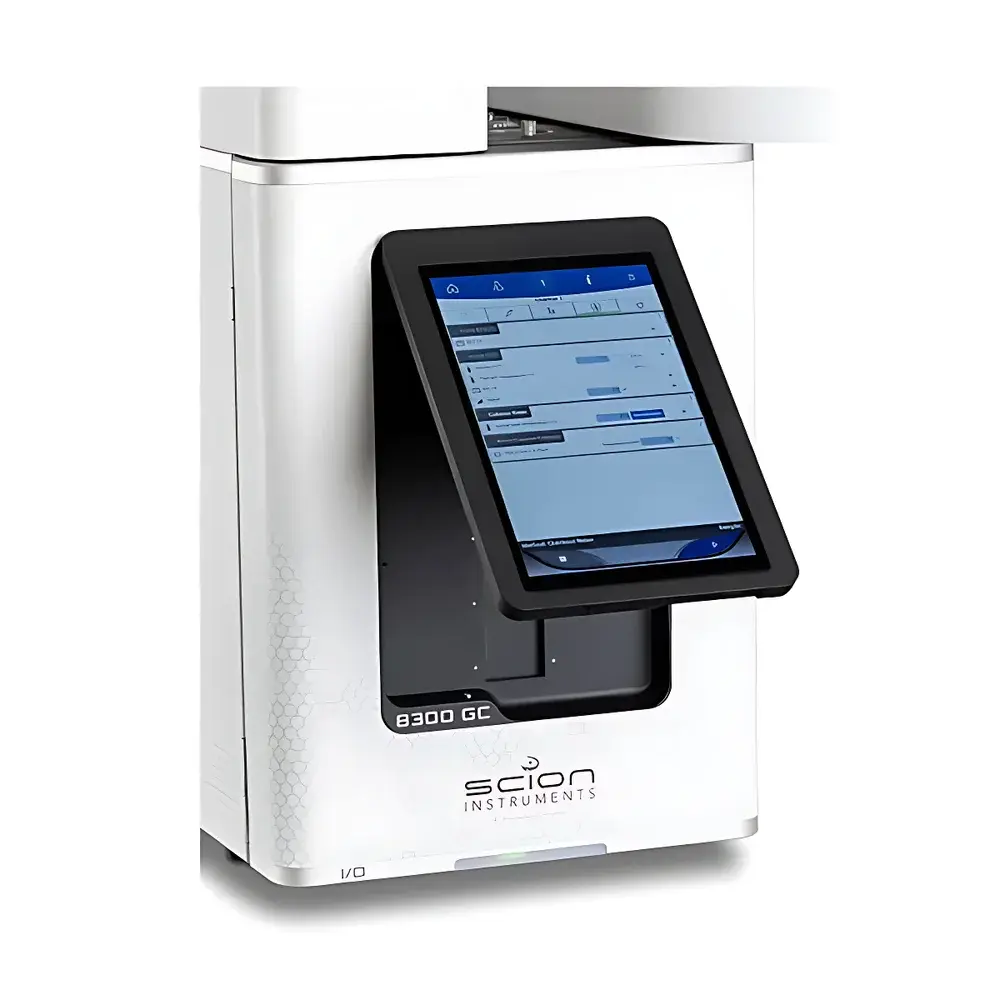

• Integrated 10-inch full-color capacitive touchscreen interface with support for 16 languages—including English, German, French, Spanish, Chinese, Japanese, and Korean—enabling intuitive local operation without external PC dependency
• Advanced valve switching architecture enabling comprehensive multidimensional GC (GC×GC) and heart-cutting configurations; all valve timing and actuation parameters are fully programmable within method files
• Rugged mechanical design compliant with IEC 61000-4 electromagnetic compatibility standards and CE marking for laboratory installation in EU and global markets

Sample Compatibility & Compliance

The SCION 8300-GC accommodates a broad spectrum of sample matrices—liquid, gaseous, and thermally stable solid extracts—when introduced via standard autosamplers (e.g., CTC PAL, Gerstel MPS) or manual syringe injection. It meets ASTM D3606 (benzene/toluene in gasoline), ASTM D1319 (hydrocarbon types), ISO 11843-7 (detection capability estimation), and USP (chromatography) guidelines. All firmware and embedded control logic undergo periodic validation per IQ/OQ protocols; system suitability testing (SST) parameters—including plate count, tailing factor, resolution, and %RSD of peak area—are automatically calculated and reportable. Data integrity safeguards include electronic signatures, user role-based access control (RBAC), and immutable audit trails traceable to individual analyst, timestamp, and instrument event.

Software & Data Management

The instrument operates natively with SCION ChromaLink™ software—a Windows-based platform validated for 21 CFR Part 11 compliance. ChromaLink features IntelliUpdate™, an algorithm-driven retention time adjustment engine that dynamically corrects for minor column aging or ambient drift without manual re-injection. The software supports plug-in modules for specialized applications: Simulated Distillation (SimDis), Detailed Hydrocarbon Analysis (DHA), PIONA quantification, residual solvent profiling (ICH Q3C), and pesticide screening (QuEChERS workflow integration). Raw data (.cdf) and processed reports are exportable in PDF/A-1a, CSV, and XML formats. Network deployment supports centralized instrument monitoring, remote diagnostics, and scheduled backup to secure NAS or LIMS-integrated storage.

Applications

• Petrochemical analysis: Simulated distillation (ASTM D2887/D7169), refinery gas composition (ASTM D1945), detailed hydrocarbon analysis (DHA), gasoline oxygenates (ASTM D4815), and PIONA group-type quantification
• Food safety: Multi-residue pesticide screening (EN 15662), flavor volatiles profiling in fermented beverages (ISO 11019), food contact material migration testing (EU 10/2011), and ethanol quantification
• Environmental monitoring: EPA Method 8260D (VOCs in water), TO-14/TO-15 (ambient air carbonyls), and SW-846 8021B (halogenated organics in soil)
• Pharmaceutical & biotech: Residual solvent analysis per ICH Q3C, extractables/leachables profiling (USP ), and herbal active constituent quantification (e.g., eugenol, camphor, thymol)

FAQ

Does the SCION 8300-GC support hyphenated techniques such as GC-MS?
Yes—the system includes dedicated MS interface hardware (7890/5977-compatible transfer line, vacuum lockout interlock, and timed event synchronization) and supports direct integration with Thermo ISQ, Agilent 5977, or Shimadzu QP2020NX mass spectrometers.
Is method transfer possible from legacy Varian or Agilent GC platforms?
Method translation tools are embedded in ChromaLink™, enabling automated conversion of temperature programs, pressure ramps, and detector settings from common vendor formats (e.g., .msl, .agilent) with empirical correction factors applied during validation.
What regulatory documentation is provided with the instrument?
Each unit ships with Factory Acceptance Test (FAT) report, Certificate of Conformance (CoC), CE Declaration of Conformity, RoHS statement, and complete set of IQ/OQ protocol templates pre-validated for GxP environments.
Can the 8300-GC be operated remotely via network?
Yes—via secure HTTPS-enabled web interface or ChromaLink™ Remote Client, allowing real-time monitoring, method upload, run initiation, and alarm notification across VLAN-segmented lab networks.
Is service and technical support available outside the Netherlands?
SCION maintains certified service partners in over 40 countries, with spare parts logistics hubs in Singapore, Houston, and Frankfurt; all field engineers hold ISO/IEC 17025-accredited calibration training.
