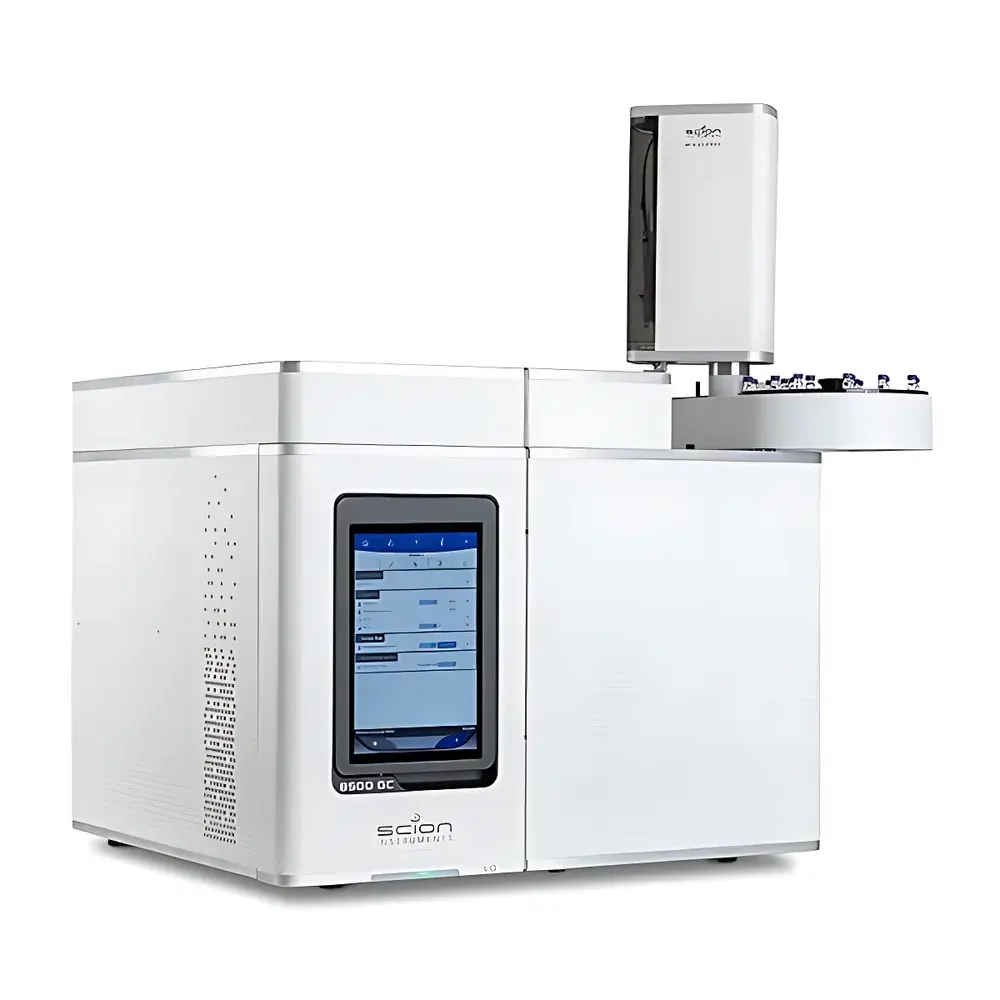

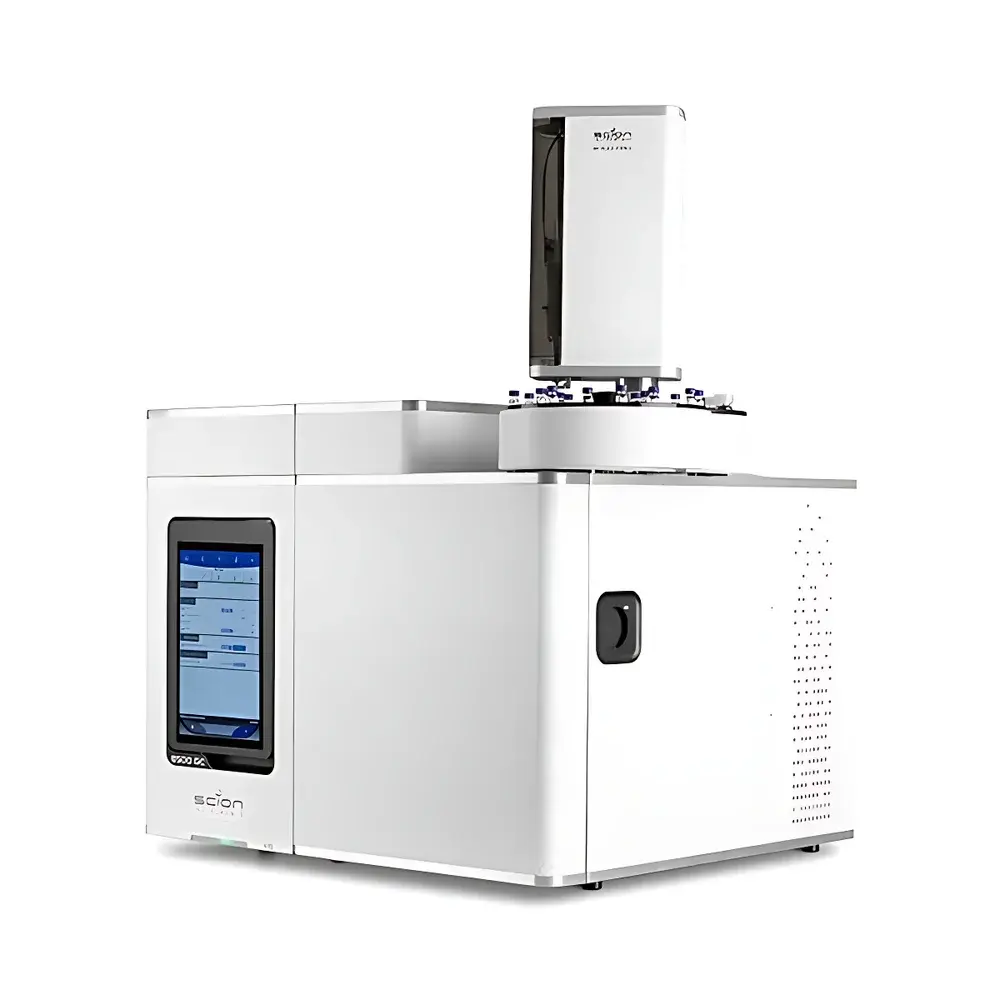

Scion 8500-GC Gas Chromatograph

Overview

The Scion 8500-GC is a high-performance, laboratory-grade gas chromatograph engineered for precision, robustness, and operational flexibility in regulated and research-intensive environments. Built upon the legacy of Varian and Bruker GC platform innovations—now refined under Scion’s independent development in the Netherlands—the instrument employs classic capillary gas chromatography principles grounded in controlled carrier gas flow dynamics, precise thermal programming, and reproducible sample introduction. Its core architecture supports both isothermal and programmable temperature ramping across a wide thermal envelope (ambient to 450 °C), enabling rigorous method development for volatile and semi-volatile organic compounds. Designed for compliance-ready operation, the 8500-GC integrates hardware-level traceability features compatible with GLP, GMP, and ISO/IEC 17025 workflows.

Key Features

• Full electronic pressure and flow control (EPC/EFC) with 0.001 psi pressure resolution, ensuring exceptional retention time stability and inter-run reproducibility.
• High-speed thermal management: 170 °C/min heating rate and 150 °C/min cooling rate, significantly reducing cycle times without compromising column integrity or baseline stability.
• Modular configuration support: Up to three independently controllable inlet ports (including split/splitless, PTV, and cool-on-column options) and four detector bays, with native integration capability for mass spectrometric detection (e.g., single-quadrupole MS).
• 10-inch full-color capacitive touchscreen interface supporting 16 language localizations, real-time system status monitoring, hardware diagnostics, and embedded maintenance guidance aligned with ISO 9001 service documentation standards.
• Advanced valve switching architecture enabling comprehensive multidimensional GC (GC×GC) and heart-cutting configurations—fully configurable via software-defined event sequencing.

Sample Compatibility & Compliance

The Scion 8500-GC accommodates a broad spectrum of sample matrices—including gaseous, liquid, and solid-phase extracts—when coupled with appropriate inlet systems (e.g., headspace autosamplers, purge-and-trap modules, or thermal desorption units). All thermal zones (oven, inlets, detectors) maintain ±0.1 °C temperature accuracy per ASTM E1510 and IEC 61000-4-30 specifications. The instrument complies with key regulatory frameworks including USP , EP 2.2.27, and ISO 17025 clause 5.4.2 for analytical instrument qualification. Audit trail functionality, user access controls, and electronic signature support align with FDA 21 CFR Part 11 requirements when deployed with compliant chromatography data systems (CDS).

Software & Data Management

Control and data acquisition are managed through Scion’s proprietary ChromaTec™ software suite—a Windows-based platform validated for IQ/OQ/PQ protocols. It features IntelliUpdate™, an algorithm-driven retention time adjustment engine that dynamically recalibrates peak identification during method transfer or column aging. The software supports customizable report templates compliant with LIMS interfaces (ASTM E1482, HL7), raw data export in open formats (e.g., .cdf, .csv), and secure database archiving with SHA-256 hashing. Optional modules include EPA Method 8260/8270 compliance packs, residual solvent quantitation wizards (ICH Q2(R2)), and automated calibration curve validation per CLSI EP28-A3c guidelines.

Applications

• Petrochemical Analysis: Simulated distillation (ASTM D2887), detailed hydrocarbon analysis (DHA), PIONA profiling, oxygenate determination in gasoline (ASTM D4815), and natural gas composition (ISO 6974).
• Food & Beverage Safety: Multi-residue pesticide screening (EN 15662), flavor compound profiling in fermented beverages (ISO 11021), and migration testing of packaging migrants (EU 10/2011).
• Environmental Monitoring: VOC analysis in water (EPA 524.2, 624), ambient air toxics (TO-15), and leachate screening from landfill waste (EPA 8260D).
• Pharmaceutical & Biotech: Residual solvent quantification (ICH Q3C), active pharmaceutical ingredient (API) purity assessment, and herbal extract fingerprinting per Chinese Pharmacopoeia monographs.

FAQ

Is the Scion 8500-GC compatible with third-party mass spectrometers?
Yes—its analog and digital detector outputs conform to IEEE 488.2 (GPIB) and RS-232/USB virtual COM port standards, enabling seamless integration with most benchtop single-quadrupole and triple-quadrupole MS systems.

Does the instrument support unattended operation for overnight runs?
Absolutely—the system supports up to 999 sequence steps with auto-shutdown, leak detection alerts, and real-time column bleed monitoring; all events are logged with timestamps and user IDs for audit readiness.

What validation documentation is provided with the system?
Each unit ships with a Factory Acceptance Test (FAT) report, Certificate of Conformance (CoC), and IQ/OQ protocol templates pre-aligned with ASTM E2500 and Annex 11 expectations.

Can the software be configured for multi-user role-based access?
Yes—ChromaTec™ implements hierarchical permissions (administrator, analyst, reviewer) with session lockout, password complexity enforcement, and 12-month audit trail retention by default.

Are consumables and service parts available globally?
Scion maintains authorized service centers in North America, EMEA, and APAC regions; all critical spares—including EPC modules, injector liners, and detector filaments—are stocked with ≤5 business day lead time under standard warranty terms.
