SDL MODEL 9001 Chlorophyll a Online Water Quality Analyzer

Overview

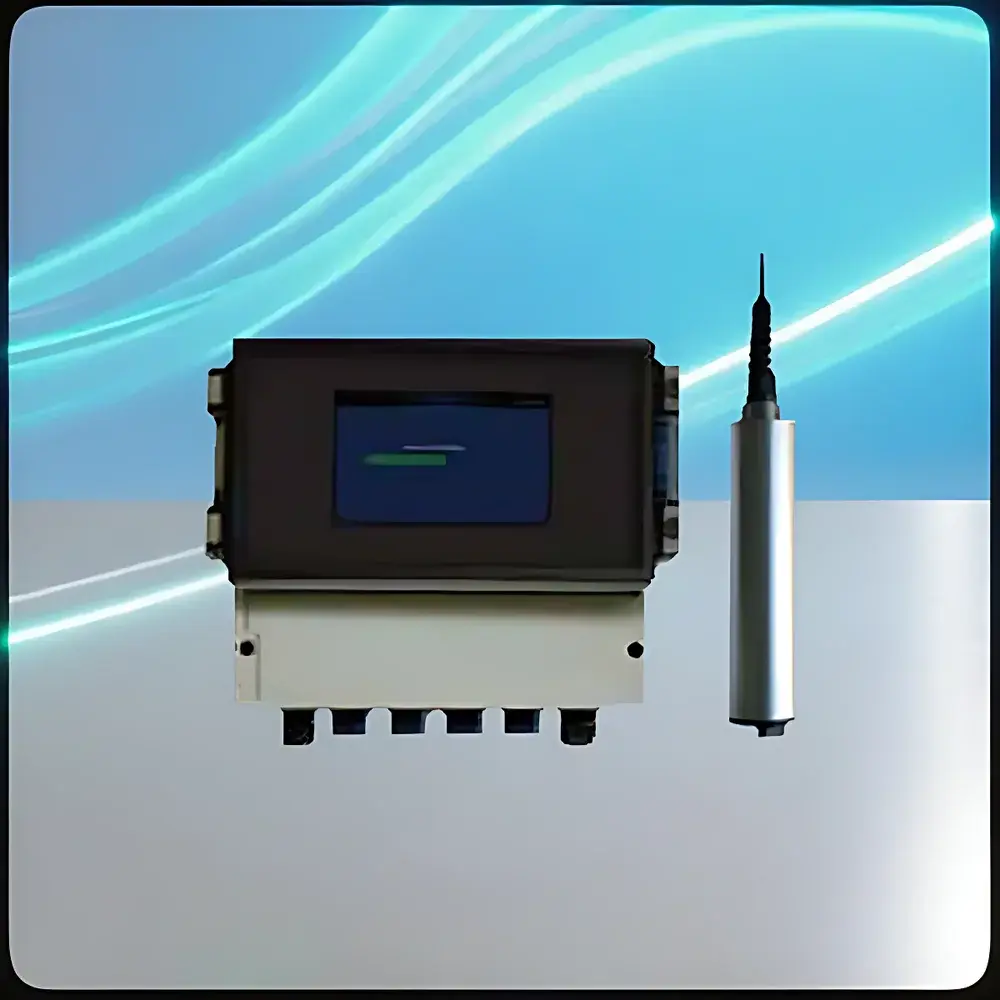

The SDL MODEL 9001 Chlorophyll a Online Water Quality Analyzer is an industrial-grade, submersible fluorescence-based sensor system engineered for continuous, unattended measurement of chlorophyll a concentration in natural freshwater environments. It operates on the principle of excitation-emission fluorometry: a high-intensity, temperature-stabilized LED emits light at 470 nm to excite chlorophyll a molecules within phytoplankton cells; the resulting red fluorescence emission near 685 nm is detected by a silicon photodiode with narrow-band optical filtering. This method provides high specificity for intact algal cells and enables real-time quantification without reagent addition or sample extraction—critical for early detection of algal bloom dynamics in lakes, reservoirs, and slow-moving rivers. The system integrates a field-deployable sensor probe with a rugged controller unit designed for permanent outdoor installation and long-term stability under variable ambient conditions.

Key Features

• Stable 470 nm LED excitation source with thermal regulation to minimize spectral drift over extended operation
• Dual-stage optical filtering: interference filter for excitation band + long-pass emission filter to suppress background fluorescence from dissolved organic matter (DOM), humic substances, and ambient light
• Integrated Pt1000 temperature sensor with real-time compensation across 0–50 °C, ensuring consistent calibration stability in fluctuating thermal regimes
• Digital RS485 Modbus RTU output (standard protocol) with noise-immune differential signaling, supporting transmission distances up to 1,200 meters without repeaters
• Self-cleaning mechanism featuring programmable rotating brush actuation to prevent biofouling accumulation on the optical window—reducing maintenance intervals by ≥70% compared to passive probes
• Controller supports dual-sensor input, analog outputs (4–20 mA, 0–5 V), digital I/O (relay alarms), and configurable data logging intervals (1 min to 24 h)
• Firmware-upgradable architecture with secure OTA (Over-The-Air) capability via Ethernet or RS485, enabling remote calibration updates and feature enhancements without site visits

Sample Compatibility & Compliance

The MODEL 9001 is validated for direct in-situ deployment in freshwater systems with turbidity ≤ 100 NTU and total suspended solids (TSS) ≤ 200 mg/L. It is not intended for seawater, wastewater effluents, or highly colored industrial discharges where non-algal fluorophores may interfere. The instrument complies with ISO 10260:2021 (Water quality — Guidance on fluorescence-based chlorophyll a measurement) and meets electromagnetic compatibility requirements per IEC 61326-1:2020 (industrial environment). Its housing conforms to IP68 rating (submersible to 10 m depth, indefinite duration) and uses marine-grade 316 stainless steel and UV-resistant PEEK polymer components. All firmware and data handling routines support audit-ready operation aligned with GLP principles—including timestamped event logs, calibration history tracking, and user-access control levels.

Software & Data Management

The analyzer interfaces natively with industry-standard SCADA platforms (e.g., Ignition, Siemens Desigo, Wonderware) via Modbus RTU/TCP. Optional SDL DataHub software provides local visualization, trend analysis, alarm threshold configuration, and automated report generation (PDF/CSV). Raw fluorescence intensity, compensated chlorophyll a concentration (µg/L), temperature, and sensor health status are time-stamped and stored onboard (internal 16 GB microSD) with circular buffering. Data export supports CSV, JSON, and MQTT protocols for integration into cloud-based environmental monitoring networks (e.g., AWS IoT Core, Azure IoT Hub). Audit trails record all parameter changes, firmware updates, and manual cleaning events—fully traceable for regulatory review under EPA Method 445.0 and China’s HJ 897-2017 standard.

Applications

• Long-term eutrophication monitoring in drinking water source reservoirs
• Early-warning systems for cyanobacterial bloom onset in lake management programs
• Real-time validation of remote sensing chlorophyll estimates (e.g., Sentinel-3 OLCI, Landsat-8 OLI)
• Performance verification of in-lake nutrient reduction interventions (e.g., hypolimnetic aeration, phosphorus inactivation)
• Regulatory compliance reporting for Class II–III surface water quality standards (GB 3838-2002)
• Research-grade phytoplankton biomass tracking in limnological field studies

FAQ

What is the typical detection range for chlorophyll a with this instrument?
The MODEL 9001 delivers reliable quantification from 0.1 µg/L to 500 µg/L chlorophyll a, optimized for oligotrophic to eutrophic freshwater conditions.
Does the system require periodic calibration with reference standards?
Yes—field calibration using NIST-traceable chlorophyll a standard solutions (e.g., Sigma-Aldrich C6135) is recommended every 3–6 months, depending on fouling rate and regulatory requirements.
Can the sensor be deployed in moving water or river channels?
It is rated for static or low-velocity applications (< 0.5 m/s); for higher flow velocities, a protective flow-through housing with anti-fouling bypass is required.
Is the communication protocol open and documented?
Yes—Modbus RTU register map and data structure documentation are provided under NDA upon purchase, enabling full third-party integration.
How is data integrity ensured during power interruptions?
The controller includes non-volatile memory and automatic recovery logic: all unsent data is retained during outage and transmitted upon network restoration with original timestamps preserved.
