Seismion Atlas & Reactio Active Vibration Isolation Optical Tables
| Brand | Accurion |
|---|---|
| Origin | Germany |
| Model Series | Atlas (Heavy-Duty Modular), Reactio Plus (Desktop) |
| Load Capacity | Atlas Module: 300–1000 kg/unit |
| Reactio Plus | 120–150 kg |
| Vibration Isolation Range | ≥1 Hz |
| Isolation Performance | ≥12 dB at 1 Hz |
| Module Dimensions (Atlas) | 240 × 240 × 110 mm |
| Application Target | High-Precision Optical Benches, Moving XY Stages, Audio Equipment, Electron Microscopy, Interferometry |
Overview
The Seismion Atlas and Reactio Plus active vibration isolation optical tables—engineered and manufactured in Germany by Seismion GmbH and distributed globally by Accurion—represent a dual-tier solution for precision vibration control in demanding scientific and industrial environments. Unlike passive damping systems relying solely on mass and elastomeric materials, these platforms employ real-time, closed-loop active isolation based on piezoelectric sensing and electromagnetic actuation. The core principle involves continuous measurement of ground-borne and airborne vibrations via high-sensitivity inertial sensors, followed by instantaneous generation of counteracting forces to nullify motion at the payload interface. This architecture delivers broadband attenuation from 1 Hz upward—critical for applications where sub-Hz disturbances (e.g., building sway, HVAC-induced resonance, or footfall) compromise measurement integrity. The Atlas series targets large-scale, high-mass optical setups—including interferometers, gravitational wave detector prototypes, and multi-axis metrology stations—while the Reactio Plus serves compact, high-value audio and microscopy workstations requiring rapid settling (<100 ms) and robust low-frequency suppression.
Key Features

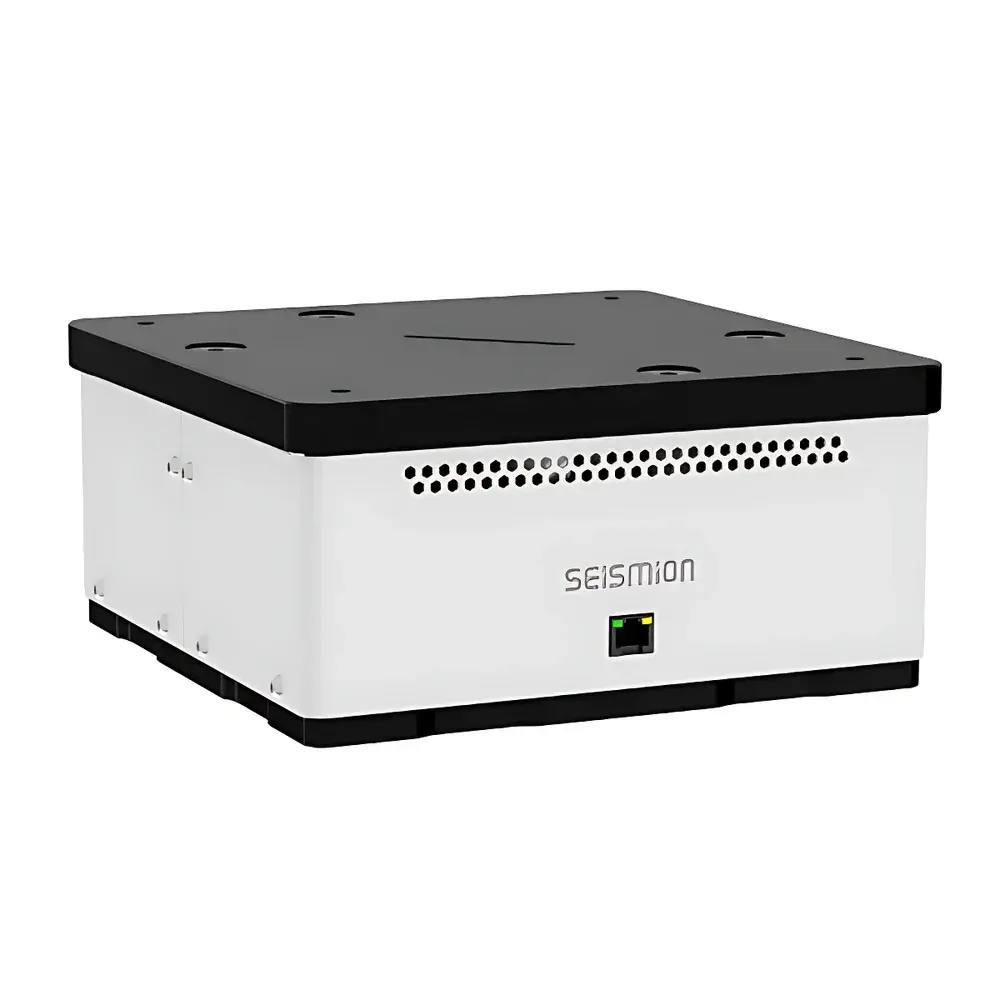

- Modular, scalable design: Atlas units integrate seamlessly in arrays of 3 or more modules to support payloads from 900 kg up to several tons, with load distribution optimized per module (300–1000 kg capacity each).
- Dual-mode control architecture: Atlas Dynamic variant incorporates enhanced feedback bandwidth and predictive algorithms tailored for dynamic loads—such as motorized XY translation stages—ensuring <50 ms stabilization time after step inputs.
- Piezo-based sensing with sub-nanometer resolution: Reactio Plus utilizes integrated piezoceramic accelerometers and force transducers for real-time disturbance mapping across 6 degrees of freedom (6-DOF).
- Wide dynamic range: Reactio Plus accommodates peak-to-peak displacements exceeding 1 mm without saturation—essential for isolating low-frequency, high-amplitude sources like subwoofers or mechanical pumps.
- EMI-hardened electronics: All control units comply with EN 61326-1 for electromagnetic compatibility, ensuring coexistence with sensitive RF, laser, and electron-optical instrumentation.
- Zero-drift thermal compensation: Internal temperature monitoring and adaptive gain adjustment maintain consistent performance across ambient variations from 15 °C to 30 °C.
Sample Compatibility & Compliance
These optical tables are compatible with standard ISO 20807-compliant optical breadboards (e.g., 12 mm or 25 mm pitch tapped holes), vacuum-compatible stainless-steel tops, and custom-mounted microscope frames. The Atlas series meets structural requirements for Class 100 cleanroom integration (ISO 14644-1), while both lines conform to DIN EN ISO 10816-1 for vibration severity assessment of non-rotating machinery. For regulated environments—including GLP-compliant analytical labs and FDA-audited medical device R&D facilities—the control firmware supports audit-trail logging (timestamped sensor data, actuator commands, and system health status) aligned with 21 CFR Part 11 principles. No external calibration is required; factory-certified performance verification reports are provided with each unit.
Software & Data Management
Both platforms operate via Seismion’s proprietary ControlSuite software (Windows/Linux), offering real-time spectral analysis (FFT up to 2048 points), time-domain waveform capture (10 kHz sampling), and configurable isolation profiles (e.g., “Microscopy Mode” prioritizes vertical Z-axis suppression; “Interferometry Mode” enforces balanced 6-DOF attenuation). Remote operation is supported over Ethernet (TCP/IP) with TLS 1.2 encryption. Data export formats include CSV, HDF5, and MATLAB .mat—enabling direct integration into automated QA workflows. Firmware updates are delivered via signed packages validated against SHA-256 checksums, ensuring traceability and cybersecurity compliance per IEC 62443-3-3.
Applications
- Quantum optics laboratories: Stabilizing ultrafast laser cavities, optical parametric oscillators (OPOs), and cold-atom trapping setups where residual vibration induces phase noise >10⁻⁶ rad/√Hz.
- Electron microscopy suites: Supporting transmission electron microscopes (TEM) and scanning electron microscopes (SEM) with sub-Å resolution demands, particularly during long-duration EDS mapping or in-situ heating experiments.
- Gravitational reference instrumentation: Serving as base platforms for absolute gravimeters and superconducting gravimeters operating in geophysical observatories.

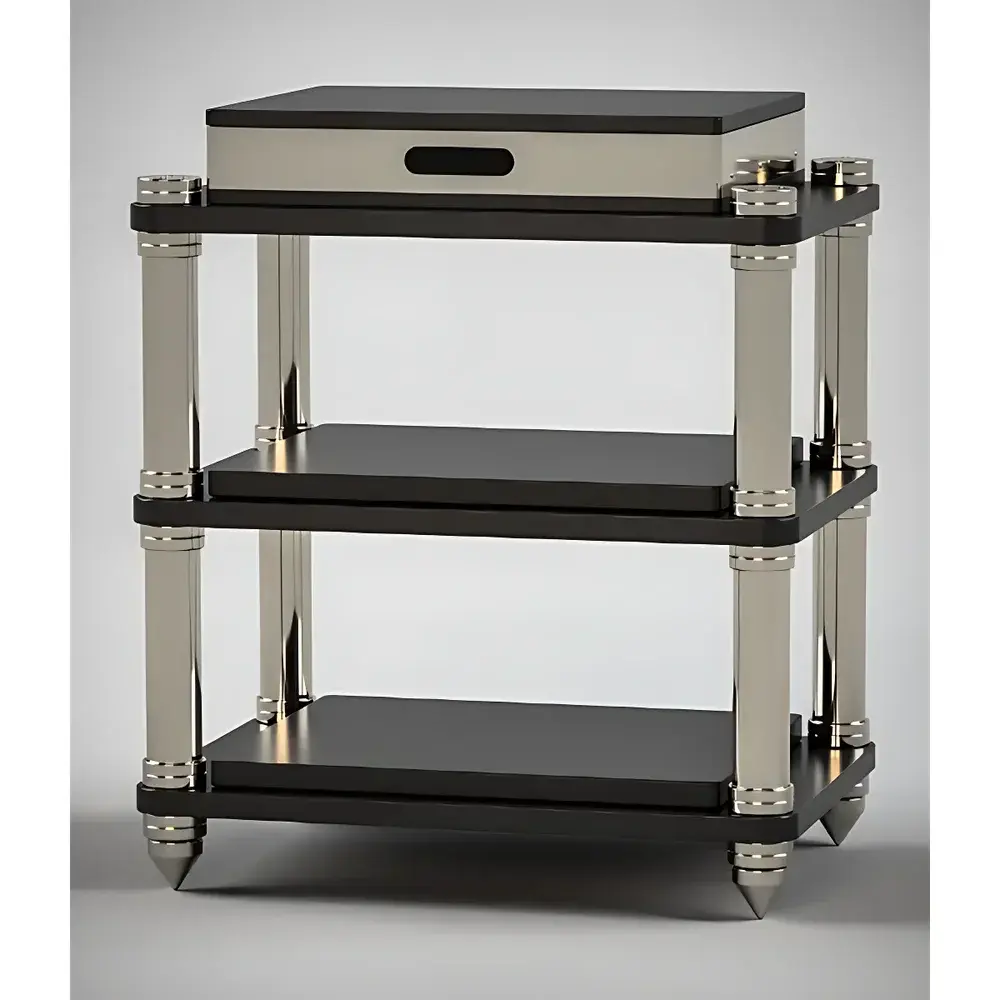

- High-fidelity audio engineering: Reactio Plus provides industry-standard isolation for turntables, phono preamplifiers, and DACs—validated per IEC 60268-5 for harmonic distortion reduction under 0.005% THD+N.
- Nanofabrication process development: Enabling stable laser direct writing and nanoimprint lithography on substrates >300 mm diameter with positional repeatability <±5 nm.
FAQ
What is the minimum recommended floor vibration level for optimal Atlas performance?
Atlas achieves specified isolation performance on floors meeting ISO 2631-2 VC-E criteria (≤1.2 µm/s RMS between 1–100 Hz). For higher ambient vibration, optional seismic mass bases or reinforced concrete piers are advised.
Can Reactio Plus be integrated into an existing optical table without structural modification?
Yes—Reactio Plus mounts directly beneath standard optical tables (up to 150 kg total mass) using M6 or ¼”-20 threaded inserts; no drilling or adhesive bonding is required.
Is remote diagnostics and predictive maintenance supported?
ControlSuite includes health-monitoring dashboards tracking actuator duty cycles, sensor SNR degradation, and thermal drift trends—exportable for CMMS integration.
Do these systems require compressed air or external cooling?
No—both Atlas and Reactio Plus operate with convection-cooled electronics and solid-state actuators; zero consumables or auxiliary utilities are needed.
How is electromagnetic interference from the actuators managed near sensitive detectors?
All actuator coils are magnetically shielded per IEC 61000-4-8; near-field magnetic flux density at 10 cm distance remains <0.1 µT (RMS), well below ICNIRP public exposure limits.
