SemiChem APM Advanced Process Monitor for Online Hydrogen Peroxide and Acid Concentration Monitoring in CMP Slurries

Overview

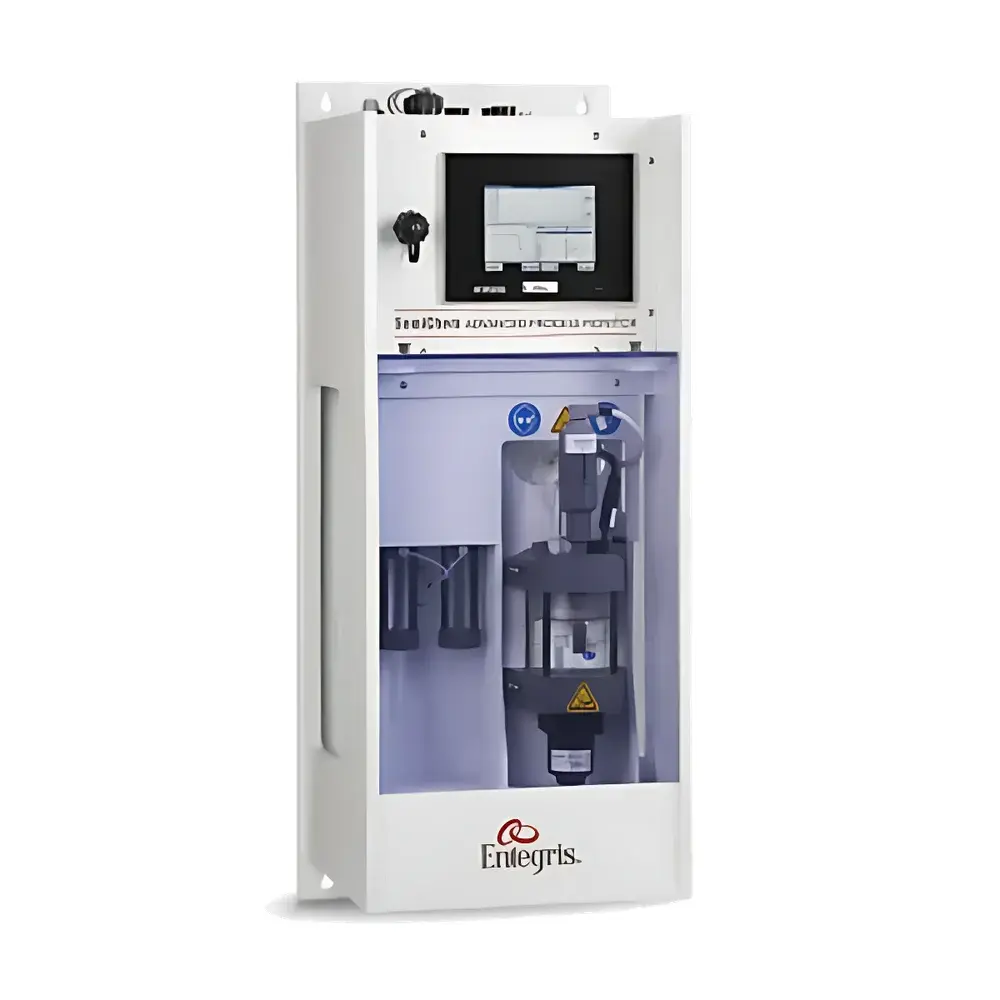

The SemiChem APM Advanced Process Monitor is an industrial-grade, online chemical concentration analyzer engineered specifically for real-time monitoring of low-concentration oxidants—primarily hydrogen peroxide (H₂O₂)—and acidic components (e.g., H₂SO₄, HF, DSP+) in semiconductor chemical mechanical planarization (CMP) slurries. Unlike offline lab-based titrators or benchtop spectrophotometers, the APM integrates automated sampling, electrochemical quantification, and closed-loop data reporting within a single ruggedized platform deployed directly at point-of-use (POU) in fab wet benches. Its core measurement architecture relies on three complementary analytical modalities: potentiometric redox titration, standard addition methodology, and ion-selective electrode (ISE) detection—each selected and validated for trace-level (<1% w/w) stability, reproducibility, and interference rejection under aggressive microelectronics process chemistries. The system operates continuously with no manual intervention, delivering calibrated concentration values every five minutes while maintaining compliance with critical process control requirements for copper, tungsten, barrier layer, and dielectric CMP applications.

Key Features

• Triple-mode analytical engine: Simultaneous support for potentiometric titration (redox and acid-base), standard addition calibration, and ISE-based ion activity measurement—enabling cross-validated results and method redundancy.
• Sub-1% H₂O₂ detection limit with ±0.2% reading accuracy in potentiometric mode—validated across >2,900 installed units in global 300mm and advanced packaging fabs.
• Industrial NEMA 4X enclosure rated for high-humidity, corrosive, and Class 1 Div 2 environments; designed for uninterrupted operation with ≥8,500 hours mean time between failures (MTBF).
• Automated fluid handling subsystem: Precision peristaltic pumps, chemically resistant tubing (FKM, PFA), and pressure-regulated sample/drain manifolds compliant with 30 psi inlet and gravity-drain specifications.
• Onboard diagnostics and self-calibration routines—including automatic endpoint detection, drift compensation, and sensor health monitoring—to minimize operator dependency and maintain long-term metrological integrity.
• Field-configurable power input (110/220 VAC, 50/60 Hz) and utility interfaces (CDA, DI water, exhaust) enabling seamless integration into existing fab utility infrastructure.

Sample Compatibility & Compliance

The SemiChem APM is qualified for continuous monitoring of aggressive aqueous chemistries used in front-end-of-line (FEOL) and back-end-of-line (BEOL) wet processing, including but not limited to: dilute H₂O₂ (0.01–0.8% w/w), sulfuric-peroxide mixtures (Piranha), dilute sulfuric-peroxide-HF blends (DSP+), buffered oxide etchants (BOE), and proprietary slurry formulations containing silica or alumina abrasives. All wetted materials—including flow cells, electrodes, and tubing—are certified compatible with SEMI F57 and ASTM D2670 standards for semiconductor-grade chemical contact. The system supports audit-ready data logging aligned with FDA 21 CFR Part 11 requirements when paired with validated software configurations, and its measurement traceability is maintained through NIST-traceable reference standards and documented calibration protocols per ISO/IEC 17025 principles.

Software & Data Management

The APM runs embedded firmware supporting configurable measurement cycles, alarm thresholds, and data export via Modbus TCP/IP or OPC UA to factory MES/SCADA systems. Raw potentiometric curves, titration endpoints, and ISE potential readings are stored locally with timestamped metadata (including temperature, pressure, and reagent lot IDs). Optional cloud-connected variants provide secure TLS-encrypted telemetry to centralized analytics platforms for SPC charting, multivariate process correlation, and predictive maintenance modeling. All data exports include full audit trails—recording user actions, calibration events, and instrument configuration changes—with immutable timestamps required for GLP/GMP-compliant documentation in IDM and foundry quality systems.

Applications

• Real-time H₂O₂ concentration control during Cu/W CMP to prevent metal lift-off (excess oxidant) or insufficient removal rate (low oxidant), directly impacting dishing and erosion metrics.
• In-line monitoring of DSP+ bath composition in gate oxide cleaning processes, ensuring consistent HF:H₂SO₄:H₂O₂ ratios critical for selective SiO₂ removal without silicon substrate attack.
• Slurry dilution verification at POU stations prior to delivery to polishing tools—reducing variability from manual blending errors or aging-related decomposition.
• Waste stream characterization for environmental compliance reporting, including residual oxidant and acid content in spent slurries prior to neutralization.
• Support for development of next-generation slurry formulations by providing high-frequency concentration feedback during DOE-based formulation optimization.

FAQ

What analytical methods does the SemiChem APM employ?
It utilizes potentiometric redox titration, standard addition calibration, and ion-selective electrode (ISE) detection—each method selected for robustness in low-concentration, multi-acid CMP chemistries.
Can the APM monitor multiple analytes simultaneously?
Yes—via sequential method execution and shared fluidic pathways; however, concurrent real-time measurement of distinct species (e.g., H₂O₂ and HF) requires dual-sensor configurations and method scheduling.
Is the system compliant with semiconductor fab utility specifications?
Yes—it meets standard fab requirements for CDA (60–80 psi), DI water (20–40 psi, 2.0 L/min), and gravity drainage (3/4″ NPT), with all interfaces specified in the SemiChem APM Installation and Operation Manual.
How often does the system require calibration?
Initial calibration occurs at startup; thereafter, scheduled recalibration intervals are defined by internal QA protocols—typically every 24–168 hours depending on process criticality and chemical aggressiveness.
Does the APM support integration with MES or APC systems?
Yes—via native Modbus TCP/IP and optional OPC UA drivers, enabling direct linkage to Yokogawa Exaquantum, Siemens Desigo, or custom-built advanced process control (APC) architectures.
