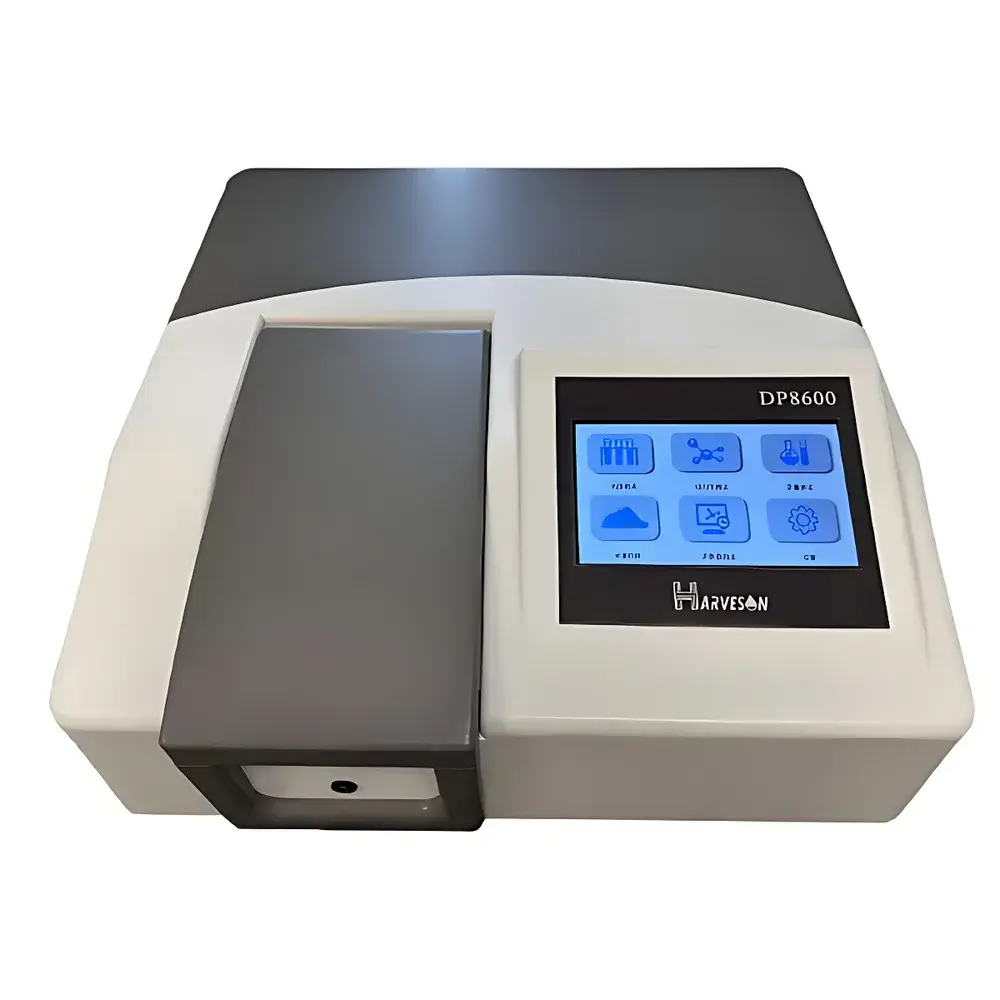

Senbe DP8600 Full-Spectrum Multi-Parameter Water Quality Analyzer

Overview

The Senbe DP8600 Full-Spectrum Multi-Parameter Water Quality Analyzer is a laboratory-grade spectrophotometric instrument engineered for precise, trace-level quantification of key water quality parameters using ultraviolet–visible (UV-Vis) absorption spectroscopy. Operating across a continuous spectral range from 190 nm to 1100 nm, the DP8600 leverages dual light sources—imported deuterium lamp for UV stability and tungsten-halogen lamp for visible-range reproducibility—combined with a high-resolution photodiode array detector. This optical architecture enables high-fidelity spectral acquisition, essential for resolving overlapping absorbance peaks in complex aqueous matrices. Unlike fixed-wavelength or discrete-filter instruments, the full-spectrum approach supports algorithm-driven multi-analyte deconvolution, allowing simultaneous or sequential determination of COD, ammonia nitrogen, nitrate, nitrite, total nitrogen, and total phosphorus—many of which conform to Chinese national standard methods (e.g., HJ/T 399–2007 for COD, HJ 535–2009 for ammonia nitrogen). The system is designed for compliance-critical environments including municipal drinking water laboratories, rural water supply monitoring centers, and accredited environmental testing facilities.

Key Features

• Full-spectrum UV-Vis detection (190–1100 nm) with <0.5 nm wavelength accuracy and ≤1.0 nm spectral bandwidth, ensuring resolution of narrow absorbance features in low-concentration analytes.
• Dual-source optical path: independently stabilized deuterium lamp (190–400 nm) and tungsten-halogen lamp (340–1100 nm), each with automatic intensity calibration and lifetime monitoring.
• Three interchangeable sample presentation modes: 10 mm quartz cuvettes, 16 mm round glass test tubes, and 25 mm round glass test tubes—enabling direct compatibility with standardized EPA, ISO, and GB/T reagent kits.
• 7-inch capacitive touchscreen interface with embedded firmware supporting bilingual operation (English/Chinese), real-time spectral visualization, and on-device curve fitting via least-squares regression.
• Modular hardware design: optional 5 cm and 10 cm pathlength sample holders accommodate both high-absorbance (e.g., raw wastewater) and ultra-low-concentration (e.g., treated drinking water) applications without dilution.
• Comprehensive photometric functionality suite: includes fixed-wavelength photometry, kinetic time-course analysis, multi-point standard curve generation, and full-wavelength scanning with exportable ASCII spectral data.

Sample Compatibility & Compliance

The DP8600 is validated for use with commercially available pre-mixed, factory-calibrated reagent kits—including those compliant with GB/T 5750 (Standard Methods for Examination of Drinking Water), HJ series environmental standards, and ISO 7027 (turbidity), ISO 6060 (COD), and ISO 11905-1 (total nitrogen). It accommodates turbid, colored, or suspended-solid-containing samples through programmable baseline correction and scatter compensation algorithms. Instrument performance meets GLP requirements for auditability: all measurements log timestamp, operator ID (via optional login), method name, calibration history, and raw spectral data. Data integrity is preserved through internal non-volatile memory and encrypted USB export—supporting traceability per ISO/IEC 17025:2017 clause 7.7 and facilitating alignment with FDA 21 CFR Part 11 when paired with controlled user access protocols.

Software & Data Management

Firmware v3.2+ provides built-in method management, customizable report templates (PDF/CSV), and automated QC flagging (e.g., blank drift >±0.005 AU, curve R² <0.995). Raw spectral files (.SPC) and quantitative results (.CSV) are stored with embedded metadata: wavelength calibration coefficients, lamp usage hours, and temperature-stamped environmental logs. USB export supports integration into LIMS platforms via standardized data schemas. Users may import third-party calibration curves or generate custom models using absorbance ratios, derivative spectra, or partial least squares (PLS) regression—subject to validation per ISO/IEC 17025 Annex A.3.

Applications

• Rural drinking water safety monitoring: routine compliance testing for ammonia nitrogen (<0.5 mg/L), nitrate (<10 mg/L as N), and COD (<3 mg/L) per GB 5749–2022.
• University teaching labs: hands-on instruction in Beer–Lambert law verification, interference studies, and multivariate calibration techniques.
• Food & beverage process control: monitoring rinse water COD and phosphate carryover in dairy or brewing facilities.
• Environmental research: tracking nutrient speciation (NO₂⁻ vs. NO₃⁻) in agricultural runoff or wetland effluent.
• Pharmaceutical water systems: TOC surrogate estimation via UV254 absorption and correlation with validated oxidation methods.

FAQ

Does the DP8600 comply with ISO/IEC 17025 requirements for accredited testing laboratories?

Yes—the instrument supports documented calibration, measurement uncertainty estimation, and full audit trails for all analytical sessions, fulfilling clauses 6.4 (equipment) and 7.7 (results reporting).
Can it measure ultra-low COD concentrations (e.g., <5 mg/L) in purified water?

Yes, using the 10 cm pathlength holder and UV-enhanced digestion reagents, the system achieves a practical LOD of 0.8 mg/L COD under optimized conditions.
Is spectral data export compatible with MATLAB or Python for advanced chemometric modeling?

Yes—ASCII-formatted .SPC files contain wavelength (nm) and absorbance (AU) columns, enabling direct ingestion into SciPy, scikit-learn, or PLS Toolbox.
What maintenance is required for long-term optical stability?

Annual lamp replacement (deuterium: ~2000 h; tungsten: ~5000 h) and biannual grating alignment verification using NIST-traceable holmium oxide reference filters.
Does the system support remote diagnostics or firmware updates?

Firmware updates are performed locally via USB; remote diagnostics are not enabled by default but can be configured under secure enterprise network policies with TLS-encrypted communication.
