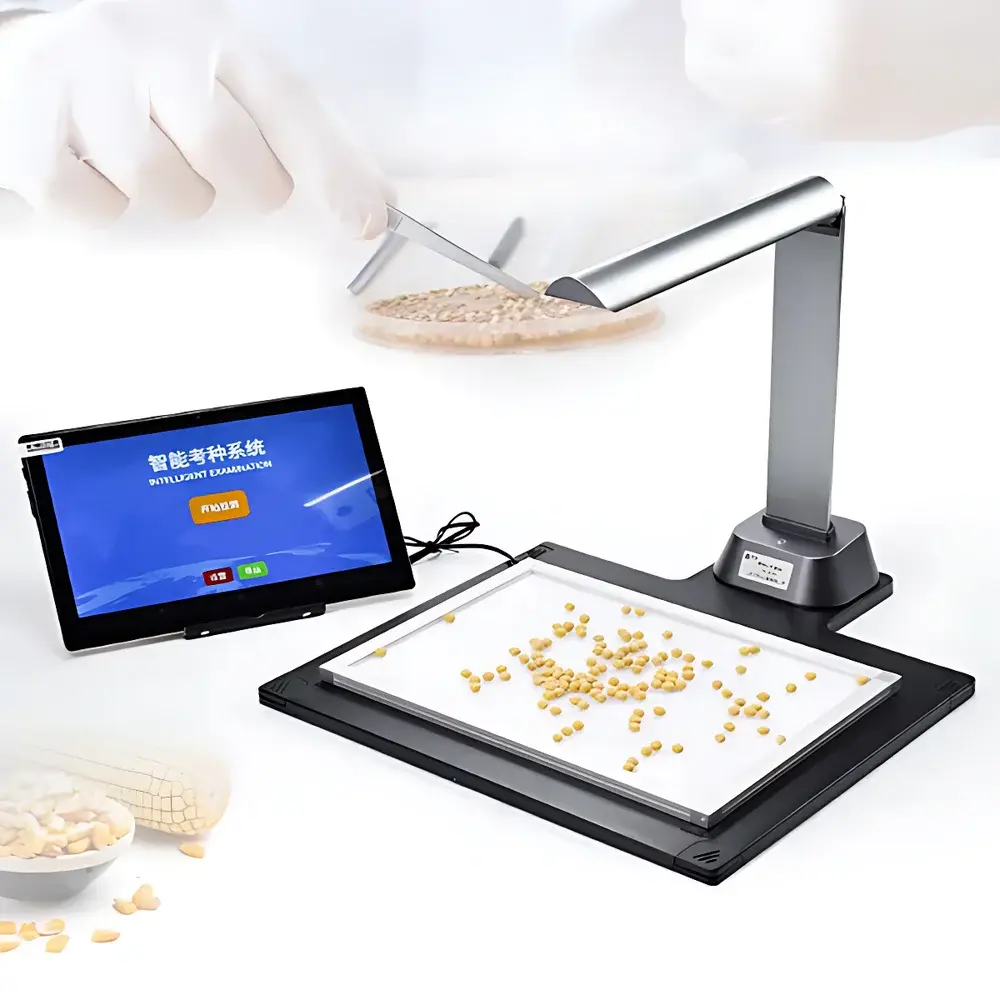

Senbe SEN-320 Seed Characterization Analyzer

Overview

The Senbe SEN-320 Seed Characterization Analyzer is a high-precision, computer-vision-based instrumentation system engineered for quantitative seed morphology analysis and automated purity assessment in agricultural research, seed certification laboratories, grain storage facilities, and regulatory testing centers. It operates on the principle of digital image acquisition followed by pixel-level segmentation, feature extraction, and machine-assisted classification—leveraging calibrated optical imaging, uniform backlight illumination, and deterministic morphometric algorithms to deliver traceable, repeatable, and auditable measurements. Unlike conventional manual or semi-automated counting methods, the SEN-320 eliminates inter-operator variability and significantly reduces analysis time while maintaining compliance with internationally recognized seed testing standards—including ISTA (International Seed Testing Association) Rules, GB/T 3543.3–1995 (Chinese National Standard for Seed Purity Analysis), and ISO 20738:2021 (Seed Quality—Determination of Seed Purity by Image Analysis). Its design supports both routine quality control workflows and advanced phenotypic trait quantification required in breeding programs and seed health monitoring.

Key Features

• 12-megapixel color imaging sensor with large depth-of-field optics and real-time distortion correction ensures geometric fidelity across A3-scale sample fields—critical for accurate dimension measurement of heterogeneous seed lots.
• Uniform A3-sized LED backlit panel with auto-calibrated intensity mapping compensates for edge falloff and hotspot artifacts, minimizing systematic bias in area and perimeter calculations.
• High-throughput particle analysis engine processes 1,200–20,000 seeds per minute with counting error ≤ ±0.1–0.4%, validated against reference gravimetric and manual counts per ISTA Annex B protocols.
• Robust adhesion separation algorithm resolves touching or overlapping seeds using watershed segmentation and shape-context boundary refinement—enabling reliable single-grain parameter extraction even in dense clusters.
• Configurable one-click analysis workflows allow users to define crop-specific protocols (e.g., rice paddy vs. polished grain, maize kernels vs. broken fragments) without programming—supporting rapid method transfer across labs.
• Self-learning classification module adapts to new seed types or insect morphologies (e.g., Sitophilus oryzae, aphids, silkworm eggs) through supervised training on user-provided image sets—facilitating cross-species pest enumeration in stored grain surveillance.
• Integrated RS232 interface accepts real-time mass data from analytical balances (e.g., 220 g × 1 mg resolution), enabling synchronized weight-to-count ratio computation and automatic thousand-seed weight (TSW) derivation with ≤ ±0.5% deviation.

Sample Compatibility & Compliance

The SEN-320 accommodates a broad spectrum of botanical and entomological specimens requiring non-destructive, surface-based quantification. Validated use cases include intact cereal grains (Oryza sativa, Triticum aestivum, Zea mays), oilseeds (Brassica napus, Sesamum indicum), legumes (Glycine max, Pisum sativum), vegetable seeds (Lactuca sativa, Capsicum annuum), and stored-product arthropods (e.g., Tribolium castaneum, Rhyzopertha dominica). For purity testing, it functions as a compliant alternative to traditional projection-based purity workbenches—meeting the optical clarity, illumination uniformity, and spatial resolution requirements outlined in ISTA Rule 5B and AOAC Official Method 992.03. All measurement outputs—including bounding rectangles, equivalent diameters, and aspect ratios—are traceable to NIST-traceable calibration targets imaged under identical optical conditions. The system supports audit-ready documentation per GLP/GMP environments, with timestamped image archives, operator ID logging, and immutable result export logs.

Software & Data Management

The proprietary SEN-320 Analysis Suite runs on Windows-based laptops (included) and provides a fully navigable GUI with dual-mode operation: guided wizard mode for standardized assays and expert mode for parameter tuning. Each analysis session generates a structured metadata file containing instrument configuration, calibration status, raw image hash, and processing pipeline version—ensuring full reproducibility. Statistical summaries (mean, SD, CV%, frequency distributions) are exportable in native Excel format (.xlsx) with embedded formulas; granular results—including individual seed IDs, coordinates, and all 12 morphometric descriptors—are preserved in CSV for downstream multivariate analysis. The software complies with FDA 21 CFR Part 11 requirements for electronic records and signatures when deployed with optional audit trail modules and role-based access controls. Barcode scanners and USB HID-compatible scales integrate natively, eliminating manual transcription errors during sample registration and mass input.

Applications

• Regulatory seed purity testing per ISTA, AOSA, and national seed law frameworks
• Thousand-seed weight determination for varietal certification and germination prediction
• Grain damage assessment (e.g., insect boreholes, fungal discoloration, mechanical breakage) via customizable color-threshold segmentation
• Stored grain pest surveillance—automated enumeration of live/dead insects and eggs in bulk samples
• Phenotyping support in plant breeding programs: longitudinal tracking of seed size distribution shifts across generations
• Quality assurance in seed processing lines—real-time feedback on cleaning efficiency and sizing consistency
• Academic research in seed dormancy, heteromorphism, and environmental plasticity studies

FAQ

What seed size ranges does the SEN-320 support?
The system reliably analyzes particles from 0.5 mm (e.g., mustard seed, lettuce seed) up to 20 mm (e.g., large pumpkin seeds or maize kernels), with optimal accuracy achieved between 1–15 mm.
Can it distinguish between filled and unfilled grains (e.g., paddy vs. empty spikelets)?
Yes—when combined with prior air-screen separation (as specified in ISTA Rule 5B), the system differentiates filled and unfilled grains based on area, perimeter, and grayscale density thresholds, supporting viability-linked purity reporting.
Is the software compatible with LIMS integration?
The analysis suite supports ODBC-compliant database exports and includes RESTful API hooks for custom LIMS middleware integration; standard HL7 and ASTM E1384 mappings are available upon request.
Does the system require annual recalibration?
No scheduled recalibration is mandated; however, daily verification using NIST-traceable calibration grids (provided) is recommended to maintain measurement traceability per ISO/IEC 17025 requirements.
How is data integrity ensured during long-term archiving?
All images are saved in lossless TIFF format with embedded EXIF metadata; analysis reports include SHA-256 checksums for tamper detection, satisfying ALCOA+ principles for regulated environments.
