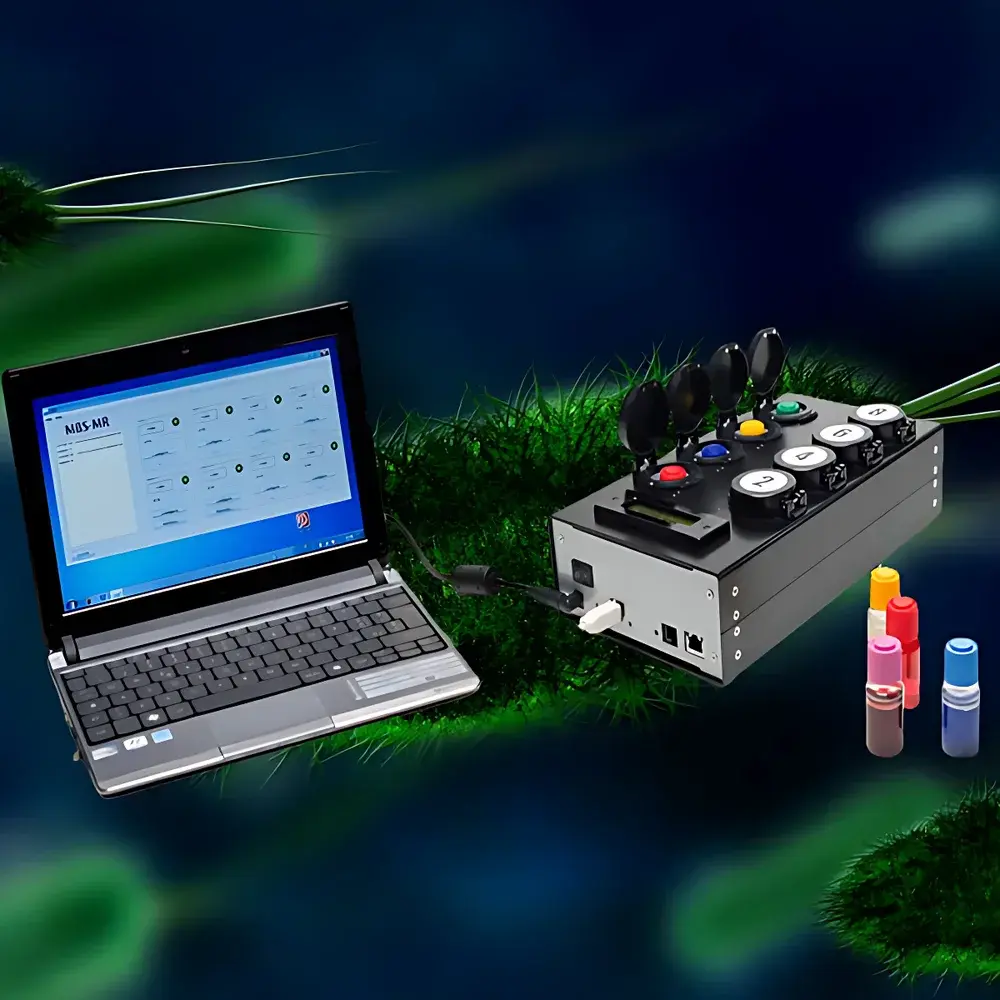

Senbe SEN580 Microbial Detection System
| Brand | Senbe |
|---|---|
| Origin | Jiangsu, China |
| Manufacturer Type | Direct Manufacturer |
| Regional Classification | Domestic (China) |
| Model | SEN580 |
| Pricing | Available Upon Request |
Overview
The Senbe SEN580 Microbial Detection System is an automated, real-time microbial enumeration platform engineered for rapid, quantitative detection of viable microorganisms in diverse sample matrices. It operates on the principle of impedance microbiology—monitoring electrical impedance changes in conductive growth media as metabolically active microorganisms proliferate—enabling label-free, culture-based quantification without reliance on optical or enzymatic signal amplification. Unlike conventional plate counts or PCR-based methods, the SEN580 delivers CFU-level results within 6–24 hours (depending on organism and inoculum level), bridging the gap between speed and regulatory acceptability. Designed for compliance-driven environments, it supports routine monitoring across food safety, pharmaceutical manufacturing, environmental hygiene, and clinical support laboratories where rapid release decisions and audit-ready data integrity are critical.
Key Features
- Impedance-based real-time detection with automatic incubation control: precise temperature regulation (30–45 °C adjustable in 0.1 °C increments) and programmable incubation duration (1–96 h)
- No sample pre-treatment required: accepts liquid (1 mL), solid (1 g), surface swabs, pastes, and semi-solid suspensions directly into standardized detection vials
- Parallel processing capacity: eight independent detection channels per run, each with autonomous impedance acquisition and threshold-based detection logic
- Detection sensitivity: ≤1 CFU per test vial (validated per ISO 16140-2 for method equivalence studies)
- Specificity >99.999% against non-target flora, confirmed via inter-laboratory validation using reference strains from ATCC and NCTC
- Three-step operational workflow: load vial → select assay protocol → initiate run; no technical training or microbiological expertise required
- Integrated USB interface and optional Wi-Fi module for direct connection to Windows-based workstations; supports export of raw impedance curves, detection time (Tt), and calculated CFU/mL or CFU/g
Sample Compatibility & Compliance
The SEN580 accommodates heterogeneous sample types—including beverages, dairy products, meat homogenates, environmental swabs, cosmetic emulsions, and pharmaceutical water samples—without centrifugation, filtration, enrichment, or dilution. Its detection vials contain dehydrated, AOAC-recognized selective media formulations tailored for target organisms. The system meets functional equivalence requirements under ISO 16140-2 for validation against reference methods (e.g., ISO 4833-1 for total viable count, ISO 16649-2 for E. coli, ISO 6579-1 for Salmonella). Data output complies with ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate) and supports 21 CFR Part 11–compliant audit trails when used with validated software configurations.
Software & Data Management
The bundled SEN580 Control Suite (v3.2+) provides instrument control, real-time impedance curve visualization, automatic Tt calculation, and ISO-compliant report generation (PDF/CSV). Each assay file includes metadata (operator ID, timestamp, vial lot, calibration status), raw impedance values at 10-second intervals, and statistical summaries (mean CFU, SD, CV%). Audit logs record all user actions, parameter changes, and system events with immutable timestamps. Exported datasets are compatible with LIMS integration via HL7 or ASTM E1384 interfaces. Software validation documentation (IQ/OQ/PQ protocols) and electronic signature modules are available upon request for GMP/GLP-regulated users.
Applications
- Food & Beverage: HACCP verification of RTE products, environmental monitoring in production zones, shelf-life challenge testing
- Pharmaceuticals: Water-for-injection (WFI) and purified water bioburden trending, cleanroom surface surveillance, excipient screening
- Public Health: Rapid response to suspected contamination events (e.g., drinking water distribution systems, hospital HVAC condensate)
- Cosmetics & Personal Care: Preservative efficacy testing (PET), raw material QC, post-sterilization verification
- Contract & Reference Labs: High-throughput screening for accredited testing (ISO/IEC 17025), method transfer support
FAQ
What regulatory standards does the SEN580 support?
It is validated for equivalence to ISO, AOAC, and FDA BAM reference methods; full validation packages align with ISO 16140-2 and ICH Q5C guidelines.
Can the system detect mixed cultures or only single-species targets?
Each vial uses organism-specific media; simultaneous multi-target detection requires parallel runs with appropriate vial types—not multiplexed in a single vial.
Is calibration traceable to national standards?
Yes—impedance sensor calibration is performed using NIST-traceable precision resistors; annual recalibration certificate included with service contract.
How is data integrity ensured during power interruption?
The system features non-volatile memory that retains all impedance data and timestamps up to 72 hours without power; resume-on-power functionality preserves assay continuity.
Does the SEN580 require consumables beyond detection vials?
No—no reagents, enzymes, antibodies, or nucleic acid extraction kits are needed; only certified vials and standard lab-grade distilled water for blank calibration.
