Senbe SEN905 Handheld Sampling Positioning & Data Logger

Overview

The Senbe SEN905 Handheld Sampling Positioning & Data Logger is an integrated field instrument engineered for environmental monitoring professionals requiring precise georeferenced sampling traceability in real time. Unlike conventional gas detectors or particulate samplers that rely on post-hoc manual log entry, the SEN905 embeds high-accuracy GNSS positioning—leveraging dual-frequency DGNSS and carrier-phase RTK algorithms—directly into the data acquisition workflow. It operates as a mobile node within distributed environmental monitoring networks, synchronizing GPS/GNSS coordinates, timestamped sensor metadata (e.g., PM_2.5/PM₁₀ concentration, ambient temperature/humidity), and operator-defined annotations at the point of sample collection. Its architecture eliminates reliance on external correction modules by integrating a certified multi-constellation GNSS receiver (GPS, GLONASS, BeiDou, Galileo) with real-time differential correction support via RTCM 3.0/3.2 streams over GPRS/LTE. This ensures sub-meter positional fidelity under dynamic field conditions—critical for regulatory-grade air quality mapping, EPA Method 201A-compliant site characterization, and ISO 17025-accredited laboratory chain-of-custody documentation.

Key Features

• Integrated high-precision GNSS engine supporting DGNSS (<0.5 m CEP) and RTK (5 cm + 1 ppm horizontal accuracy) without external hardware add-ons

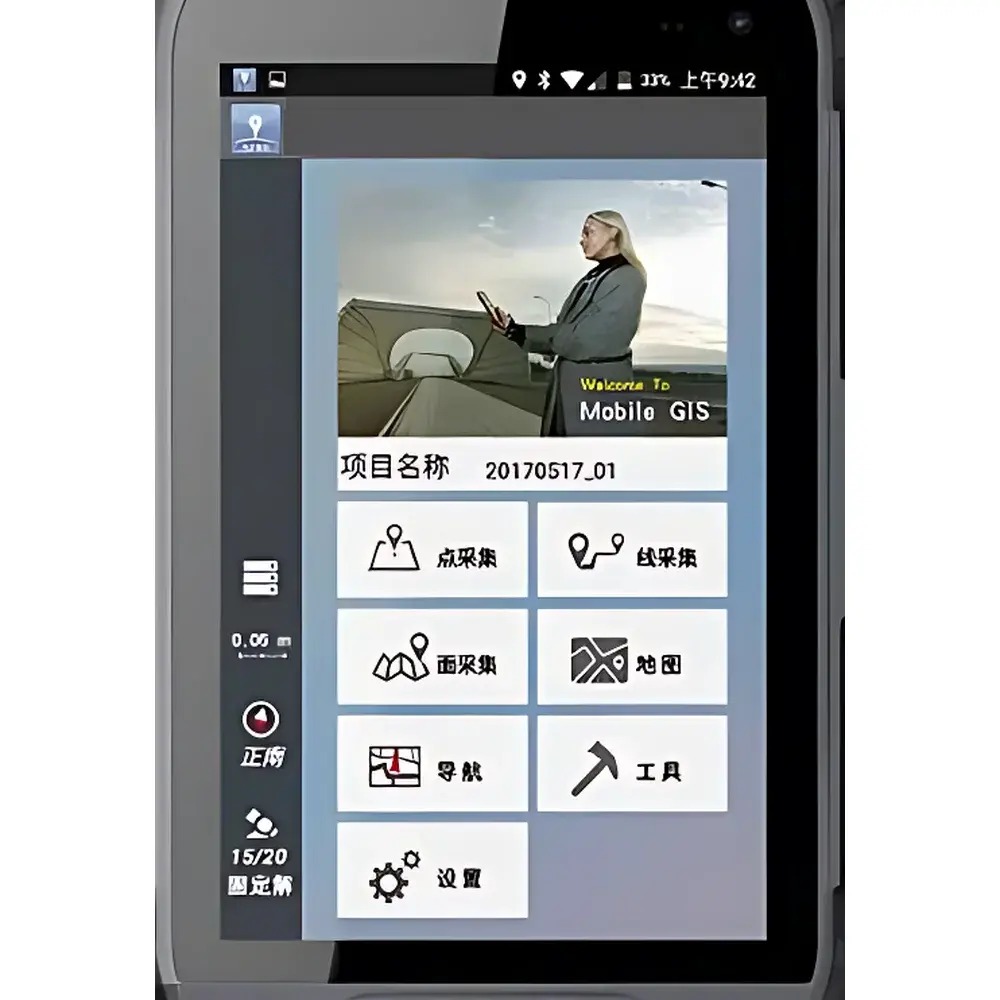

• 8-inch electromagnetic resonance touchscreen with U-Pen stylus compatibility—enabling pixel-accurate digital annotation, GIS-style sketching, and image markup during field surveys
• Universal 4G LTE modem with tri-carrier support (China Mobile, China Telecom, China Unicom) and globally tuned RF front-end for seamless operation across 26 LTE bands
• USB Type-C interface rated for 10,000 insertion cycles, paired with reinforced braided cable assembly for long-term field durability
• Removable 8400 mAh lithium-polymer battery delivering ≥12 hours of continuous GNSS + LTE + sensor logging under typical duty cycles
• Qualcomm Quick Charge 2.0–enabled charging circuitry reducing full recharge time to under 90 minutes
• Android 6.0.1 OS with kernel-level power management, SELinux-enforced application sandboxing, and configurable FIPS 140-2–aligned cryptographic modules for secure data transmission

Sample Compatibility & Compliance

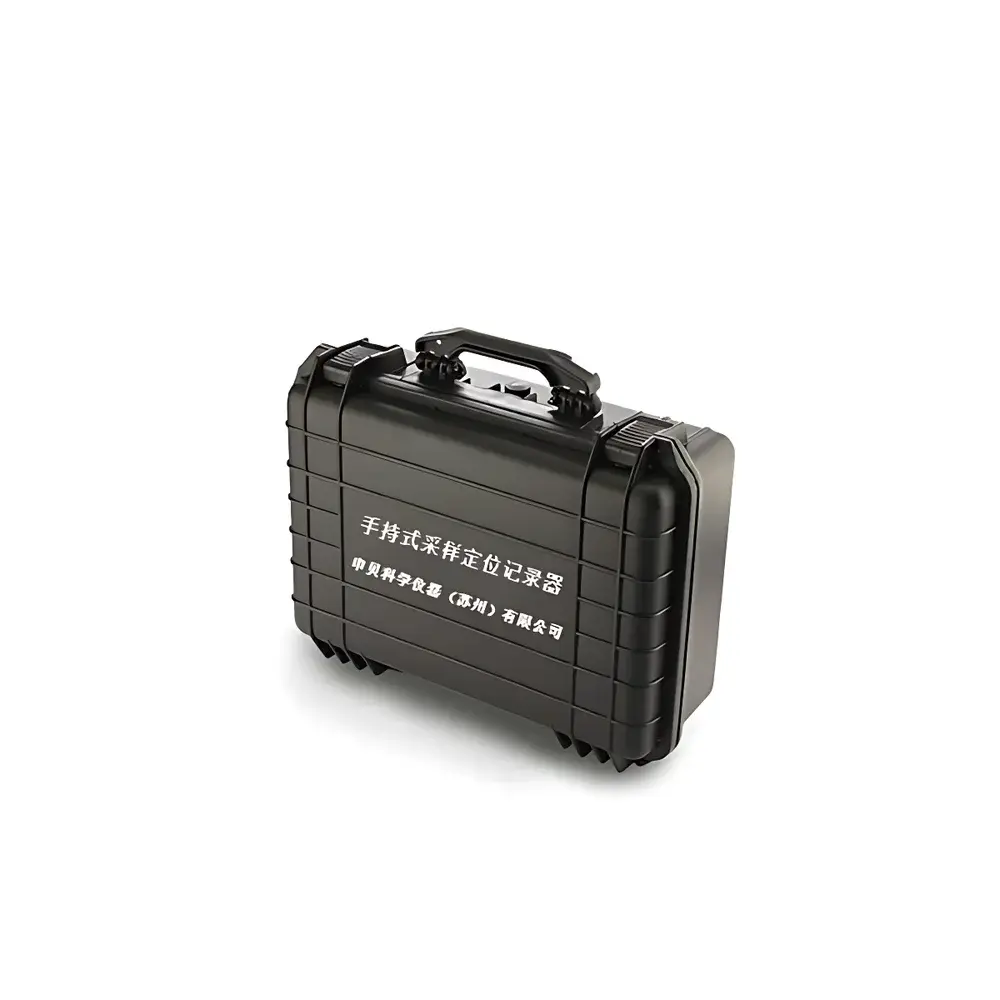

The SEN905 functions as a universal positioning and metadata logger compatible with third-party coarse/fine particle dual-channel samplers (e.g., TEOM, beta attenuation, or gravimetric systems), electrochemical gas sensors, and meteorological stations. It records not only position and time but also user-defined contextual tags—including sampling protocol ID, filter batch number, operator ID, and environmental qualifiers (e.g., “rain event”, “traffic proximity”). All logged entries are stamped with NMEA 0183-compliant GNSS sentences and embedded UTC timestamps traceable to national time standards. The device meets CE marking requirements for EMC (EN 61000-6-3) and safety (EN 60950-1), complies with RoHS Directive 2011/65/EU, and features an IP65-rated enclosure suitable for outdoor deployment in dust-laden or rain-exposed environments. Firmware supports audit-ready logging per ISO/IEC 17025:2017 Clause 7.5.2 and aligns with US EPA’s QA/G-5 guidance for field data integrity.

Software & Data Management

Preloaded with Senbe FieldLog™ firmware, the SEN905 enables encrypted, bidirectional communication with centralized environmental data platforms via TLS 1.2–secured MQTT or HTTPS APIs. Remote commands—including firmware updates, sampling schedule revisions, and geofence parameter adjustments—can be dispatched from a central command console and executed autonomously on-device. All position logs, sensor metadata, and operator annotations are stored locally in SQLite databases with SHA-256–hashed integrity verification. Export options include CSV (ISO 8601 timestamps, WGS84 coordinates), GPX, and KML formats compliant with ArcGIS Pro and QGIS workflows. Audit trails record every configuration change, login attempt, and data export event—with optional integration into FDA 21 CFR Part 11–compliant electronic signature frameworks when deployed in regulated environmental testing laboratories.

Applications

• Ambient air quality network calibration: Geotagging reference monitor co-location points with ≤5 cm positional uncertainty for PM_2.5 and NO₂ spatial interpolation models
• Industrial fence-line monitoring: Documenting real-time particle sampler locations adjacent to stack emissions sources per EPA Method 9 or ISO 9001 Annex A.8.2
• Mobile source emission studies: Synchronizing vehicle-mounted particulate counters with centimeter-level GPS trajectories for hotspot identification
• Soil and sediment sampling campaigns: Capturing precise UTM coordinates, depth markers, and photo-annotated stratigraphy logs during EPA Region 10–style field investigations
• Emergency response coordination: Enabling incident commanders to visualize live asset positions and verify sampling coverage completeness across disaster zones

FAQ

Does the SEN905 require subscription-based correction services to achieve RTK-level accuracy?
No. The device accepts free-to-air RTCM 3.x corrections from public CORS networks (e.g., NOAA CORS, EUREF Permanent Network) or private base stations via NTRIP or serial input. No recurring service fees are required.
Can the SEN905 interface directly with common particulate mass monitors like the Thermo Scientific pDR series?
Yes—via RS-232 or USB-to-serial adapter, the SEN905 can ingest real-time analog/digital outputs from compatible samplers and embed synchronized positional metadata into each measurement record.
Is the Android OS locked down for dedicated field use?
Yes. The system boots into kiosk mode by default, disabling non-essential apps and system UI elements. Administrative access requires cryptographic key authentication; all third-party APK installations undergo signature validation.
What GNSS constellations does the built-in receiver support?
GPS L1/L2C, GLONASS L1/L2, BeiDou B1/B2, and Galileo E1/E5b—enabling robust signal acquisition in urban canyons and forested terrain where single-constellation receivers may fail.
How is data integrity ensured during intermittent cellular connectivity?
All logs are written to local flash storage with journaling enabled. Upon reconnection, queued entries transmit automatically with sequence-numbered acknowledgments and CRC-32 checksum validation to prevent duplication or loss.
