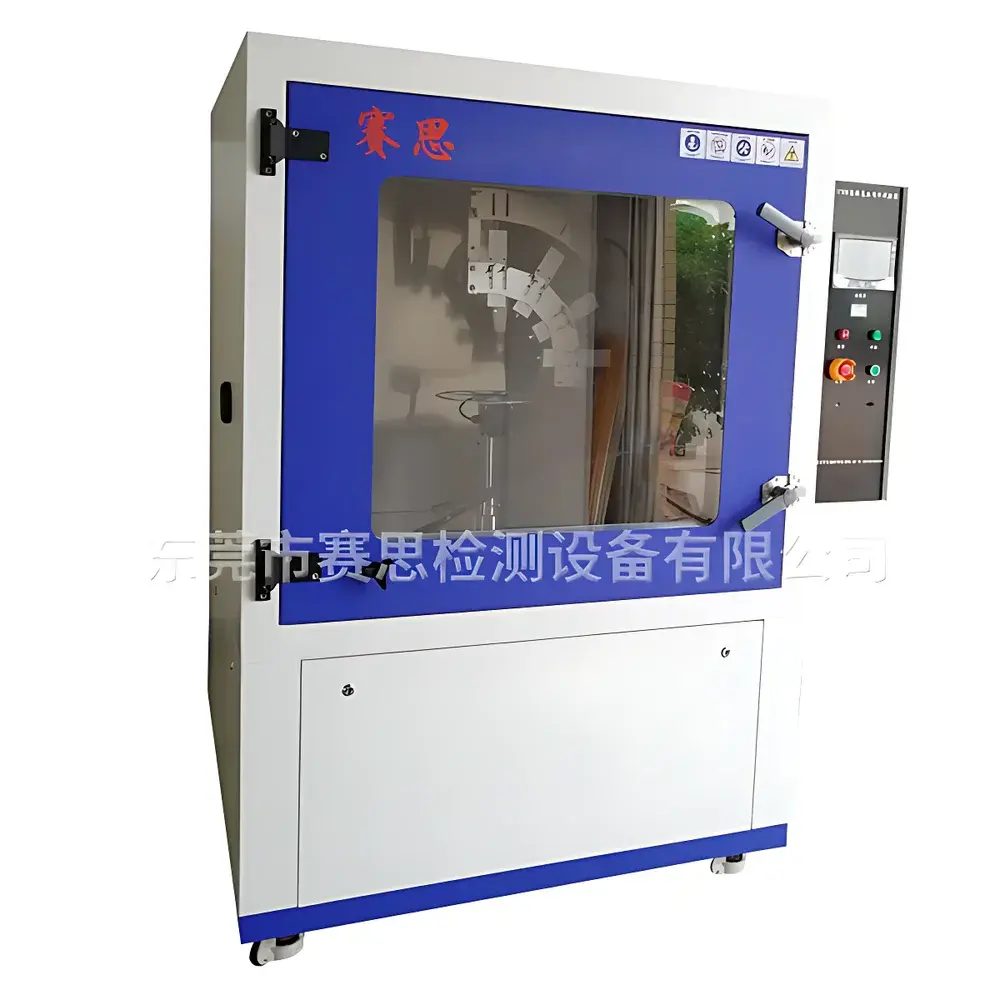

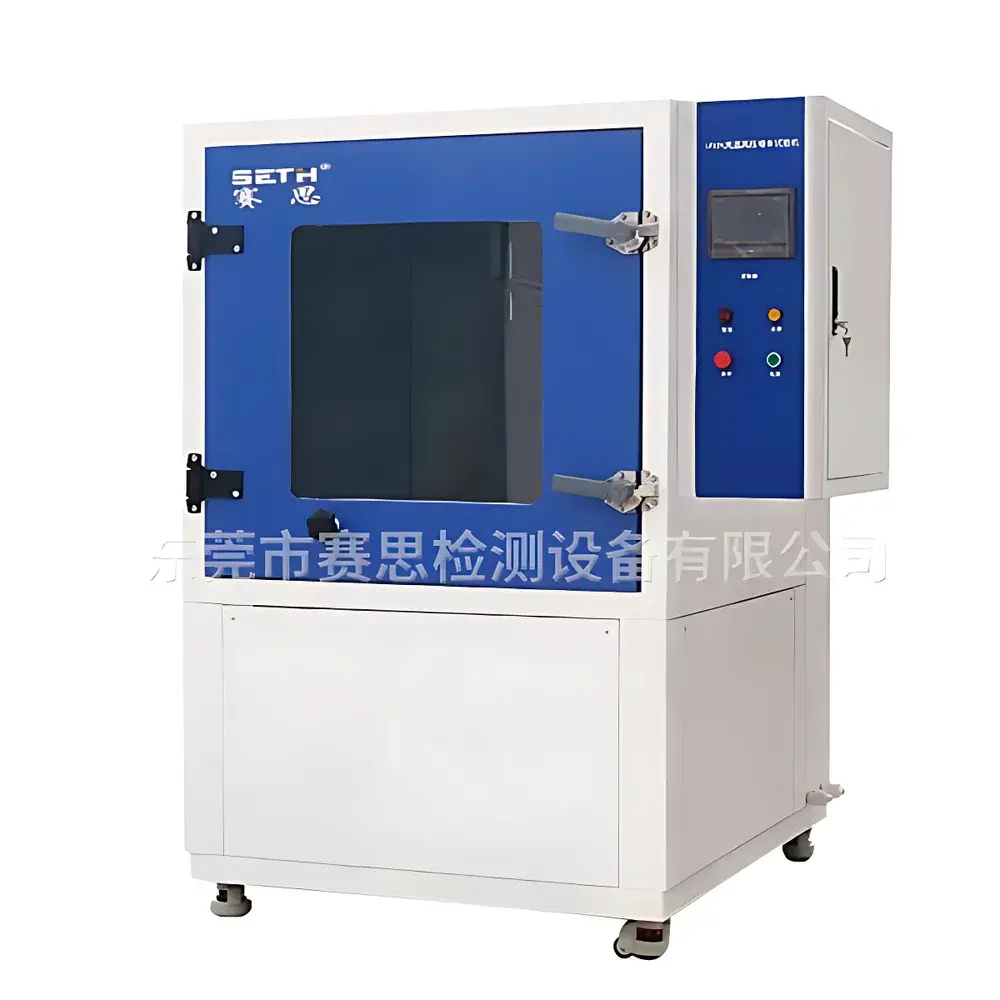

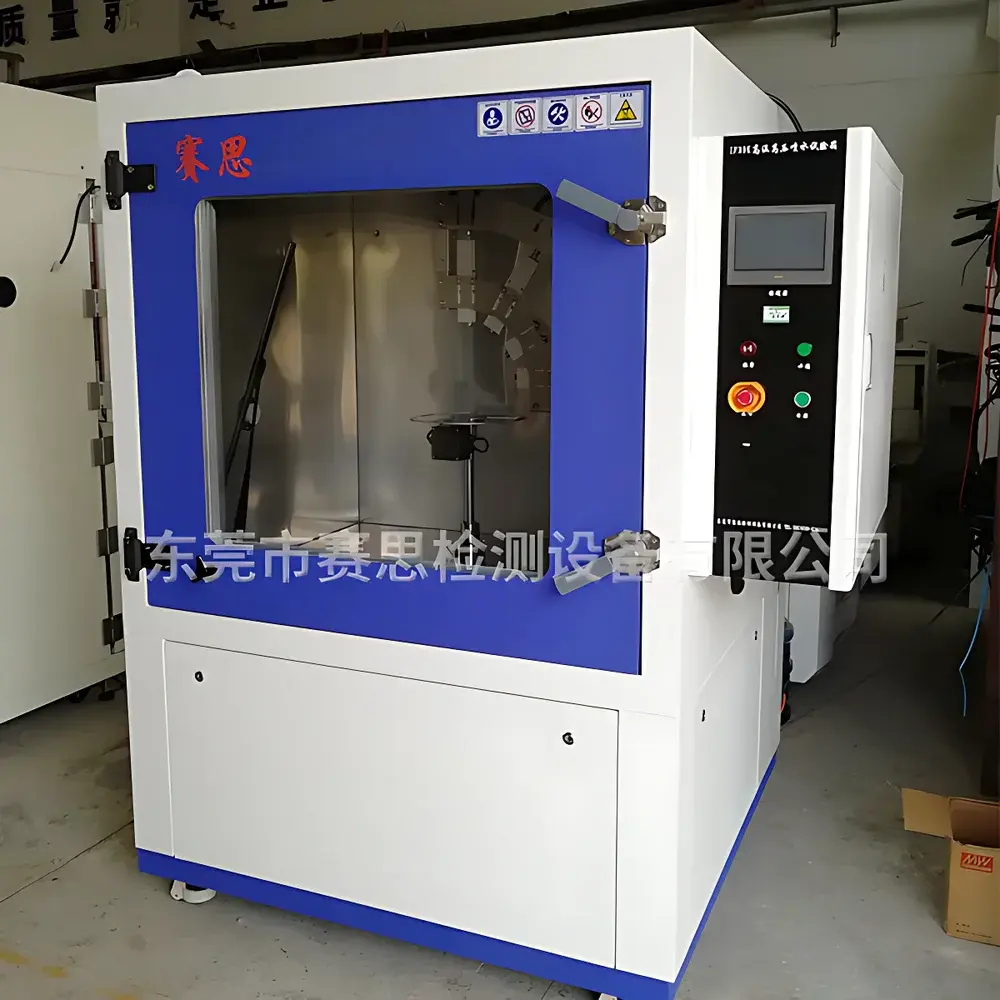

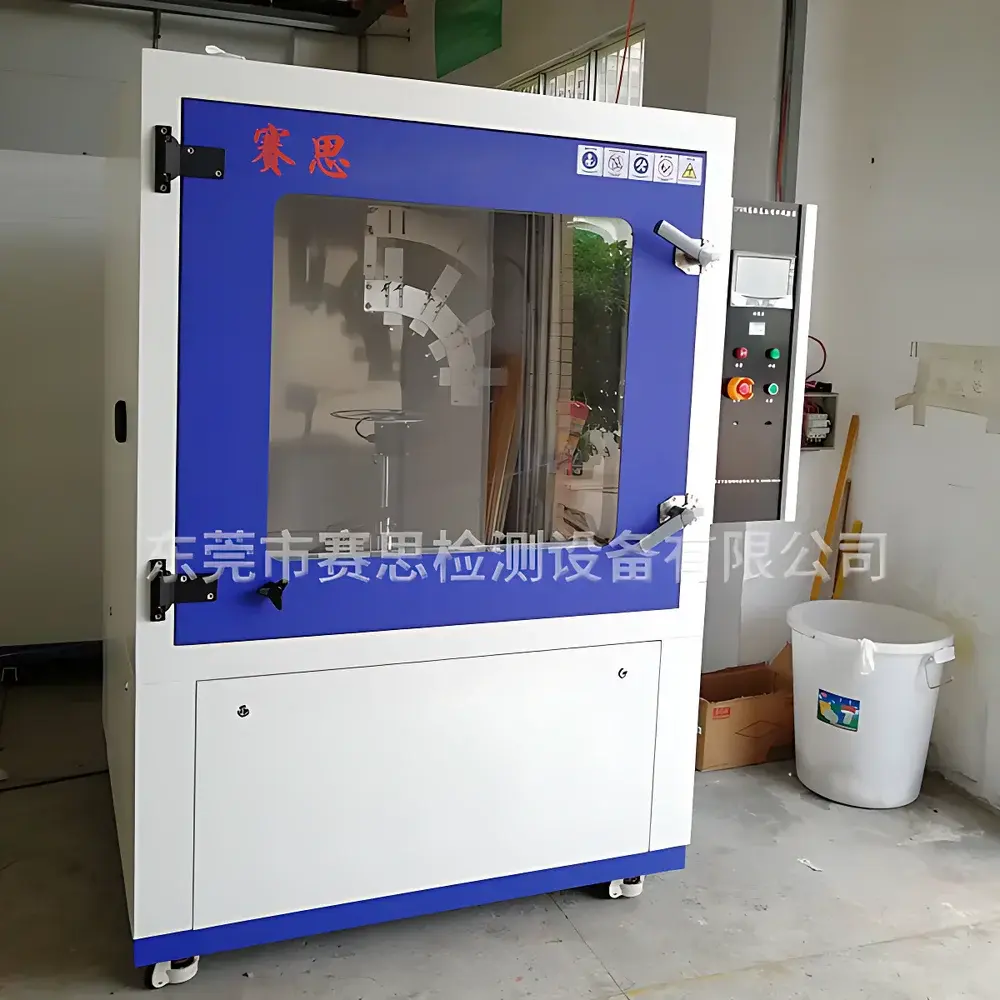

SETH IPX9K High-Pressure Hot Water Jet Test Chamber

Overview

The SETH IPX9K High-Pressure Hot Water Jet Test Chamber is an engineered environmental simulation system designed to perform rigorous IPX9K-rated protection testing in accordance with IEC 60529, ISO 20653, and automotive-specific standards including ISO 16750-1:2006, VW 80106:2008, and GMW 3172 (2007). Unlike conventional rain test chambers, the IPX9K method employs high-temperature, high-pressure water jets delivered at precisely controlled angles (0°, 30°, 60°, and 90°) and distances (100–150 mm) to replicate extreme thermal shock and mechanical erosion conditions encountered during high-speed vehicle operation under heavy wash-down scenarios—such as automated car washes, engine bay cleaning, or roadside hot-water de-icing procedures. The chamber utilizes a dual-tank configuration: a primary 100 L high-temperature pressurized reservoir (heatable to 90 °C) and a secondary 50 °C auxiliary tank, enabling stable thermal delivery across extended test cycles. Water pressure is maintained between 8,000–10,000 kPa via a dual-pump architecture comprising a domestic high-flow booster pump and an imported high-pressure plunger pump, ensuring consistent jet integrity and droplet velocity profiles critical for reproducible surface impact assessment.

Key Features

• Programmable touchscreen controller with integrated real-time monitoring of water temperature, pressure, flow rate (14–16 L/min), and turntable rotational speed (5 ±1 r/min)
• Four independently actuated 304 stainless steel nozzles, each mounted on telescopic adjustable brackets for precise angular alignment and standoff distance control (100–150 mm)
• SUS304L interior chamber walls and corrosion-resistant exterior construction (powder-coated galvanized steel or optional 304 stainless steel)
• Motorized rotating sample platform (Φ400 mm, load capacity ≤20 kg) with digital speed regulation and height-adjustable mounting posts
• PT100-class temperature sensors and German-manufactured high-temperature/high-pressure pressure transducers for metrological traceability
• Automated three-stage filtration feedwater system with anti-scaling insulated piping and programmable auto-drain functionality for long-term operational hygiene
• Explosion-proof, moisture-resistant Philips fluorescent lighting and tempered observation window with silicone gasket sealing
• Optional motorized windshield-wiper-style glass clearing system for uninterrupted visual monitoring during prolonged tests

Sample Compatibility & Compliance

The SETH IPX9K chamber accommodates samples up to 20 kg on its rotating platform, supporting geometrically complex automotive ECUs, connectors (per QC/T 417.1–2001), lighting assemblies, battery enclosures, and ADAS sensor housings. Its validated test envelope satisfies the full IPX9K specification per IEC 60529 Annex B, including sequential 30-second exposures at four nozzle orientations while maintaining water temperature within ±5 °C of setpoint (up to 80 °C) and pressure stability within ±2% of nominal value. All system firmware logs timestamped operational parameters—including start/stop times, thermal ramp rates, pressure excursions, and flow deviations—for GLP-compliant audit trails. Calibration certificates for PT100 sensors, pressure transducers, and flow meters are provided upon delivery, and the unit supports optional IQ/OQ documentation packages aligned with ISO/IEC 17025 laboratory accreditation requirements.

Software & Data Management

The embedded controller runs deterministic real-time firmware with non-volatile memory retention for up to 1,000 test programs. Each program stores configurable sequences: nozzle dwell time per angle, temperature ramp profiles (e.g., pre-heat soak at 80 °C for 15 min prior to jet initiation), pressure stabilization thresholds, and automatic safety interlocks (e.g., shutdown if water temperature exceeds 85 °C or pressure drops below 7,500 kPa). Data export is supported via USB 2.0 to CSV format, including second-by-second records of temperature, pressure, flow, and rotational speed. Optional Ethernet connectivity enables remote supervision through Modbus TCP or OPC UA protocols, facilitating integration into centralized MES/QMS platforms compliant with FDA 21 CFR Part 11 for electronic record integrity and user access controls.

Applications

This chamber is deployed primarily in Tier 1 automotive suppliers, OEM validation labs, and third-party certification bodies performing ingress protection qualification for components subjected to high-velocity thermal water jets. Typical use cases include verification of connector sealing integrity after thermal cycling, evaluation of conformal coating adhesion under combined thermal-mechanical stress, validation of camera lens housing gasket performance in autonomous driving modules, and qualification of electric powertrain enclosures per GB 4208 and UN ECE R100 requirements. Its capability to sustain elevated water temperatures while delivering calibrated impact energy makes it uniquely suited for accelerated aging studies of elastomeric seals and polymer-based housings exposed to repeated thermal shock events.

FAQ

What international standards does the SETH IPX9K chamber fully validate against?
It meets all technical requirements of IEC 60529 Annex B (IPX9K), ISO 20653, ISO 16750-1:2006, VW 80106:2008, GMW 3172 (2007), and GB 4208, with documented traceability to NIST-traceable calibration references.
Can the chamber operate continuously for 999 minutes without manual intervention?
Yes—the system features fully automated water replenishment, thermal stabilization, pressure regulation, and scheduled drain cycles, enabling unattended execution of extended durability tests.
Is the turntable speed adjustable beyond the standard 5 ±1 r/min range?
The base configuration offers fixed 5 ±1 r/min per ISO 20653; however, custom firmware variants support variable-speed profiles (1–10 r/min) under engineering consultation for specialized research applications.
Does the chamber support test sequence automation across multiple nozzle angles?
Yes—each of the four nozzle positions (0°, 30°, 60°, 90°) is individually solenoid-controlled with programmable dwell timing (default 30 s per angle), and sequencing logic is fully editable via the HMI.
What maintenance intervals are recommended for the high-pressure pump and filtration system?
The imported plunger pump requires oil change every 2,000 operating hours; the three-stage filter cartridges must be replaced every 500 hours or when differential pressure exceeds 0.3 bar, as monitored by onboard sensors.
