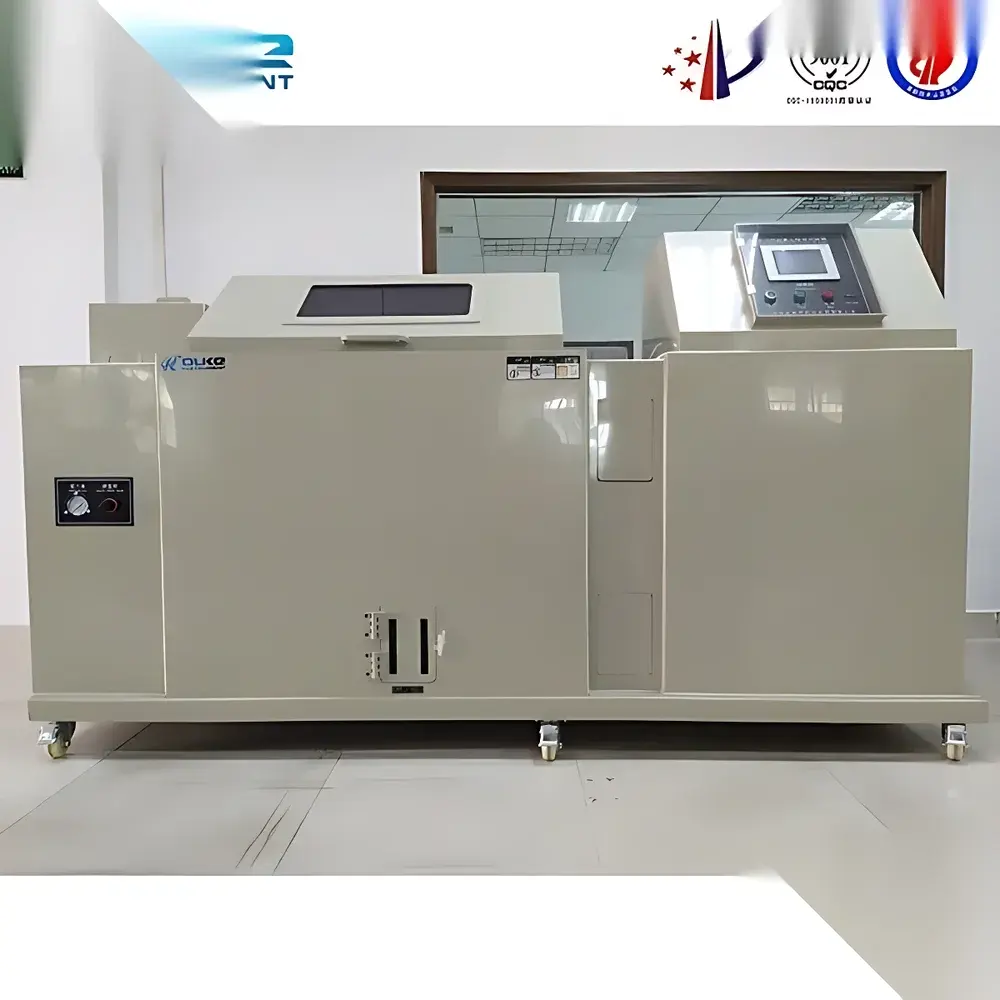

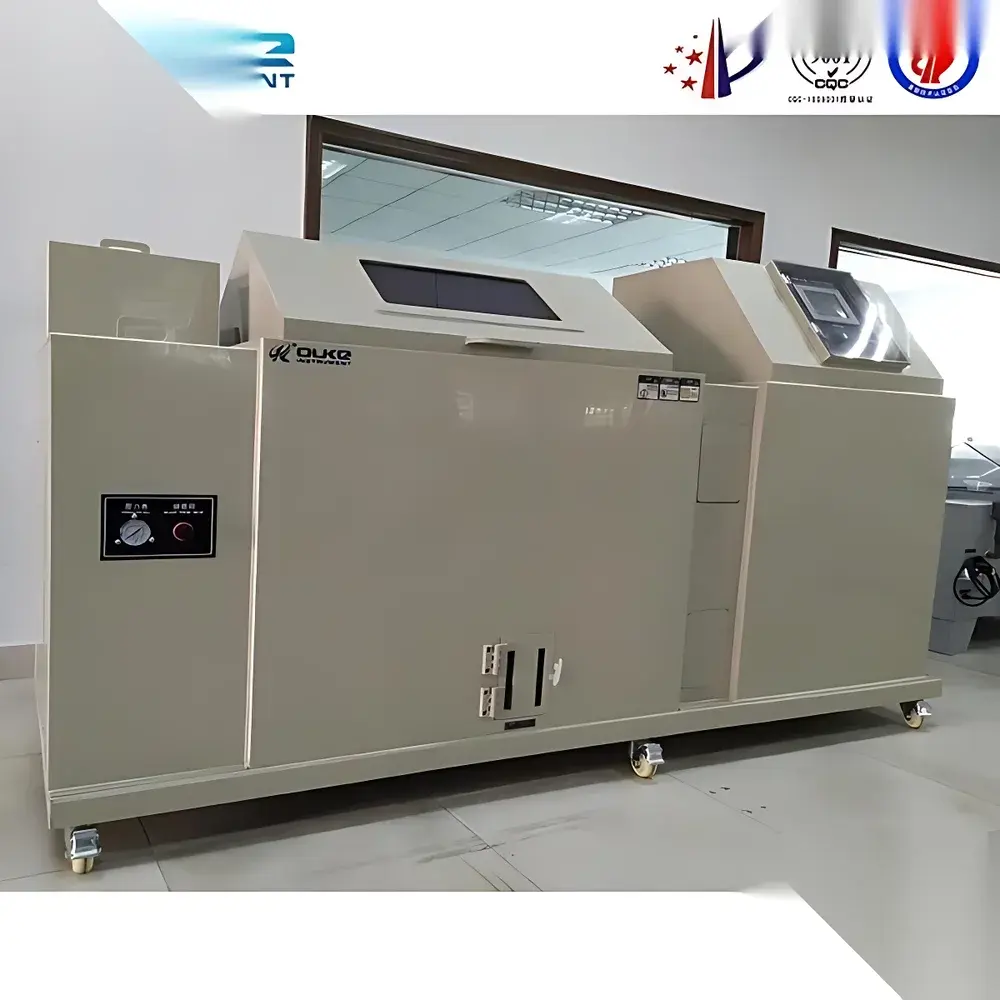

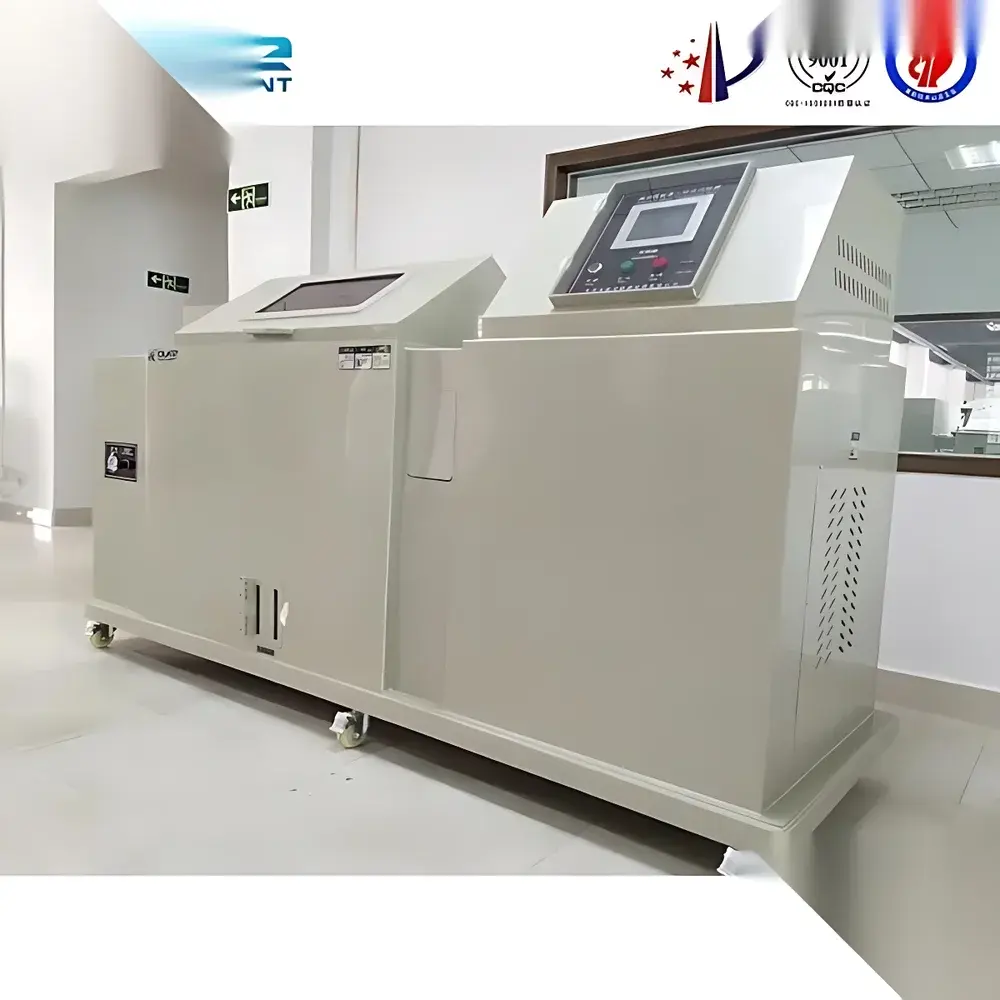

OK-SH Advanced Salt Spray Corrosion Test Chamber
| Brand | Other brands |
|---|---|
| Origin | Imported |
| Manufacturer Type | Authorized Distributor |
| Price | USD 12,500 (FOB) |
Overview
The OK-SH Advanced Salt Spray Corrosion Test Chamber is an engineered environmental test system designed to perform standardized and programmable cyclic corrosion testing in accordance with ISO 9227, ASTM B117, ASTM G85 (Annexes A1–A5), JIS Z2371, and DIN 50021. Unlike conventional continuous-salt-spray chambers operating solely at 35 °C under static saline fog conditions, the OK-SH chamber replicates dynamic outdoor exposure sequences—including salt spray, high-humidity condensation, drying, and ambient stabilization—within a single, integrated enclosure. This capability addresses the fundamental limitation of traditional salt fog testing: its poor correlation with real-world atmospheric degradation due to the absence of wet/dry cycling, temperature transitions, and relative humidity modulation. The chamber employs a dual-zone thermal management architecture—comprising rapid-response internal heaters, high-capacity forced-air cooling/drying fans, and optional auxiliary air-heating modules—to achieve precise, repeatable transitions between test phases in under 10 minutes. Its water-jacket-free design eliminates thermal inertia, enabling both low-humidity (<10% RH) drying cycles and rapid temperature ramping (up to 3 °C/min), critical for automotive OEM protocols such as GMW 14872, Ford CETP 00.00-L-467, and Renault D17 2027.
Key Features
- Single-chamber cyclic corrosion platform eliminating manual sample transfer between separate environmental units
- Programmable multi-step test sequences supporting Prohesion®, ASTM G85 Annex A2 (acidified salt fog), A3 (SO₂-enhanced), A5 (dilute electrolyte), and custom humidity/spray/dry/condensation cycles
- Rapid thermal response via direct-contact heating elements and high-CFM axial drying fans—no water jacket thermal lag
- Optional auxiliary air heater for sub-15% RH drying exposures, essential for simulating arid-phase desiccation in coastal or industrial atmospheres
- Corrosion-resistant 316L stainless steel interior with integrated mist collector and calibrated salt solution delivery system (pneumatically driven, non-clogging nozzles)
- Touchscreen SH Controller with password-protected user profiles, audit trail logging, and real-time deviation alerts per IEC 62443-3-3 cybersecurity guidelines
Sample Compatibility & Compliance
The OK-SH chamber accommodates standard test specimens up to 600 mm × 450 mm × 400 mm (W×D×H), including coated metal panels, fasteners, electronic enclosures, and automotive trim components. Fixtures are compatible with ISO 15197-compliant sample racks and ASTM B117 specimen supports. All operational parameters—including chamber temperature (RT to 55 °C), saturated chamber humidity (30–100% RH), salt solution concentration (5.0 ± 0.1% NaCl by mass), and pH (6.5–7.2)—are continuously monitored and logged for GLP/GMP compliance. Data integrity meets FDA 21 CFR Part 11 requirements through electronic signature-enabled test method validation, immutable audit trails, and role-based access control.
Software & Data Management
The embedded SH Control Software provides ISO/IEC 17025-aligned calibration traceability, automatic generation of test reports in PDF/XML formats, and export-ready CSV datasets for statistical process control (SPC) analysis. Remote monitoring is supported via secure HTTPS interface with TLS 1.2 encryption. Historical cycle data—including temperature ramp rates, dwell times, fog deposition uniformity (per ASTM B117 nozzle mapping), and RH recovery curves—is stored with timestamped metadata for regulatory review. Integration with LIMS platforms is enabled through OPC UA protocol support.
Applications
- Automotive component qualification per OEM-specific cyclic corrosion standards (e.g., VW PV1210, BMW GS 90010)
- Coating adhesion and blistering assessment on galvanized steel, aluminum alloys, and polymer-coated substrates
- Corrosion resistance validation of medical device housings (ISO 10993-15) and aerospace fasteners (AMS 2700)
- Accelerated aging studies for marine-grade electronics enclosures exposed to chloride-laden environments
- QC/QA release testing of electroplated hardware against ISO 4520 and EN 12473 specifications
FAQ
Does the OK-SH chamber comply with ASTM B117 for traditional salt spray testing?
Yes—it maintains full conformance with ASTM B117 when configured for continuous 35 °C, 5% NaCl fog operation, including mandatory temperature uniformity (±2 °C), pH control, and fog collection rate verification.
Can the controller store and recall multiple test methods?
Yes—the SH Controller supports up to 256 user-defined test programs with version-controlled method archiving and change history tracking.
Is third-party calibration certification available?
Yes—NIST-traceable calibration certificates for temperature, humidity, and solution conductivity sensors are provided upon request, compliant with ISO/IEC 17025.
What maintenance intervals are recommended for long-term reliability?
Daily visual inspection of nozzles and solution reservoir; quarterly verification of RH sensor drift and annual recalibration of thermal sensors per manufacturer’s maintenance schedule.
