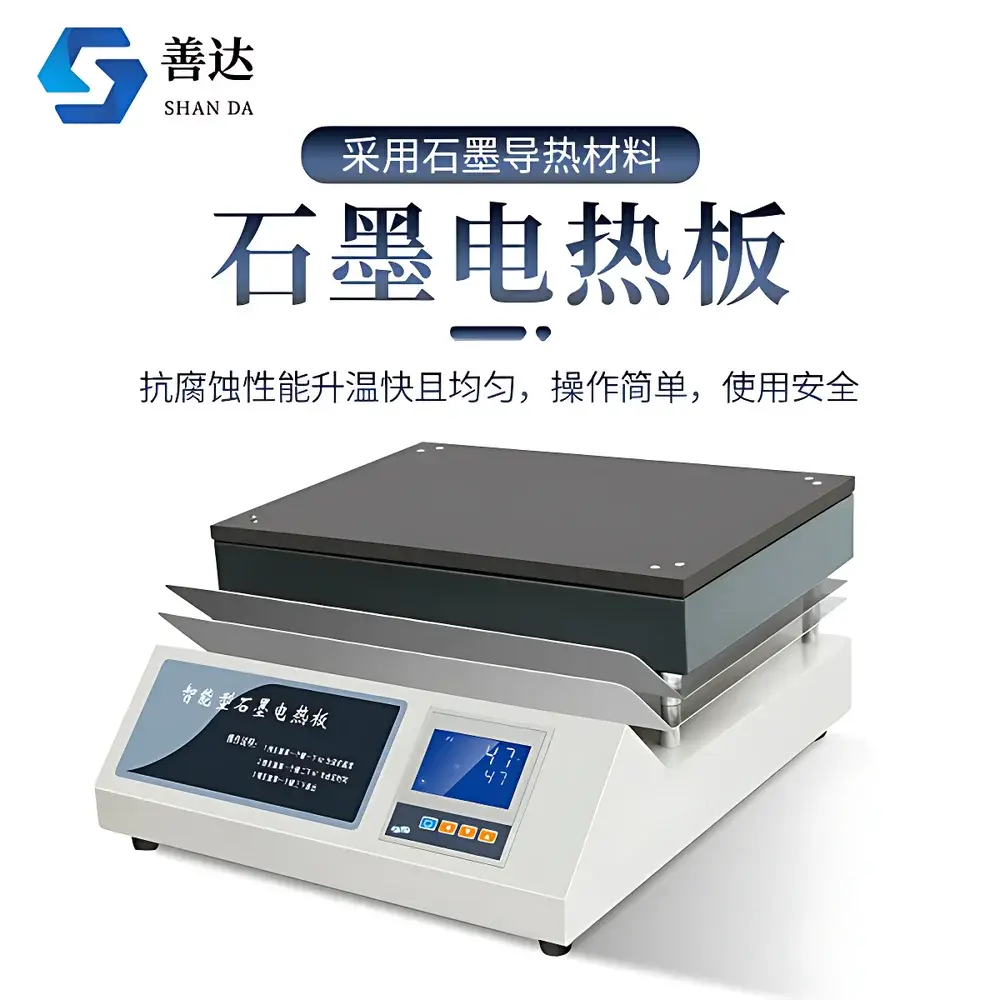

Shanda SD-0SB Graphite Electric Heating Plate

Overview

The Shanda SD-0SB Graphite Electric Heating Plate is a precision thermal platform engineered for reproducible, contamination-free sample preparation in analytical laboratories. Unlike conventional metal-surface hotplates, it employs isotropic, ultra-high-purity isostatically pressed graphite as the active heating element—offering superior thermal conductivity (>150 W/m·K), exceptional chemical inertness, and minimal thermal mass for rapid, stable temperature response. Its operating principle relies on resistive Joule heating of the graphite block, with heat distributed uniformly across the surface via graphite’s intrinsic lateral conduction properties. Designed specifically for digestion, evaporation, drying, and pre-concentration workflows in environmental, pharmaceutical, food safety, and geochemical labs, the SD-0SB meets core functional requirements for trace-metal analysis where metallic leaching and thermal gradients must be rigorously controlled.

Key Features

• Isostatically pressed high-purity graphite heating surface (99.997% carbon), resistant to HNO₃, HCl, HF, H₂SO₄, and aqua regia at elevated temperatures

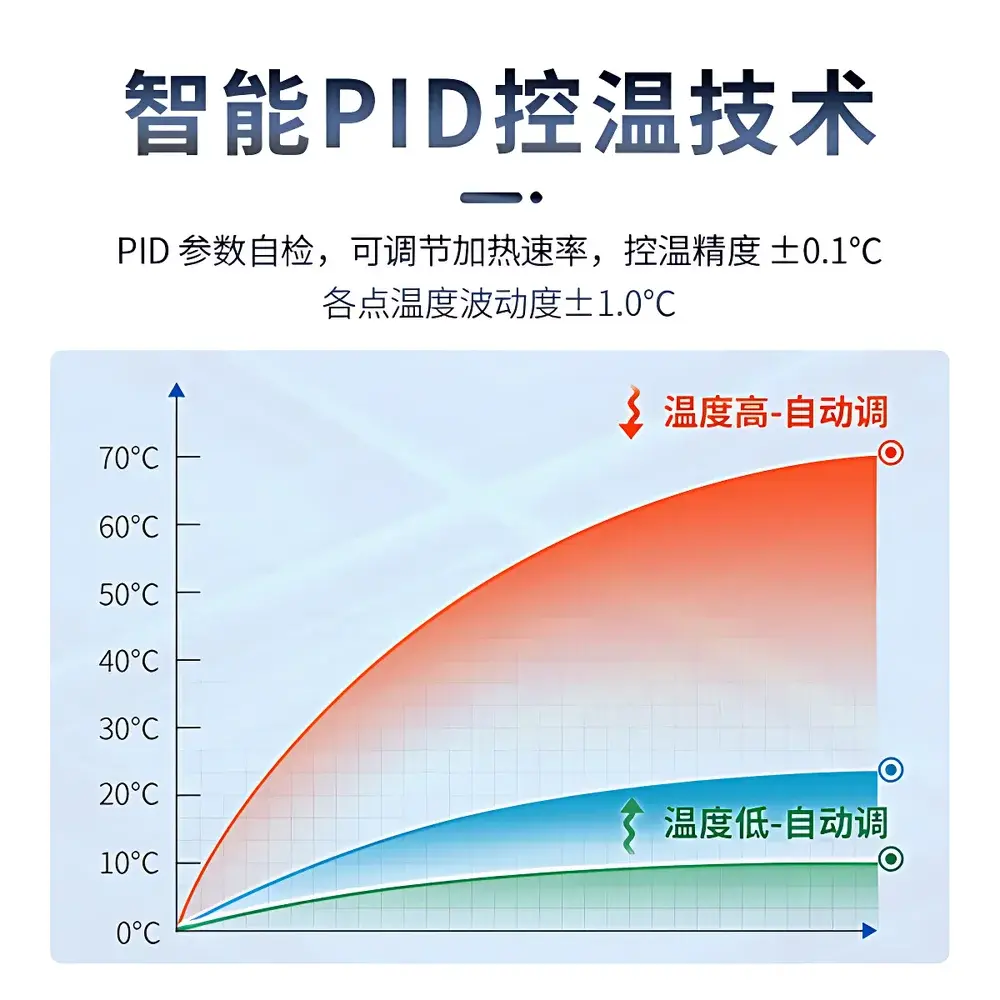

• PID-based digital temperature control with auto-tuning capability; setpoint accuracy ±0.1 °C, long-term stability ±0.3 °C over 8-hour operation
• Intelligent programmable controller with up to 10-step ramp-hold profiles (optional firmware upgrade); supports timed shutdown and overtemperature cutoff (420 °C hardware limit)

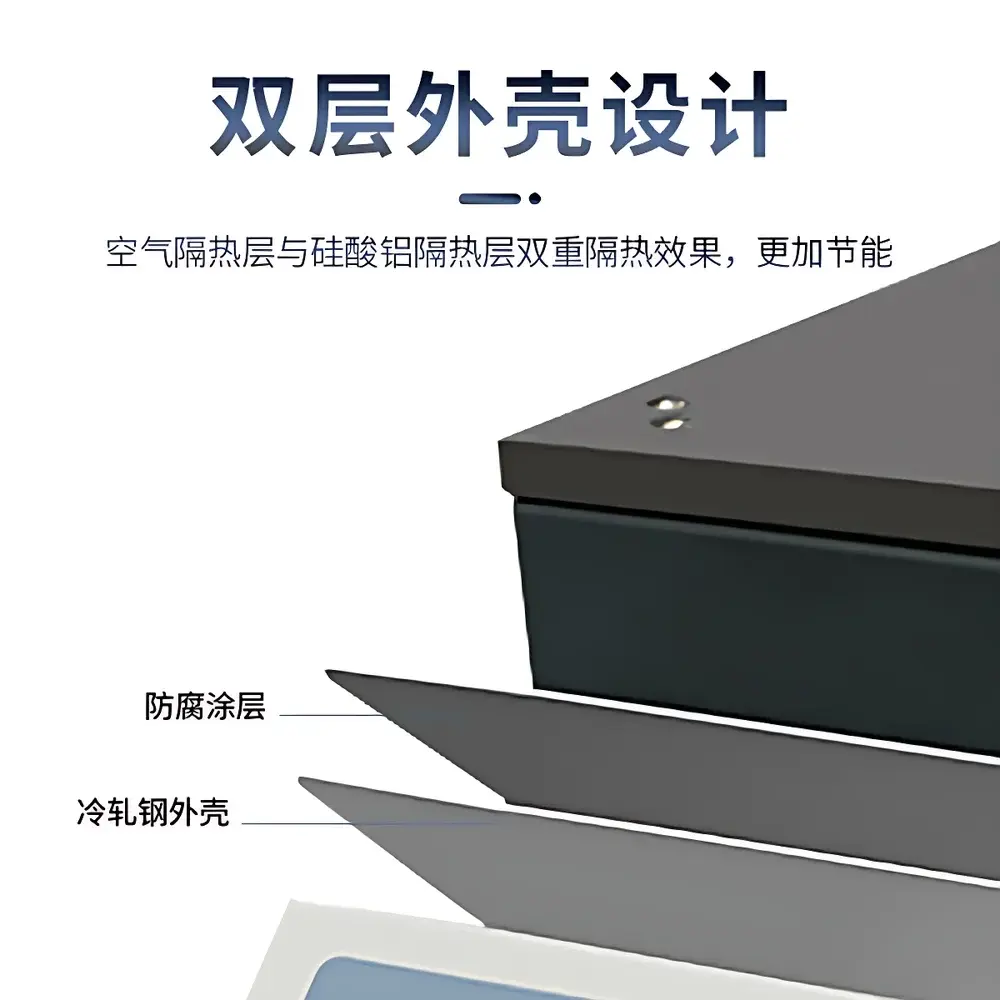

• Dual-stage thermal insulation: 15 mm air gap + 25 mm ceramic fiber blanket (Al₂O₃–SiO₂ composite), reducing external casing temperature to <55 °C at 400 °C setpoint

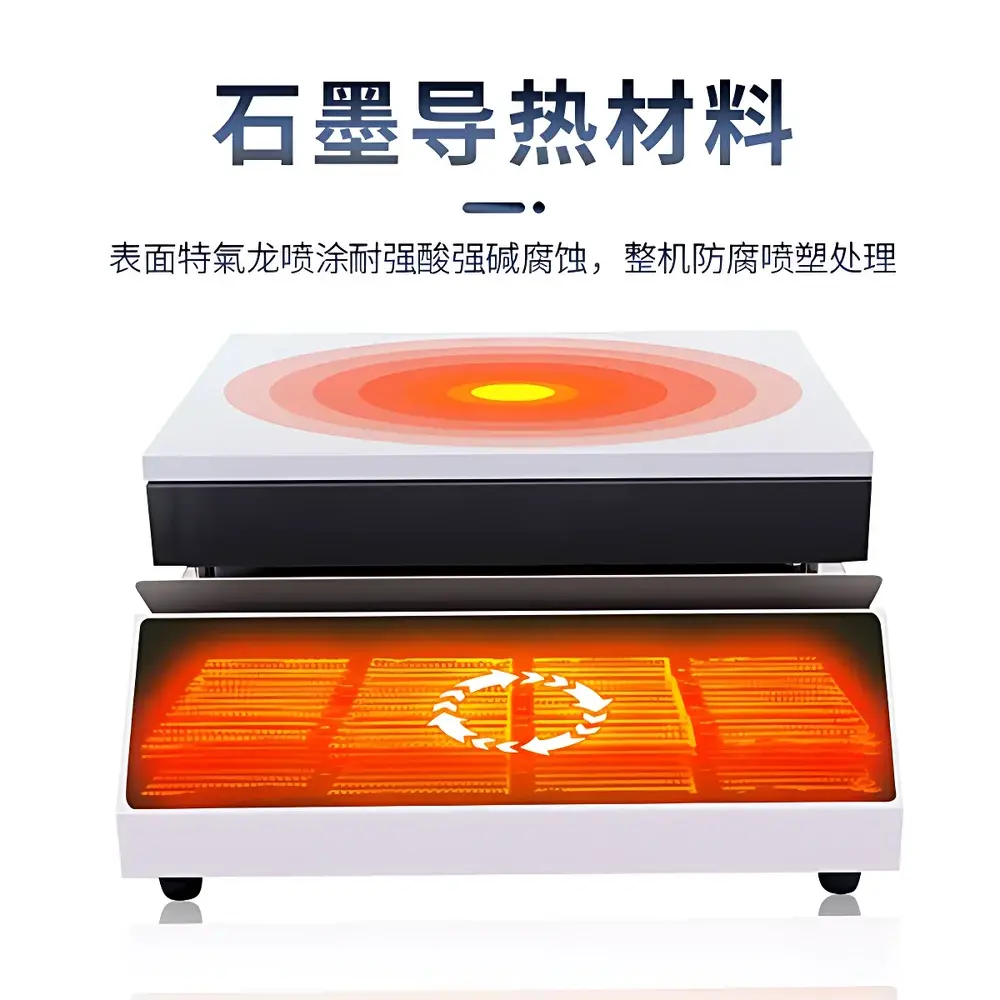

• Electrostatically applied PTFE (Teflon™-equivalent) coating on graphite surface and full epoxy-polyester powder-coated chassis for ISO 14644-1 Class 7 cleanroom-compatible corrosion resistance
• Large 300 × 200 mm uniform heating zone—validated per ASTM E2202-19 for spatial temperature deviation ≤±1.0 °C across entire surface at 200 °C and 400 °C

Sample Compatibility & Compliance

The SD-0SB accommodates standard borosilicate glass beakers (50–1000 mL), quartz crucibles, PFA vials, and Teflon-lined digestion vessels. Its non-metallic architecture eliminates transition-metal contamination risks during EPA Method 3050B/3051A, ISO 11466, or USP <231> heavy-metal digestions. The unit complies with IEC 61010-1:2010 (Safety Requirements for Electrical Equipment for Measurement, Control, and Laboratory Use) and carries CE marking under the Low Voltage Directive (2014/35/EU) and EMC Directive (2014/30/EU). All firmware logic supports audit trail generation for GLP/GMP environments when paired with optional RS-485/Modbus RTU interface modules.

Software & Data Management

While the base SD-0SB operates via standalone front-panel control, optional communication modules enable integration into centralized lab management systems. The RS-485 interface supports Modbus RTU protocol for real-time temperature logging, remote setpoint adjustment, and event-triggered data capture (e.g., ramp completion, fault condition). When connected to Shanda’s LabControl Suite (v3.2+), users can export CSV-formatted thermal profiles with timestamps, generate PDF calibration reports compliant with ISO/IEC 17025:2017 Clause 7.8.3, and maintain electronic records satisfying FDA 21 CFR Part 11 requirements—including user authentication, electronic signatures, and immutable audit trails.

Applications

• Open-vessel acid digestion of soils, sediments, and biological tissues prior to ICP-MS or AAS analysis
• Controlled evaporation of extracts in pesticide residue testing (AOAC 2007.01, EN 15662)
• Pre-concentration of aqueous environmental samples (e.g., wastewater, rainwater) per EPA Method 1638
• Drying and ashing of filter papers in particulate matter (PM₂.₅/PM₁₀) gravimetric analysis
• Standardization of reference material homogenization in certified reference material (CRM) production labs
• Heating baths for solvent extraction systems requiring precise thermal input without magnetic interference

FAQ

Is the graphite surface compatible with hydrofluoric acid (HF) digestion?
Yes—the isostatically pressed graphite block is coated with a 50-µm PTFE layer rated for continuous exposure to ≤40% HF at temperatures up to 200 °C. For prolonged >200 °C HF use, we recommend PFA-coated graphite inserts (sold separately).
Does the SD-0SB support GLP-compliant calibration documentation?
Yes—calibration certificates traceable to NIST standards are provided with each unit. Optional IQ/OQ protocols and annual recalibration services align with ISO/IEC 17025 and EU Annex 11 requirements.
Can multiple SD-0SB units be synchronized for parallel digestion runs?
Via RS-485 daisy-chaining and LabControl Suite, up to 16 units can share a common timebase and execute identical thermal programs with <±0.5 s inter-unit timing skew.
What maintenance is required for long-term performance?
No routine maintenance is needed beyond periodic visual inspection of the PTFE coating integrity and cleaning with deionized water and lint-free wipes. Graphite wear rate is <0.02 mm/year under typical 300 °C continuous operation.
Is the unit suitable for use inside fume hoods?
Yes—the low surface emissivity (<0.3) and absence of exposed heating coils minimize convective air disturbance; maximum operating ambient temperature is 40 °C with ≥0.5 m/s airflow, per EN 60335-2-35.
