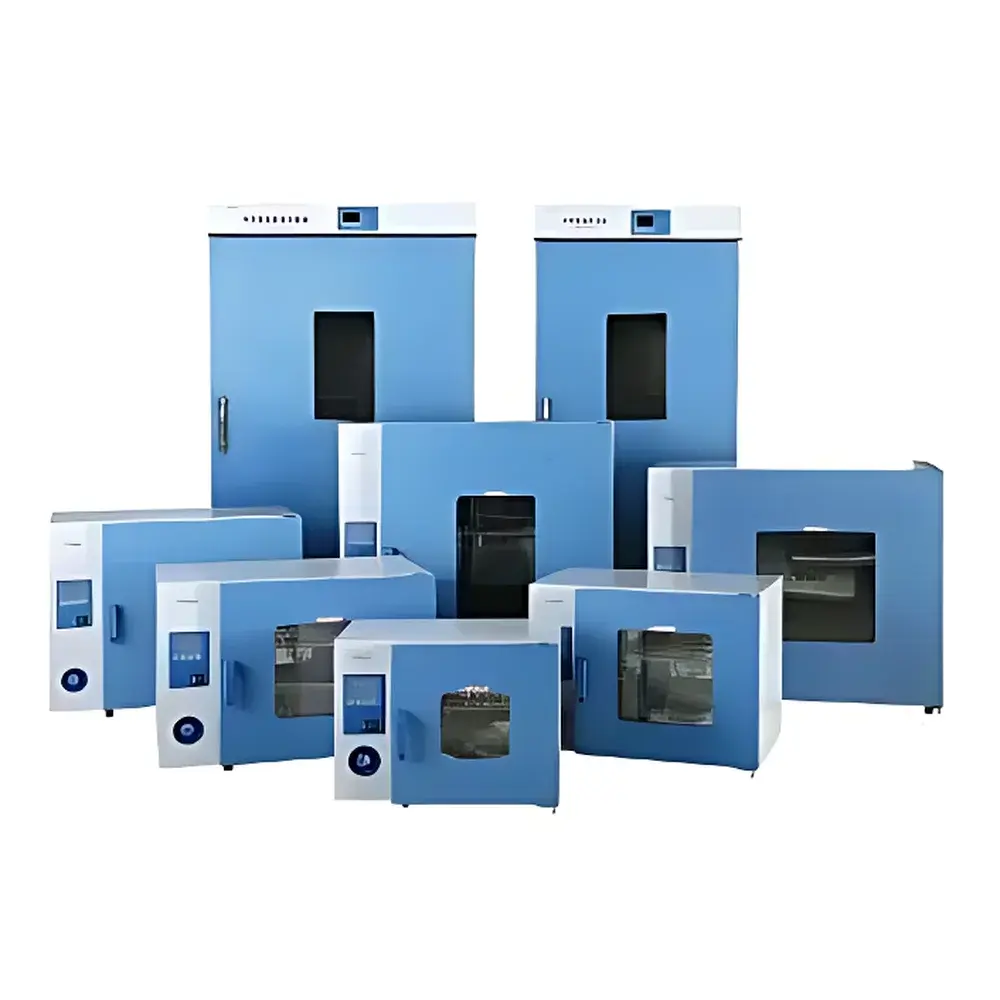

Shanghai Yiheng DHG-9000 Series Precision Forced-Air Drying Oven

Overview

The Shanghai Yiheng DHG-9000 Series Precision Forced-Air Drying Oven is an ISO-compliant laboratory drying system engineered for reproducible thermal processing in research, quality control, and production environments. Based on forced-convection thermodynamics, the oven maintains uniform temperature distribution across its working chamber via a high-efficiency axial fan and optimized airflow ducting—ensuring minimal thermal stratification and consistent heat transfer to samples. Designed in accordance with IEC 61010-1 safety standards and aligned with ASTM E145 and ISO 17025 operational expectations for thermal validation, the DHG-9000 series supports critical workflows including moisture content determination (per ISO 5530-1), polymer pre-conditioning (ASTM D618), pharmaceutical stability testing (ICH Q1A), and microbiological media preparation (USP ). Its dual-range temperature capability (RT+10°C to 200°C or 250°C) accommodates both low-temperature desiccation and high-temperature sterilization protocols without compromising long-term calibration stability.

Key Features

• Mirror-finish 304 stainless steel inner chamber—electropolished and argon-shielded TIG-welded for corrosion resistance, cleanability, and compliance with GLP/GMP hygiene requirements.
• Microprocessor-based P.I.D. temperature controller with digital display, ±0.1°C resolution, and programmable timer (0–9999 min) enabling unattended operation and repeatable thermal cycles.
• Independent over-temperature cut-off system (optional): hardware-limited safety circuit that interrupts power when preset threshold is exceeded—certified per EN 60519-2 for thermal process safety.
• Adjustable air inlet and exhaust dampers on front panel allow fine-tuning of internal airflow dynamics to match sample load characteristics and minimize moisture retention.
• High-reliability silicone rubber door gasket rated for continuous operation up to 250°C; designed for >10,000 thermal cycles with minimal compression set.
• Modular chassis architecture supports optional RS485 Modbus RTU interface (for SCADA integration) or analog/digital printer output—enabling traceable temperature logging compliant with FDA 21 CFR Part 11 audit trail requirements.

Sample Compatibility & Compliance

The DHG-9000 series accommodates standard laboratory glassware (e.g., weighing bottles, Petri dishes, crucibles), metal sample pans, and polymer trays within its vertically adjustable stainless steel shelving system. Chamber dimensions scale proportionally across the model range (30 L to 1000 L), maintaining ≥75 mm clearance between shelves and walls to preserve laminar airflow integrity. All variants meet CE marking requirements under the EU Machinery Directive 2006/42/EC and Electromagnetic Compatibility Directive 2014/30/EU. The stainless-steel variant (designated “A” suffix) satisfies ISO 14644-1 Class 5 cleanroom compatibility when operated with HEPA-filtered intake air (external retrofit required). Calibration documentation includes as-delivered NIST-traceable temperature uniformity maps at three reference points (center, top rear, bottom front) per EURAMET cg-18 guidelines.

Software & Data Management

While the base unit operates via embedded firmware, optional communication modules enable bidirectional data exchange with third-party laboratory information management systems (LIMS) or supervisory control and data acquisition (SCADA) platforms. The RS485 interface supports real-time temperature streaming at 1-second intervals, configurable alarm thresholds, and event-triggered data dumps (e.g., door-open events, setpoint changes). When paired with validated thermal printer hardware, the system generates time-stamped, tamper-evident paper records suitable for regulatory submissions. Audit trails—including user login history, parameter modifications, and calibration logs—are retained internally for ≥30 days and exportable via USB or serial dump for archival per ALCOA+ principles.

Applications

• Moisture loss-on-drying (LOD) analysis in food, feed, and pharmaceutical raw materials (AOAC 950.46, USP ).
• Baking and curing of coatings, adhesives, and composite pre-pregs under controlled thermal ramp profiles.
• Pre-drying of filter membranes and chromatography columns prior to solvent conditioning.
• Thermal stabilization of reference standards and calibration weights before gravimetric use.
• Low-temperature sterilization of reusable lab tools where autoclaving is unsuitable (e.g., precision optics, electronics).
• Accelerated aging studies per ASTM G164 for material degradation kinetics modeling.

FAQ

What is the maximum allowable operating temperature for the DHG-9000 series?
The DHG-9000 series offers two standard configurations: RT+10°C to 200°C and RT+10°C to 250°C. The 250°C version requires upgraded insulation and fan motor rating—verify model suffix (e.g., DHG-9240A-250) during ordering.
Is temperature uniformity validated across the entire chamber volume?
Yes. Uniformity is specified as ±3% at 100°C under no-load conditions per ISO 17025 Annex A. For loaded validations, users must perform IQ/OQ per their SOP using calibrated PT100 probes at nine spatial points.
Can the oven be integrated into a centralized lab monitoring network?
With the optional RS485 module, it supports Modbus RTU protocol for integration into BMS or LIMS platforms. Custom OPC UA drivers are available upon request for enterprise-scale deployment.
Does the stainless steel interior meet FDA or USP requirements for pharmaceutical use?
The 304 stainless steel chamber complies with USP material suitability for non-sterile pharmaceutical equipment. Full GMP qualification requires additional vendor-supplied DQ/IQ/OQ documentation packages.
What maintenance intervals are recommended for long-term reliability?
Fan lubrication every 12 months, door gasket inspection every 6 months, and annual verification of P.I.D. controller accuracy against NIST-traceable reference thermometer are advised per manufacturer’s maintenance schedule.
