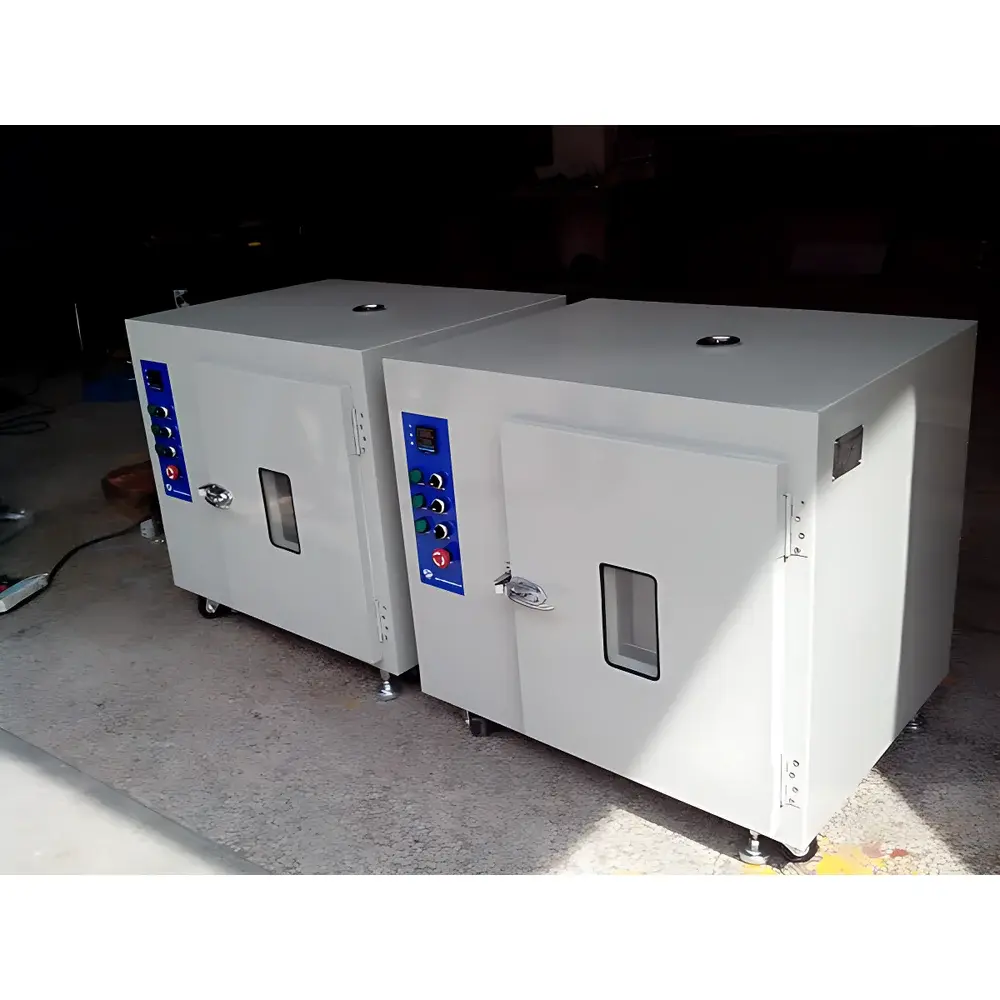

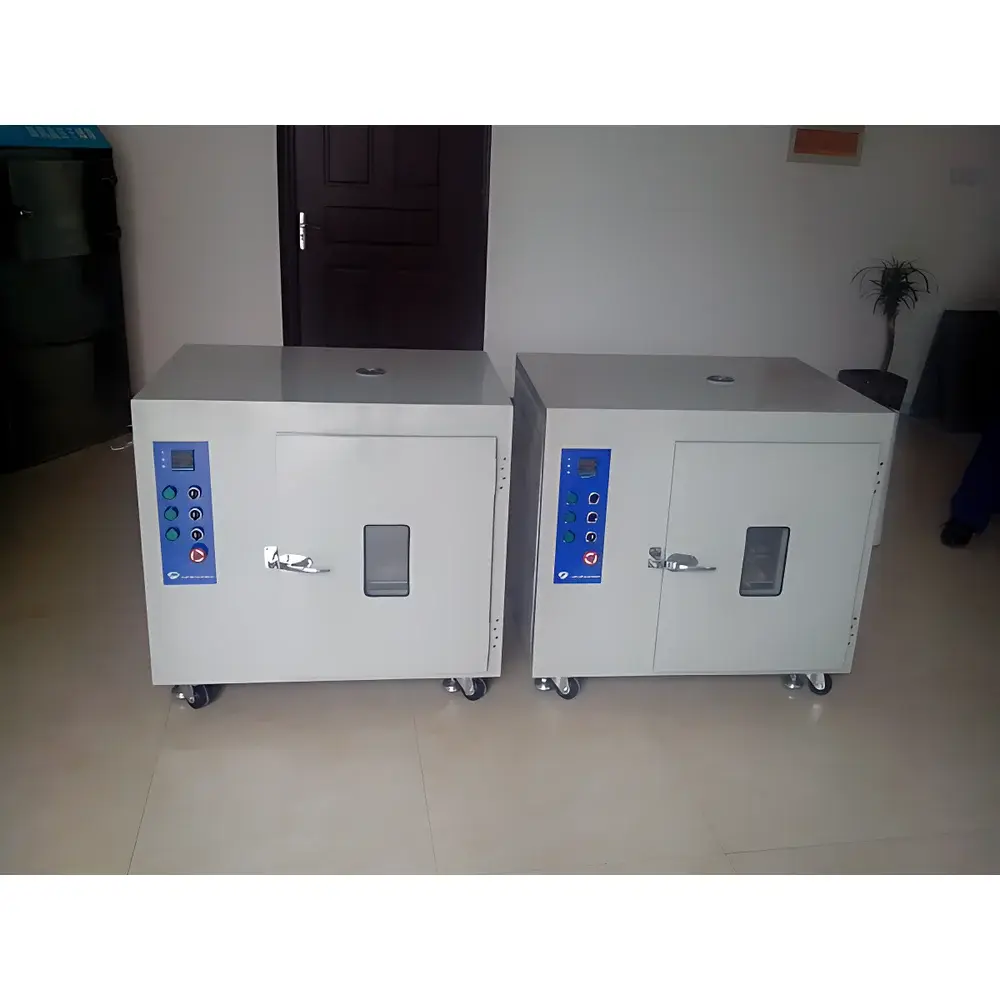

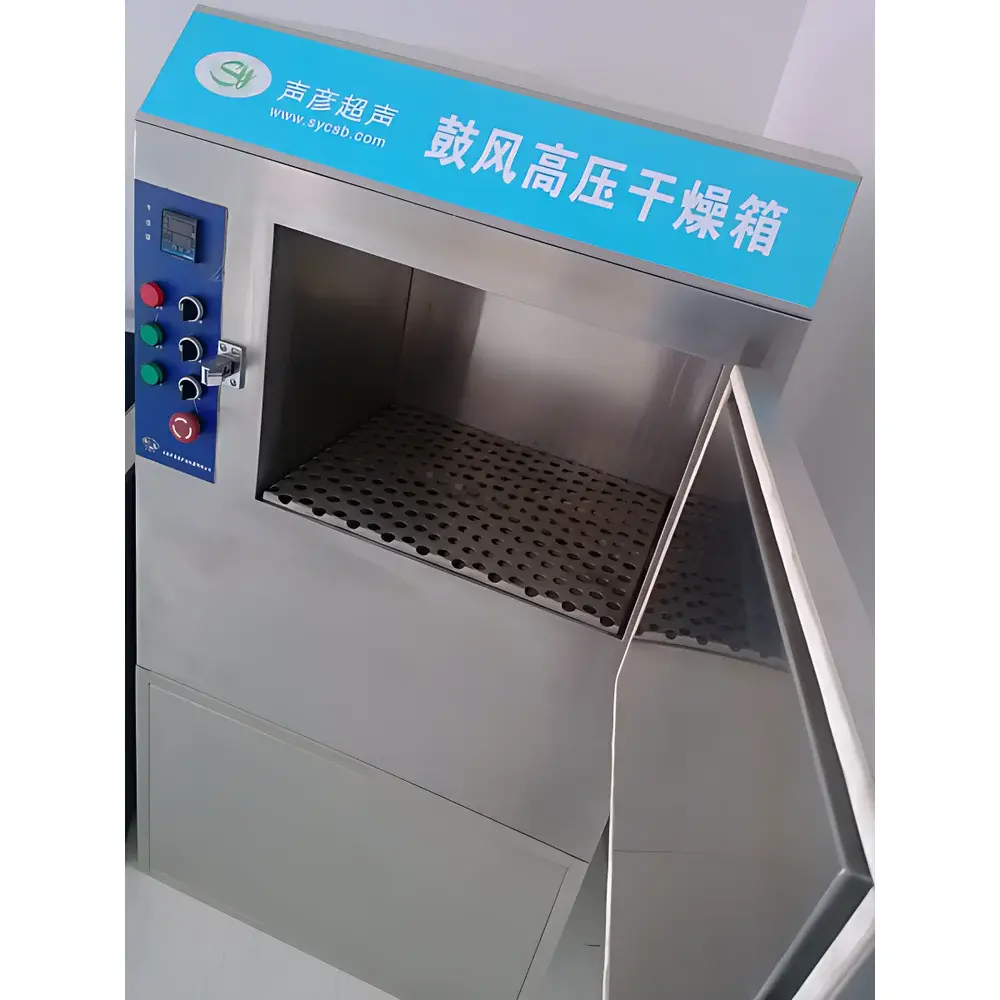

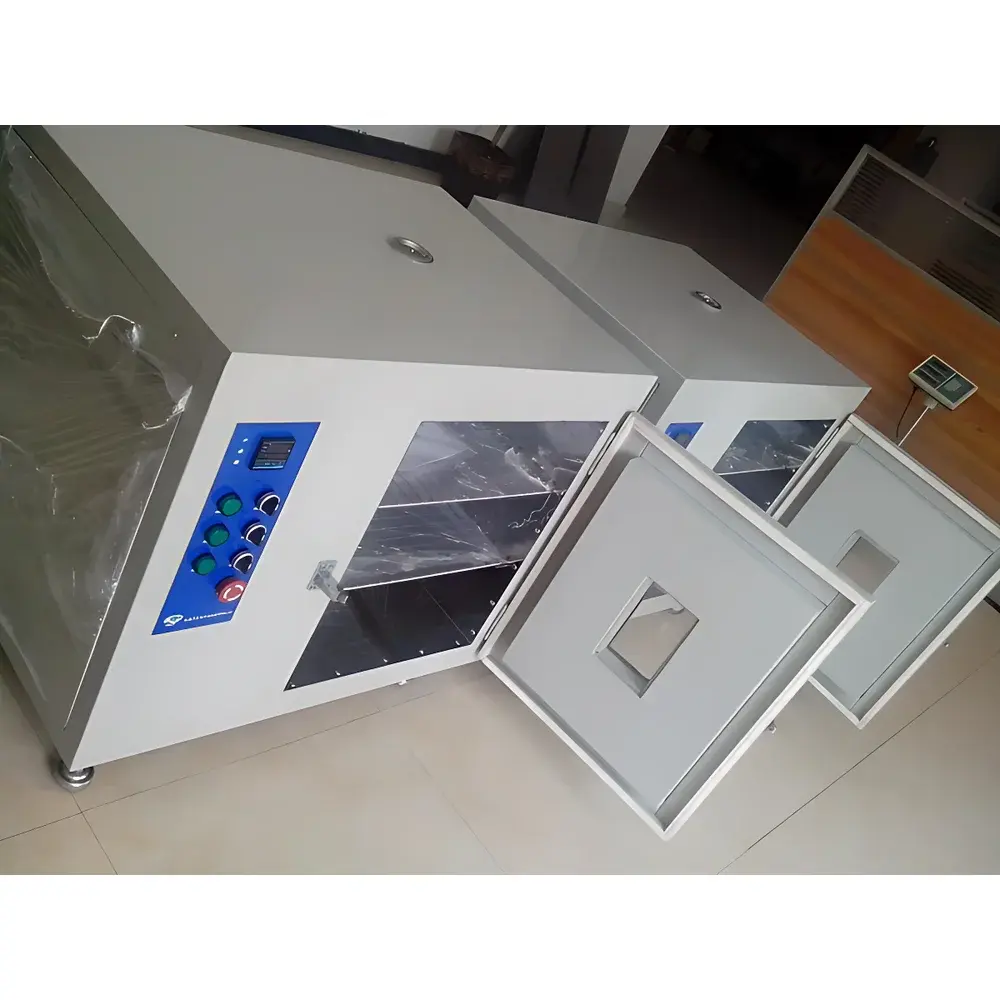

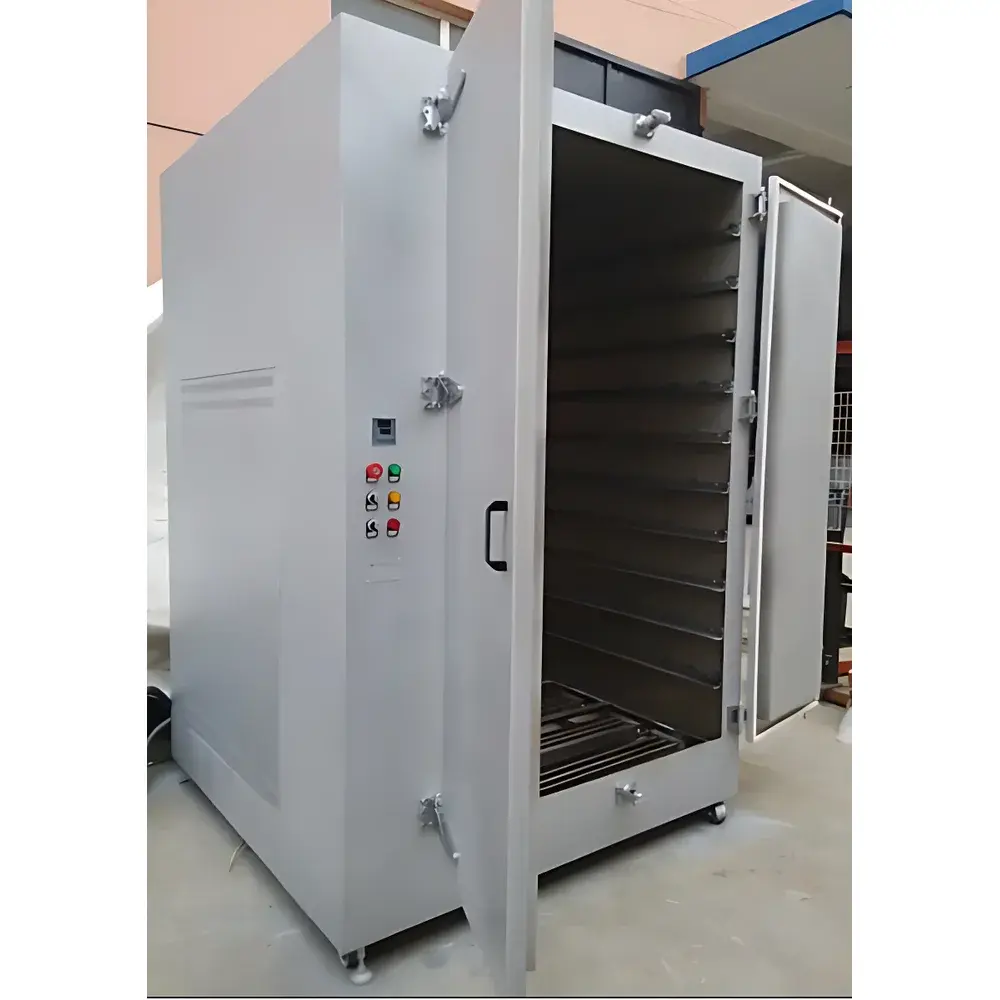

Shengyan Ultrasonic SCQ-004 Forced-Air Circulating Drying Oven

Overview

The Shengyan Ultrasonic SCQ-004 Forced-Air Circulating Drying Oven is a precision-engineered laboratory and industrial drying system designed for stable, uniform thermal processing across demanding applications. Operating on the principle of horizontal dual-motor forced-air convection, the SCQ-004 actively circulates heated air throughout the chamber via an integrated ducted airflow path—ensuring rapid thermal equilibration and exceptional temperature homogeneity (±0.5 °C). Unlike natural-convection ovens, this design mitigates thermal stratification and minimizes localized hot or cold spots, making it suitable for processes requiring strict thermal consistency, such as moisture removal, pre-baking, stress relief, polymer curing, and solvent evaporation. The oven’s sealed heating elements are fully enclosed within the insulated chamber wall structure, reducing oxidation exposure and extending service life under continuous operation at elevated temperatures up to 300 °C.

Key Features

• Horizontal dual-motor air circulation system with balanced impeller-driven flow—optimized for laminar, low-turbulence air movement and uniform heat distribution
• 304 stainless steel interior chamber (2.0 mm thickness) providing corrosion resistance, non-reactivity, and ease of cleaning—critical for pharmaceutical, electronic, and chemical processing environments
• Precision PID temperature controller with digital display and real-time monitoring—enabling accurate setpoint retention and fast recovery after door opening (typical stabilization time <3 min post-interruption)
• Robust insulation using high-density mineral fiber board (≥100 mm thickness), minimizing external surface temperature rise and improving energy efficiency
• Front-access double-layer tempered glass door with silicone gasket seal—offering visual process monitoring while maintaining thermal integrity
• Over-temperature protection circuit with independent mechanical safety cutoff—compliant with IEC 61000-6-2 electromagnetic compatibility and basic functional safety requirements

Sample Compatibility & Compliance

The SCQ-004 accommodates a broad range of sample formats—including trays, crucibles, petri dishes, PCBs, coated substrates, and bulk powder containers—within its 225 L internal volume (500 × 600 × 750 mm). Its inert 304 stainless steel chamber supports compatibility with mildly acidic, alkaline, or organic solvent-laden samples during low-to-medium temperature drying cycles. While not certified to ISO/IEC 17025 or ASTM E145 as a metrological standard oven, the unit meets general-purpose thermal stability criteria referenced in ASTM D1654 (corrosion testing), ISO 17025 Clause 6.4.3 (equipment suitability), and USP (sterile processing support equipment). It is routinely deployed in GLP-aligned laboratories for non-critical stability studies, QC drying protocols, and preparatory steps prior to gravimetric analysis or chromatographic injection.

Software & Data Management

The SCQ-004 operates via a standalone digital PID controller without embedded data logging or network connectivity. However, analog output (0–10 V or 4–20 mA) is available upon request for integration with external SCADA systems or centralized lab monitoring platforms. For regulated environments requiring audit trails, users may connect third-party calibrated thermocouple loggers (e.g., Omega OM-DAQPRO-5300 series) to the oven’s internal sensor port—enabling compliant temperature recording aligned with FDA 21 CFR Part 11 when paired with validated software. All firmware and calibration records remain user-maintained per internal SOPs; no cloud-based or proprietary vendor software is required or supported.

Applications

• Moisture content determination in raw materials (pharmaceutical excipients, food powders, ceramic precursors)
• Pre-drying of filter membranes and chromatography media prior to sterilization
• Curing of conformal coatings and solder mask layers on printed circuit boards
• Thermal conditioning of metal and polymer test specimens per ASTM E8/E8M tensile preparation guidelines
• Accelerated aging studies for packaging materials and adhesives under controlled dry-heat exposure
• Residual solvent removal from electroplating racks and anodized fixtures
• Stabilization of hygroscopic reference standards before analytical weighing

FAQ

Is the SCQ-004 suitable for use in Class 1000 cleanrooms?

It is not ISO 14644-certified for cleanroom operation due to lack of HEPA filtration and static-dissipative construction; however, its sealed chamber and stainless steel finish allow deployment in controlled ambient labs with particle mitigation protocols.
Can the oven be validated for GMP manufacturing processes?

Yes—when equipped with NIST-traceable thermocouples and operated under documented IQ/OQ protocols, the SCQ-004 has been successfully qualified for non-sterile intermediate drying steps in API manufacturing facilities.
What maintenance intervals are recommended for long-term reliability?

Inspect fan motor bearings and clean air intake filters every 500 operational hours; recalibrate temperature sensors annually or per internal quality schedule.
Does the unit support ramp-soak programming?

No—the standard controller supports only single-setpoint operation; multi-stage profiles require external programmable logic controllers or optional add-on timer modules.
Is explosion-proof certification available?

Not natively; the SCQ-004 lacks ATEX or UL 60079 compliance. For volatile solvent applications, consult engineering review prior to installation.
