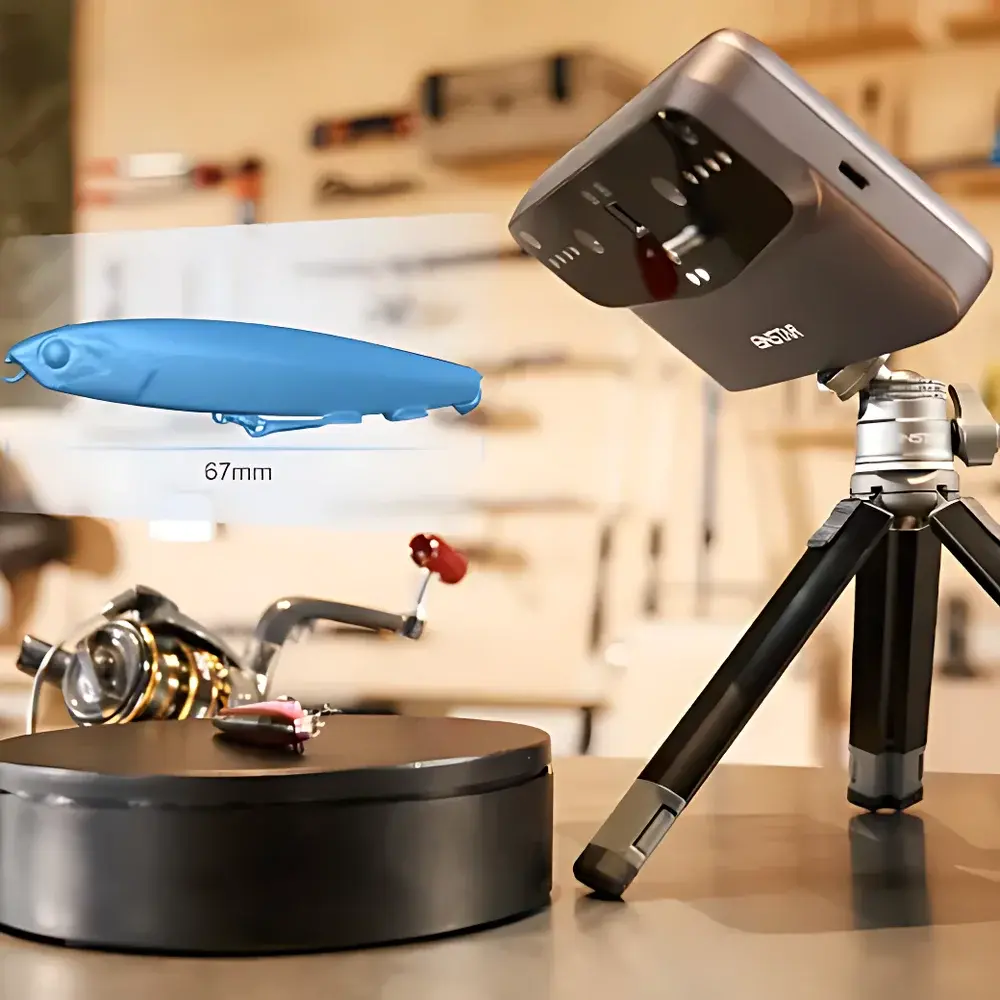

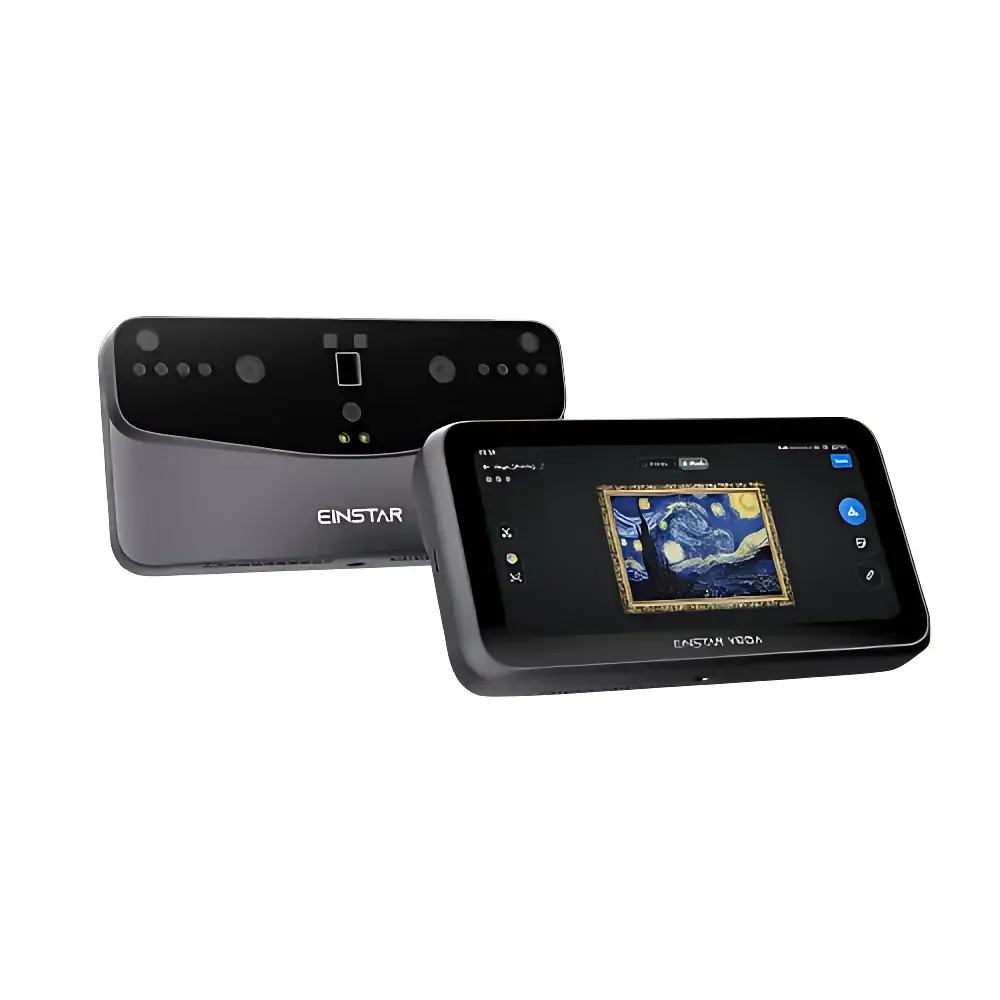

SHINING 3D EINSTAR VEGA Wireless All-in-One 3D Scanner

Overview

The SHINING 3D EINSTAR VEGA is a wireless, all-in-one structured-light 3D scanner engineered for high-fidelity geometric data acquisition in field-deployable and non-laboratory environments. Unlike traditional tethered scanners requiring external computing hardware, the VEGA integrates dual-mode active stereo vision—combining infrared VCSEL illumination with MEMS-based pattern projection—to deliver robust 3D reconstruction across variable lighting conditions. Its optical architecture leverages triangulation principles with adaptive exposure control and real-time depth map fusion, enabling stable operation under ambient illumination up to 70,000 lux (equivalent to direct midday sunlight) as well as in complete darkness via active IR illumination. Designed for precision geometric measurement applications, the system complies with foundational metrological traceability requirements for dimensional verification tasks in non-critical industrial, educational, and clinical prototyping workflows.

Key Features

• Wireless autonomous operation: Onboard 8-core 2.4 GHz processor, 32 GB RAM, and 512 GB SSD eliminate dependency on external PCs for scanning, mesh generation, texture mapping, and preview rendering.
• Dual-scanning mode architecture: Switchable between high-speed mode (optimized for rapid surface capture at up to 20 FPS) and high-resolution mode (sub-0.05 mm point cloud density on localized features), enabled by synchronized dual-camera modules and dynamic pattern projection.

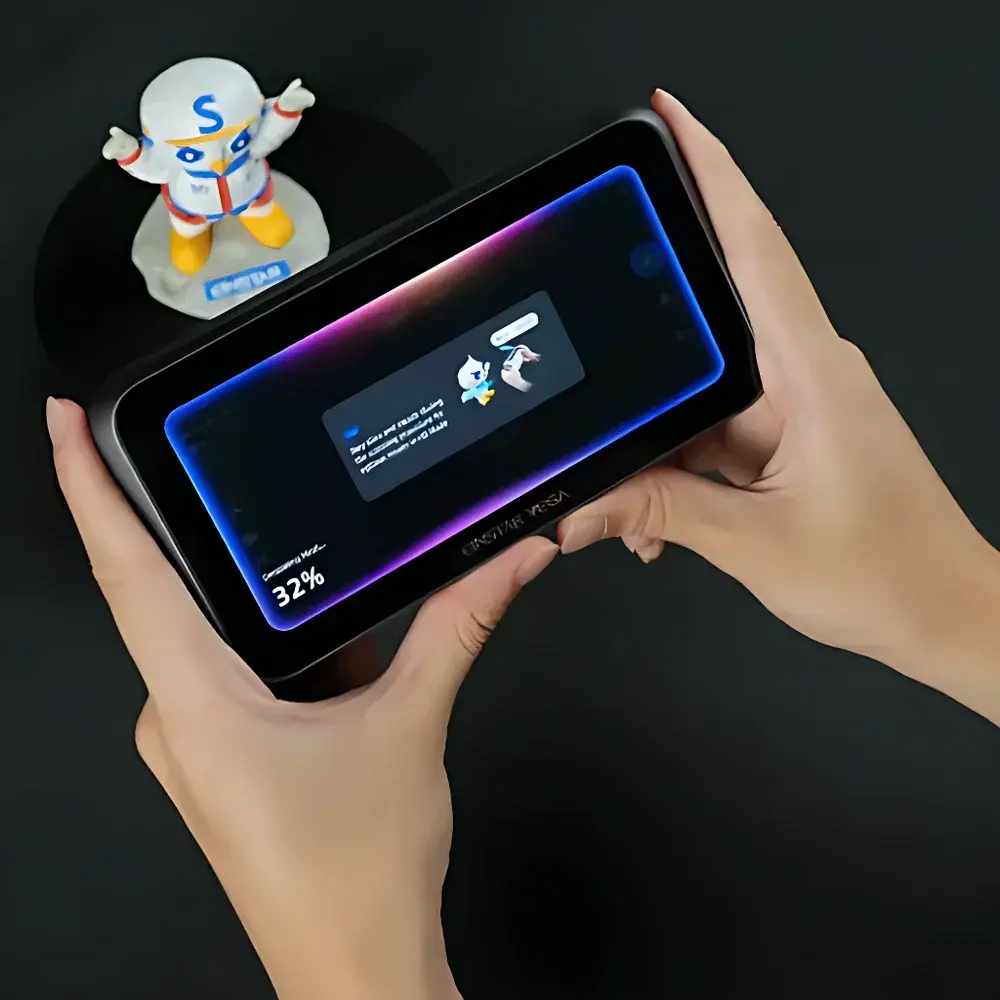

• Integrated 6.4-inch 2K AMOLED touchscreen: Provides real-time visual feedback, intuitive gesture-based navigation, and immediate post-scan editing—including noise filtering, hole filling, and alignment refinement—without exporting data.
• Environmental adaptability: Engineered for consistent performance across extreme ambient light conditions—from total darkness (using integrated IR VCSEL emitter) to direct solar exposure—ensuring repeatability in outdoor cultural heritage documentation or mobile clinical assessment.
• Ergonomic handheld design: Weighing only 535 g with balanced mass distribution and tactile grip geometry, the unit supports extended single-handed operation during prolonged scanning sessions.

Sample Compatibility & Compliance

The EINSTAR VEGA accommodates objects ranging from small anatomical models (~5 cm) to full-body human subjects (~2 m), with optimal capture fidelity achieved on non-reflective, matte-surfaced geometries. While not certified to ISO/IEC 17025 for accredited calibration laboratories, its measurement uncertainty profile aligns with ISO 10360-8 (coordinate measuring machines – laser trackers and photogrammetric systems) for relative positional accuracy in non-GMP contexts. It supports export of standardized file formats—including .stl, .obj, .ply, and .xyz—for interoperability with CAD platforms (e.g., SolidWorks, Fusion 360), medical visualization tools (e.g., 3D Slicer), and additive manufacturing pipelines. Texture capture utilizes a 48 MP RGB camera calibrated against CIE D65 illuminant standards for color fidelity in documentation-grade applications.

Software & Data Management

On-device firmware includes StarVision Mobile—a lightweight, GPU-accelerated application supporting real-time registration, global optimization, and basic deviation analysis against reference meshes. For advanced metrology, the companion StarVision Desktop software (Windows/macOS) provides iterative closest point (ICP) alignment, GD&T-compliant feature extraction (planes, cylinders, spheres), and cross-sectional slice analysis. All captured data can be uploaded directly to SHINING 3D’s secure cloud platform, which implements AES-256 encryption, role-based access control, and audit-trail logging compliant with ISO 27001 information security management frameworks. Free-tier users receive 5 GB of encrypted storage; enterprise plans support SAML 2.0 integration and custom metadata tagging for regulatory documentation.

Applications

• Cultural heritage digitization: Contactless archival scanning of fragile artifacts, sculptures, and historical monuments under variable site lighting.
• Educational STEM labs: Student-led reverse engineering projects, biomechanics modeling, and spatial reasoning exercises using portable, low-barrier hardware.
• Prosthetics & orthotics: In-clinic acquisition of residual limb geometry for custom socket design, supporting iterative fit validation without casting materials.
• Automotive customization: Rapid surface capture of vehicle body panels for aftermarket part design, aerodynamic simulation input, or paint finish analysis.
• Industrial maintenance: As-built documentation of legacy machinery components where CAD drawings are unavailable, facilitating replacement part fabrication.

FAQ

Does the EINSTAR VEGA require a PC for basic scanning operations?

No—it operates fully autonomously with onboard processing, display, and storage.
What is the typical volumetric accuracy under controlled indoor conditions?

Repeatability is ≤ ±0.1 mm over 500 mm³ volumes when scanning matte, non-occluding objects; absolute accuracy depends on calibration target usage and environmental stability.
Is the cloud platform compliant with GDPR or HIPAA?

Data residency and compliance options are configurable per enterprise contract; standard free-tier storage is hosted in ISO 27001-certified facilities but does not include HIPAA Business Associate Agreement by default.
Can third-party software import native scan files?

Yes—exported .ply and .obj files contain embedded vertex normals and UV-mapped textures compatible with MeshLab, CloudCompare, Blender, and Geomagic Wrap.
How is thermal drift managed during extended outdoor use?

The device incorporates passive thermal dissipation via aluminum alloy chassis and dynamic clock throttling; no active cooling is used to preserve silent, fanless operation.
