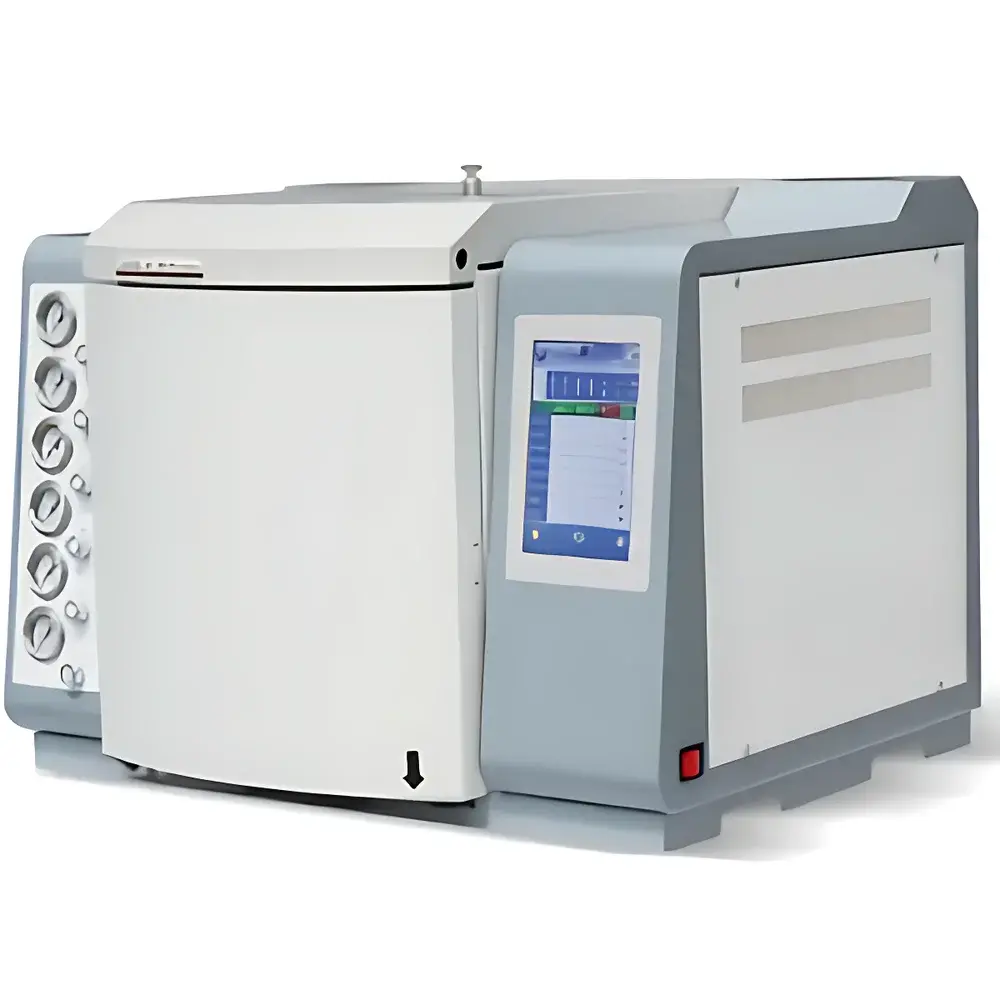

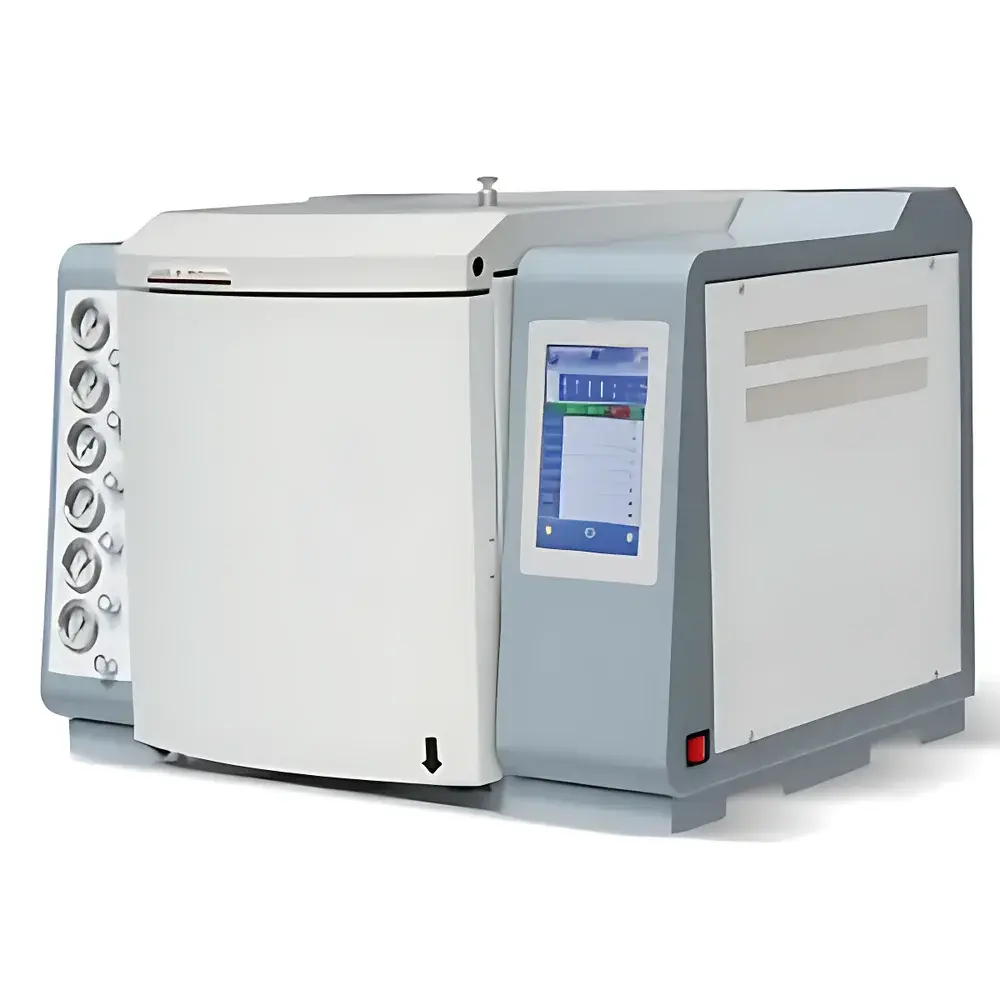

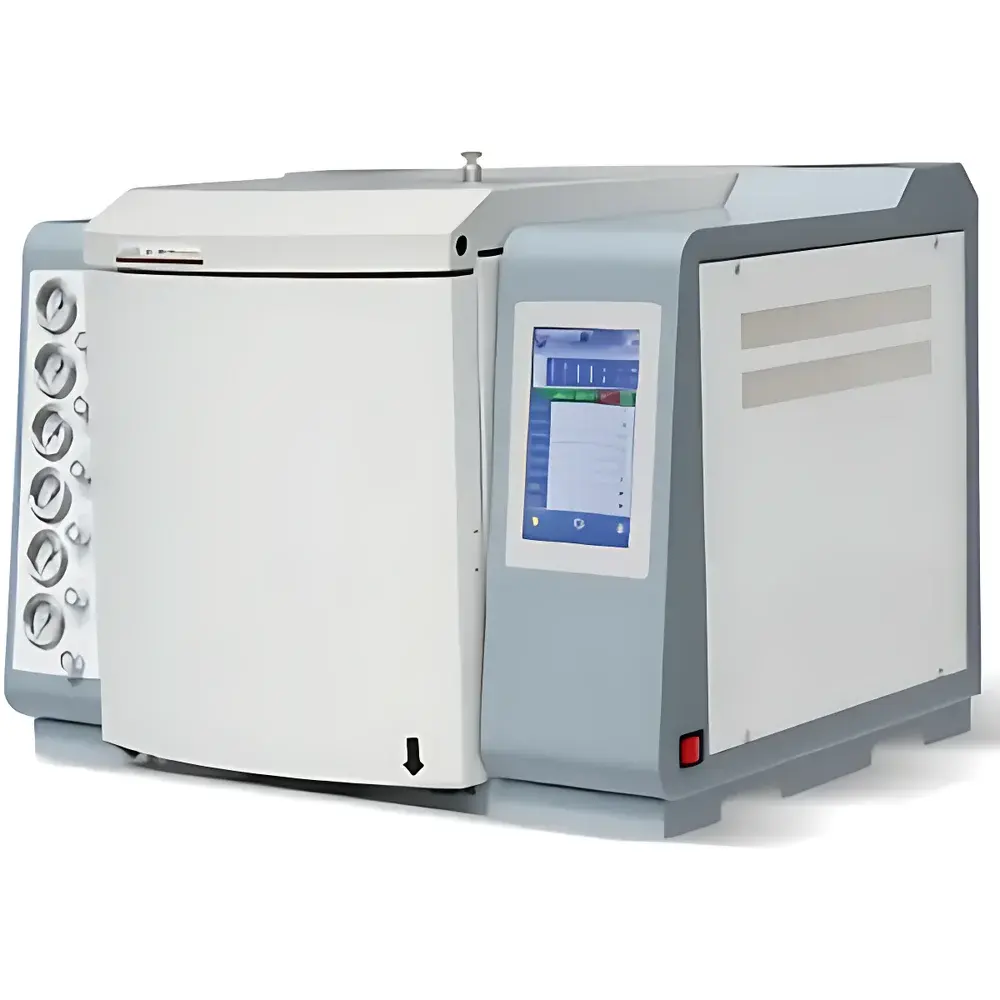

Shinsco GC-7820 Liquefied Petroleum Gas (LPG) Analysis Gas Chromatograph
| Brand | Shinsco |
|---|---|
| Model | GC-7820 |
| Type | Dual-Valve, Dual-Column, Dual-FID Gas Chromatograph for LPG Hydrocarbon & Oxygenate Analysis |
| Origin | Shandong, China |
| Manufacturer | Shinsco Instrument Co., Ltd. |
| Compliance | GB/T 5274, GB 11174, GB/T 12576, GB 19159, SH/T 0233 |
| Column Configuration | Al₂O₃ PLOT (30 m × 0.53 mm, 15 µm) + Low-Ox (10 m × 0.53 mm, 10 µm) |
| Carrier Gas | Ultra-High-Purity Helium (≥99.999%) |
| Injection | Split Mode (10:1–50:1, recommended 50:1) |
| Oven Program | 90°C (1 min) → 6°C/min → 180°C (30 min) |
| Valve Oven Temp | 150°C |
| Injector Temp | 200°C |
| Dual FID Temp | 230°C |
| H₂ Flow | 30 mL/min |
| Air Flow | 350 mL/min |
| N₂ Make-up | 25 mL/min |
| Quantitation Loop | 0.5–1.0 mL (recommended 0.5 mL) |
| Detection Range | Methane (0.01–1%), Ethane (0.01–3%), Ethylene (0.01–3%), Propane (0.05–95%), Propylene (0.01–95%), i-Butane (0.05–80%), n-Butane (0.02–99%), trans-2-Butene (0.01–40%), Isobutylene (0.01–3%), 1-Pentene (0.01–0.5%), Dimethyl Ether (1.0–40%) |
Overview
The Shinsco GC-7820 is a purpose-engineered dual-valve, dual-column gas chromatograph optimized for comprehensive hydrocarbon and oxygenate analysis in liquefied petroleum gas (LPG) matrices. Designed to meet stringent regulatory requirements for fuel quality control and safety monitoring, the system implements a robust Couette-flow micro-cutting gas routing architecture with zero-dead-volume connections and passivated stainless-steel flow paths. Its core analytical principle relies on high-resolution separation via two parallel capillary PLOT columns—Al2O3 for C1–C5 saturated/unsaturated hydrocarbons and Low-Ox for polar oxygenates—including dimethyl ether (DME), methanol, and methyl tert-butyl ether (MTBE). The instrument operates under strict isocratic and programmed temperature conditions to ensure reproducible retention times and quantitative accuracy across batch-to-batch analyses. It serves as a critical component in coal mine spontaneous combustion early-warning systems, where real-time quantification of trace oxidation gases (e.g., ethylene, propylene) enables predictive assessment of fire risk within sealed goaf zones.
Key Features
- Dual independent flame ionization detectors (FIDs) configured for simultaneous hydrocarbon and oxygenate detection, eliminating need for repeated injections or column switching.
- Integrated high-temperature valve oven (150 °C) housing precision-machined, imported pneumatic actuators enabling reliable micro-gas-cutting (micro-loop sampling) with sub-second timing resolution.
- Passivation-treated stainless-steel gas pathways and zero-dead-volume Swagelok®-style fittings minimize surface adsorption and memory effects—critical for accurate quantitation of reactive olefins and low-concentration oxygenates.
- Pre-configured column set compliant with GB 11174 and GB 19159 specifications: 30 m Al2O3/KCl PLOT (0.53 mm ID, 15 µm film) and 10 m Low-Ox (0.53 mm ID, 10 µm film), both rated for >350 °C continuous operation.
- Helium carrier gas delivery system with electronic pressure control (EPC) maintaining constant flow at 4.5 mL/min ±0.05 mL/min across full temperature ramp, ensuring retention time stability per ISO 6142 calibration traceability.
- Automated data acquisition and reporting engine compliant with GLP audit trail requirements, supporting user-defined report templates aligned with GB/T 12576-derived octane number estimation protocols.
Sample Compatibility & Compliance
The GC-7820 accommodates liquid-phase LPG samples collected per SH/T 0233 using stainless-steel sampling cylinders equipped with diaphragm valves. It supports direct vapor-phase injection from pressurized sample loops (0.5–1.0 mL), eliminating cryogenic trapping or pre-concentration steps. Analyte coverage spans C1–C5 alkanes, alkenes, cyclopropane, and industrially relevant oxygenates at concentrations ranging from 0.01% (v/v) to 99% (v/v). All operational parameters and calibration procedures are fully traceable to national standards: GB/T 5274 (gravimetric preparation of calibration gases), GB 11174 (LPG specification), GB/T 12576 (vapor pressure and relative density determination), and GB 19159 (automotive-grade LPG). System validation includes linearity verification (R² ≥ 0.999 over full dynamic range), repeatability testing (RSD ≤ 1.2% for n-butane at 50% level), and intermediate precision assessment across three operators and five consecutive days.
Software & Data Management
Controlled via Shinsco ChromaLink™ v4.2 workstation software, the GC-7820 provides full ICH-aligned data integrity features including role-based access control (RBAC), electronic signatures, and immutable audit trails meeting FDA 21 CFR Part 11 and EU Annex 11 requirements. Raw chromatograms are stored in vendor-neutral .cdf format with embedded metadata (instrument ID, method version, operator ID, calibration date). Quantitative processing employs internal standard normalization with customizable peak integration algorithms (tangent skim, valley-to-valley, exponential baseline correction). Batch reports auto-generate ASTM D2505–compatible summary tables, including calculated Reid vapor pressure (RVP), C3+ content, and total oxygenate mass fraction. Export options include CSV, PDF/A-2, and XML formats compatible with LIMS integration via ASTM E1467-compliant web services.
Applications
- Quality assurance of commercial LPG blends for refinery off-gas streams and terminal distribution networks.
- Regulatory compliance testing for automotive LPG (GB 19159) and domestic cooking gas (GB 11174) certification.
- In-mine spontaneous combustion monitoring: real-time quantification of ethylene/propylene ratios to assess coal oxidation stage per MT/T 707–2021 guidelines.
- Forensic analysis of adulterated LPG containing illicit oxygenates (e.g., DME substitution) in fuel fraud investigations.
- Research-grade characterization of bio-LPG feedstocks and synthetic fuel intermediates in catalytic upgrading studies.
FAQ
Does the GC-7820 support unattended overnight operation for routine LPG QC batches?
Yes—the system integrates a 16-position autosampler with temperature-controlled sample tray (4–40 °C) and automated sequence validation prior to run initiation.
Can the method be validated for ISO/IEC 17025 accredited laboratories?
Absolutely—full validation documentation package (SOPs, IQ/OQ/PQ protocols, uncertainty budgets per GUM) is provided with instrument commissioning.
Is helium the only acceptable carrier gas for this configuration?
While helium delivers optimal resolution for C2–C5 separations per GB/T 12576, hydrogen carrier (with appropriate safety interlocks) may be substituted for faster analysis; method requalification is required.
How frequently must the Al2O3 column be conditioned?
Under normal LPG use, column bake-out at 220 °C for 2 hours is recommended every 200 injections or biweekly—whichever occurs first—to maintain peak symmetry for propylene and isobutylene.
Does the software support multi-point calibration curve generation with quadratic fitting?
Yes—ChromaLink™ v4.2 supports linear, quadratic, and weighted least-squares regression models with residual plot visualization and forced-zero intercept options.
