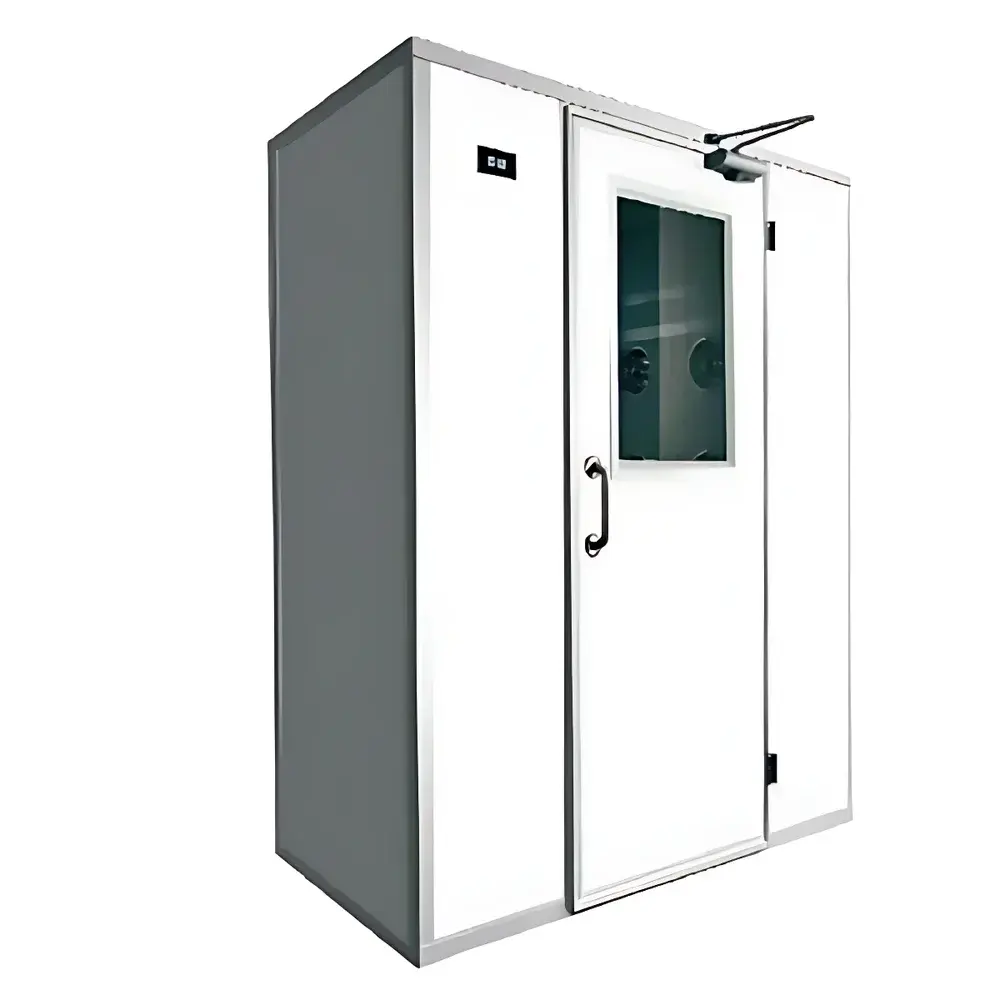

Shinsco JJ-80SR-1 Single-Person Air Shower with Dual-Side Nozzles and Interlocked Doors

Overview

The Shinsco JJ-80SR-1 is a single-person air shower engineered for controlled entry into cleanrooms classified ISO Class 5 (Class 100) and higher. It operates on the principle of high-velocity, filtered laminar airflow directed from dual-side nozzles to dislodge and remove particulate contamination—including viable and non-viable particles ≥0.3 µm—from personnel garments and surfaces prior to cleanroom access. The unit integrates two certified HEPA filters (610 × 610 × 120 mm), each rated at ≥99.9995% efficiency at the most penetrating particle size (MPPS) of 0.3 µm—meeting ISO 14644-1 and IEST-RP-CC001 requirements for filter performance validation. Designed for integration into modular cleanroom architectures, the JJ-80SR-1 features a rigid cold-rolled steel cabinet with electrostatic powder coating and a stainless-steel-clad interior floor to resist corrosion, abrasion, and microbial retention.

Key Features

• Dual-side nozzle configuration (12 × Ø30 mm nozzles) ensures uniform, high-impact airflow coverage across the full frontal and dorsal surface area of standing personnel.
• Adjustable air shower cycle duration (1–99 seconds), programmable via integrated digital timer with real-time display and audible end-of-cycle signal.
• Interlocked door system prevents simultaneous opening of entry and exit doors—compliant with ISO 14644-3 Annex B recommendations for airlock integrity and pressure cascade control.
• High-efficiency centrifugal blower delivers consistent ≥20 m/s nozzle velocity under nominal static pressure conditions, verified per ISO 5221 airflow testing methodology.
• Robust mechanical architecture supports continuous operation in 24/7 manufacturing or research environments, with thermal-overload protection and low-noise motor design (<65 dB[A] at 1 m).
• Modular filter housing enables tool-free HEPA replacement and pre-filter inspection without structural disassembly—reducing maintenance downtime and supporting preventive maintenance schedules.

Sample Compatibility & Compliance

The JJ-80SR-1 is not a sample analysis device but a personnel decontamination subsystem intended for use in pharmaceutical compounding suites, biotech R&D labs, semiconductor fabrication support areas, and medical device assembly cleanrooms. It complies with structural and operational prerequisites outlined in ISO 14644-7 (Cleanroom Installation Qualification), EU GMP Annex 1 (2022 revision), and FDA Guidance for Industry: Sterile Drug Products Produced by Aseptic Processing (2004). While not subject to FDA 21 CFR Part 11 (as it generates no electronic records), its interlock logic and timer functions are documented in IQ/OQ protocols for GxP-regulated facilities. Optional validation support documentation—including filter integrity test reports (DOP/PAO scanning), airflow visualization studies (smoke wire testing), and pressure differential logs—is available upon request.

Software & Data Management

The JJ-80SR-1 operates via embedded microcontroller-based logic with no external software dependency. Cycle parameters (duration, start/stop triggers) are retained through non-volatile memory and remain unaffected by power interruption. For facilities requiring audit-ready operational records, an optional RS-485 Modbus RTU interface is available to integrate with Building Management Systems (BMS) or centralized log servers—enabling timestamped event logging (door actuation, cycle initiation/completion, fault codes) aligned with ALCOA+ data integrity principles. All firmware revisions undergo version-controlled release validation per ICH Q9 Quality Risk Management guidelines.

Applications

• Pre-entry decontamination for operators entering ISO Class 5 aseptic processing isolators or restricted access barrier systems (RABS).
• Personnel air-scrubbing in Class 10,000 (ISO 7) gowning rooms preceding higher-class zones.
• Contamination control in photolithography support areas where sub-micron particle shedding compromises wafer yield.
• Support infrastructure for cell therapy manufacturing cleanrooms adhering to ASTM E2454-22 standards for environmental monitoring planning.
• Integration into multi-stage airlock sequences (e.g., corridor → air shower → pass-through → critical zone) to enforce unidirectional flow and minimize cross-contamination risk.

FAQ

Is the JJ-80SR-1 suitable for ISO Class 4 (Class 1) cleanroom applications?

Yes—when installed with appropriate pressure differentials (≥15 Pa inward), validated airflow uniformity, and paired with compliant gowns/gloves, it meets prerequisite decontamination requirements for entry into ISO Class 4 environments.
Can the interlock function be disabled for operational flexibility?

The unit ships with configurable interlock logic: default mode enforces door sequencing, but jumper settings allow field reconfiguration to non-interlocked operation—subject to facility risk assessment and SOP approval.
What maintenance intervals are recommended for HEPA filters?

Filter service life depends on ambient particulate load and usage frequency; typical replacement interval is 12–18 months. Pre-filters should be inspected monthly and replaced every 3 months or when pressure drop exceeds 250 Pa.
Does Shinsco provide installation qualification (IQ) documentation?

Yes—factory-issued IQ templates, including dimensional verification, electrical safety checks, and interlock functionality tests, are supplied with each unit and customizable to client-specific validation protocols.
Is the unit compatible with variable frequency drive (VFD) control for energy optimization?

The standard blower motor is fixed-speed; however, VFD retrofitting is supported via optional control panel upgrade (model suffix “-VFD”), enabling dynamic airflow modulation based on occupancy or pressure feedback signals.
