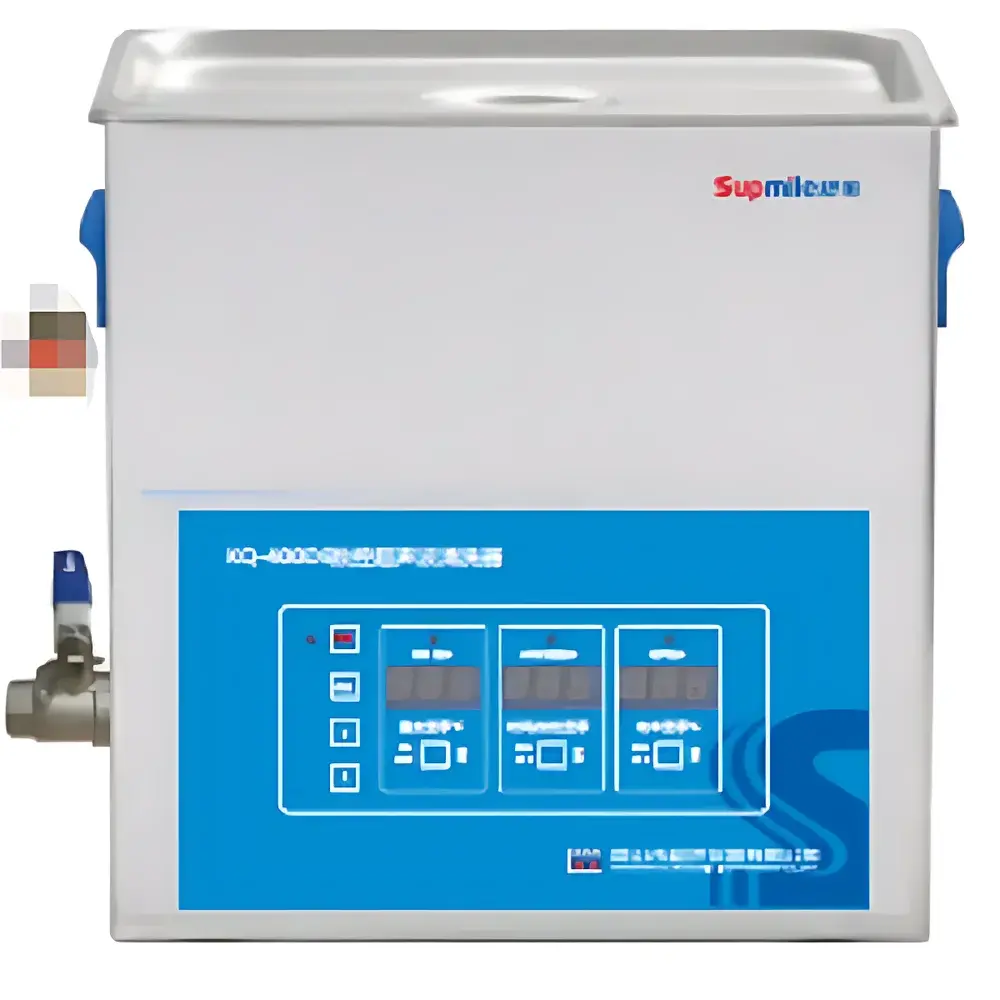

Shumei KQ-500DV Digital Ultrasonic Cleaner

Overview

The Shumei KQ-500DV Digital Ultrasonic Cleaner is a general-purpose laboratory cleaning system engineered for precision, repeatability, and operational safety in routine sample preparation workflows. It operates on the principle of high-frequency ultrasonic cavitation—generating microscopic vacuum bubbles in aqueous or compatible solvent media at a fixed frequency of 40 kHz. When these bubbles collapse under acoustic pressure, they produce localized shockwaves and microstreaming effects that effectively dislodge particulate contaminants, organic residues, and biofilm from surfaces of immersed objects. With a 27-liter stainless steel tank constructed from corrosion-resistant 304-grade material, the unit supports medium-to-large batch processing of glassware, metal parts, optical components, surgical instruments, and electronic assemblies. Its integrated digital control system enables precise parameter management—including real-time monitoring of actual and setpoint temperature, ultrasonic power output, and elapsed cleaning time—ensuring consistent process execution across shifts and operators.

Key Features

• Microprocessor-controlled digital interface with intuitive LED display for simultaneous readout of set/actual temperature, ultrasonic power level, timer status, and system fault indicators.
• Adjustable ultrasonic power output (40–100% of 500 W nominal) to optimize cleaning intensity for delicate vs. robust substrates without compromising cavitation efficiency.
• Programmable heating function with temperature control range from 10 °C to 80 °C, supporting both ambient and elevated-temperature cleaning protocols for enhanced solubilization of waxy or thermally stable residues.
• Extended timer range (1–480 minutes) accommodates short-cycle degassing and long-duration soaking applications, with automatic shutdown upon completion.
• Comprehensive safety architecture including over-temperature cutoff, over-voltage and over-current protection, low-water-level detection, and dry-run prevention to safeguard transducer integrity and user safety.
• High-efficiency piezoelectric transducer array optimized for 40 kHz resonance, delivering uniform energy distribution across the tank volume and minimizing hot spots or dead zones.

Sample Compatibility & Compliance

The KQ-500DV is compatible with a broad spectrum of laboratory materials, including borosilicate glass, stainless steel, titanium alloys, anodized aluminum, and most non-porous polymers (e.g., PTFE, PP, PC), provided appropriate cleaning solutions are selected. It is not recommended for use with soft metals (e.g., copper, brass, aluminum without passivation), fragile ceramics, or items with glued seams or encapsulated electronics unless validated per internal SOPs. While the device itself does not carry CE, UL, or FDA certification, its design adheres to fundamental electrical safety principles outlined in IEC 61010-1 for laboratory equipment. Users deploying this instrument in regulated environments (e.g., pharmaceutical QC labs) must validate cleaning efficacy per internal protocols aligned with ISO 15883-1 (washer-disinfectors) or ASTM F3127 (ultrasonic cleaning verification), and maintain audit-ready records of calibration, maintenance, and cycle parameters.

Software & Data Management

The KQ-500DV operates via embedded firmware without external PC connectivity or proprietary software. All operational parameters are stored in non-volatile memory, enabling recall of previously used settings—including power level, temperature setpoint, and timer duration—without manual re-entry. The digital display provides continuous feedback on real-time conditions, supporting GLP-compliant documentation when paired with manual logbooks or LIMS-integrated data capture systems. Though lacking built-in data export or remote monitoring capabilities, its deterministic behavior and repeatable performance facilitate integration into validated cleaning processes where traceability is maintained through procedural controls rather than electronic audit trails. For environments requiring 21 CFR Part 11 compliance, supplementary validation documentation and operator training records must be established independently.

Applications

• Routine cleaning of volumetric flasks, pipettes, burettes, and reaction vessels prior to analytical use.
• Preparation of HPLC, GC, and ICP-MS sample introduction hardware (e.g., nebulizers, spray chambers, autosampler vials).
• Removal of polishing compounds and oxide layers from metallurgical specimens prior to SEM or EDS analysis.
• Decontamination of reusable surgical tools and dental instruments in research animal facilities or teaching labs.
• Supporting surface preparation steps in thin-film deposition, microfabrication, and MEMS device assembly workflows.
• Assisting in the recovery of microplastics or environmental particulates from filtration membranes and sampling filters.

FAQ

Is the KQ-500DV suitable for cleaning delicate optical lenses or semiconductor wafers?
Yes—when operated at reduced power (40–60%) and with low-surface-tension, non-ionic surfactant solutions; however, direct contact with coated optics requires prior compatibility testing to avoid film delamination.
Does the unit support continuous operation beyond 480 minutes?
No—the maximum programmable timer is 480 minutes; extended cycles require manual restart after timeout.
Can deionized water be used as the cleaning medium?
Yes, though adding a low-concentration, non-foaming detergent significantly enhances cavitation efficiency and residue removal kinetics.
What maintenance is required for long-term reliability?
Routine inspection of tank integrity, periodic descaling using mild acidic solutions (e.g., 5% citric acid), and visual verification of transducer adhesion to the tank bottom every 6 months.
Is the heating function independent of ultrasonic activation?
Yes—temperature can be set and maintained without concurrent ultrasonic output, enabling controlled pre-heating or rinse-step thermal conditioning.
