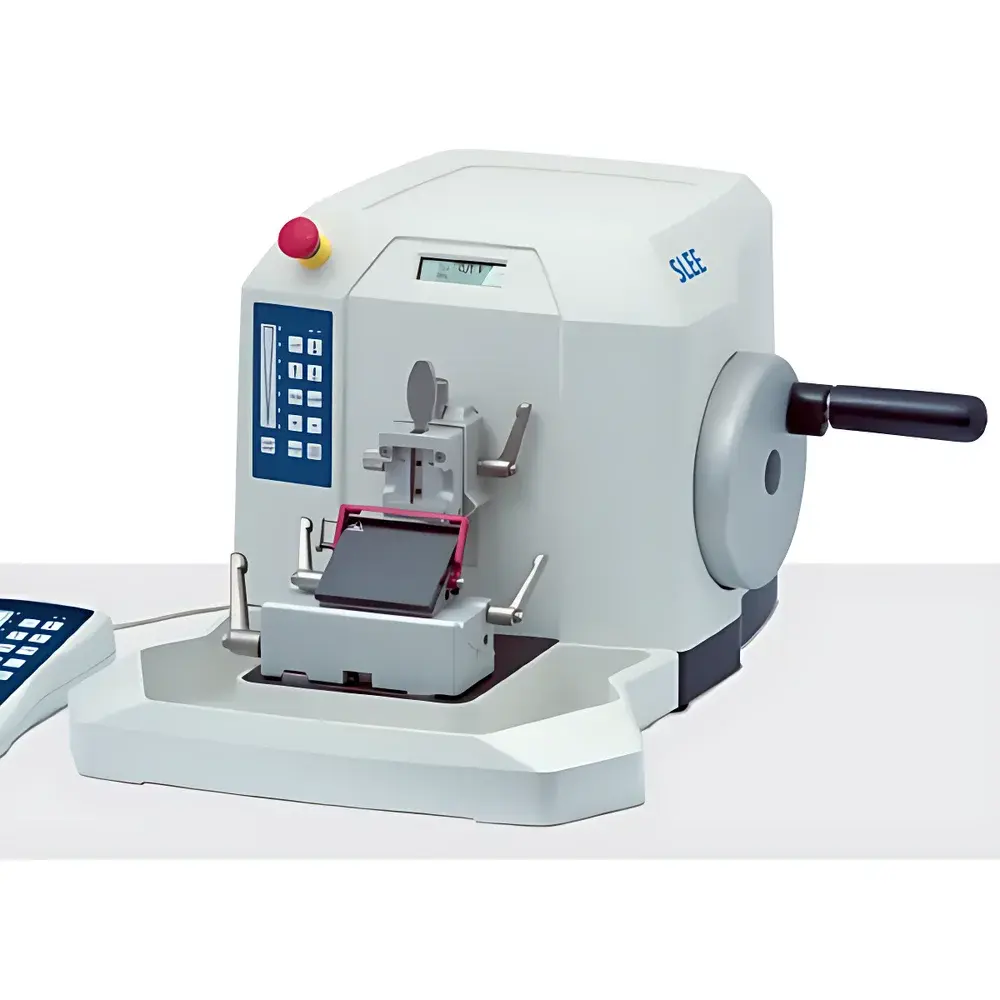

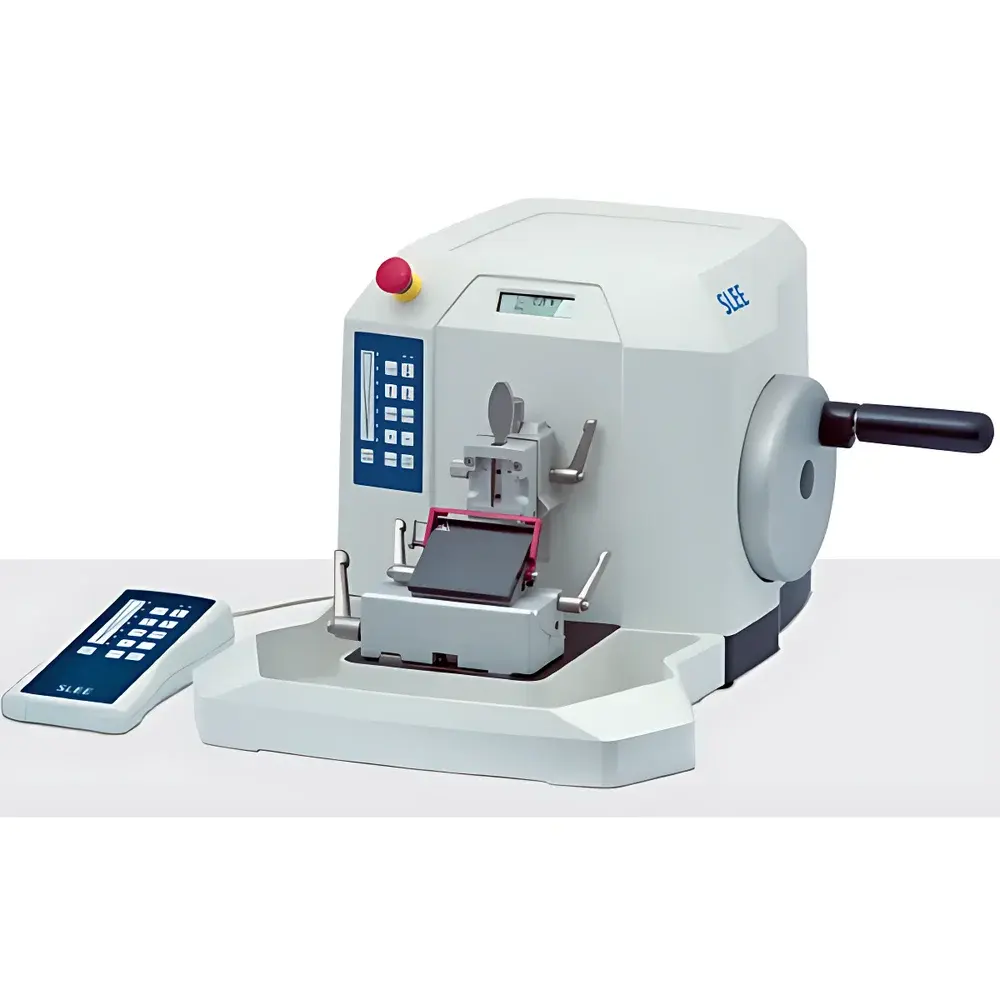

SLEE CUT 6062 Fully Automatic Rotary Microtome

Overview

The SLEE CUT 6062 is a fully automatic rotary microtome engineered for high-precision sectioning of paraffin-embedded and semi-frozen biological specimens in diagnostic pathology, translational research, and industrial histology laboratories. Based on proven Couette-type knife-sample interaction mechanics and precision-ground linear motion guidance, the CUT 6062 delivers reproducible section thickness control across its full 0.5–100 µm range—enabling consistent ribbon formation for downstream staining (H&E, IHC, ISH), digital slide scanning, and ultrastructural analysis. Unlike hybrid or semi-automatic platforms, the CUT 6062 integrates motorized specimen advancement, blade oscillation compensation, and real-time force feedback into a single synchronized control loop—minimizing chatter, compression artifacts, and knife-edge wear during extended cutting sessions.

Key Features

• Fully automated specimen advance and retraction: Motor-driven X-axis positioning with dual-range adjustment (0–200 µm fine approach; 0–750 µm coarse trim), programmable via intuitive touchscreen interface.
• High-stability rotary mechanism: Dual-bearing carriage assembly with preloaded linear guides ensures sub-micron positional repeatability over >10,000 cycles without recalibration.
• Ergonomic operator interface: Left-hand/right-hand configurable controls, tactile handwheel lock, spring-assisted clamp lift lever, and end-of-travel auto-stop to prevent mechanical overtravel.
• Adaptive cutting dynamics: Two selectable cutting modes—“Standard” (optimized for routine paraffin blocks) and “Hard Tissue” (enhanced torque delivery for calcified or decalcified bone, mineralized cartilage, and composite biomaterials).
• Modular expansion architecture: Standard mounting interfaces support optional accessories including waste collection troughs, integrated slice counters (with cumulative thickness logging), and electromagnetic knife guards compliant with EN 60601-1.

Sample Compatibility & Compliance

The CUT 6062 accommodates standard 50 × 50 mm specimen holders—including universal cassette clamps, metal block chucks, and proprietary SLEE QuickLock™ embedding molds—ensuring compatibility with widely adopted tissue processing workflows. Its mechanical design conforms to ISO 13485:2016 for in vitro diagnostic medical device manufacturing and meets essential safety requirements under IEC 61010-1:2010 for laboratory electrical equipment. All firmware logic implements deterministic real-time control (RTOS-based), supporting audit-ready operation logs required under GLP and GMP environments. While not FDA-cleared as an IVD device, the system is routinely deployed in CLIA-certified labs where traceability, calibration history, and user access control are enforced per CAP and COLA accreditation standards.

Software & Data Management

The embedded SLEE SmartCut™ firmware provides persistent memory for two independent specimen position presets—enabling rapid switching between serial sections from multiple blocks without manual repositioning. Slice counting data (including total count and cumulative thickness) is stored locally in non-volatile memory and exportable via USB 2.0 to CSV or XML formats for LIMS integration. Optional SLEE Connect™ software (v3.2+) enables remote diagnostics, firmware updates, and centralized configuration management across multi-unit installations. All operational events—including motor faults, knife collisions, and emergency stops—are timestamped and logged with ISO 8601-compliant metadata, satisfying 21 CFR Part 11 electronic record requirements when paired with validated identity authentication protocols.

Applications

The CUT 6062 serves as a primary sectioning platform in academic core facilities, hospital pathology departments, and contract research organizations performing histomorphometric analysis, tumor margin assessment, and biomarker validation studies. Its ability to maintain dimensional fidelity across heterogeneous tissues—including fibrotic liver, sclerotic kidney, and ossified vascular plaques—makes it suitable for quantitative image analysis pipelines requiring ≥95% section uniformity. In industrial settings, the instrument supports quality control of polymer-embedded composites, ceramic coatings, and metallurgical cross-sections where interfacial integrity must be preserved at sub-5 µm resolution. Integration-ready interfaces allow seamless coupling with automated stainers (e.g., Leica ST5010, Sakura Tissue-Tek Prisma) and slide scanners (e.g., Hamamatsu NanoZoomer, Zeiss Axio Scan.Z1).

FAQ

Is the CUT 6062 compatible with cryostat-based workflows?
Yes—the system supports both room-temperature paraffin sectioning and chilled paraffin/cryo-paraffin hybrid protocols down to –5°C ambient cabinet temperature, provided external cooling is maintained via compatible cold rooms or refrigerated enclosures.
Does it support third-party knife holders or disposable blades?
It accepts standard SLEE KNIFE-LOCK™ holders and all major OEM steel knives (e.g., Feather, Ted Pella). Disposable blade compatibility is limited to SLEE’s own PrecisionEdge™ disposable systems due to proprietary clamping geometry.
Can cutting parameters be locked per user profile?
Yes—up to four operator profiles can be configured with role-based access rights, parameter restrictions (e.g., max thickness limit), and mandatory electronic signature for critical protocol changes.
What maintenance intervals are recommended?
Daily: Blade cleaning and waste tray emptying. Quarterly: Linear guide lubrication and tension verification. Annually: Full metrological verification using NIST-traceable step gauges and certified reference blocks.
Is remote service access available?
SLEE RemoteAssist™ is available under annual support contracts, enabling encrypted, technician-initiated diagnostics and firmware patch deployment with customer consent and session logging.
