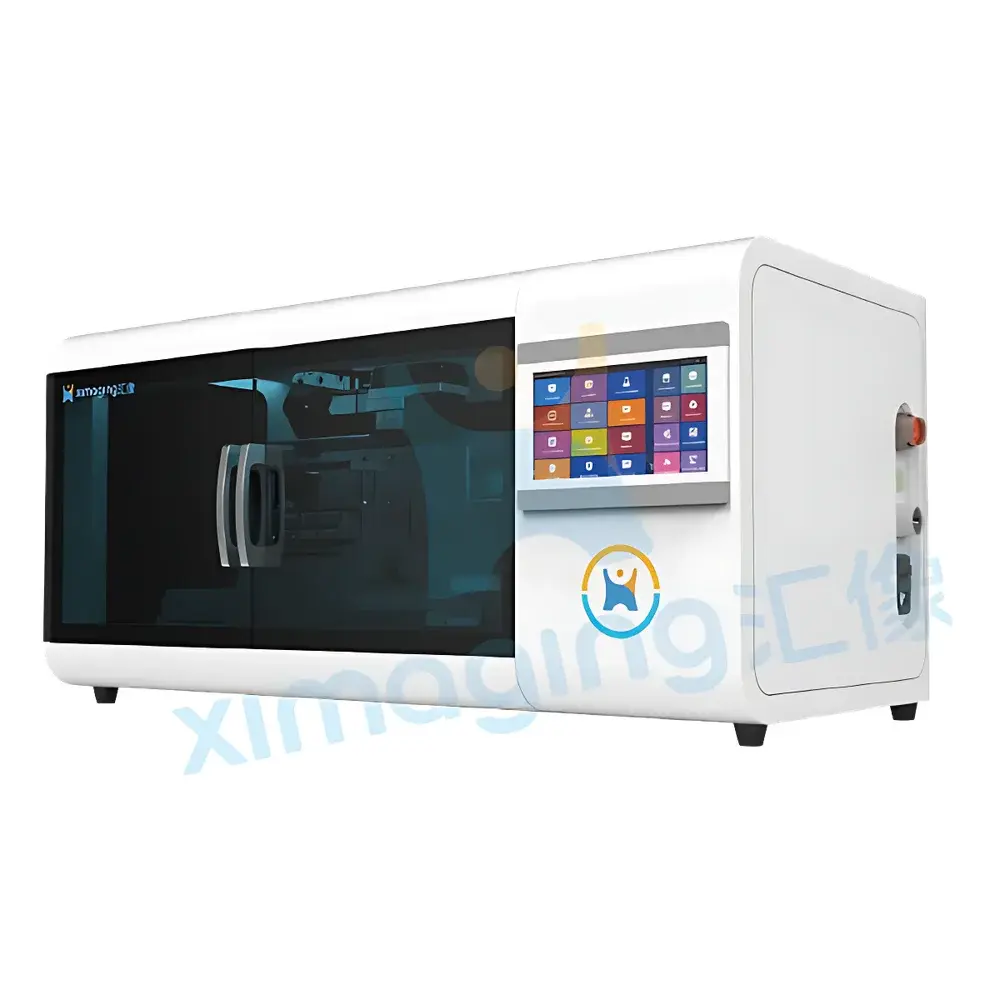

Smart Microbial Plate Coating System X-Imaging X-Plater Pro

Overview

The X-Imaging X-Plater Pro is an intelligent, fully automated microbial plate coating system engineered for high-throughput, reproducible, and contamination-controlled plating of liquid microbial suspensions onto solid agar surfaces in standard 8-well plates. Utilizing precision motion control and programmable deposition algorithms, the system executes consistent “Z”- or “serpentine” (back-and-forth) coating trajectories across all eight wells simultaneously—eliminating operator variability and manual pipetting errors. Designed explicitly for integration into ISO Class 5 (ISO 14644-1) clean environments—including biological safety cabinets (BSCs) and laminar flow hoods—the X-Plater Pro operates within strict spatial and airflow constraints while maintaining sterility integrity. Its core architecture adheres to principles of laboratory automation best practices: closed-loop positioning feedback, non-contact plate height sensing, and real-time motor torque monitoring ensure repeatable volumetric delivery and uniform surface coverage without over-spreading or edge pooling.

Key Features

• Parallel 8-channel dispensing: Eight independent, synchronized coating heads operate simultaneously—achieving full plate processing in ≤35 seconds per 8-well plate under standard conditions (e.g., 100 µL/well, 1.5% agar, 25°C ambient).
• Biocontainment-compatible footprint: Compact form factor (W × D × H: 320 × 410 × 290 mm) enables seamless installation inside Class II A2 biological safety cabinets (NSF/ANSI 49 compliant) or ISO 5 laminar flow workstations without compromising airflow dynamics or operator access.
• Adaptive substrate height compensation: Integrated capacitive proximity sensors dynamically detect agar surface elevation across plates (range: 3.5–12 mm above base), enabling automatic Z-axis adjustment to maintain optimal nozzle-to-agar gap (±0.2 mm tolerance) for consistent meniscus formation and shear-controlled spreading.
• Programmable coating protocols: Predefined and user-customizable motion profiles—including Z-scan, serpentine, spiral-in, and single-pass linear—support diverse microbiological applications such as colony isolation, antibiotic gradient assays, and phage plaque enumeration.
• Embedded AI-assisted calibration: Onboard vision-guided alignment (640 × 480 px monochrome CMOS) validates tip positioning and plate registration prior to each run; machine learning–informed calibration routines reduce setup time and minimize inter-run drift.

Sample Compatibility & Compliance

The X-Plater Pro accommodates standard polystyrene or polypropylene 8-well plates (e.g., Corning Costar 3548, Thermo Scientific Nunc 266701) with well diameters of 12–15 mm and bottom thicknesses from 0.7–1.2 mm. It supports aqueous suspensions containing bacteria (e.g., E. coli, S. aureus, P. aeruginosa), yeasts (S. cerevisiae), and spore-forming strains at OD₆₀₀ values ranging from 0.01 to 0.8 (equivalent to ~1 × 10⁴–1 × 10⁸ CFU/mL depending on species). All wetted components comply with USP Class VI biocompatibility standards; the system meets CE marking requirements under Directive 2014/30/EU (EMC) and 2014/35/EU (LVD). While not certified for GMP manufacturing, its audit-ready operation log (timestamped, user-ID-tagged, immutable) supports GLP-compliant workflows per OECD Principles of Good Laboratory Practice (ENV/MC/CHEM(98)17).

Software & Data Management

Controlled via X-Plater Studio v3.2 (Windows 10/11 64-bit), the system provides role-based access control (administrator, technician, viewer), electronic signature support aligned with FDA 21 CFR Part 11 Annex 11 expectations, and encrypted local storage of all run metadata—including plate ID, protocol version, environmental timestamp, motor current logs, and image-captured registration frames. Export formats include CSV (for LIMS integration), PDF (audit-ready report), and JSON (API-accessible for lab-wide automation orchestration via RESTful endpoints). Audit trails retain ≥18 months of activity history with SHA-256 hash integrity verification.

Applications

• High-fidelity colony-forming unit (CFU) quantification in QC microbiology labs
• Antibiotic susceptibility testing (AST) using gradient plates or disk diffusion pre-plating
• Phage host-range screening and titer determination
• Strain library archiving with minimal cross-contamination risk
• Preparation of master plates for replica plating in genetic screens
• Standardized inoculation for MALDI-TOF MS sample preparation workflows

FAQ

Does the X-Plater Pro support custom plate formats beyond 8-well configurations?
No—it is mechanically and optically optimized exclusively for standardized 8-well plates with ANSI/SLAS footprint compliance. Custom trays are not supported.
Can it be integrated with robotic arms or LIS/LIMS systems?
Yes—via optional RS-232/RS-485 serial interface or TCP/IP socket API; full integration documentation and Python SDK are provided with enterprise licensing.
What maintenance is required for long-term operational stability?
Quarterly nozzle cleaning with 70% ethanol and annual recalibration using X-Imaging’s traceable NIST-traceable height gauge kit (P/N: XP-CAL-KIT-01) are recommended.
Is firmware upgradable in the field?
Yes—over-the-air (OTA) updates are delivered through X-Plater Studio with rollback capability and version-signed validation.
Does it meet ISO/IEC 17025 requirements for accredited testing laboratories?
While the instrument itself is not ISO/IEC 17025-certified, its documented measurement uncertainty budget, calibration traceability, and data integrity features enable laboratories to fulfill Clause 7.7 (Sampling) and Clause 7.8 (Technical Records) requirements when validated per internal SOPs.
