SOPTOP E3 Biological Microscope

Overview

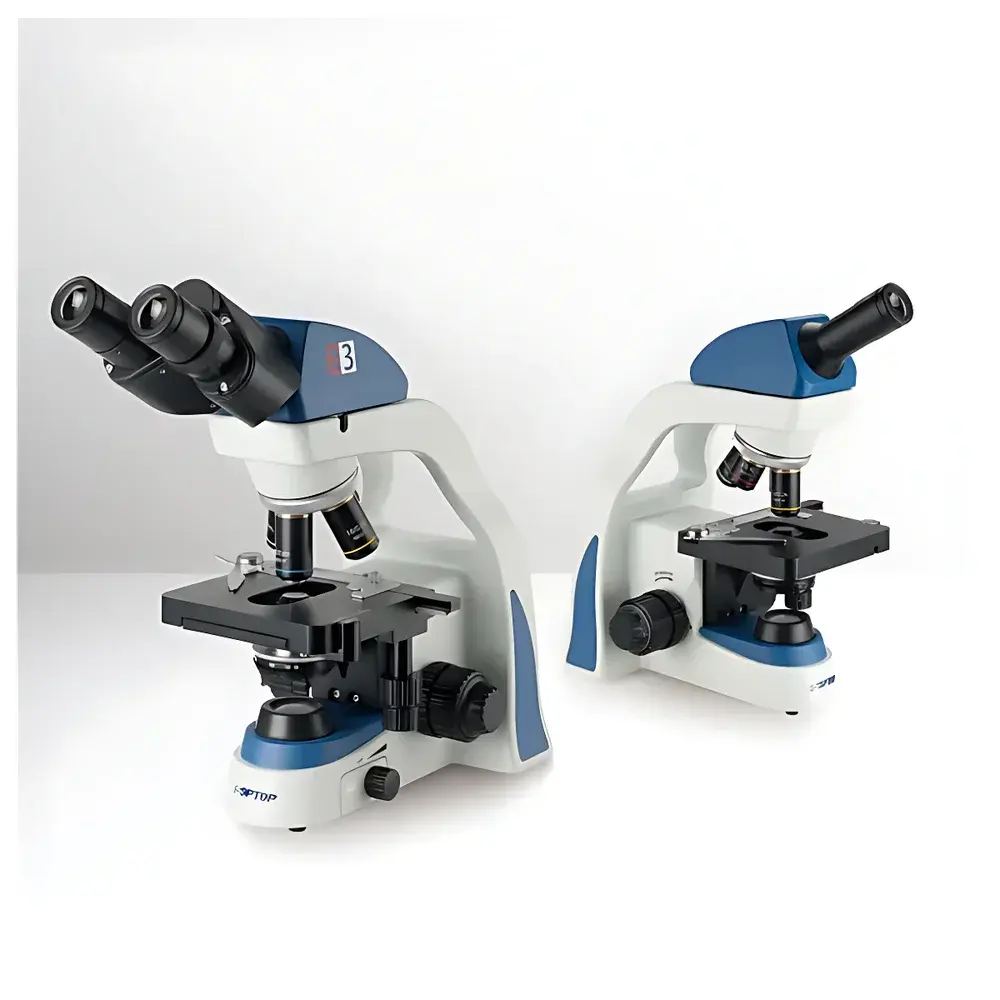

The SOPTOP E3 Biological Microscope is an upright, binocular optical microscope engineered for educational laboratories, undergraduate teaching, and introductory life science research. It operates on conventional brightfield illumination principles, utilizing Köhler illumination geometry to deliver uniform, glare-free contrast across the entire field of view. Designed with pedagogical fidelity in mind, the E3 integrates ergonomic mechanics, optical consistency, and robust power flexibility—making it suitable for sustained classroom use, field-based biology instruction, and GLP-aligned student laboratory workflows. Its optical path conforms to standard DIN 19005 (ISO 8578) mechanical tube length specifications, ensuring compatibility with widely adopted accessories including digital eyepiece cameras, phase contrast sliders, and standardized objective mounts.

Key Features

• Ergonomic binocular head with 30° inclined eyepieces and adjustable interpupillary distance (55–75 mm), reducing ocular fatigue during extended observation sessions.
• Coaxial coarse/fine focusing mechanism with 2 mm coarse travel and 0.002 mm fine adjustment resolution, enabling precise depth localization for layered biological specimens.
• Rechargeable integrated LED illumination system (5 V DC input) featuring constant-current regulation for stable luminance output over battery discharge cycles; typical runtime exceeds 12 hours at medium intensity.
• Wide-field PL10X/18 mm plan eyepieces delivering a 18 mm field number (FN), expanding observable area by ~25% compared to conventional 16 mm FN eyepieces—critical for orientation and contextual analysis of tissue sections or live cultures.
• Plan achromatic objective lens series (4×, 10×, 40×, optionally 100× oil immersion) corrected for chromatic and spherical aberration across visible spectrum (400–700 nm), ensuring high-fidelity color reproduction and edge-to-edge sharpness.

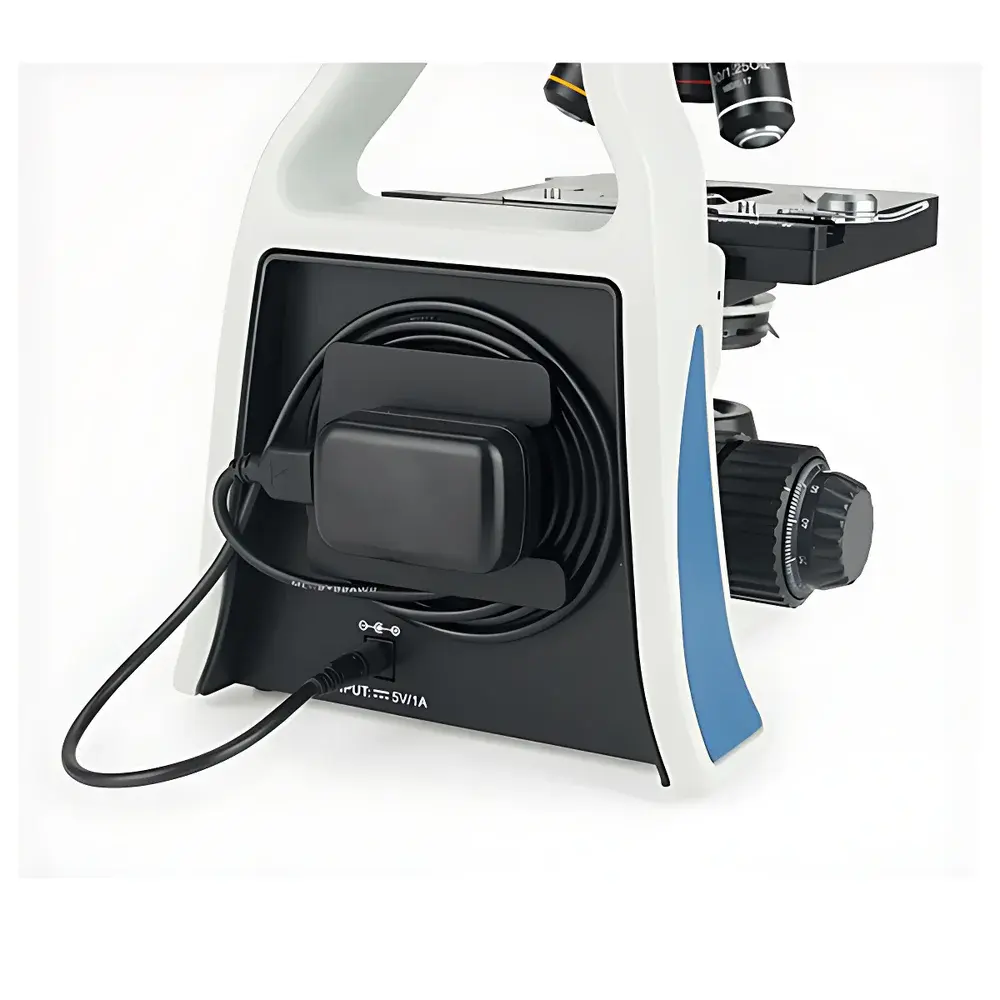

• Rear-mounted cable management hub accommodating standard USB-C or micro-USB power cables; eliminates tripping hazards and maintains benchtop organization during instrument transport or storage.
• USB-powered operation compatible with laptops, USB wall adapters, and portable power banks—enabling deployment in off-grid classrooms, outdoor ecology labs, or emergency teaching environments without AC infrastructure.

Sample Compatibility & Compliance

The E3 supports standard glass microscope slides (76 × 26 mm) and coverslips (No. 1.5, 0.17 mm thickness), accommodating routine histological sections, stained smears, live aquatic microorganisms (e.g., Paramecium, Daphnia), and plant epidermal peels. Its stage features dual-layer mechanical controls with vernier-calibrated X-Y translation (range: 75 × 50 mm), allowing repeatable positioning for comparative microscopy or time-lapse documentation. The microscope complies with IEC 61000-6-3 (EMC emissions) and IEC 62368-1 (safety for audio/video and ICT equipment). While not certified for clinical diagnostics per ISO 13485, its optical performance meets ASTM E2877-22 criteria for educational microscope verification, and its documentation traceability supports basic GLP record-keeping requirements in academic settings.

Software & Data Management

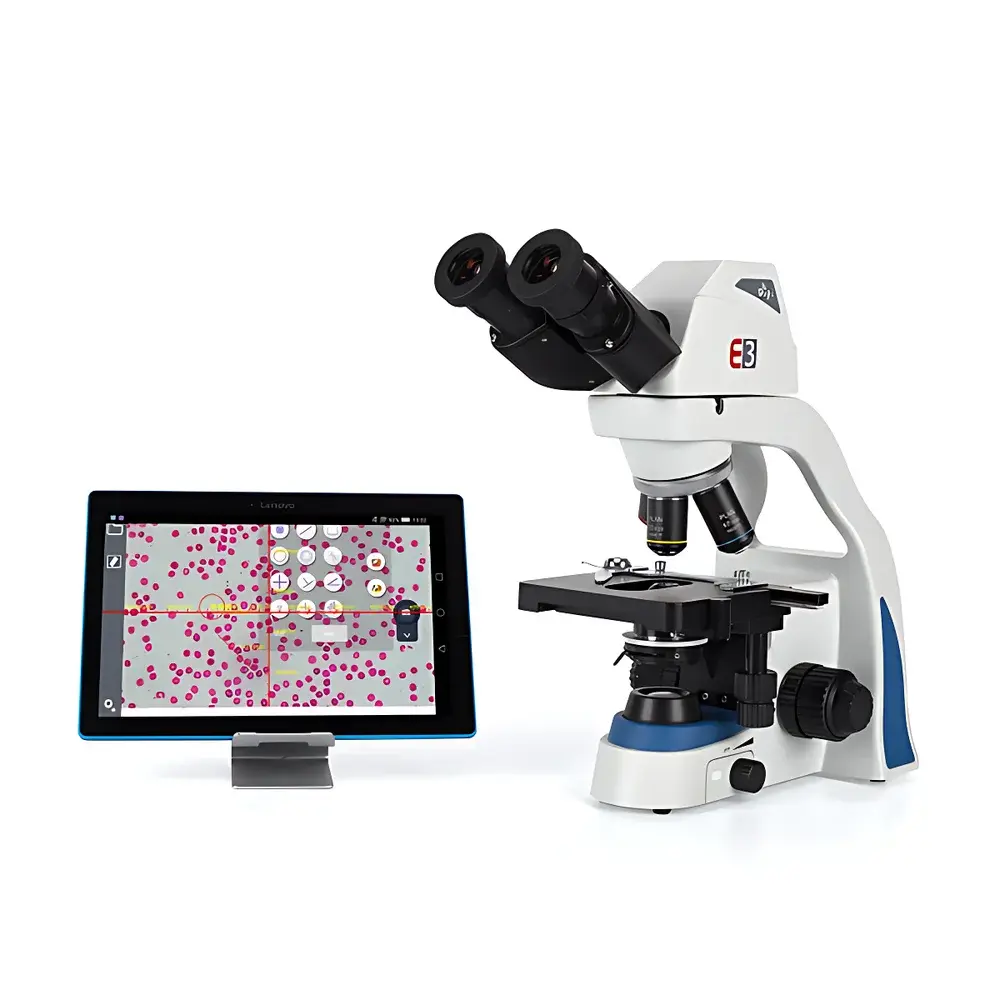

The E3 is fully compatible with third-party USB digital imaging systems (e.g., SOPTOP’s MC50 series or generic UVC-compliant CMOS sensors). When paired with imaging hardware, it supports TIFF/BMP/JPEG export, measurement overlays (µm/pixel calibration via stage micrometer), and time-stamped image capture—facilitating reproducible data collection aligned with undergraduate lab report standards. Optional software packages provide annotation tools, multi-frame stacking, and export to CSV for quantitative morphology analysis. All firmware updates are delivered via USB mass-storage mode, requiring no proprietary drivers—ensuring compatibility with Windows, macOS, and Linux platforms without administrative privileges.

Applications

• Undergraduate biology laboratories: mitosis staging in onion root tips, blood smear differential counts, algal motility assays.
• K–12 STEM outreach: live pond water microscopy, fungal hyphae observation, insect wing venation analysis.
• Field-based ecology education: rapid in-situ identification of benthic macroinvertebrates or soil nematodes using portable power sources.
• Veterinary technician training: basic parasitology screening (e.g., Giardia cysts, flea eggs).
• Plant science instruction: stomatal density quantification, pollen grain morphology, vascular bundle differentiation in stem cross-sections.

FAQ

Is the E3 compatible with digital camera attachments?
Yes—the trinocular port (optional accessory) or standard C-mount adapter enables integration with USB or HDMI digital cameras meeting UVC or GenICam protocols.
What is the maximum magnification achievable with standard objectives?
With PL10X eyepieces and 40× objective, total magnification is 400×; oil immersion (100×) yields 1000×, subject to resolution limits governed by Abbe’s diffraction limit (~0.2 µm at 550 nm wavelength).
Does the E3 support Köhler illumination alignment?
Yes—adjustable field diaphragm, aperture diaphragm, and condenser height control enable full Köhler setup per ISO 8578 recommendations.
Can the built-in battery be replaced by the end user?
The rechargeable Li-ion module is serviceable under warranty; replacement requires authorized SOPTOP technical support to maintain electrical safety certification.
Is there a version with phase contrast capability?
Phase contrast is available as a factory-configured option (E3-PC), including annular condenser, centerable phase telescope, and matched phase objectives (10×, 40×).
