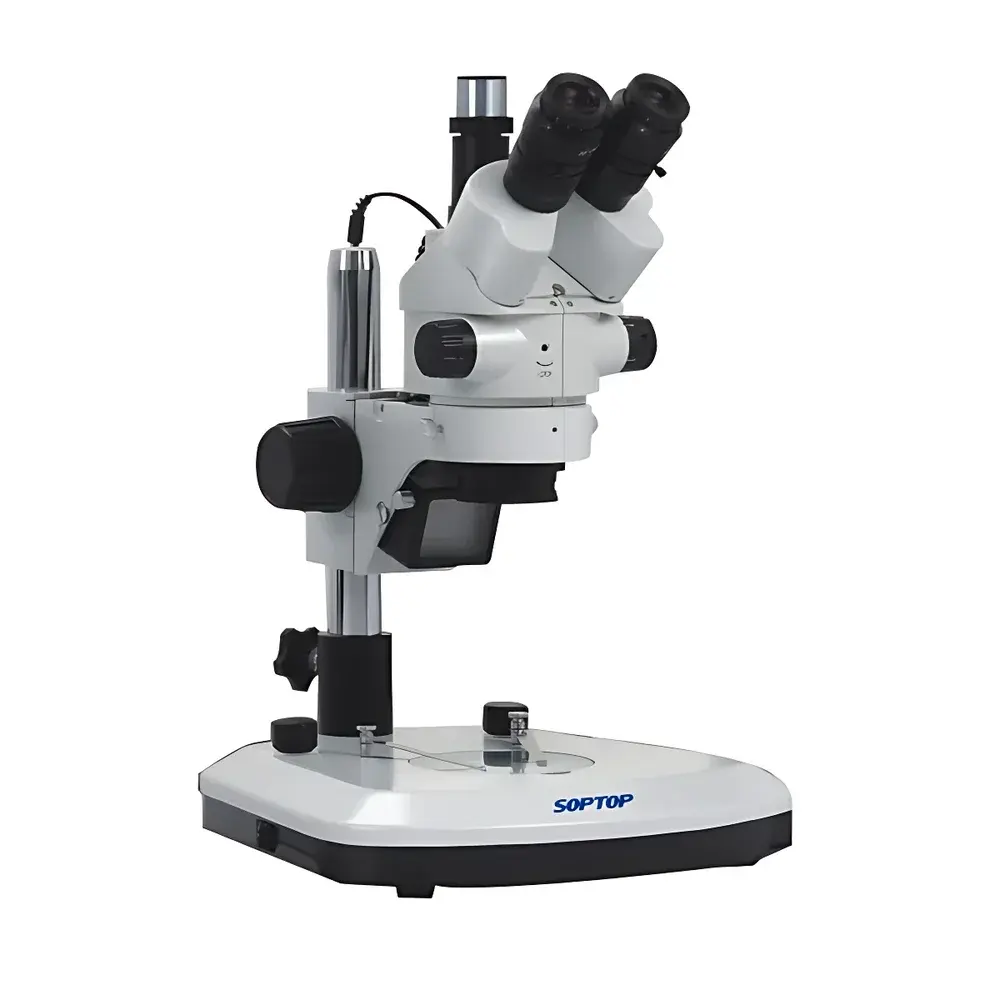

SOPTOP SZMN Continuous Zoom Stereo Microscope

Overview

The SOPTOP SZMN Continuous Zoom Stereo Microscope is an ergonomically engineered optical instrument designed for high-fidelity three-dimensional observation across industrial quality control, electronics inspection, precision assembly, failure analysis, and academic life science applications. Built upon the principles of Greenough optical architecture—dual independent optical paths with separate objective and eyepiece systems—the SZMN delivers natural depth perception, true spatial orientation, and orthoscopic (erect, unreversed) imaging without prismatic inversion. Its core optical performance stems from a precision-machined continuous zoom mechanism (0.7× to 4.5×, 6.4:1 zoom ratio), coupled with apochromatically corrected objectives and multi-layer anti-reflection (AR) coated optics that ensure high transmission (>92% per surface), minimal chromatic aberration, and exceptional flatness of field across the entire visual field—particularly critical at peripheral zones where contrast and resolution are often compromised in entry-level stereo systems.

Key Features

• Ergonomic viewing head with fixed 45° inclination and full 360° rotation, enabling optimal posture adaptation for seated or standing operation over extended periods.
• Diopter-adjustable wide-field eyepieces (±5 D per ocular) accommodate individual visual acuity differences without requiring corrective eyewear.
• Bilateral horizontal zoom control levers—symmetrically positioned for ambidextrous use—ensure smooth, backlash-free magnification transitions and high repeatability (±0.02× typical magnification stability after repeated actuation).
• Modular objective system: standard 1× objective (100 mm working distance) compatible with optional auxiliary lenses (0.5×, 0.75×, 1.5×, 2×) to extend working distance from 30 mm to 165 mm while maintaining parfocality and telecentricity.
• Dual-illumination platform supporting both high-CRI LED (5000 K, flicker-free, >50,000 hr lifetime) and tungsten-halogen (6 V / 10 W) illumination, each with independent intensity control and heat-filtered output to protect thermally sensitive samples.
• Robust aluminum alloy mechanical structure with vibration-damped base and coaxial coarse/fine focusing (1 mm coarse travel, 0.1 mm fine graduation, 0.002 mm minimum increment).

Sample Compatibility & Compliance

The SZMN accommodates specimens ranging from printed circuit boards (PCBs) and semiconductor wafers to botanical specimens, entomological samples, and small-scale mechanical assemblies. Its extended working distance range (30–165 mm) supports integration with soldering stations, manipulators, and automated stage systems. The microscope meets ISO 10934-1 for stereomicroscope nomenclature and metrological characterization, and complies with ISO 8578 requirements for optical performance, including resolution verification using standardized USAF 1951 test targets. All optical components adhere to RoHS Directive 2011/65/EU and REACH Annex XVII restrictions on hazardous substances. CE marking is applied under the EU Machinery Directive 2006/42/EC and Electromagnetic Compatibility Directive 2014/30/EU.

Software & Data Management

While the SZMN operates as a standalone optical instrument, it is fully compatible with SOPTOP’s optional digital imaging modules—including 5 MP to 20 MP CMOS sensors—and integrates seamlessly with industry-standard acquisition software (e.g., SOPTOP ImagePro, Stream Motion, or third-party packages compliant with TWAIN/DirectShow protocols). All digital configurations support timestamped image capture, measurement annotation (length, angle, area), calibration traceability (via NIST-traceable stage micrometers), and audit-ready metadata export (EXIF + custom XML). For regulated environments, optional software licenses enable 21 CFR Part 11-compliant user authentication, electronic signatures, and immutable audit trails—fully aligned with GLP and GMP documentation requirements.

Applications

• Electronics manufacturing: SMT component placement verification, solder joint inspection (IPC-A-610 Class 2/3), micro-BGA rework assessment.
• Precision mechanics: Gear tooth profile evaluation, micro-bearings inspection, watchmaking assembly.
• Life sciences: Dissection of model organisms (Drosophila, zebrafish embryos), histological slide screening, pollen morphology analysis.
• Materials research: Fracture surface topography, coating uniformity assessment, fiber orientation mapping.
• Forensics & archaeology: Toolmark comparison, document examination, artifact surface stratigraphy.

FAQ

What is the maximum total magnification achievable with the SZMN system?

With standard 10× eyepieces and the 4.5× maximum zoom setting, total magnification reaches 45×. Using optional 20× eyepieces and 2× auxiliary objective, magnification extends to 180×—while maintaining usable working distance and depth of field.
Is the SZMN compatible with machine vision cameras for automated inspection?

Yes. C-mount (1×) and CS-mount (0.5×) adapters are available; all optical paths preserve telecentric alignment and MTF performance up to 120 lp/mm at Nyquist-limited sensor resolutions.
Does SOPTOP provide calibration certificates traceable to national standards?

Upon request, factory calibration reports—including magnification accuracy, working distance verification, and resolution validation against ISO 19432-1—are issued with NIST-traceable references and uncertainty budgets.
Can the illumination be synchronized with external triggers for high-speed imaging?

LED illumination modules support TTL triggering (5 V logic) with <10 µs response time, enabling precise synchronization with high-frame-rate cameras in motion-capture or stroboscopic applications.
What warranty and service support does SOPTOP offer internationally?

The SZMN carries a 24-month limited warranty covering parts and labor; global service network includes authorized calibration centers in Germany, USA, Japan, and Singapore, with spare parts logistics supporting ≤5-business-day turnaround for critical components.
