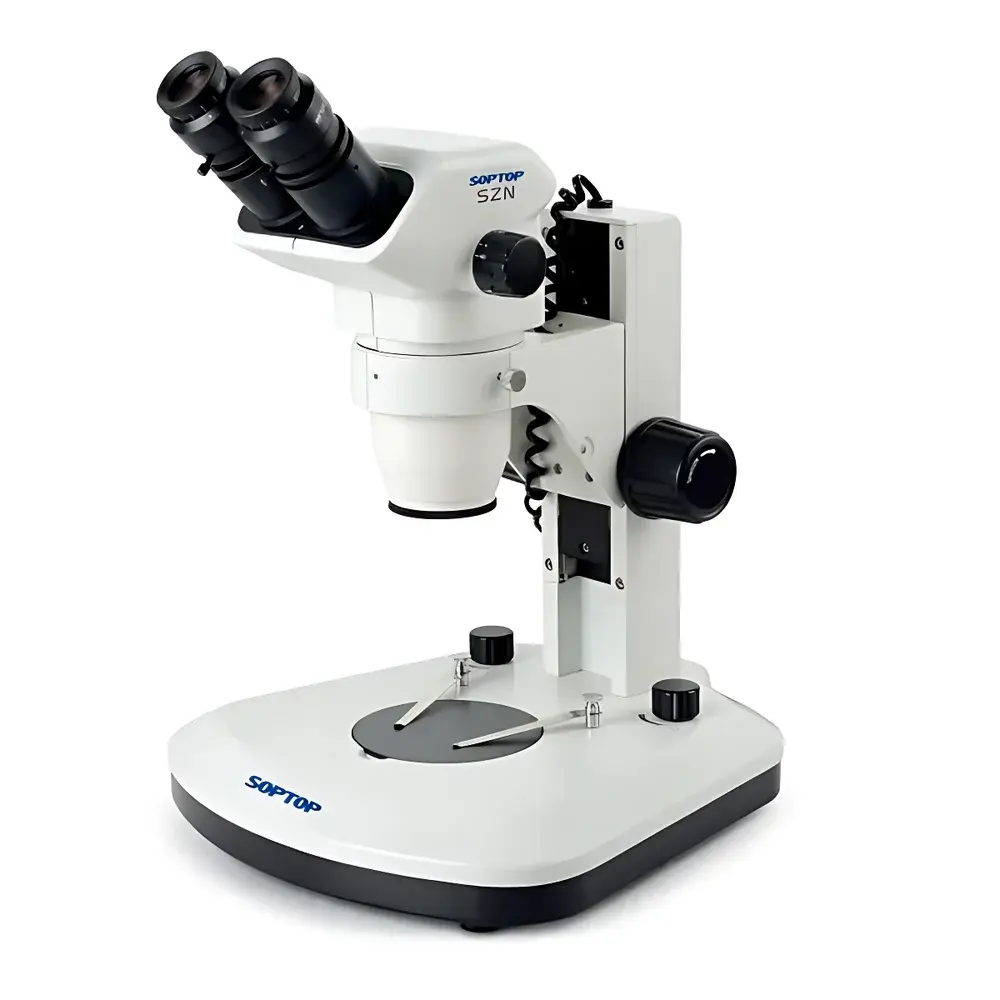

SOPTOP SZN Continuous Zoom Stereo Microscope

Overview

The SOPTOP SZN Continuous Zoom Stereo Microscope is an ergonomically engineered optical instrument designed for high-fidelity three-dimensional observation across research, industrial quality control, and educational applications. Utilizing a coaxial Galilean optical system with a continuously variable zoom ratio (typically 6.7×–134× depending on eyepiece and auxiliary lens configuration), the SZN delivers consistent resolution, flat field imaging, and minimal parallax across its entire magnification range. Its optical path is optimized for long working distance (up to 110 mm standard), enabling unobstructed manipulation of specimens during inspection or micro-assembly tasks. The microscope conforms to ISO 10934-1 (optical microscopy — terminology) and meets general requirements for stereo microscopes per ISO 8578, supporting traceable calibration workflows in GLP-compliant laboratories.

Key Features

• Ergonomic trinocular head with 45° or 60° inclination angles—designed to reduce cervical strain during extended observation sessions, aligning with ISO 9241-5 (Ergonomic requirements for office work with visual display terminals)
• Continuous zoom objective (typically 1×–6.7× base zoom) paired with interchangeable eyepieces (10×/22 mm wide-field, high-eye-point design) and optional auxiliary lenses (0.5×, 0.75×, 1.5×, 2×) to achieve total magnifications from 6.7× to 134×
• Integrated dual-mode LED illumination system: top- and bottom-mounted LEDs with independent on/off and intensity controls; uniform brightness maintained across all magnifications without thermal drift or color shift
• Modular mechanical stage compatibility—including low-profile XY translation stages, rotating platforms, and specimen holders for electronics inspection, metallurgical analysis, or botanical dissection
• Trinocular port with standardized C-mount (1× or 0.5× reduction options) for seamless integration with digital cameras, CMOS sensors, or machine vision systems compliant with USB3 Vision or GigE Vision protocols

Sample Compatibility & Compliance

The SZN accommodates a broad spectrum of opaque, translucent, and semi-transparent specimens—from printed circuit boards (PCBs) and solder joints to histological tissue sections, entomological samples, and mineralogical thin sections. Its long working distance and large depth of field support non-contact examination of assembled components, making it suitable for IPC-A-610 (Acceptability of Electronic Assemblies) and MIL-STD-883 (Test Methods for Microelectronics) visual inspection protocols. Optional halogen or fluorescent illumination modules extend functionality for fluorescence-assisted dissection (e.g., GFP-tagged specimens) or differential contrast enhancement under transmitted light. All optical components comply with RoHS Directive 2011/65/EU and are manufactured under ISO 9001-certified production processes.

Software & Data Management

The SZN interfaces natively with industry-standard imaging software platforms—including SOPTOP’s proprietary ImagePro®-compatible acquisition suite and third-party solutions such as NIS-Elements (Nikon), ZEN (Zeiss), and Ocular (DAGE-MTI). Digital outputs support TIFF, BMP, JPEG2000, and RAW formats with embedded metadata (magnification, illumination mode, timestamp). Audit-trail functionality—including user login tracking, parameter change logs, and image annotation history—can be configured to meet FDA 21 CFR Part 11 requirements when deployed in regulated QC environments. Exported datasets integrate with LIMS (Laboratory Information Management Systems) via CSV or XML schema mapping.

Applications

• Electronics manufacturing: solder joint inspection, component placement verification, counterfeit IC detection, and failure analysis per IPC-J-STD-001 and JEDEC JESD22 standards
• Life sciences: embryonic dissection, microsurgical training, Drosophila sorting, and plant morphology studies requiring real-time stereoscopic depth perception
• Materials science: surface defect mapping of coatings, fracture analysis of composites, and grain boundary visualization in metallographic samples
• Forensics: toolmark comparison, fiber identification, and document authenticity assessment using oblique illumination modes
• Education: undergraduate microscopy labs, STEM outreach programs, and vocational technician training where modularity and durability are critical

FAQ

What is the standard working distance at 1× objective magnification?
The nominal working distance is 110 mm with the standard 1× objective; this may vary slightly depending on selected auxiliary lenses or extended focus blocks.
Can the SZN be calibrated for metrological use?
Yes—when equipped with certified stage micrometers and traceable reference standards, the system supports measurement uncertainty budgets compliant with ISO/IEC 17025 for dimensional verification up to ±2 µm repeatability.
Is fluorescence capability built-in or add-on?
Fluorescence illumination is an optional module requiring dedicated excitation/emission filter sets and a mercury or LED-based light source; it is not integrated into the base LED unit.
Does the trinocular port support live HDMI output?
HDMI output requires an external video capture device (e.g., Epiphan DVI2USB 3.0 or Magewell USB Capture HD); native HDMI is not provided on the microscope body.
Are replacement parts and service manuals available internationally?
SOPTOP provides global technical documentation, spare optics catalogs, and authorized service partner networks in North America, EMEA, and APAC regions under warranty and post-warranty support agreements.
