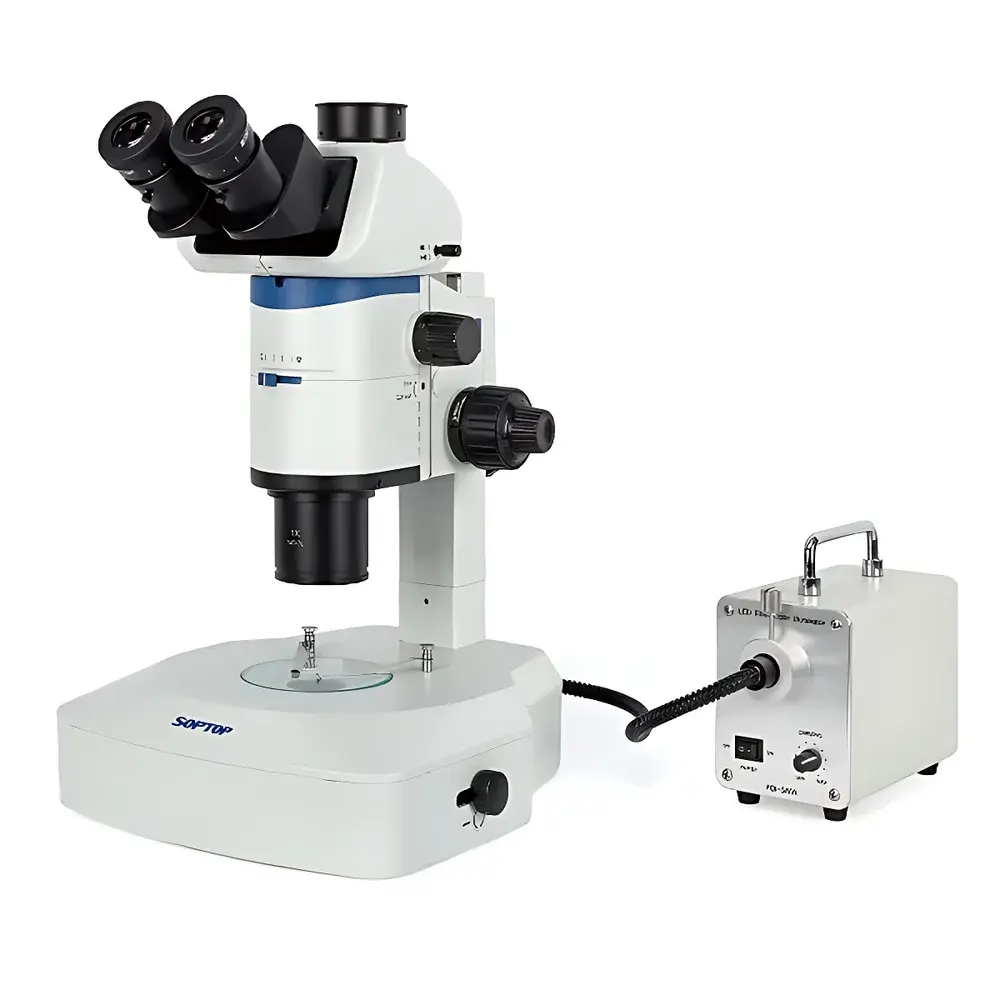

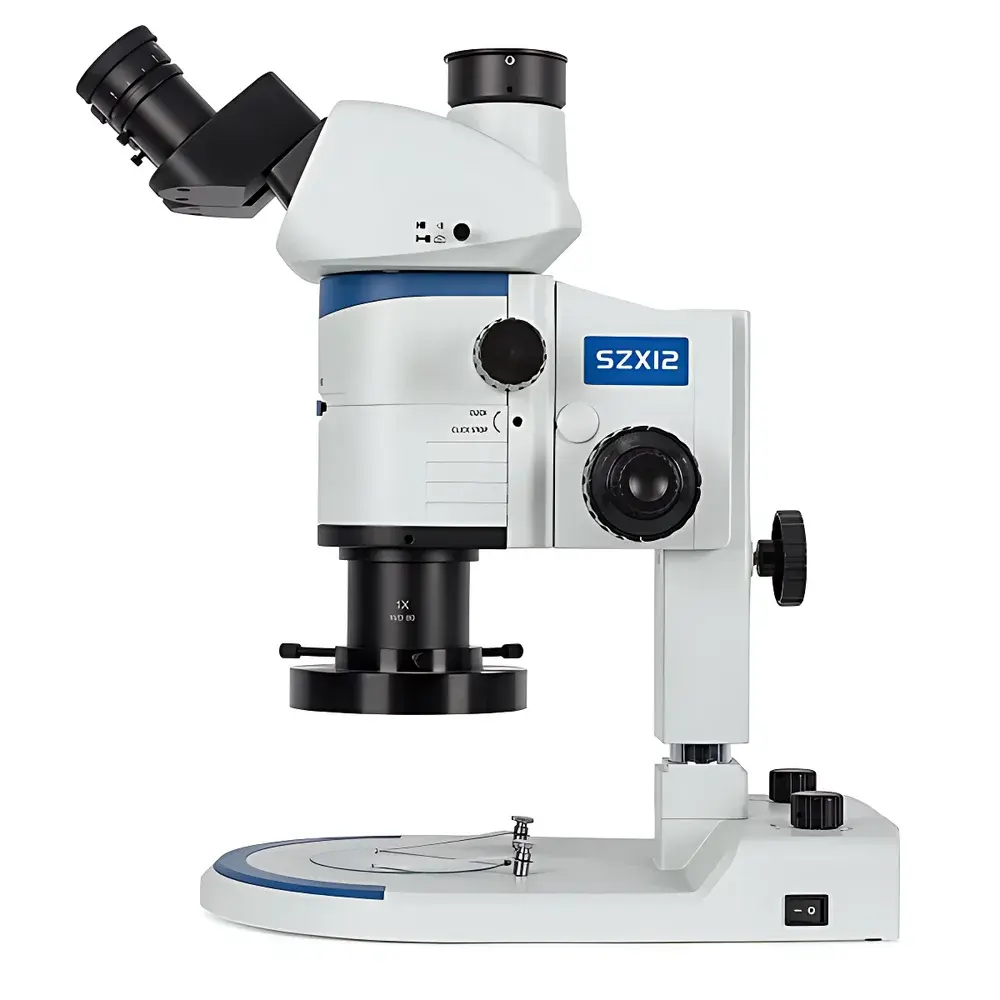

SOPTOP SZX12 Parallel-Optical Path Stereo Microscope

Overview

The SOPTOP SZX12 is a high-performance parallel-optical path stereo microscope engineered for precision visual inspection and analytical observation across life science and industrial R&D environments. Built upon a Galilean optical architecture—distinct from conventional Greenough designs—the SZX12 delivers true stereoscopic imaging with minimal optical distortion, consistent magnification linearity, and superior depth-of-field stability across the entire zoom range. Its parallel beam path enables seamless integration with auxiliary modules including digital cameras, fluorescence attachments, and measurement stages without compromising parfocality or image fidelity. Designed for long-duration use, the system prioritizes ergonomic integrity without sacrificing optical rigor—making it suitable for GLP-compliant laboratory workflows, ISO 17025-accredited quality control labs, and production-floor metrology stations where reproducibility and operator fatigue reduction are critical.

Key Features

• Galilean Parallel-Optical Path System: Ensures constant interpupillary alignment and zero convergence error, enabling accurate spatial perception and extended viewing comfort during prolonged sessions.
• 12.5:1 Continuous Zoom Objective: Provides smooth, backlash-free magnification adjustment from 0.8× to 10×; major magnification steps (e.g., 1×, 2×, 4×, 8×) are mechanically lockable for repeatable setup and rapid repositioning.
• Achromatic-Apochromatic Hybrid Objective Design: Standard 1× objective incorporates apochromatic correction for axial chromatic aberration across red, green, and blue wavelengths—with additional correction for violet light—ensuring faithful color reproduction and high-resolution edge definition.
• Adjustable Inclination Observation Tube: Tilting range of 5°–45° accommodates seated and standing operators alike; optimized for anthropometric variability in multi-user lab environments and compliant with ISO 9241-5 ergonomics guidelines.
• Integrated Aperture Diaphragm Control: Dual-side thumb-wheel adjustment enables real-time modulation of numerical aperture, allowing precise trade-off between depth of field and lateral resolution—critical for layered sample analysis and surface topography assessment.

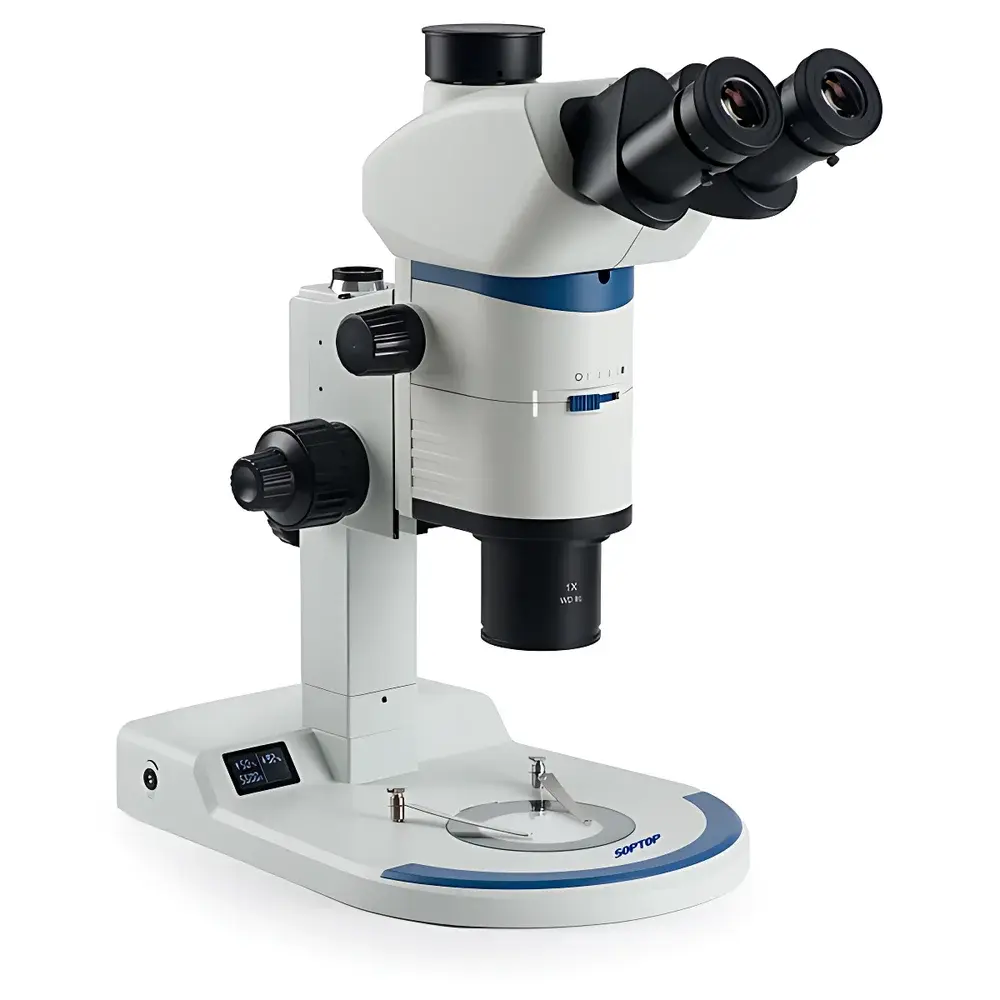

• LED Illumination System with Digital Brightness & CCT Control: Features an LCD display showing real-time intensity (%) and correlated color temperature (CCT) values (ranging 4500–6500 K); supports material-specific contrast optimization (e.g., low-CCT for metallic reflectivity enhancement, high-CCT for polymer transparency evaluation).

Sample Compatibility & Compliance

The SZX12 supports a broad spectrum of opaque, translucent, and semi-reflective specimens—including biological tissue sections, PCB assemblies, semiconductor wafers, metallurgical cross-sections, and microfluidic devices—without requiring coverslips or immersion media. Its 50 mm working distance facilitates manipulation under the objective using micromanipulators or soldering tools. The instrument conforms to IEC 61000-6-3 (EMC emission standards) and IEC 61000-6-2 (immunity), and its LED illumination meets IEC 62471 photobiological safety Class 1 requirements. Optional accessories—including ESD-safe stages, motorized Z-focus drives, and calibrated stage micrometers—support compliance with ASTM E29, ISO/IEC 17025, and FDA 21 CFR Part 11 when paired with validated software platforms.

Software & Data Management

While the SZX12 operates as a standalone optical platform, it is fully compatible with third-party imaging software suites (e.g., ToupView, Stream Motion, Olympus cellSens) via C-mount or F-mount adapters. When integrated with SOPTOP’s optional DP-M1 digital camera module, the system supports time-stamped image capture, measurement annotation (length, angle, area), and batch export in TIFF, JPEG, and BMP formats. Audit trail functionality—including user login logs, parameter change history, and calibration timestamping—is available through certified versions of SOPTOP ImagePro software, meeting documentation requirements for GMP and ISO 13485-regulated medical device manufacturing environments.

Applications

• Life Sciences: Routine dissection, embryology staging, histological slide screening, and live-cell culture monitoring—particularly where natural color fidelity and low-vibration handling are essential.
• Electronics Manufacturing: SMT component placement verification, solder joint inspection (IPC-A-610 Class 2/3), BGA underfill void detection, and flex-circuit trace continuity assessment.
• Semiconductor & MEMS: Wafer-level defect triage, probe card alignment, die bonding validation, and post-etch residue analysis.
• Materials Science: Fracture surface characterization, coating uniformity evaluation, grain boundary mapping in polycrystalline alloys, and additive manufacturing layer adhesion assessment.
• Forensics & Archaeology: Toolmark comparison, fiber morphology analysis, and delicate artifact documentation with minimal handling risk.

FAQ

Is the SZX12 compatible with third-party digital cameras?
Yes—standard C-mount (23.2 mm thread) and optional F-mount adapters enable integration with most industrial and scientific CMOS/CCD cameras.
Does the microscope support fluorescence observation?
Fluorescence capability requires optional add-on modules (e.g., LED excitation cubes, barrier filters); the base SZX12 is optimized for brightfield and oblique illumination only.
What is the maximum supported eyepiece field number?
The standard wide-field eyepieces have a 22 mm field number; optional 23 mm FN eyepieces are available for expanded peripheral visibility.
Can the aperture diaphragm be motorized for automated imaging workflows?
Not natively—but external motorized aperture controllers (e.g., Thorlabs KCH101) can be interfaced via analog voltage input when used with compatible focus controllers.
Is calibration documentation provided for metrological applications?
Yes—NIST-traceable calibration certificates for magnification accuracy and stage movement linearity are available upon request for regulated QA/QC deployments.
