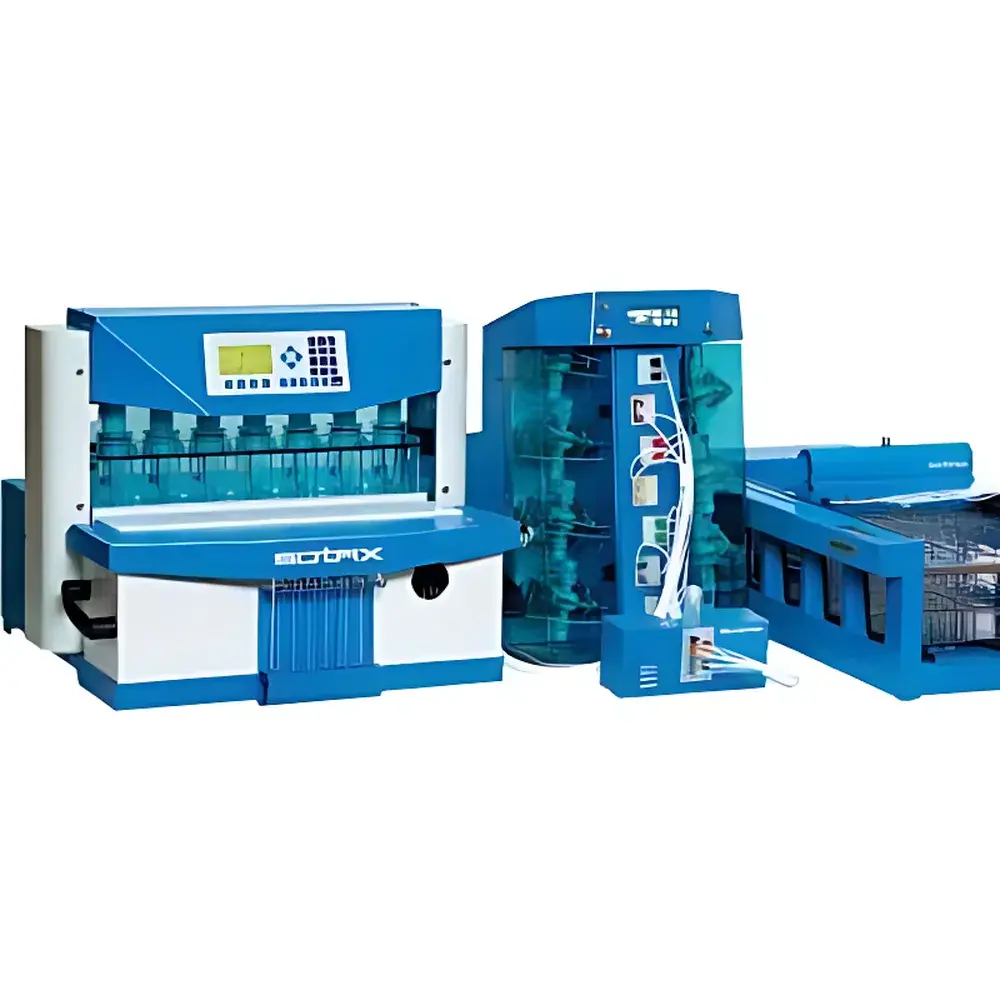

SOTAX CE 7smart USP Flow-Through Cell Dissolution Testing System

Overview

The SOTAX CE 7smart is an advanced, fully compliant USP flow-through cell dissolution testing system engineered for high-precision, regulatory-grade release profiling of pharmaceutical dosage forms. Unlike conventional basket or paddle apparatus (USP and ), the CE 7smart employs a hydrodynamically controlled laminar flow principle—where dissolution medium is continuously pumped through vertically oriented cylindrical cells containing the test sample—enabling rigorous simulation of physiological fluid dynamics and true sink- or non-sink condition studies. This architecture delivers exceptional reproducibility in low-volume dissolution environments, making it indispensable for evaluating poorly soluble compounds, extended-release (ER), modified-release (MR), and complex drug delivery systems—including drug-eluting stents, ophthalmic suspensions, transdermal gels, and nanocarrier formulations—under pharmacopoeial conditions defined by USP, Ph. Eur., and JP.

Key Features

• Seven independent flow-through cells with precise peristaltic pumping and real-time flow rate monitoring (0.1–16 mL/min, programmable in 0.1 mL/min increments)
• Integrated water bath with Peltier-based temperature control (20–45 °C), maintaining stability within ±0.1 °C across all cells—validated per USP and ASTM E2503
• Modular system architecture supporting both open-loop (unrestricted medium volume) and closed-loop (as low as 15 mL total circulating volume) configurations
• Automated pH-switching capability via integrated solvent selector—enabling sequential dissolution in media of varying pH without manual intervention
• Onboard cleaning protocol with programmable rinse cycles using water, ethanol, or custom solvents—fully traceable and auditable
• Compliance-ready design featuring hardware interlocks, sensor redundancy, and electronic signature support aligned with FDA 21 CFR Part 11 and EU Annex 11 requirements

Sample Compatibility & Compliance

The CE 7smart accommodates an extensive range of solid, semi-solid, and implantable dosage forms: immediate- and extended-release tablets/capsules; suppositories; pellets; powders; APIs; ocular inserts; transdermal patches; hydrogels; microspheres; liposomes; polymeric implants; and vascular drug-eluting devices. Each cell accepts standard USP-compliant flow-through cells (Type I and II), with optional adapters for non-standard geometries. The system meets all critical performance verification (PV) criteria outlined in USP , , and , and supports full IQ/OQ/PQ documentation packages. All temperature, flow, and timing parameters are logged with timestamped audit trails, satisfying GLP and GMP data integrity expectations.

Software & Data Management

Controlled exclusively via SOTAX Dissolution Software (v5.3+), the CE 7smart provides a validated, 21 CFR Part 11-compliant environment for method development, execution, and reporting. The software features role-based user access, electronic signatures, automatic calibration logging, and embedded electronic lab notebook (ELN) integration. Raw sensor data—including flow rate, temperature, UV absorbance (when coupled with optional inline spectrophotometer), and pump status—is captured at ≥1 Hz resolution and stored in encrypted .sqlite databases with SHA-256 hash verification. Export formats include CSV, PDF e-reports, and CDISC SDTM-compliant XML for regulatory submissions.

Applications

• Biorelevant dissolution profiling of BCS Class II/IV compounds under fed/fasted simulated GI conditions
• Release kinetics assessment of polymer-coated ER tablets and osmotic pumps
• Elution quantification from coronary stents and orthopedic implants under dynamic shear stress
• Stability-indicating dissolution for photolabile or oxidation-prone actives in low-volume closed systems
• Method transfer between flow-through and rotating apparatus per ICH Q5E guidelines
• Support for quality-by-design (QbD) initiatives through DoE-enabled parameter sweeps (flow rate × temperature × pH)

FAQ

Does the CE 7smart support USP validation requirements for flow-through systems?

Yes—the system includes built-in PV tools for flow rate accuracy, temperature uniformity, and mechanical stability testing per USP Annexes A–C.
Can the system be integrated with third-party HPLC autosamplers?

Yes—via TTL-triggered output and configurable fraction collector interfaces (e.g., Gilson FC204, Agilent G1329B).
Is remote monitoring supported?

Yes—through secure HTTPS web interface with TLS 1.2 encryption and configurable SNMP alerts for temperature or flow deviations.
What calibration standards are required for routine operation?

NIST-traceable thermistors and certified flow meters (e.g., Bronkhorst EL-Flow) are recommended annually; SOTAX provides certified calibration kits and service contracts.
How is data integrity ensured during power failure or unexpected shutdown?

All active methods and sensor logs are written to non-volatile memory every 500 ms; recovery mode resumes from last valid checkpoint without data loss.
