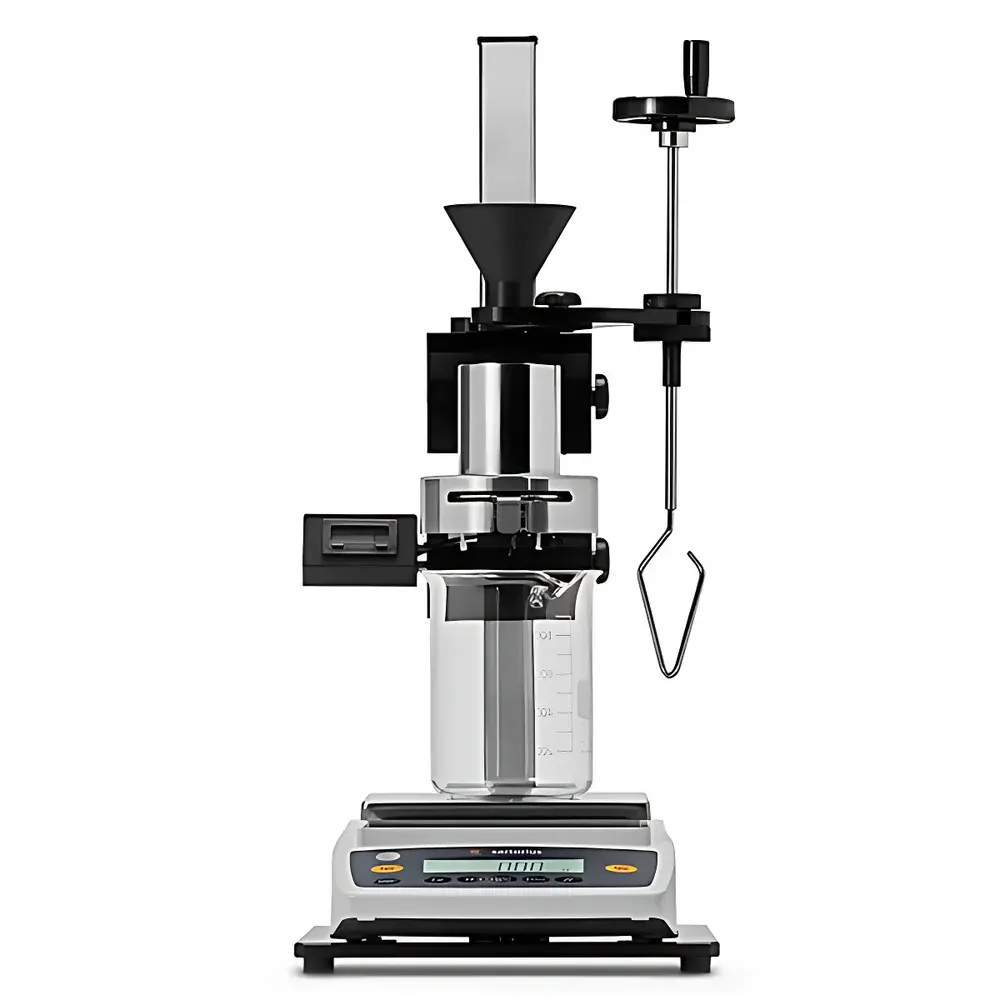

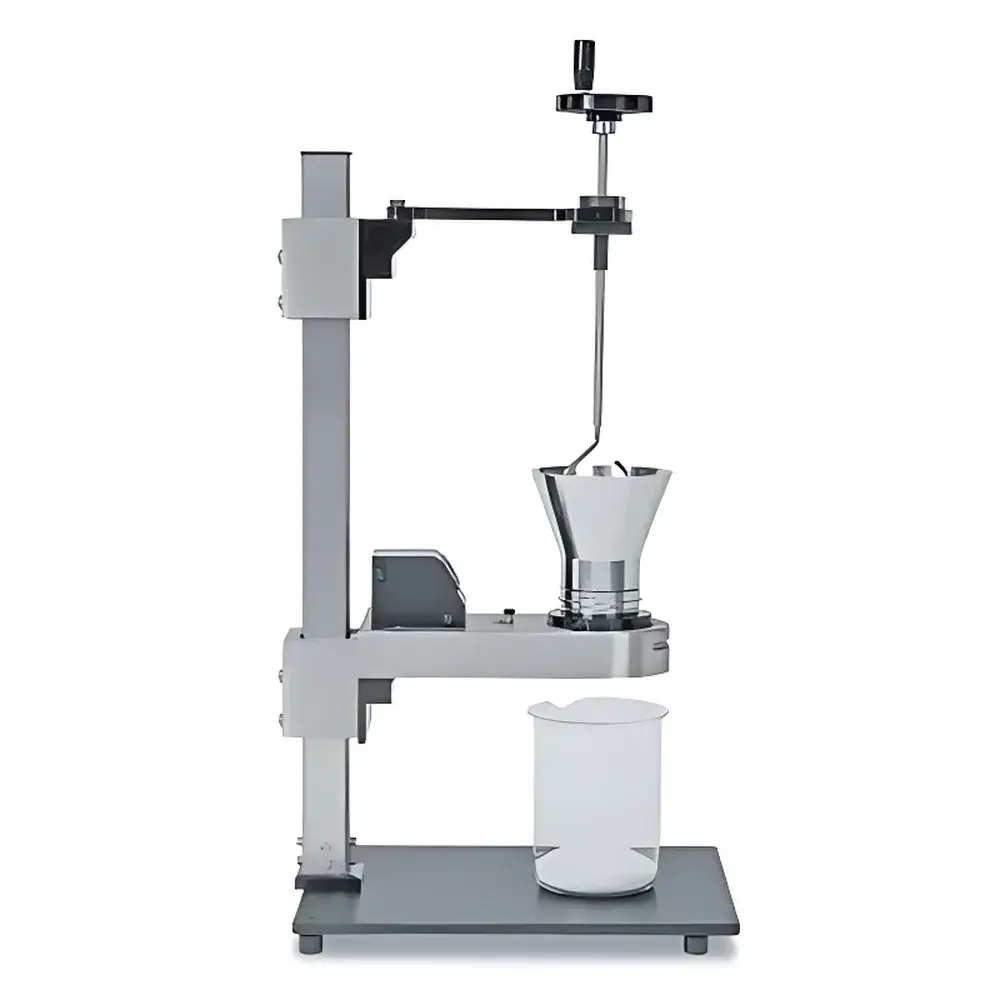

SOTAX PF1 Powder Flowability Tester

Overview

The SOTAX PF1 Powder Flowability Tester is a precision-engineered instrument designed for the quantitative assessment of powder flow behavior under standardized gravitational conditions. It operates on the orifice flow principle—commonly referred to as the funnel-flow method—where a defined volume of powder is allowed to discharge freely through an orifice, and the resulting conical pile is analyzed to determine the angle of repose (AoR). This parameter serves as a critical indicator of interparticle friction, cohesion, and bulk handling characteristics in pharmaceutical, chemical, food, and materials science applications. The PF1 is explicitly validated for compliance with pharmacopoeial standards including United States Pharmacopeia “Powder Flow” and European Pharmacopoeia monograph 2.9.36 “Powder Flow Properties”, ensuring data integrity in regulated environments such as GMP-compliant manufacturing and QC laboratories.

Key Features

• Pharmacopoeia-aligned design: Pre-configured hardware—including calibrated funnels with interchangeable orifices and standardized cylindrical receivers—meets dimensional and procedural requirements of USP and Ph. Eur. 2.9.36.
• Modular test configuration: Supports multiple test modes—free-flow through fixed-diameter funnels, controlled feeding via adjustable fill funnels, and optional mechanical agitation using integrated stirring paddles—all without repositioning core components.
• Reproducible sample presentation: Precision-machined stainless-steel funnels and receiver vessels minimize surface variability; consistent powder bed height and discharge initiation are ensured by gravity-driven release mechanisms.
• Compact benchtop architecture: Weighing 20 kg and featuring a rigid aluminum frame with vibration-dampening feet, the PF1 delivers operational stability during repeated measurements across multi-shift laboratory workflows.
• Tool-free adaptability: Interchangeable discs and orifice inserts allow rapid switching between test protocols—for example, varying orifice diameters (e.g., 4 mm, 8 mm, 12 mm) to assess sensitivity to particle size distribution or moisture content.

Sample Compatibility & Compliance

The PF1 accommodates dry, free-flowing to slightly cohesive powders within typical pharmaceutical granule and API size ranges (D₁₀ ≥ 10 µm, D₉₀ ≤ 500 µm). It is not intended for highly aerated, fibrous, or hygroscopic materials requiring shear cell or dynamic powder rheometry. All test procedures align with ICH Q5C and ASTM D6393–14 “Standard Test Method for Flow Function of Powders Using the Shear Cell”, where applicable as supporting methodology. Data generated meets audit readiness criteria for FDA 21 CFR Part 11 when paired with compliant LIMS or ELN systems—though the PF1 itself is a standalone analog/digital hybrid instrument without embedded electronic records.

Software & Data Management

The PF1 operates as a manual-to-semi-automated measurement platform: angle of repose is determined optically via calibrated protractor scale or digitally using optional external imaging software (e.g., ImageJ with custom macros or third-party vision systems). While the base unit does not include onboard software or USB connectivity, its mechanical repeatability supports integration into structured data capture workflows. Laboratories routinely pair PF1 measurements with Excel-based templates that enforce calculation logic per USP , including mean AoR derivation from ≥3 replicate determinations and outlier rejection per Grubbs’ test. For GLP/GMP environments, raw observations (photographs, protractor readings, operator ID, timestamp) are logged manually in bound lab notebooks or electronic systems meeting ALCOA+ principles.

Applications

• Formulation development: Screening excipient compatibility and identifying flow-limiting components during early-stage blend optimization.
• Process validation: Establishing baseline flow performance for roller compaction, direct compression, or capsule filling operations.
• Stability monitoring: Detecting moisture-induced cohesiveness or crystalline phase changes affecting manufacturability over shelf life.
• Supplier qualification: Verifying consistency of incoming raw material batches against pre-defined AoR specifications (e.g., 35° ± 5°).
• Educational use: Teaching fundamental powder mechanics concepts—including Archimedes’ principle application to bulk density estimation and correlation between AoR and Hausner ratio—in university-level pharmaceutics labs.

FAQ

Does the PF1 provide automated angle calculation?
No—the PF1 is a mechanical test apparatus. Angle of repose must be measured manually using the built-in protractor scale or via external image analysis tools.
Can it measure flow rate (g/s) in addition to angle of repose?
Not natively. Flow rate determination requires separate timing instrumentation and mass measurement; the PF1 focuses exclusively on geometric pile characterization per pharmacopoeial AoR protocols.
Is calibration traceable to national standards?
Yes—SOTAX provides factory calibration certificates for funnel dimensions and receiver geometry, traceable to METAS (Swiss Federal Institute of Metrology). Periodic verification is recommended using certified gauge blocks and optical alignment tools.
What maintenance is required?
Routine cleaning of stainless-steel surfaces with lint-free cloths and isopropyl alcohol; annual inspection of funnel orifice roundness and receiver flatness by qualified service personnel.
Is the PF1 suitable for regulatory submissions?
Yes—when operated per written SOPs aligned with USP or Ph. Eur. 2.9.36, and supported by equipment qualification (IQ/OQ), the PF1 generates data acceptable in NDAs, MAAs, and CMC sections of regulatory filings.
