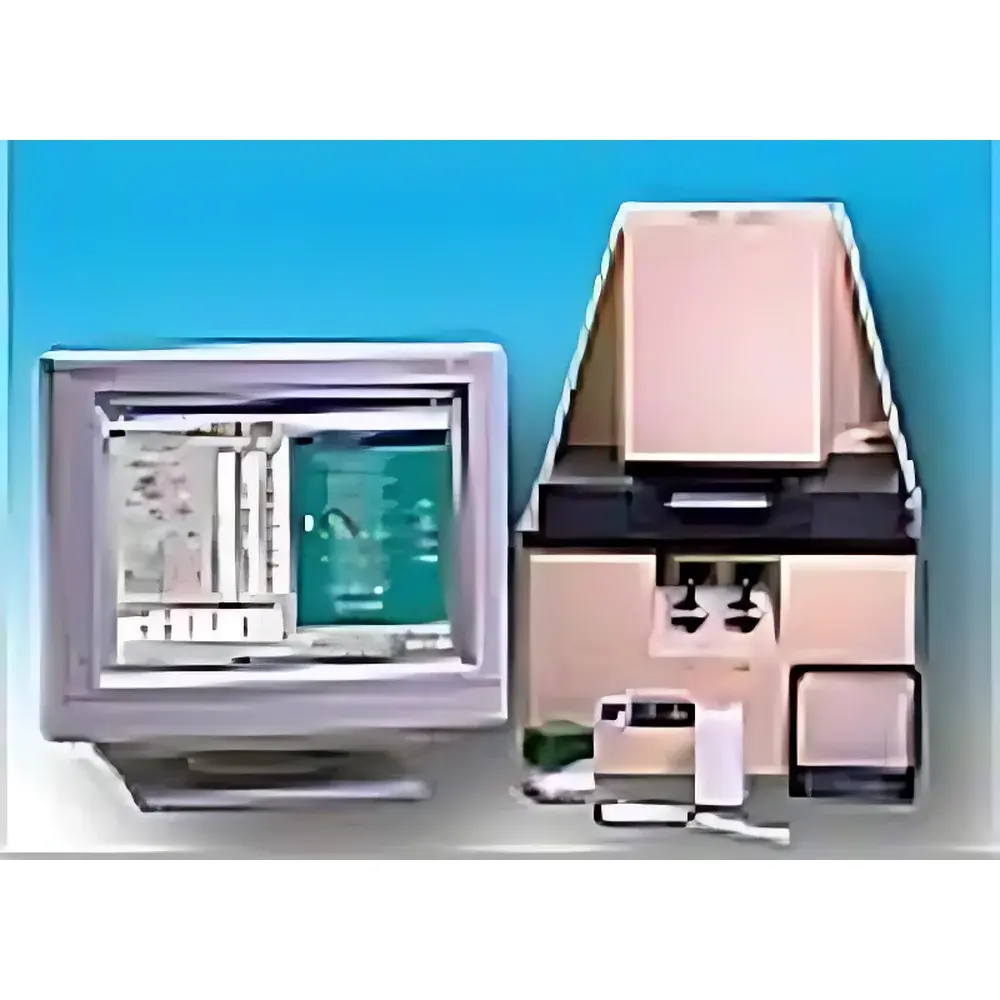

SPF290S UV Spectrophotometric Sun Protection Factor Analyzer
| Origin | Imported |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Model | SPF290S |
| Measurement Principle | UV-Vis Spectrophotometry with Integrated Diffuse Transmittance Analysis |
| Compliance | AS/NZS 2604:2012 (Australian TNUV), Boots Star Rating Algorithm v2.0, ISO 24443:2021 (in vitro method) |
| Scan Speed | Full spectral acquisition (290–400 nm) in ≤20 s per sample site |
| Data Output | SPF, MPF (Mean Protection Factor), UVA-PF, UVB-PF, UVA/UVB Ratio, Boots Star (1–5 stars), Absorbance spectra (nm), Transmittance profiles (%) |
| Reporting | ASTM E2718-compliant PDF reports with spectral curves, statistical summaries (n = 1–36 replicates), and batch-level formulation comparison matrices |
| Software | Windows-based SPFCalc v4.2 with 21 CFR Part 11 audit trail, user role management, and GLP-compliant data archiving |
Overview
The SPF290S UV Spectrophotometric Sun Protection Factor Analyzer is an in vitro instrumentation platform engineered for precise, reproducible quantification of ultraviolet (UV) radiation attenuation by topical and textile-based sun protection formulations. It operates on the principle of diffuse transmittance spectrophotometry across the biologically relevant UV spectrum (290–400 nm), employing a collimated xenon-pulsed light source, double-monochromator optical path, and calibrated silicon photodiode array detector. Unlike empirical in vivo testing, the SPF290S delivers objective, operator-independent measurements aligned with internationally harmonized in vitro methodologies—specifically AS/NZS 2604:2012 (TNUV), ISO 24443:2021, and the Boots Star Rating framework. Its design targets R&D laboratories, QC units, and regulatory submission teams requiring traceable, repeatable SPF determination without human subject exposure or seasonal variability constraints.
Key Features
- Automated multi-point spectral scanning (up to 36 discrete measurement sites per substrate) with motorized XY stage and real-time focus verification
- Integrated calculation engine compliant with ISO 24443 Annex A algorithms for SPF, MPF, UVA-PF, and UVB-PF derivation
- Boots Star Rating assignment based on UVA/UVB absorbance ratio thresholds defined in BS EN 14357:2004 and updated industry consensus protocols
- Simultaneous acquisition of absolute transmittance (%T) and absorbance (A) spectra at 1-nm resolution from 290 to 400 nm
- Onboard statistical module supporting mean, SD, CV%, confidence intervals (95%), and outlier detection (Grubbs’ test) across replicate datasets
- Thermal-stabilized sample chamber (±0.3°C) with humidity control (30–60% RH) to minimize matrix-dependent hydration artifacts during film drying
Sample Compatibility & Compliance
The SPF290S accommodates standardized substrates including PMMA plates (ISO 24443), polycarbonate films, and textile swatches (per AATCC TM183). It supports both liquid emulsions (sunscreen lotions, gels, sprays) and semi-solids (creams, sticks) applied via precision spin-coater or manual dosing with gravimetric verification. All measurement protocols adhere to Good Laboratory Practice (GLP) documentation standards and are fully compatible with FDA-regulated submissions under 21 CFR Part 352 (OTC Monograph) and EU Cosmetics Regulation (EC No 1223/2009). Instrument calibration is traceable to NIST SRM 2036 (UV transmittance standard) and verified quarterly using certified reference filters.
Software & Data Management
SPFCalc v4.2 software provides full 21 CFR Part 11 compliance through electronic signatures, role-based access control (administrator, analyst, reviewer), and immutable audit trails recording all parameter changes, report generations, and data exports. Raw spectral files (.spfbin) are stored with embedded metadata (operator ID, timestamp, substrate ID, application thickness). Batch analysis mode enables side-by-side comparison of up to 12 formulations across identical spectral windows, generating delta-SPF heatmaps and UVA-PF stability indices. Export formats include PDF (with digital signature), CSV (for LIMS integration), and XML (for eCTD regulatory dossiers).
Applications
- Rapid screening of active ingredient combinations (e.g., avobenzone + octocrylene + Tinosorb S) for synergistic UVA filtering
- Stability assessment of photolabile actives under simulated solar irradiation (pre/post UV exposure protocol)
- Formulation optimization via dose–response modeling of SPF vs. concentration gradients
- Regulatory dossier preparation for Health Canada, TGA, and ASEAN Cosmetic Directive submissions
- Textile UPF (Ultraviolet Protection Factor) validation for sportswear and medical barrier fabrics
- QC release testing of commercial batches against pre-approved reference spectra
FAQ
Does the SPF290S require daily recalibration?
No—daily verification using a factory-certified quartz reference tile is sufficient; full recalibration is recommended every 90 days or after optical component servicing.
Can it measure SPF on human skin equivalents (e.g., EpiDerm™)?
Yes, when mounted on ISO-compliant Franz diffusion cells with integrated UV-transparent windows and temperature-controlled perfusion.
Is raw spectral data export supported for third-party modeling?
Yes—binary .spfbin files contain unprocessed detector counts, wavelength metadata, and instrument configuration flags, enabling custom algorithm development in MATLAB or Python.
How does the system handle non-uniform film thickness?
The XY stage performs grid-based averaging across ≥9 points per 2 cm² area; software applies thickness-normalization using gravimetric mass-per-area input.
What regulatory audits has the SPF290S successfully passed?
Instrument validation packages have supported successful FDA Pre-Submission meetings, MHRA GMP inspections, and ANVISA ANVISA RDC 18/2017 audits for Brazilian market registration.
