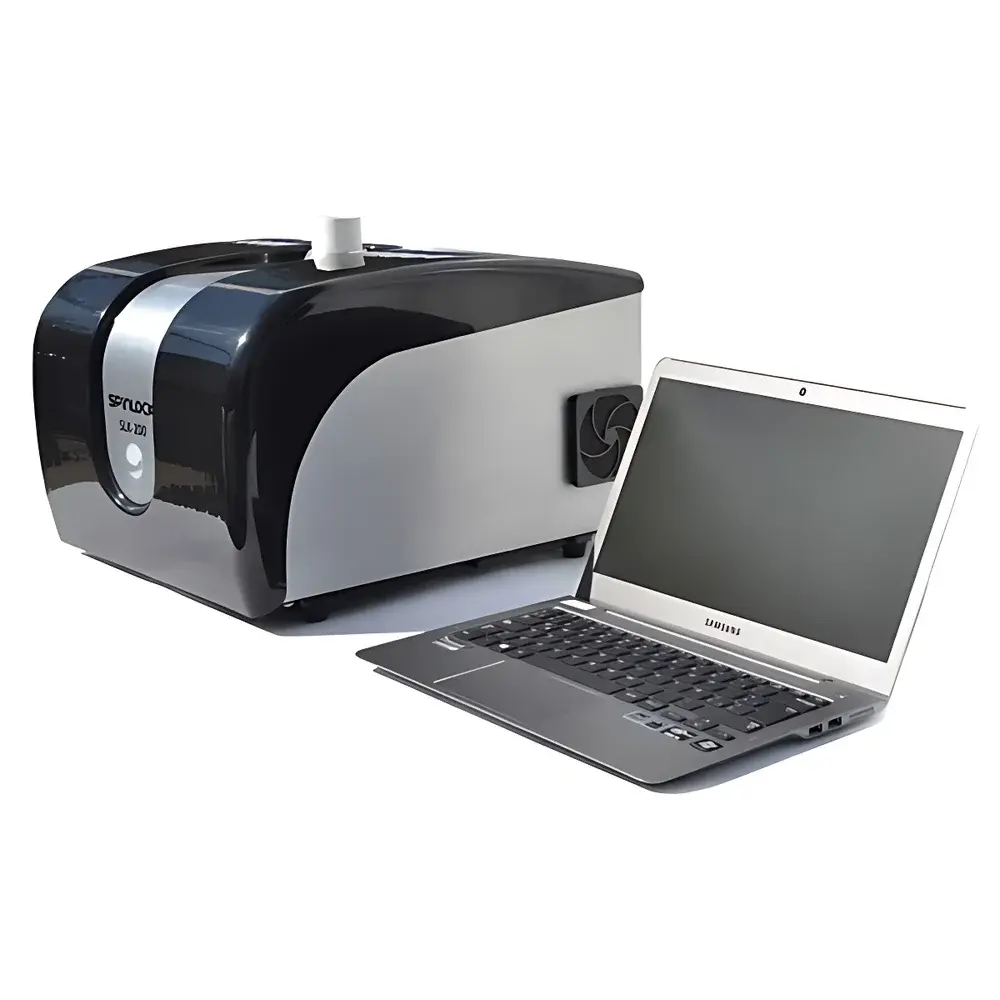

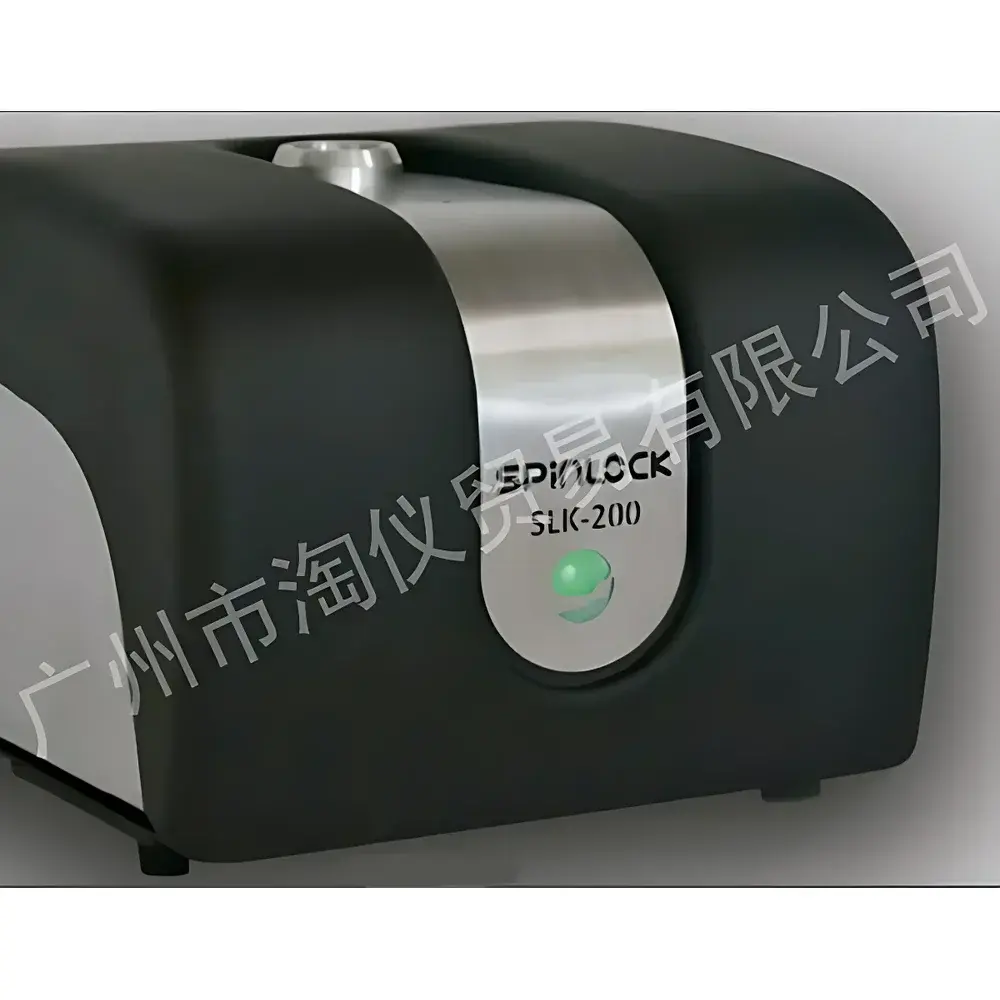

Spinlock SLK-200 Low-Field Nuclear Magnetic Resonance Analyzer

Overview

The Spinlock SLK-200 Low-Field Nuclear Magnetic Resonance (LF-NMR) Analyzer is a benchtop time-domain NMR instrument engineered for rapid, non-invasive quantitative analysis of key compositional parameters in heterogeneous biological and food matrices. Operating at a fixed low magnetic field (typically 0.05–0.1 Tesla), the SLK-200 exploits the relaxation behavior of hydrogen nuclei (¹H) in different molecular environments—specifically transverse relaxation (T₂) and diffusion-weighted signal decay—to differentiate and quantify fat, water, protein, and fatty acid profiles without chemical dissolution or destructive sample preparation. Its pulse sequence architecture is optimized for robust signal acquisition from complex solid-liquid systems, including intact seeds, emulsions, pastes, and high-moisture oils—making it uniquely suited for routine quality control in agri-food, seed breeding, and edible oil industries where speed, reproducibility, and sample integrity are critical.

Key Features

• Multi-parameter simultaneous quantification: Measures fat, moisture, protein, and fatty acid composition in a single acquisition cycle—no sequential reconfiguration or recalibration required.
• True non-destructive analysis: Analyzes whole, unprocessed samples—including intact single seeds—in standard 15 mm OD glass tubes; no grinding, drying, solvent extraction, or derivatization needed.
• Sub-minute measurement throughput: Delivers calibrated results in ≤4 seconds for fat/water, ≤12 seconds for protein, and ≤20 seconds for fatty acid profiling—enabling real-time process monitoring and high-volume screening.
• Patented high-moisture tolerance: Unique RF coil design and pulse timing protocol allow direct NMR analysis of olive oil and other high-water-content oils without prior dehydration—a capability not supported by conventional LF-NMR platforms.
• Remote technical support infrastructure: Integrated with Spinlock Online Help Desk®—a secure, browser-based platform offering live diagnostics, firmware updates, method validation logs, and remote expert-assisted calibration verification.
• Modular automation-ready architecture: Fully compatible with the SLK-AS-10 auto-sampler, enabling unattended operation across two independent 50-position sample trays with integrated precision weighing and post-analysis sorting logic.

Sample Compatibility & Compliance

The SLK-200 accepts a broad range of physical sample forms: whole seeds (e.g., sunflower, rapeseed, soybean), ground meal, liquid oils (including virgin olive oil), dairy emulsions, meat homogenates, and baked goods. Its probe geometry and RF shielding accommodate samples with varying dielectric constants and magnetic susceptibility gradients. From a regulatory standpoint, the instrument’s firmware and data handling architecture support audit-trail generation, electronic signature enforcement, and role-based user permissions—aligning with core requirements of FDA 21 CFR Part 11, ISO/IEC 17025, and GLP-compliant laboratory practices. Method validation documentation—including repeatability (RSD <1.2% for fat in sesame seeds, n=10), linearity (R² >0.999 over 0–100% fat range), and specificity testing against interferents—is provided with each system installation.

Software & Data Management

The SLK-200 runs on Spinlock NMR Studio™ v4.x—a Windows-based application built on a deterministic real-time acquisition engine. All measurement protocols are stored as encrypted, version-controlled method files (.slm) containing pulse sequence parameters, calibration coefficients, and statistical processing templates. Raw FID data is retained in vendor-neutral HDF5 format alongside processed results (CSV/Excel export). The software includes embedded multivariate calibration tools (PLS regression, PCA preprocessing) for developing custom models using user-generated reference datasets. When paired with the SLK-AS-10, the system logs full chain-of-custody metadata: sample ID, timestamp, operator, weight, tube position, acquisition parameters, and QC flag status. Data backups and remote synchronization are configurable via secure SFTP or local NAS integration.

Applications

• Seed breeding & certification: High-throughput oleic acid screening of single oilseed kernels to accelerate marker-assisted selection programs.
• Olive oil authenticity & grading: Direct quantification of free fatty acid content and moisture level in raw, unfiltered olive paste—supporting IOC and EU Regulation (EC) No 1513/2001 compliance verification.
• Feed & food QC: Routine monitoring of crude protein, ether extract, and moisture in animal feed formulations, cereal flours, and nut pastes.
• Research in soft matter physics: T₂ relaxometry mapping of phase separation dynamics in lipid-water systems, gelation kinetics, and crystallinity transitions in semi-crystalline fats.
• Pharmaceutical excipient characterization: Quantitative assessment of bound vs. free water in lyophilized powders and hydrate stability profiling under controlled humidity conditions.

FAQ

Does the SLK-200 require cryogens or permanent magnet maintenance?
No. It employs a permanent NdFeB magnet array with passive temperature stabilization; no liquid helium, nitrogen, or active cooling systems are required.
Can calibration models developed on one SLK-200 be transferred to another unit?
Yes—provided both instruments are of the same hardware revision and have undergone factory baseline harmonization; model portability is validated using NIST-traceable reference standards.
Is the SLK-AS-10 auto-sampler compatible with third-party sample tubes?
It is optimized for Spinlock-certified 15 mm OD borosilicate glass tubes (SLK-TUBE-15); deviations in wall thickness or magnetic susceptibility may affect positioning accuracy and signal homogeneity.
How is measurement traceability ensured across laboratories?
Each system ships with a set of three matrix-matched reference standards (low/medium/high fat), accompanied by certificate of analysis and SOPs for inter-laboratory transfer validation per ISO 17043 guidelines.
What cybersecurity protocols are implemented in the NMR Studio software?
The application enforces TLS 1.2+ encrypted communication, Windows Active Directory integration, automatic session timeout, and write-once logging of all critical user actions—including method edits, result overrides, and calibration events.
