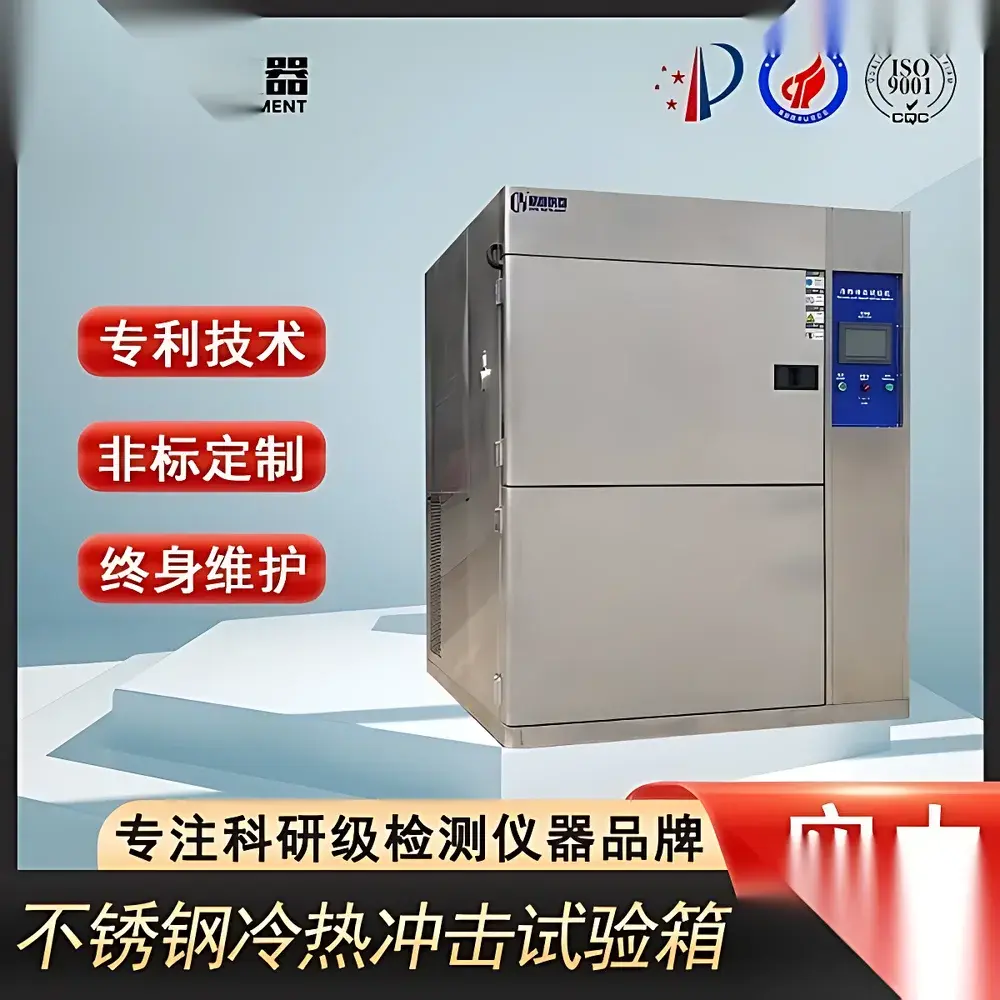

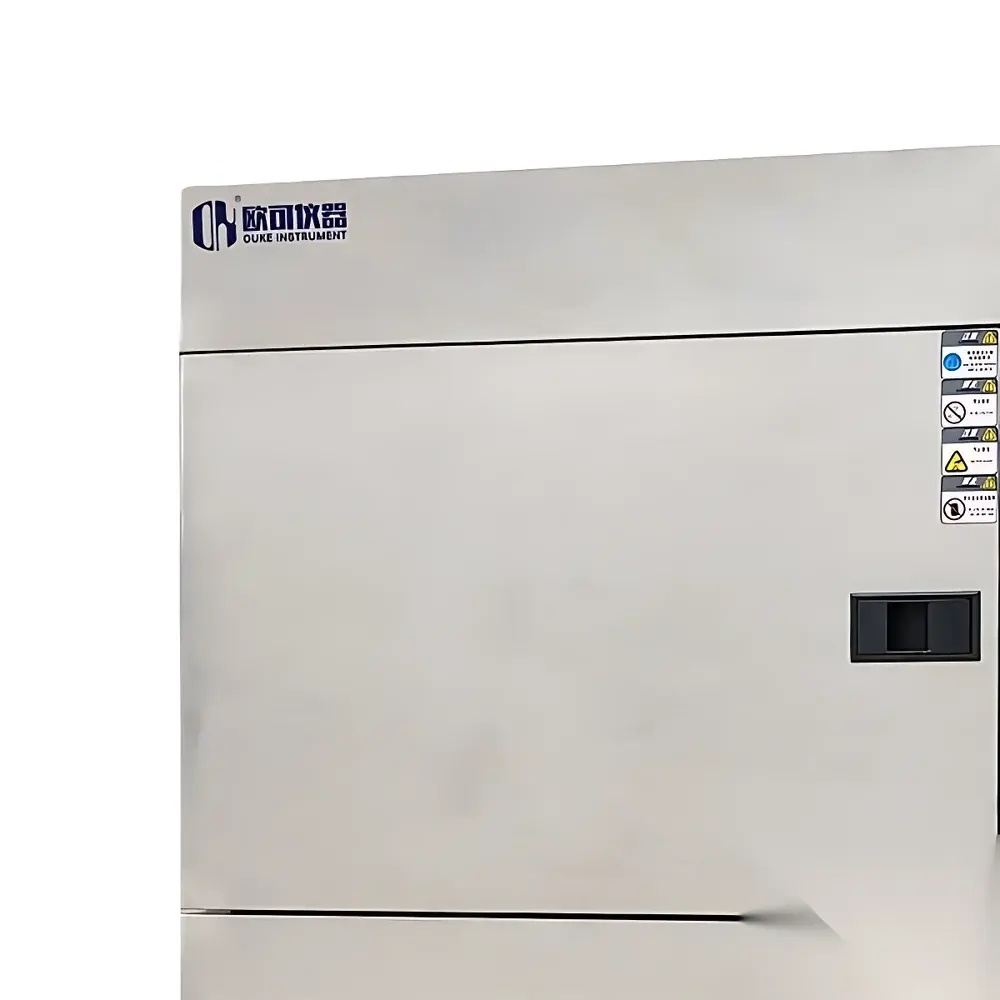

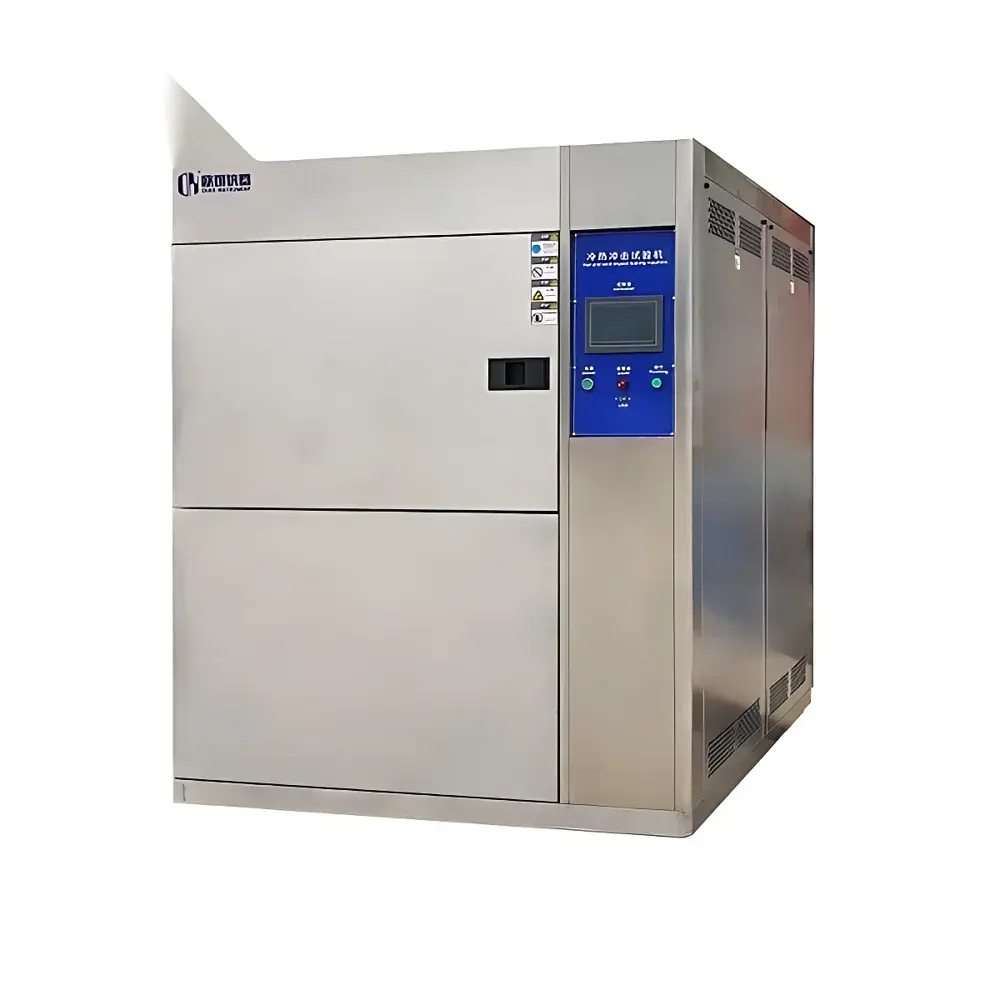

Stainless Steel Thermal Shock Test Chamber

Overview

The Stainless Steel Thermal Shock Test Chamber is an engineered environmental stress screening (ESS) system designed to evaluate material reliability under rapid and extreme temperature transitions. Based on the principle of two-zone (hot/cold) or three-zone (hot/cold/transfer) thermal shock methodology, it subjects test specimens to repeated, high-rate temperature excursions—typically between –70 °C and +180 °C—with transition times meeting IEC 60068-2-14 requirements (<5 minutes for standard configurations). Its robust stainless steel construction (SUS304 inner chamber, electropolished finish), combined with high-efficiency dual-circuit refrigeration and balanced temperature–humidity control (BTSC), ensures long-term dimensional stability, corrosion resistance, and repeatability across qualification, production validation, and failure analysis workflows in electronics, aerospace, automotive, and advanced materials R&D.

Key Features

• High-integrity chamber architecture: Inner chamber fabricated from seamless SUS304 stainless steel; outer shell available in either powder-coated cold-rolled steel or optional SUS304 brushed-finish cladding.
• Dual-zone thermal shock configuration with independent hot (+180 °C) and cold (–70 °C) chambers, enabling precise dwell time control and programmable transfer cycles via servo-driven basket mechanism.
• French-made “Tecumseh” (original brand: Tecumseh France, now part of Danfoss) hermetic compressors integrated into a dual-stage cascade refrigeration system—optimized for low GWP refrigerants (R404A/R507 alternatives compliant).
• Balanced Temperature & Humidity Control (BTSC) system featuring surface-evaporation humidification, NiCr alloy heating elements, and centrifugal forced-air circulation with wide-band airflow distribution (top-out/bottom-in pattern) ensuring ±0.5 °C uniformity and ±2% RH stability (at 25 °C/60% RH).

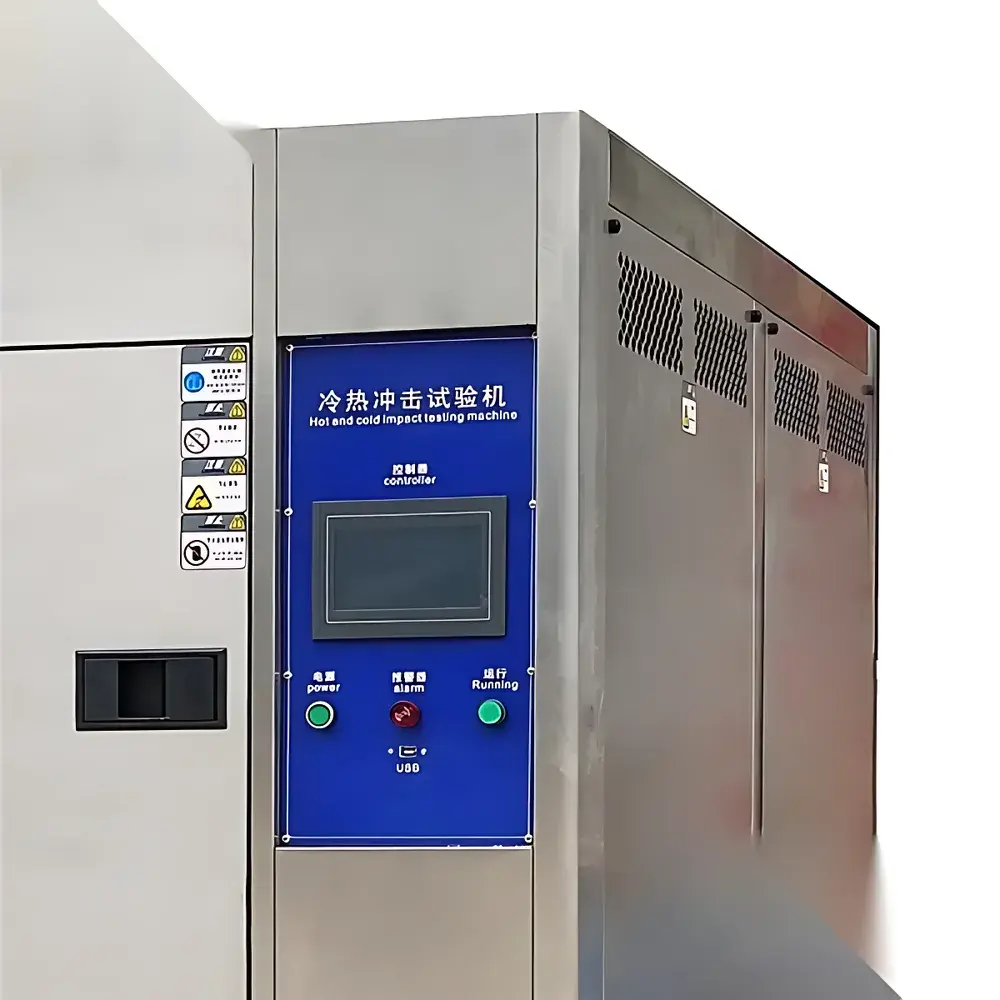

• TEMI880 7-inch color touchscreen controller with real-time trend logging, multi-segment programmability (up to 999 cycles), USB data export, and embedded audit trail functionality aligned with GLP/GMP documentation practices.
• Comprehensive safety architecture: Compressor overheat/overcurrent/overpressure protection; dry-run prevention for humidifier; chamber overtemperature cutoff; low-water level interlock; dual silicone rubber door gaskets rated for –70 °C to +200 °C operation.

Sample Compatibility & Compliance

The chamber accommodates standard test specimens up to 300 mm × 300 mm × 300 mm (customizable baskets available), with two adjustable sample racks (height-adjustable, load capacity ≤15 kg/rack). A 50 mm diameter cable/port access port (left-side mounted), double-glazed observation window (tempered laminated glass), interior fluorescent lighting, and four swivel casters support integration into lab-scale qualification lines. Certified to IEC 60068-2-14 (Test Nb: Change of temperature), MIL-STD-810H Method 503.5 (Temperature Shock), and GB/T 2423.22 (Chinese national standard equivalent). Optional calibration certificate traceable to NIST or DAkkS standards available upon request.

Software & Data Management

The included PC-based control software enables remote monitoring, script-based test sequencing, real-time parameter visualization (temperature, humidity, cycle count, alarm status), and CSV/Excel export of time-stamped datasets. All controller logs—including setpoint changes, alarm events, and manual interventions—are timestamped and stored onboard with configurable retention (≥30 days). Audit trail features comply with FDA 21 CFR Part 11 requirements when used with user authentication and electronic signature modules (optional add-on). Data encryption and role-based access control support ISO/IEC 27001-aligned laboratory IT policies.

Applications

This thermal shock chamber supports critical reliability testing protocols including solder joint fatigue evaluation (IPC-9701), PCB delamination screening, encapsulant adhesion validation, battery cell thermal runaway pre-screening, optical coating durability assessment, and qualification of MEMS packaging under JEDEC JESD22-A104 conditions. It is routinely deployed in Tier-1 automotive supplier labs (per AEC-Q200), aerospace component certification (per SAE AS6081), and semiconductor package validation per JEDEC standards.

FAQ

What is the typical temperature transition time between hot and cold zones?
Standard models achieve ≤5 minutes for a 150 °C to –70 °C transition (measured at geometric center, per IEC 60068-2-14 definition). Optional high-speed configurations reduce this to ≤3 minutes.
Is the chamber suitable for humidity-controlled thermal shock testing?
Yes—the BTSC system supports concurrent thermal shock and humidity cycling (e.g., 10 °C/95% RH ↔ 85 °C/10% RH), though full humidity range is limited to +10 °C to +85 °C.
Can the system be integrated into a factory MES or LabVantage environment?
Yes—RS485 Modbus RTU and optional Ethernet/IP interfaces enable bi-directional communication with LIMS and MES platforms. OPC UA gateway compatibility is available via third-party middleware.
What maintenance intervals are recommended for the refrigeration system?
Compressor oil and filter replacement every 18 months; refrigerant leak check annually; heat exchanger cleaning quarterly in high-dust environments.
Does the unit include calibration documentation?
Factory calibration report (as-found/as-left) is provided. NIST-traceable calibration with uncertainty budget is available as a paid service.
