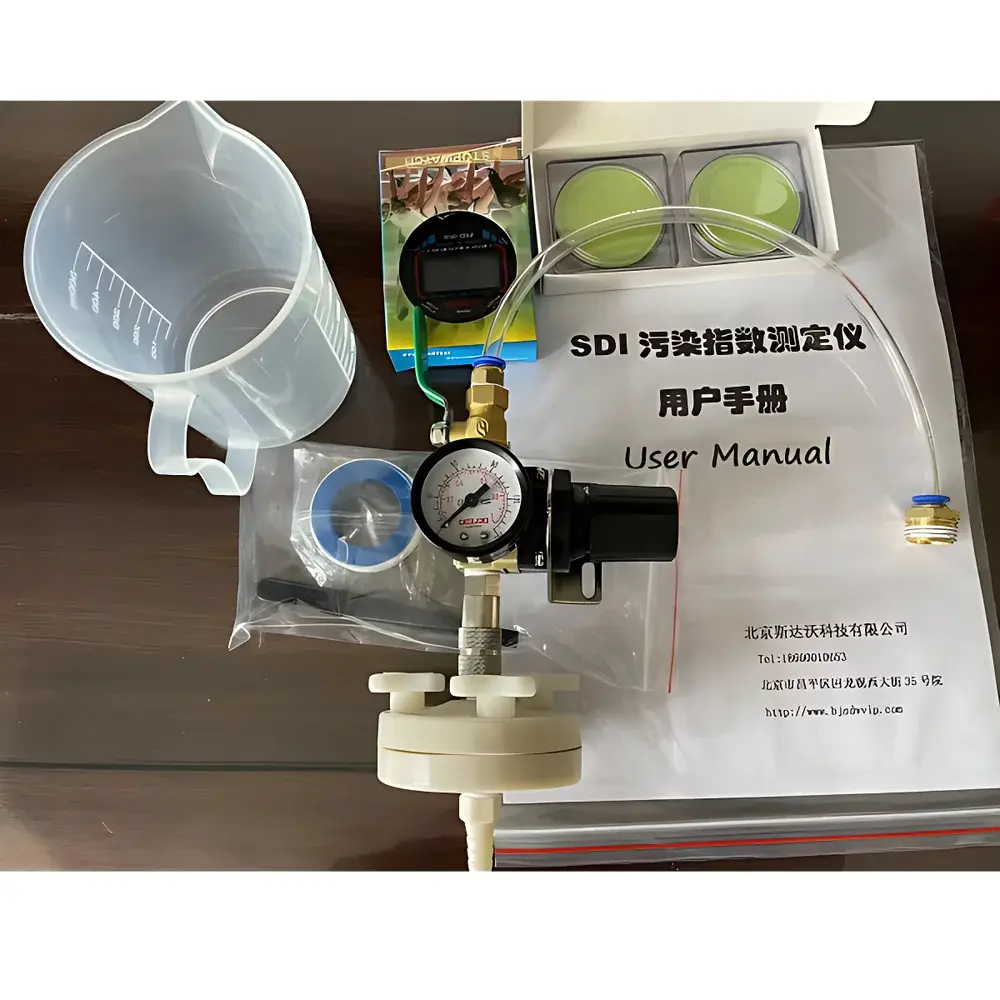

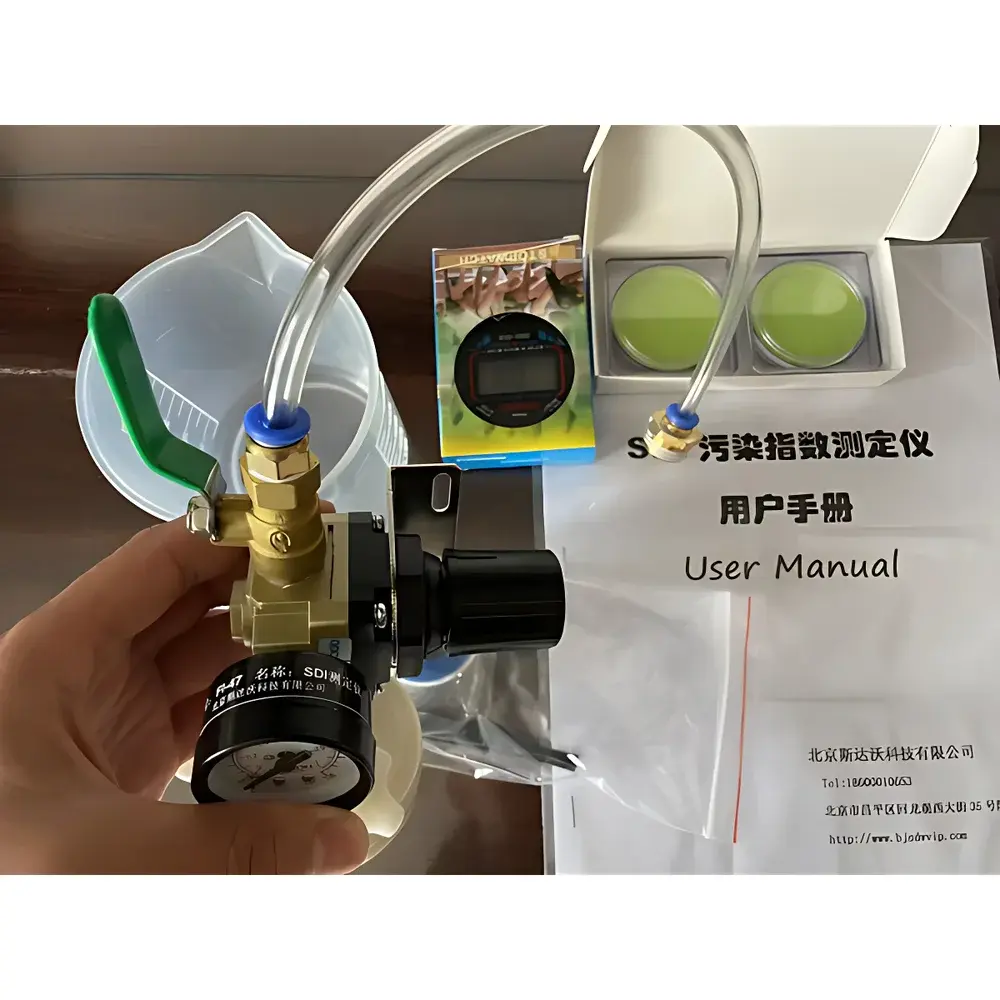

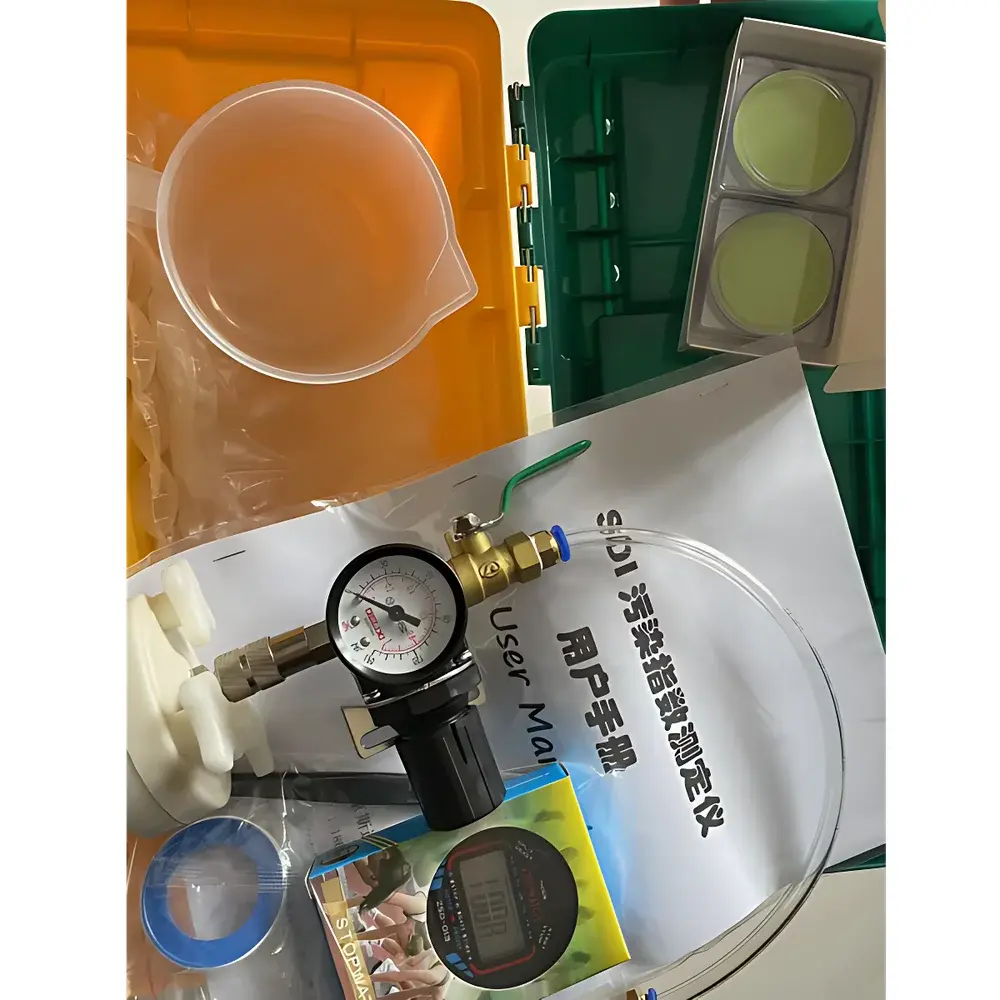

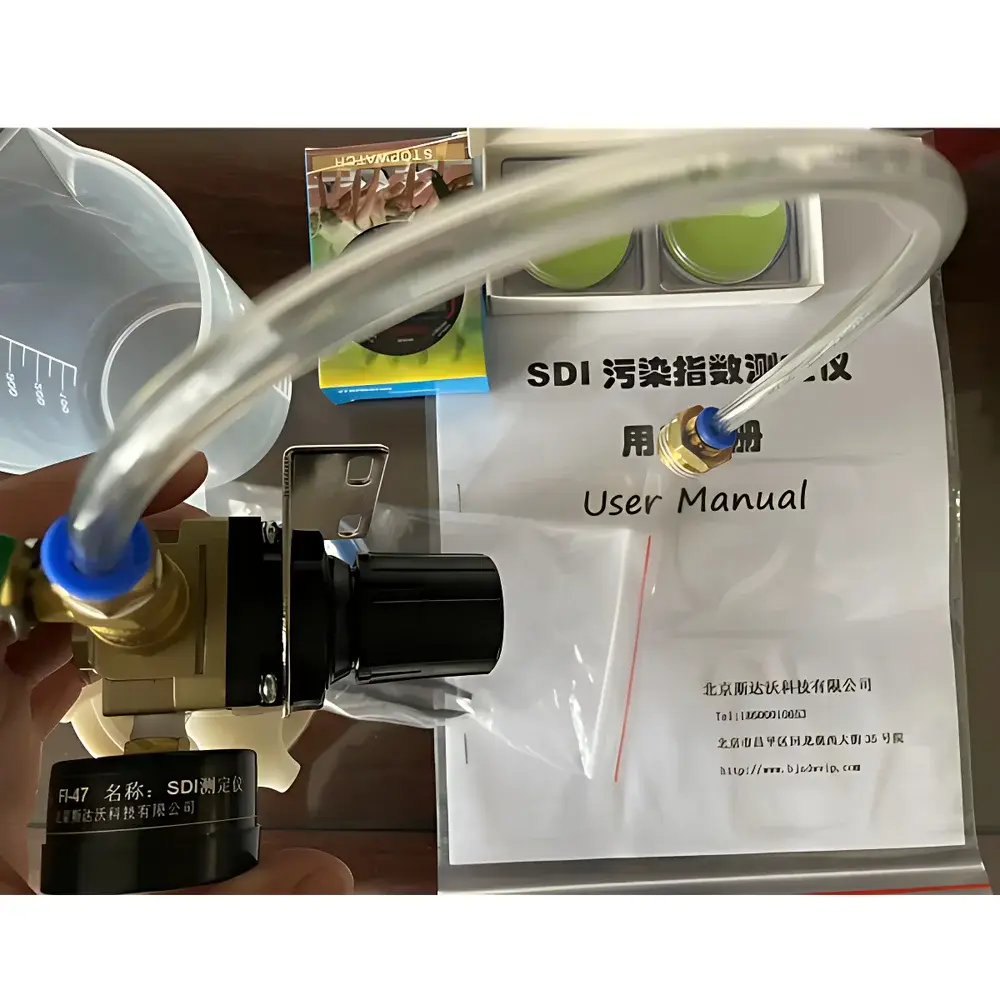

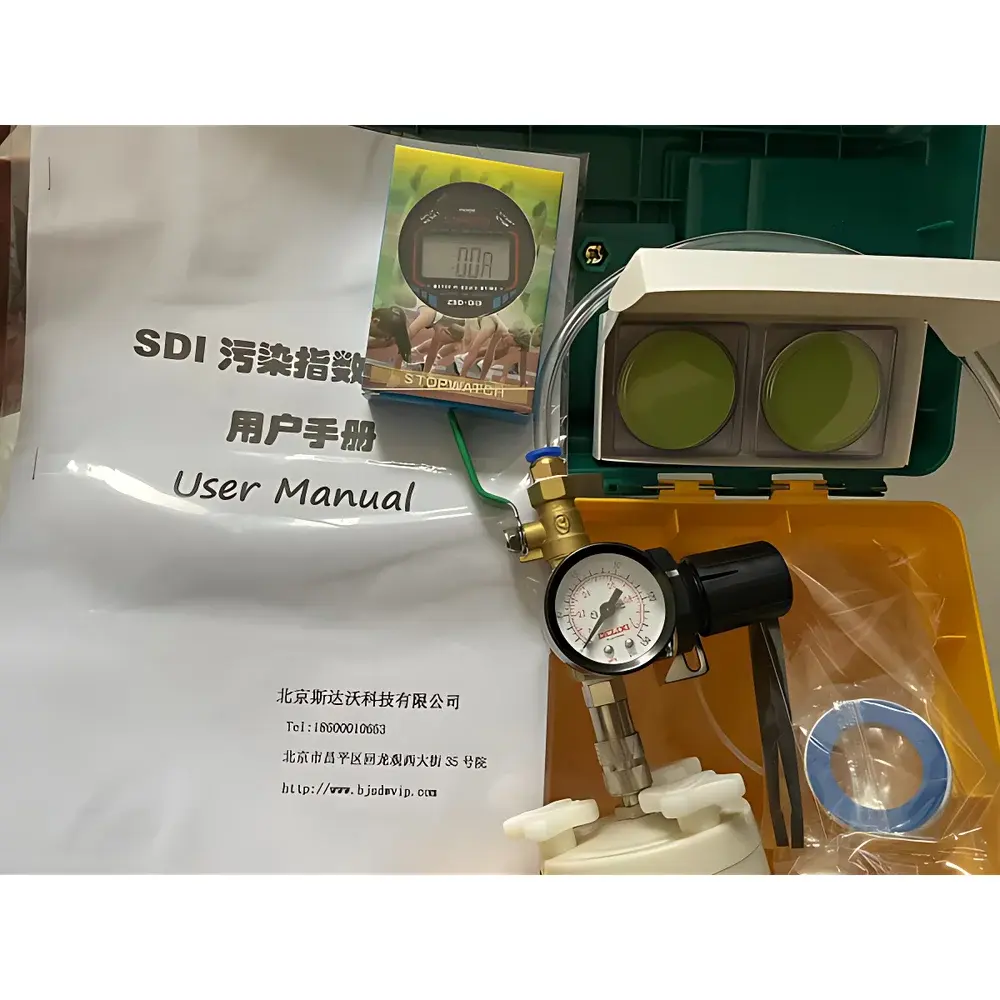

Starwood SDI-47 Silt Density Index Tester
| Brand | Starwood |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Direct Manufacturer |
| Model | FI-47 |
| Membrane Diameter | 47 mm |
| Membrane Pore Size | 0.45 µm (Mixed Cellulose Ester) |
| Operating Pressure | 207 ± 7 kPa |
| Sample Volume | 500 mL per measurement |
| Temperature Stability Requirement | ±1 °C during test duration |
| Inlet Connection | DN15 |
| Included Consumables | 25 pcs of 47 mm × 0.45 µm MCE membranes |
Overview
The Starwood SDI-47 Silt Density Index Tester is a precision-engineered, field-deployable instrument designed for the standardized determination of Silt Density Index (SDI) in feedwater streams destined for reverse osmosis (RO) and nanofiltration (NF) membrane systems. SDI quantifies the rate of fouling potential by measuring the decline in flow rate of water through a 0.45 µm microporous membrane under constant pressure (207 kPa), as defined in ASTM D4189–22 and widely adopted in ISO 15712-2 and USP <643>. This gravimetric filtration-based method provides a reproducible, operator-independent metric critical for evaluating pretreatment efficacy—particularly for surface water, reclaimed wastewater, and desalination intake sources. The SDI-47 complies with the fundamental procedural requirements of RO system commissioning protocols mandated by major membrane manufacturers (e.g., DuPont Water Solutions, LG Chem, Toray) and serves as a prerequisite for warranty validation and long-term performance modeling.
Key Features
- Integrated quick-connect membrane housing with ergonomic push-ring actuation—enabling tool-free, contamination-minimized membrane exchange in under 30 seconds.
- Stainless steel inlet manifold and pressure-regulated flow path engineered for mechanical stability and minimal dead volume, reducing residual air entrapment and ensuring consistent pressure delivery.
- DN15 threaded inlet interface compatible with standard industrial piping and portable sampling manifolds; includes integrated ball valve and calibrated pressure regulator for precise 207 ± 7 kPa operation.
- Pre-configured for use with industry-standard 47 mm diameter, 0.45 µm mixed cellulose ester (MCE) membranes—validated for high particulate retention and low extractables per ASTM D4189 Annex A1.
- Modular design supports GLP-compliant documentation: each test sequence requires manual time-stamped recording of t0, t5, t10, and t15 (time to collect 500 mL at respective intervals), enabling full audit trail reconstruction.
Sample Compatibility & Compliance
The SDI-47 accepts raw or pretreated aqueous samples with suspended solids concentrations up to 50 mg/L and turbidity ≤ 10 NTU. It is not intended for highly viscous, oily, or chemically aggressive streams without prior neutralization or dilution. All operational procedures align with ASTM D4189–22 Section 7 (Test Method A) and incorporate mandatory environmental controls: water temperature must remain within ±1 °C throughout the 15-minute test cycle, and pressure deviation must not exceed ±7 kPa from nominal 207 kPa. The device meets mechanical integrity requirements for ISO/IEC 17025-accredited laboratories performing SDI as part of pretreatment validation under ISO 20426 (Water reuse — Guidelines for assessing suitability of water for reverse osmosis) and EPA Guidance Manual for RO Pretreatment (EPA/600/R-10/085).
Software & Data Management
The SDI-47 is a manual, non-electronic instrument requiring no firmware, calibration software, or digital interface. Data acquisition follows a strictly documented paper-based or spreadsheet-driven workflow. Users record t0, t5, t10, and t15 values manually using a stopwatch (±0.2 s resolution) and a 500 mL graduated cylinder (±5 mL tolerance). SDI is calculated using the standard formula: SDI = [1 − (t0/t15)] × (100/15). For regulated environments (e.g., pharmaceutical water systems compliant with USP <1231> or FDA 21 CFR Part 11), laboratories implement complementary electronic logbooks with user authentication, version-controlled SOPs, and audit-trail-enabled spreadsheets to satisfy data integrity requirements.
Applications
- Validation of multimedia filtration, cartridge filtration, and coagulation-flocculation performance prior to RO train startup.
- Monitoring seasonal variability in river or reservoir feedwater quality across municipal desalination plants.
- Commissioning support for industrial boiler feedwater systems utilizing RO for silica and hardness removal.
- QA/QC testing in pharmaceutical manufacturing facilities where PW (Purified Water) and WFI (Water for Injection) pretreatment trains require SDI ≤ 3.0 per ISPE Baseline Guide Vol. 4.
- Educational use in university environmental engineering labs for teaching membrane fouling kinetics and pretreatment optimization principles.
FAQ
What is the acceptable SDI value for RO membrane protection?
For most thin-film composite (TFC) RO membranes, SDI ≤ 3.0 is required for stable operation; values >5.0 indicate inadequate pretreatment and elevated risk of irreversible flux decline.
Can the SDI-47 be used with alternative membrane types?
No. ASTM D4189 mandates 0.45 µm mixed cellulose ester membranes with 47 mm diameter; substitution with nylon, PVDF, or track-etched membranes invalidates compliance.
Is temperature control built into the instrument?
No. Ambient or inline water temperature must be monitored externally with a calibrated thermometer; active thermostatic regulation is the user’s responsibility.
How often should the membrane housing O-rings be replaced?
Inspect before each test; replace immediately if cracked, flattened, or exhibiting compression set—typically after 50–100 cycles under continuous use.
Does the SDI-47 include pressure verification capability?
It incorporates a factory-calibrated pressure regulator but does not include an integrated pressure gauge; users must verify system pressure independently using a traceable digital pressure meter pre-test.
