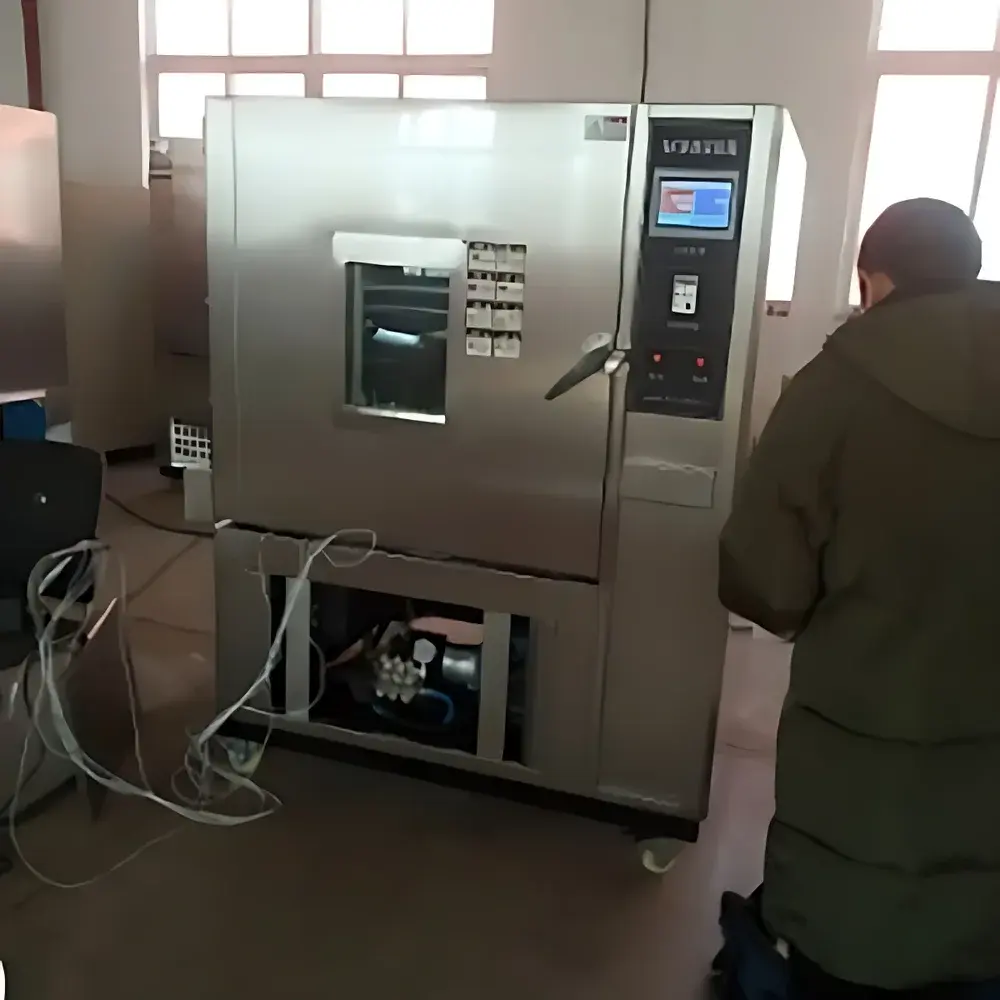

Steam Jet Test Chamber JB-9K by JByq
| Brand | JByq |
|---|---|
| Model | JB-9K |
| Origin | Shanghai, China |
| Chamber Dimensions (L×W×H) | 1000 × 1000 × 1000 mm |
| Temperature Range | 20–90 °C (±1 °C accuracy) |
| Exposure Duration | 1–9999 s (±1 s resolution) |
| Jet Pressure | 8–10 MPa |
| Nozzle Configuration | 4 German-sourced high-pressure nozzles, adjustable tilt angles (0°, 30°, 60°, 90°) |
| Heating Power | 9 kW |
| Compliance | DIN 55662, ISO 16925, GM9531P, PV1503, VOLVO VCS 1029 54719, DBL 7381, FLTM BO 160-04, AA-0136 |
Overview
The JByq JB-9K Steam Jet Test Chamber is an engineered environmental simulation system designed to evaluate the resistance of enclosures, coatings, and structural components to high-energy steam and pressurized water impingement under elevated temperature conditions. It operates on the principle of controlled thermal-mechanical stress induction: saturated steam is delivered at precisely regulated pressure and temperature through calibrated nozzles onto test specimens mounted within a thermally stabilized chamber. This methodology replicates real-world exposure scenarios encountered during high-pressure engine bay cleaning, roadside de-icing, or industrial steam sanitation protocols—where thermal shock, mechanical erosion, and interfacial delamination synergistically challenge material integrity and sealing performance.
Key Features
- Four precision-engineered, Germany-sourced high-pressure nozzles with independent angular adjustment (0°, 30°, 60°, 90°) to ensure reproducible jet incidence geometry across diverse specimen orientations.
- Thermally insulated stainless-steel chamber (1000 × 1000 × 1000 mm internal volume) with uniform temperature distribution (±1 °C stability over full 20–90 °C range) maintained via 9 kW resistive heating and PID-controlled feedback loop.
- Digital timer with 1-second resolution and programmable exposure duration from 1 to 9999 seconds, synchronized with pressure ramp-up and steam generation cycles to eliminate timing drift.
- Pressure regulation system capable of delivering and sustaining 8–10 MPa (80–100 bar) at nozzle exit, verified via traceable pressure transducers compliant with ISO 9001 calibration protocols.
- Integrated safety interlocks including overtemperature cutoff, pressure relief valves, door-position sensors, and emergency steam shutoff—all documented in accordance with IEC 61000-6-2 EMC and IEC 60204-1 machinery safety standards.
Sample Compatibility & Compliance
The JB-9K accommodates specimens up to 800 mm in height and 600 mm in depth, supporting standardized mounting fixtures for automotive lighting assemblies, mirror housings, ECU enclosures, and outdoor signal devices. Its test methodology directly implements requirements specified in DIN 55662 (adhesion and resistance of organic coatings on vehicle exterior substrates), ISO 16925 (road vehicles — protection against water ingress), and OEM-specific specifications including BMW AA-0136, Mercedes-Benz DBL 7381, General Motors GM9531P, Volkswagen PV1503, and Volvo VCS 1029 54719. The system is routinely validated using reference test panels per ASTM D3359 and supports audit-ready documentation for GLP-compliant laboratories and IATF 16949-certified production facilities.
Software & Data Management
Control and monitoring are executed via a dedicated embedded HMI with real-time display of chamber temperature, nozzle pressure, elapsed time, and cycle status. All operational parameters—including setpoints, actual values, alarm events, and manual overrides—are logged with timestamped entries in CSV format. Data files include digital signatures and are stored in non-volatile memory with configurable retention policies. For integration into enterprise quality management systems (QMS), optional Ethernet/IP or Modbus TCP interfaces support secure data export compatible with FDA 21 CFR Part 11-compliant electronic record architectures when paired with validated third-party LIMS platforms.
Applications
- Evaluation of sealant bond durability and gasket compression recovery after repeated thermal-steam cycling.
- Qualification of conformal coating adhesion on PCBs subjected to under-hood thermal gradients and high-pressure washdown.
- Validation of IPX9K-level ingress protection per ISO 20653 for automotive lighting modules and sensor housings.
- Assessment of paint film blistering, edge lifting, and substrate corrosion initiation on painted metal and composite body panels.
- Process development support for OEM Tier 1 suppliers requiring repeatable, standards-aligned validation of assembly-level waterproofing before PPAP submission.
FAQ
What is the maximum allowable specimen weight and dimensional envelope for mounting inside the JB-9K chamber?
The chamber accepts specimens up to 800 mm tall and 600 mm deep; total mass must not exceed 50 kg to maintain thermal uniformity and mechanical stability during jet impact.
Does the system include calibration certificates for pressure and temperature sensors?
Yes—each unit ships with factory-issued calibration reports traceable to NIM (National Institute of Metrology, China) for both primary pressure transducers and Class A PT100 temperature probes.
Can the JB-9K be configured for automated sequential testing across multiple pressure/temperature/time profiles?
The standard firmware supports up to 99 user-defined test programs; optional PC-based control software enables batch scheduling, remote monitoring, and statistical process control (SPC) charting.
Is steam generation integrated, or is external steam supply required?
The JB-9K incorporates an onboard electric steam generator rated for continuous operation at 10 MPa; no external boiler or compressed air source is needed.
How is nozzle wear monitored and compensated for over extended service life?
Nozzle orifice diameter is verified quarterly using optical profilometry; a built-in pressure compensation algorithm adjusts pump output to maintain target jet velocity when minor erosion is detected.
