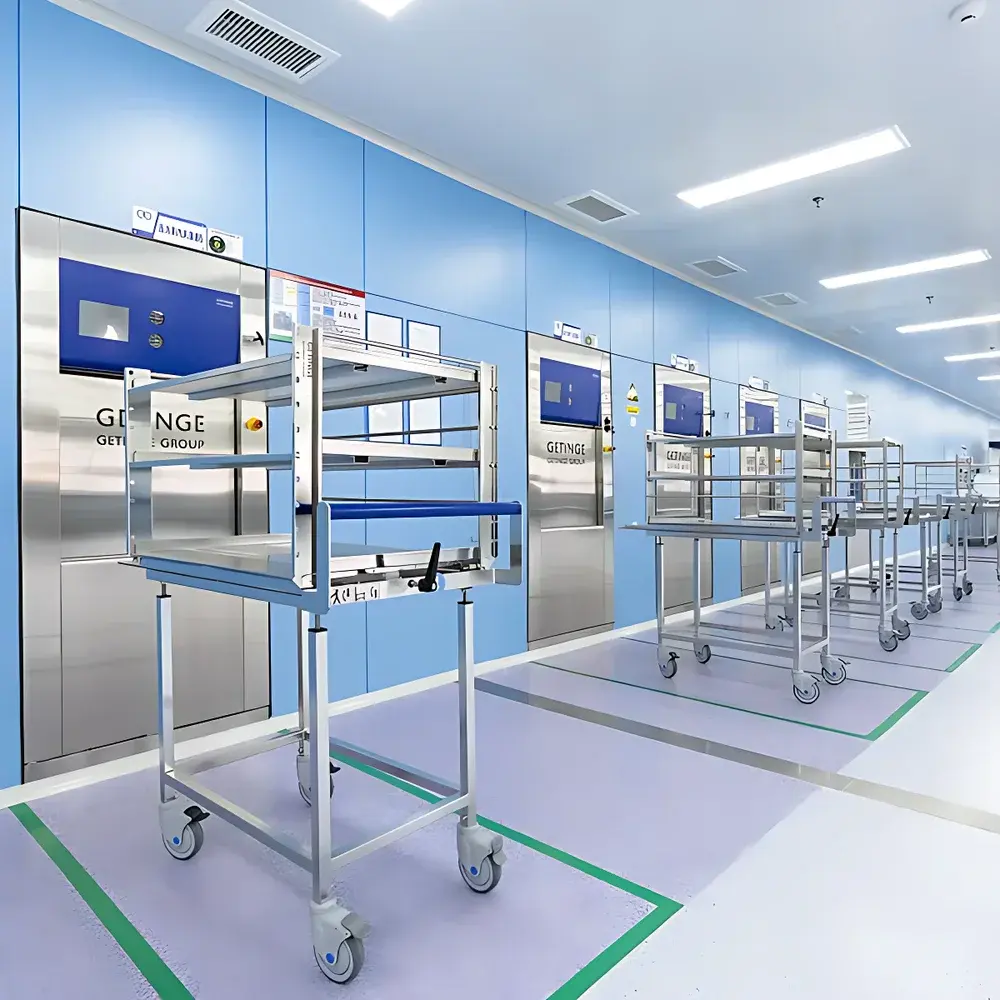

Sterilization Supply Center (SSC) Engineering & Design Services by KHLAB

Overview

KHLAB’s Sterilization Supply Center (SSC) Engineering & Design Services deliver comprehensive, standards-compliant facility planning and implementation for healthcare institutions across China and internationally. Grounded in the technical requirements of WS 310.1–3—2016 (the Chinese national standard for disinfection and sterilization technical specifications in healthcare institutions), our end-to-end engineering solutions cover spatial layout optimization, workflow zoning (decontamination, inspection/packaging, sterilization, sterile storage), HVAC system integration, material flow analysis, utility infrastructure design (steam, compressed air, purified water, vacuum), and structural compliance with Class D cleanroom principles per GB 50333 and ISO 14644-1.

Key Features

• Standards-Driven Zoning Architecture: Strict adherence to the three-zone (clean, semi-clean, unclean) and four-area (receiving, decontamination, inspection & packaging, sterilization & storage) functional segregation mandated by WS 310, ensuring validated separation of contaminated and sterile material pathways.
• Integrated Environmental Control Design: HVAC schematics engineered to maintain differential pressure gradients (≥5 Pa between adjacent zones), air changes per hour (ACH) ≥10 in decontamination areas and ≥15 in sterile storage, with HEPA filtration (ISO Class 7/Class 10,000) in critical zones.
• Equipment Integration Planning: Spatial and utility coordination for autoclaves (steam & ethylene oxide), washer-disinfectors, ultrasonic cleaners, packaging sealers, and biological/chemical indicator monitoring systems—including electrical load allocation, drain line routing, and steam condensate management.
• Material Flow Optimization: Unidirectional, non-recrossing logistics modeling using RFID-traceable trolleys and dedicated pass-through hatches to eliminate cross-contamination risks during transport between functional areas.
• Regulatory Documentation Support: Provision of as-built drawings, commissioning reports, validation protocols (IQ/OQ), and risk assessment documentation aligned with GB/T 19001 (ISO 9001), YY/T 0287 (ISO 13485), and hospital internal quality management systems.

Sample Compatibility & Compliance

KHLAB’s SSC engineering services are designed exclusively for medical device reprocessing environments within hospitals, central sterile supply departments (CSSDs), and third-party sterilization service providers. All designs comply with mandatory national regulations including WS 310.1–3—2016, GB 50333–2013 (Hospital Cleanroom Design Code), and YY/T 0033–2000 (Requirements for Sterilization Supply Centers). While not a physical instrument, the engineered facility supports full traceability under China NMPA Medical Device GMP Requirements and facilitates readiness for Joint Commission International (JCI) and Hospital Accreditation (HA) audits. Structural layouts accommodate both gravity-displacement and pre-vacuum steam sterilizers, as well as low-temperature modalities such as hydrogen peroxide plasma and ozone.

Software & Data Management

Design deliverables include BIM-integrated architectural and MEP models (Revit-compatible), enabling clash detection and lifecycle coordination. Optional digital twin modules support real-time monitoring of environmental parameters (pressure differentials, temperature/humidity, particle counts) via integrated SCADA interfaces. All documentation is structured for audit readiness—version-controlled, timestamped, and archived with metadata compliant with GLP/GMP record retention principles. Electronic sign-offs and change logs satisfy internal QA requirements and align with document control expectations under FDA 21 CFR Part 11 when interfaced with validated hospital information systems (HIS) or sterilization management software (e.g., STERIS Tracking System, Getinge eTrack).

Applications

• Hospital CSSD greenfield construction and retrofit projects
• Regional medical center central sterilization hub expansion
• Third-party contract sterilization facility certification preparation
• Post-audit remediation for WS 310 non-conformance findings
• Integration of automated cart washers and robotic packaging lines into legacy layouts
• Energy efficiency upgrades (e.g., heat recovery from sterilizer exhaust, variable air volume HVAC control)

FAQ

Does KHLAB provide turnkey construction management, or only design services?
KHLAB delivers full-service engineering design, specification development, and tender support. Construction supervision and project management are coordinated through certified local EPC partners vetted for healthcare infrastructure experience.
Can your designs accommodate international sterilization standards such as ISO 17664 or AAMI ST79?
Yes—while primary compliance is with WS 310, all layouts and system specifications are cross-referenced against ISO 17664 (processing of reusable medical devices), AAMI ST79 (comprehensive guide to steam sterilization), and EN ISO 13485 to ensure global interoperability and future export-readiness.
How is validation support integrated into the engineering process?
IQ/OQ protocol templates, test point mapping, and equipment qualification checklists are embedded in design packages. KHLAB collaborates with accredited third-party validation firms to execute performance qualification (PQ) upon mechanical completion.
Is BIM modeling included in the base scope?
Yes—architectural, structural, and MEP coordination models in Revit format are delivered as standard. LOD 300–350 level detail supports fabrication and installation coordination.
