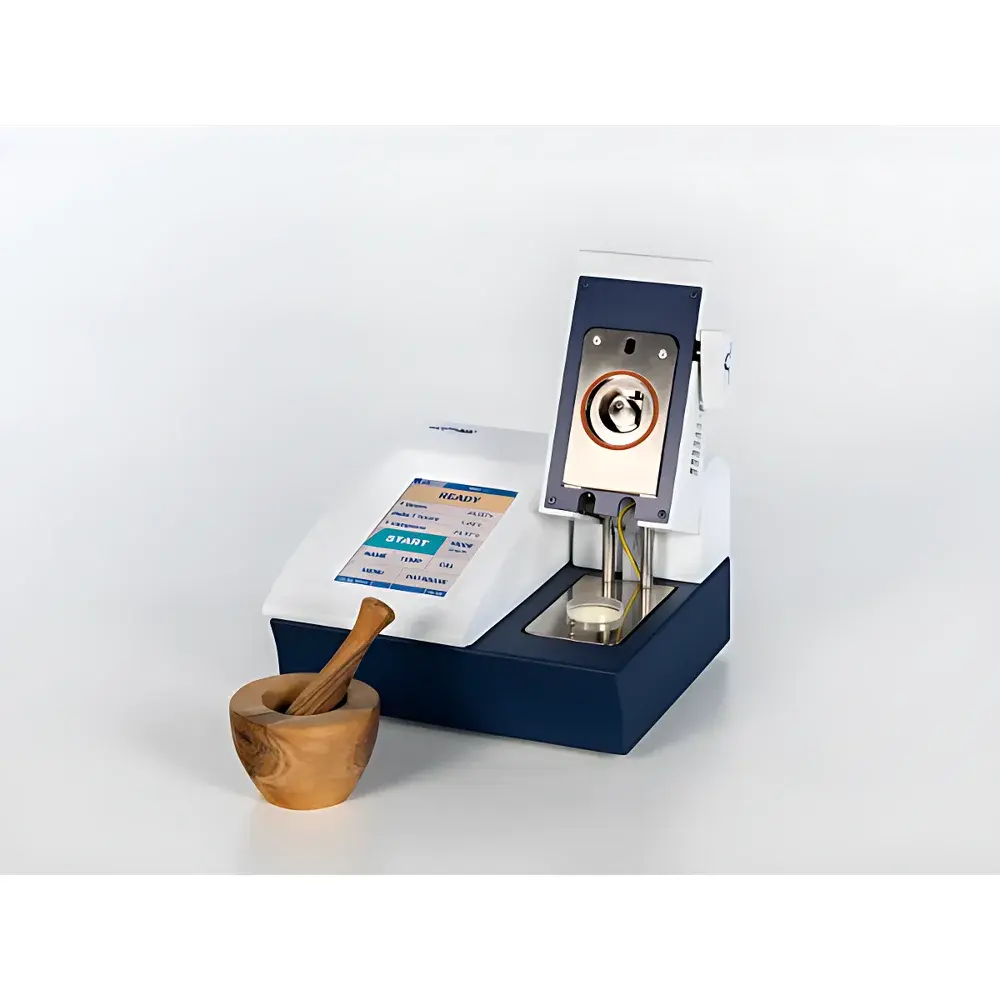

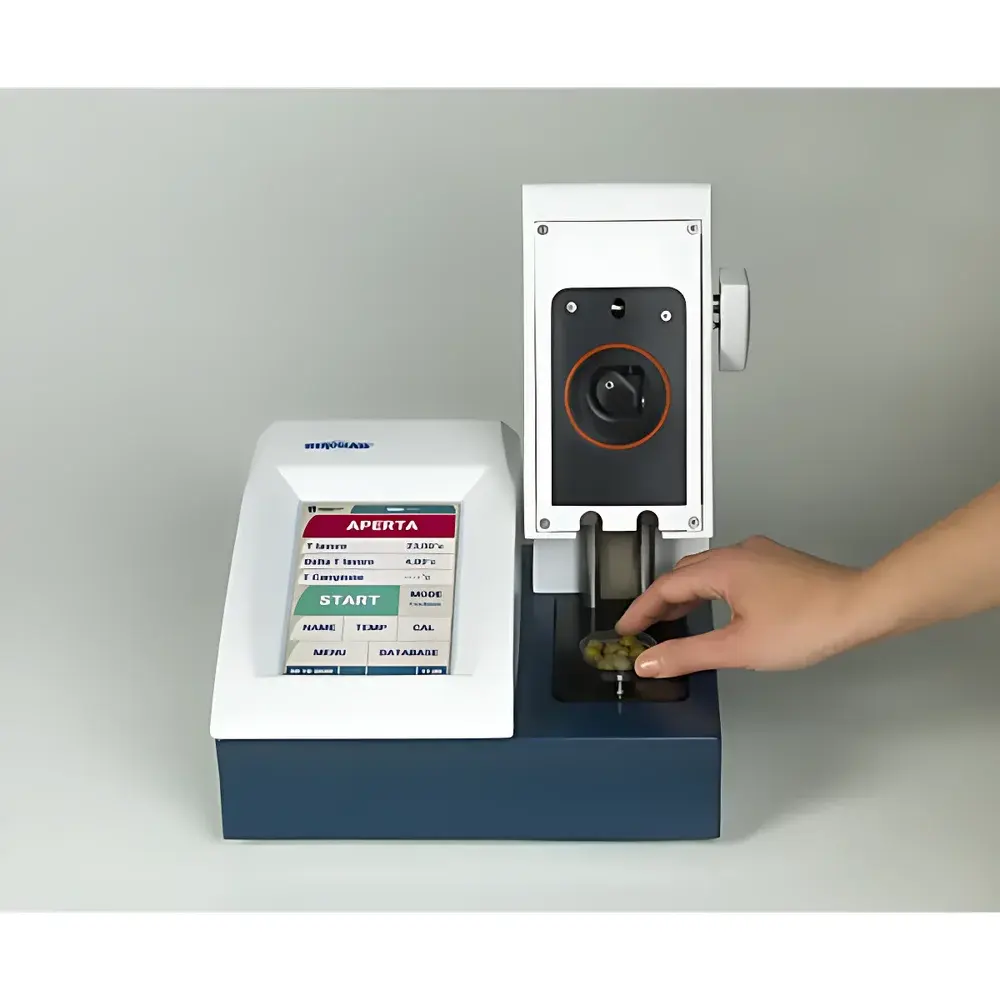

Steroglass aWlife Water Activity Analyzer
| Brand | Steroglass |
|---|---|
| Origin | Italy |
| Model | aWlife |
| Instrument Type | Benchtop Laboratory Analyzer |
| Measurement Range | 0.030–1.000 a<sub>W</sub> |
| Operating Environment | +5°C to +50°C |
| Net Weight | 3.85 kg |
Overview
The Steroglass aWlife Water Activity Analyzer is a precision benchtop instrument engineered for the reliable, traceable, and ISO-compliant determination of water activity (aW) in solid, semi-solid, and powdered samples across regulated industries. It operates on the chilled-mirror dew point principle—a thermodynamic method recognized for its high accuracy, low drift, and minimal sample interference. By measuring the equilibrium relative humidity (ERH) above a sample at controlled temperature, the aWlife calculates aW as the ratio of vapor pressure of water in the sample to that of pure water at the same temperature (aW = p/p0). This fundamental parameter directly correlates with microbial stability, chemical degradation kinetics, physical texture, and shelf-life prediction—making it indispensable in quality control, formulation development, and regulatory submission workflows.
Key Features
- Chilled-mirror dew point sensor with integrated Peltier cooling and real-time condensation detection—ensuring <0.003 aW resolution and ±0.003 aW repeatability under ISO 18787:2017 conditions
- 7-inch full-color capacitive touchscreen interface with intuitive icon-driven navigation and multilingual OS support (English, German, French, Spanish, Chinese)
- Dual-temperature architecture: independent control of sample chamber temperature (±0.1°C) and mirror surface temperature (±0.05°C), minimizing thermal lag and boundary layer effects
- Patented insulated measurement cell with electromagnetic shielding and passive thermal isolation—reducing environmental influence even in non-climate-controlled labs
- Integrated certified external Pt100 temperature probe port for traceable calibration verification and chamber temperature validation
- Single-point calibration capability using NIST-traceable saturated salt standards (e.g., LiCl, MgCl₂, NaCl, KCl) with user-defined reference assignment per standard
- Low-noise forced-air ventilation system (<28 dB(A)) enabling quiet operation in shared laboratory environments
Sample Compatibility & Compliance
The aWlife accommodates a broad spectrum of matrices—including hygroscopic powders (e.g., lactose, whey protein), viscous gels (e.g., hydrogels, cosmetic emulsions), freeze-dried biologics, fermented meats, pet food kibbles, and active pharmaceutical ingredients (APIs). Its robust optical path design mitigates signal attenuation from volatile organics or particulate scatter. The instrument complies fully with ISO 18787:2017 (“Foodstuffs — Determination of water activity”) and supports alignment with USP <1112>, ASTM F1879, and ICH Q5C stability guidelines. Audit-ready data integrity is maintained via built-in electronic signatures, time-stamped operation logs, and configurable user access levels—facilitating adherence to FDA 21 CFR Part 11 and EU Annex 11 requirements when paired with validated aWdata software.
Software & Data Management
The aWlife is operated and managed through the aWdata desktop application (Windows 10/11), which provides full GLP/GMP-compliant data handling. Key capabilities include: automated report generation (PDF/CSV/XLSX) with embedded metadata (operator ID, timestamp, instrument serial, calibration status); customizable pass/fail limits with visual alert overlays; trend analysis across batches using annotated time-series plots; and secure network deployment via Ethernet for centralized data aggregation in LIMS or MES environments. USB 2.0 host port enables direct export to flash drives without PC dependency. Optional barcode scanner integration automates sample ID entry, while thermal printer support (via USB) delivers immediate hard-copy records for QC checkpoints.
Applications
- Pharmaceuticals: Stability assessment of lyophilized formulations, excipient compatibility screening, and moisture sorption isotherm mapping per ICH Q1A(R3)
- Foods: Predictive microbiology modeling (e.g., inhibition of Aspergillus flavus at aW < 0.80), shelf-life validation for RTE meals, and HACCP critical limit monitoring
- Cosmetics: Preservation efficacy testing, emulsion phase separation forecasting, and raw material specification verification
- Animal Nutrition: Mold growth risk evaluation in extruded feeds and correlation of aW with palatability retention during storage
- Academic Research: Fundamental studies on glass transition (Tg) relationships, crystallization onset, and polymer-water interactions
FAQ
What is the minimum sample volume required for accurate aW measurement?
Typical requirement is 1–3 g for solids and 0.5–2 mL for liquids—sufficient to form a representative headspace without overfilling the sealed analysis chamber.
Does the aWlife require routine recalibration between samples?
No. The dew point sensor is drift-compensated in real time; only periodic verification against certified standards (e.g., every 30 days or per SOP) is recommended.
Can the instrument measure samples with volatile organic compounds (VOCs)?
Yes—the chilled-mirror optics and optimized purge flow rate minimize VOC condensation artifacts; however, highly volatile solvents (e.g., ethanol >40% v/v) may require method validation.
Is remote monitoring supported?
Yes—via Ethernet-connected aWdata software, users can initiate measurements, view live sensor diagnostics, and retrieve historical datasets from any authorized workstation on the local network.
How is temperature uniformity ensured inside the sample chamber?
Through a combination of PID-controlled Peltier elements, high-emissivity chamber lining, and embedded Pt100 feedback loops—validated to maintain ±0.15°C spatial homogeneity across the full 60 mm sample platform.
