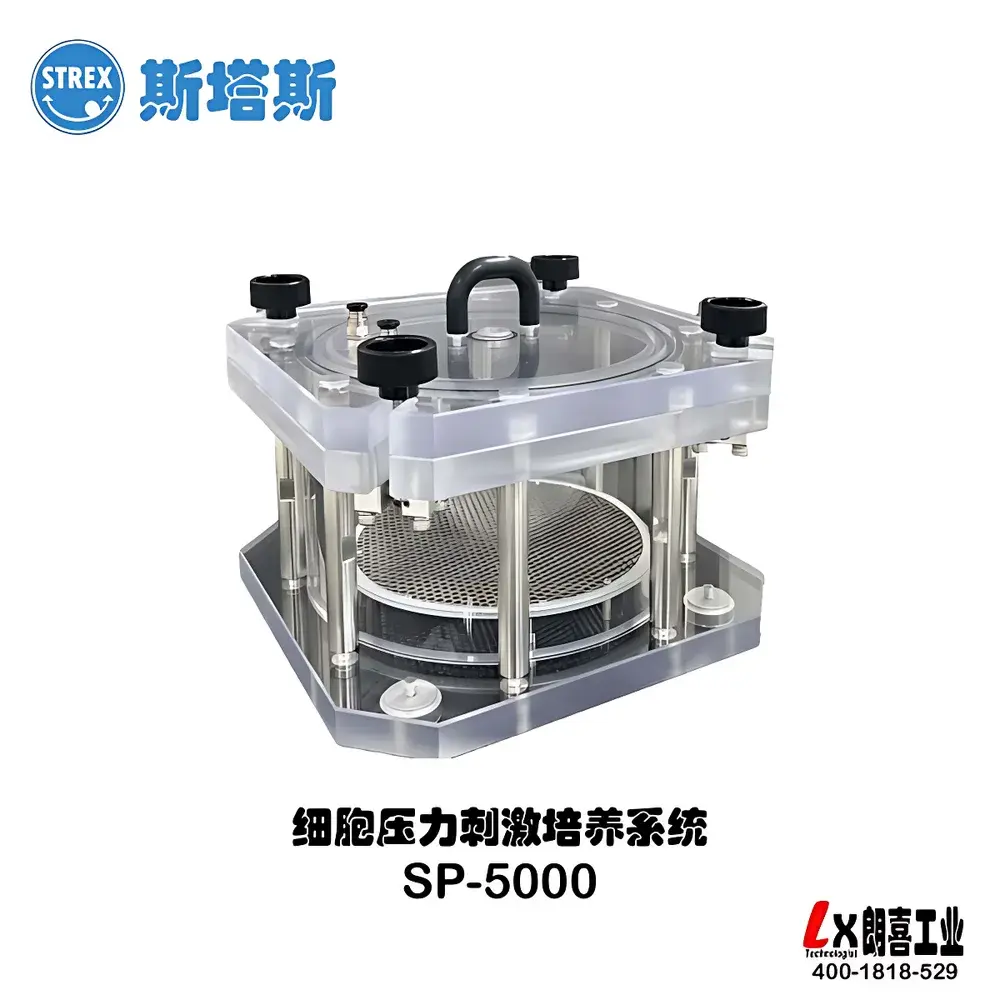

STREX SP-5000 Hydrostatic Pressure Cell Culture Stimulator

Overview

The STREX SP-5000 Hydrostatic Pressure Cell Culture Stimulator is an engineered platform for applying controlled, physiologically relevant hydrostatic pressure to adherent mammalian cells in standard tissue culture formats. Unlike conventional static incubation systems, the SP-5000 replicates mechanical stimuli inherent to native microenvironments—such as those experienced by vascular endothelial cells under arterial pressure, renal tubular epithelia during glomerular filtration, or retinal ganglion cells subjected to intraocular pressure fluctuations. The system operates on a sealed gas-driven principle: compressed 5% CO₂/95% air mixture is regulated via precision solenoid valves and transducer feedback to generate stable hydrostatic pressure within a stainless-steel pressure chamber. Pressure is transmitted uniformly through culture medium to cells grown on standard TC-treated plates, inserts, or dishes—ensuring minimal shear artifact while preserving pH and osmolarity via integrated CO₂ buffering. This architecture supports long-term stimulation (up to 72+ hours) inside standard CO₂ incubators, enabling chronic mechanotransduction studies without compromising sterility or thermal stability.

Key Features

• Physiologically calibrated pressure range: 120–300 mmHg (16–40 kPa), adjustable in 1 mmHg increments with ±2 mmHg accuracy over 24 h
• Dual operational modes: continuous pressurization (for sustained load modeling) and programmable cyclic pressurization-decompression (for pulsatile or intermittent stress simulation)
• Incubator-integrated design: compact controller and pressure chamber fit within standard 5% CO₂ incubators; no external vacuum pumps or high-pressure gas lines required
• Automated gas exchange in continuous mode: maintains constant CO₂ partial pressure and prevents medium acidification during extended runs
• Modular chamber compatibility: accommodates 6-, 12-, 24-, and 96-well plates, Transwell® inserts (0.4 µm and 3.0 µm pore sizes), and custom substrates up to 150 mm diameter
• Real-time pressure logging: internal SD card records timestamped pressure values at user-defined intervals (1 s to 10 min resolution)

Sample Compatibility & Compliance

The SP-5000 supports primary isolates (e.g., HUVECs, cardiomyocytes, podocytes) and immortalized lines (e.g., HEK293, ARPE-19, HK-2) cultured on polystyrene, collagen I-coated, fibronectin-coated, or Matrigel®-based surfaces. It is validated for use with serum-containing and serum-free media formulations, including DMEM/F12, EGM-2, and Neurobasal®-A. All wetted components comply with USP Class VI biocompatibility standards. The system meets ISO 13485 requirements for medical device-related research instrumentation and supports audit-ready documentation per GLP and GMP-aligned workflows—including electronic logbooks with user authentication, change history, and exportable CSV pressure logs traceable to NIST-calibrated transducers.

Software & Data Management

The SP-5000 operates via a dedicated embedded controller with tactile keypad and OLED display—no PC dependency required for basic operation. Optional STREX Control Suite (Windows-based) enables advanced protocol scheduling (multi-step pressure ramps, dwell times, repeat cycles), remote monitoring via Ethernet, and synchronized data export with metadata tagging (user ID, experiment ID, plate layout). All pressure logs include ISO 8601 timestamps and are compliant with FDA 21 CFR Part 11 when used with validated electronic signatures and audit trail configuration. Exported datasets integrate natively with MATLAB, GraphPad Prism, and Python-based analysis pipelines for time-series mechanosignaling quantification.

Applications

• Mechanosensitive ion channel activation (e.g., PIEZO1/2, TRPV4) and downstream Ca²⁺ flux kinetics
• Pressure-induced cytoskeletal remodeling (actin polymerization, focal adhesion maturation) assessed via immunofluorescence and FRAP
• Transcriptomic and proteomic profiling of pressure-responsive genes (e.g., CTGF, CYR61, LOX) in endothelial-to-mesenchymal transition models
• Regenerative medicine applications: optimizing chondrocyte redifferentiation under dynamic compression-mimetic loads
• Preclinical modeling of hypertension-associated vascular dysfunction and glaucomatous optic nerve damage
• Validation of pressure-sensitive biosensors and microphysiological systems (MPS) under controlled mechanical input

FAQ

What gas supply is required?
A certified 5% CO₂ / 95% air premixed gas cylinder with CGA-590 fitting and regulator (output pressure ≥ 500 kPa) is mandatory. Nitrogen-only or pure CO₂ supplies are incompatible.
Can the SP-5000 be used outside a CO₂ incubator?
No. The system relies on ambient CO₂ concentration within the incubator to maintain physiological pH; external operation will cause rapid medium acidification and cell stress.
Is sterilization of the pressure chamber possible?
Yes. The stainless-steel chamber and silicone gaskets tolerate autoclaving at 121°C for 20 min (dry cycle only); avoid submerging the controller unit.
How is pressure uniformity verified across multi-well plates?
STREX provides a validation report (upon request) demonstrating ≤ ±1.5 mmHg inter-well variance across 96-well format using calibrated reference transducers placed at peripheral and central positions.
Does the system support third-party automation integration?
Yes. RS-232 and TTL-level digital I/O ports enable synchronization with robotic liquid handlers, microscope stages, and electrophysiology rigs via custom LabVIEW or Python drivers.
