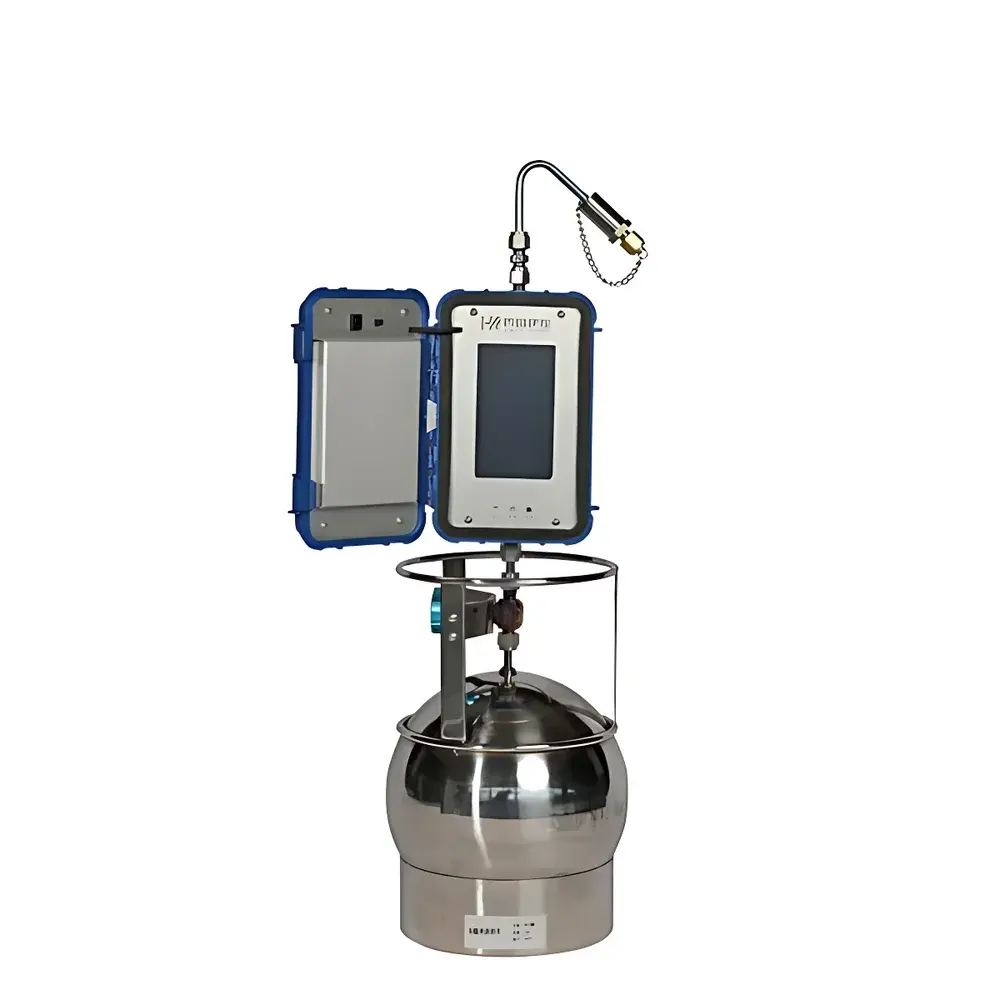

Summa Canister Sampling Controller GHD-3201

Overview

The Summa Canister Sampling Controller GHD-3201 is an engineered field-deployable instrument designed for precise, trace-level volatile organic compound (VOC) sampling in ambient air, fugitive emission zones, and emergency response scenarios. It operates on the principle of pressurized canister filling under controlled mass flow conditions—compatible with standardized electropolished stainless-steel Summa canisters (e.g., 6-L, 3.2-L, 1-L). The controller implements time-integrated or event-triggered sampling protocols aligned with regulatory methodologies including U.S. EPA Method TO-15, EPA Method EPATO-14, and China’s HJ 759–2015 standard for ambient air VOC analysis. Its architecture integrates real-time pressure monitoring, leak integrity verification, and programmable flow regulation to ensure quantitative recovery of target analytes across dynamic environmental conditions.

Key Features

• Programmable sampling modes: scheduled time-integrated sampling (e.g., 1–24 hr), manual on-demand sampling, and event-triggered sampling via external VOC sensor input
• High-stability electronic mass flow controller (MFC) with integrated NIST-traceable flow calibration capability; supports flow ranges from 10 to 500 mL/min with ±2% full-scale accuracy
• Rechargeable lithium-ion battery pack providing >12 hours of continuous operation at 25°C (typical use case: 200 mL/min, 6-L canister fill)
• Real-time internal pressure monitoring (0–30 psia range) with automatic leak detection algorithm (pressure decay threshold configurable per ASTM D6159)
• Integrated analog/digital I/O interface for integration with third-party VOC detectors (e.g., PID, FID) to enable concentration-triggered sampling initiation
• RS-232 and Bluetooth 5.0 connectivity for remote configuration, status monitoring, and firmware updates via PC or mobile application

Sample Compatibility & Compliance

The GHD-3201 is mechanically and pneumatically compatible with all standard Summa canisters meeting EPA specifications—including 6-L, 3.2-L, and 1-L electropolished stainless-steel vessels with fused-silica-lined valves. It supports both evacuated and ambient-pressure canister configurations. All operational parameters—including flow rate, duration, start time, pressure ramp profile, and leak test results—are logged with timestamp and stored internally (≥10,000 sample records). Data export complies with GLP/GMP documentation requirements and supports audit-ready CSV output. The system design adheres to the mechanical and procedural requirements outlined in EPA TO-15 Appendix A, HJ 759–2015 Section 6.2, and ISO 16000-6 for indoor/outdoor air sampling quality assurance.

Software & Data Management

The embedded controller firmware supports bidirectional communication with HUANKONG’s proprietary desktop software (GHD Control Suite v3.1), enabling full method setup, real-time telemetry visualization, and automated report generation. All sampling events are assigned unique identifiers and include metadata fields such as GPS coordinates (via optional external module), operator ID, ambient temperature/humidity (via optional sensor input), and canister serial number. Audit trails record every parameter change with user ID and timestamp, satisfying FDA 21 CFR Part 11 requirements for electronic records and signatures when used in regulated environmental testing laboratories.

Applications

• Ambient air monitoring networks requiring spatially distributed, time-resolved VOC speciation data
• Fenceline monitoring at petrochemical, pharmaceutical, and semiconductor manufacturing facilities
• Mobile source emissions characterization using vehicle-mounted or backpack-configured deployments
• Rapid-response deployment during chemical spills, industrial accidents, or odor complaint investigations
• Method validation studies supporting laboratory accreditation under ISO/IEC 17025

FAQ

Does the GHD-3201 support automated calibration verification between sampling events?
Yes—the built-in MFC includes a self-check routine that validates flow performance against factory calibration coefficients prior to each sampling sequence.
Can it be operated unattended for multi-day deployments?
Yes—when paired with an external power bank or solar charging kit (optional accessory), the unit supports up to 72 hours of scheduled operation without intervention.
Is firmware update capability available over-the-air?
Firmware updates require local connection via USB-C or Bluetooth; no cloud-based OTA functionality is implemented to maintain data sovereignty and cybersecurity compliance.
What pressure units does the display support?
User-selectable units include psia, kPa, and bar, with automatic conversion applied to all logged pressure and leak test data.
Does it meet explosion-proof certification requirements for Zone 1 hazardous areas?
No—the GHD-3201 is rated for general-purpose outdoor use (IP54 enclosure); intrinsic safety certification (e.g., ATEX, IECEx) is not included but may be supported through third-party certified enclosures.
