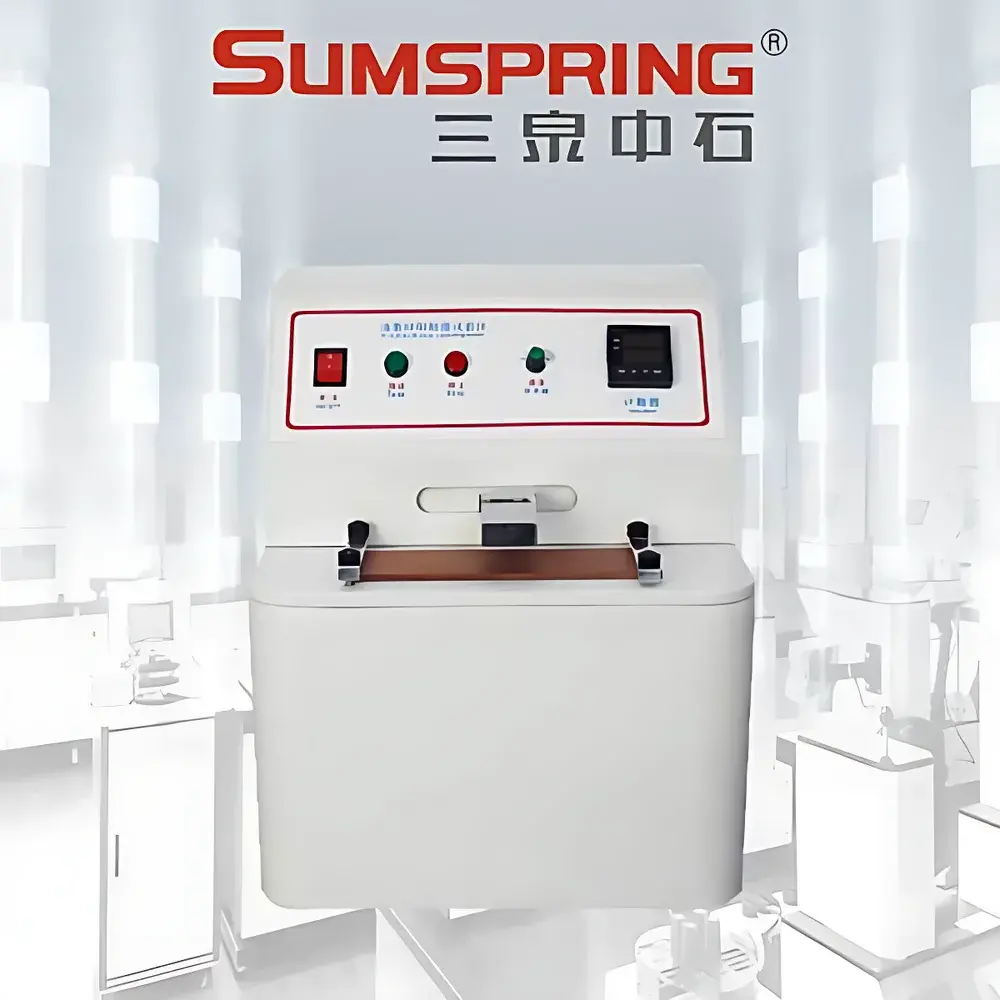

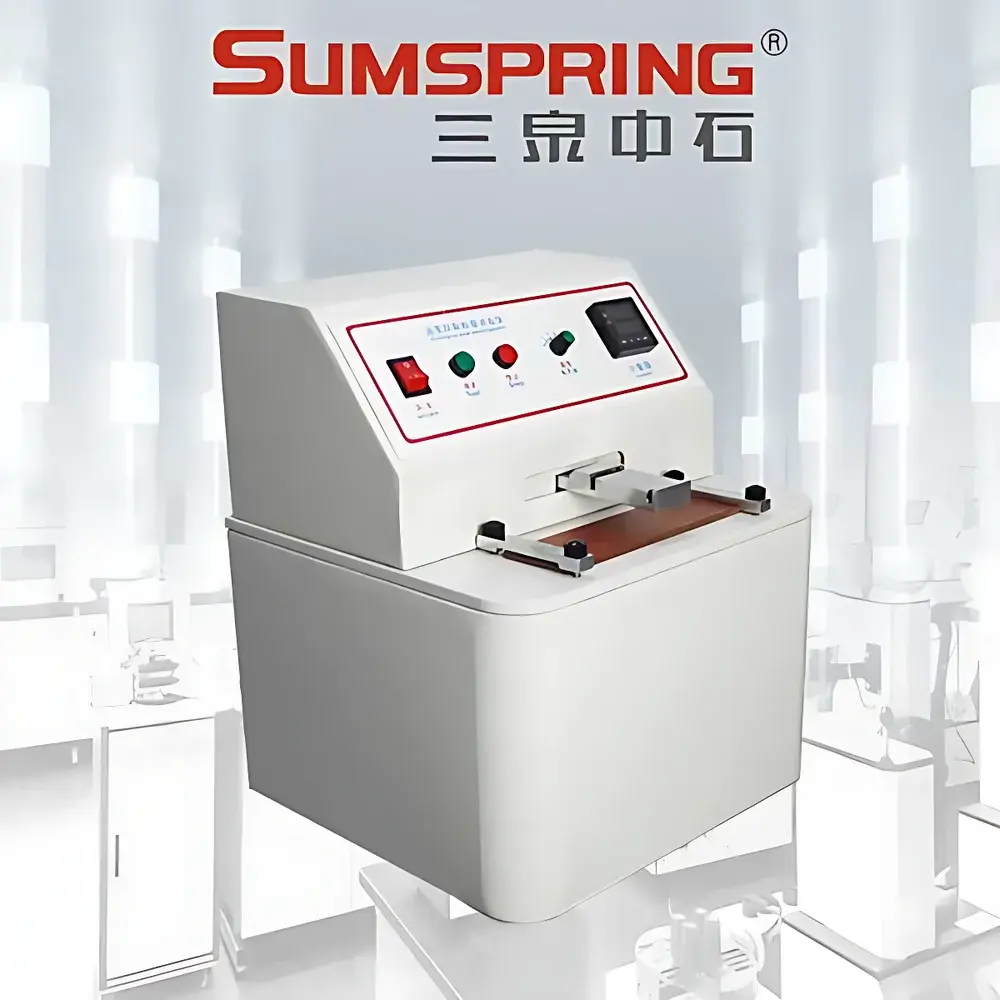

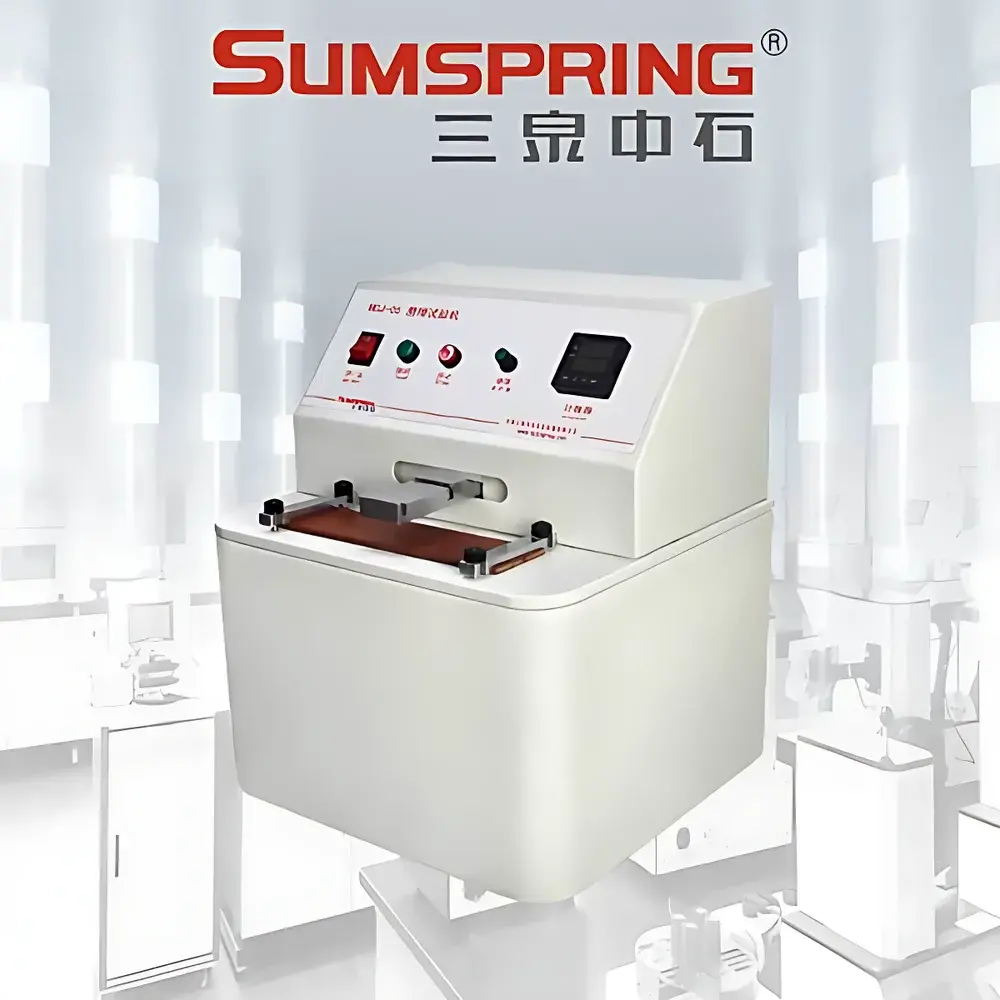

SumSpring MCJ-03 Ink Abrasion Tester for Packaging and Printing Applications

Overview

The SumSpring MCJ-03 Ink Abrasion Tester is a dedicated mechanical testing instrument engineered for quantitative evaluation of surface layer durability in flexographically printed packaging materials. It operates on the principle of controlled reciprocating linear abrasion—applying a standardized normal load via a calibrated friction block across a defined stroke length and frequency—to simulate real-world handling, stacking, and transport-induced wear. Designed specifically for paper-based decorative printing (e.g., corrugated boxes, folding cartons, labels, and flexible laminates), the MCJ-03 quantifies ink adhesion integrity, topcoat hardness, and overall surface resistance to mechanical degradation. Its methodology aligns with GB/T 7706–2008, the Chinese national standard for determining the abrasion resistance of ink layers on printed packaging, and serves as a functional proxy for internationally recognized protocols such as ISO 11607-2 (packaging for terminally sterilized medical devices) and ASTM D5264 (abrasion resistance of printed surfaces). The instrument does not measure chemical resistance or UV stability; its scope is strictly mechanical wear under dry, ambient conditions.

Key Features

• Microprocessor-controlled operation with embedded firmware enabling precise regulation of cycle count, stroke frequency (0–60 cpm), and dwell time between cycles.
• Integrated friction platform fabricated from hardened stainless steel, ensuring dimensional stability, uniform pressure distribution, and acoustic dampening—critical for repeatable, low-noise testing in shared laboratory or QC environments.
• PVC membrane keypad and backlit LCD interface provide intuitive parameter entry, real-time cycle monitoring, and immediate post-test data recall—even after unexpected power interruption, thanks to non-volatile memory retention.
• Adjustable normal force mechanism calibrated to deliver 20 ± 0.2 N (standard); optional configurations support alternative loads (e.g., 10 N or 30 N) for comparative studies across substrate types or coating systems.
• Fixed stroke geometry (60 mm travel, 155 × 50 mm contact area) guarantees reproducible shear stress profiles across specimens—eliminating operator-dependent variability inherent in manual rub-testing methods.
• Robust aluminum-alloy chassis and vibration-damped base ensure long-term mechanical integrity during high-cycle endurance tests (up to 999,999 cycles).

Sample Compatibility & Compliance

The MCJ-03 accepts flat, rigid or semi-rigid specimens measuring 230 mm × 50 mm, accommodating standard press sheets, cut carton blanks, and laminated pouch samples. It is validated exclusively for flexographic inks on absorbent substrates (e.g., coated/uncoated paper, paperboard, and metallized paper), and not intended for gravure, offset, or digital prints without prior method validation. While GB/T 7706–2008 defines its primary use case, the instrument’s output—cycles to visible ink loss, gloss reduction (>10% ΔGU), or substrate exposure—can be mapped to internal quality gates aligned with ISO 9001 process control requirements. For regulated sectors (e.g., pharmaceutical secondary packaging), raw test logs—including timestamped cycle counts, operator ID, and environmental readings—may be archived to satisfy GLP documentation expectations, though the device itself does not include FDA 21 CFR Part 11-compliant electronic signature functionality.

Software & Data Management

The MCJ-03 operates as a standalone hardware system with no proprietary PC software dependency. All operational parameters and results are stored locally in non-volatile memory and displayed on the integrated LCD. Users may manually record endpoint data (e.g., “ink failure at 12,480 cycles”) into laboratory notebooks or LIMS-compatible spreadsheets. For traceability, the unit logs date/time stamps for each test initiation and stores up to 100 historical test records. No network connectivity, cloud upload, or automated report generation is supported—ensuring compliance with air-gapped facility policies common in secure manufacturing environments.

Applications

• Quality assurance of flexo-printed corrugated shipping containers subjected to warehouse handling and pallet stacking.
• Evaluation of varnish and aqueous coating performance on folding cartons used for food and beverage packaging.
• Process validation for ink formulation changes, drying oven temperature adjustments, or anilox roll maintenance intervals.
• Comparative benchmarking of OEM vs. third-party ink systems under identical mechanical stress conditions.
• Root-cause analysis of field complaints related to scuffing, rub-off, or print marring during retail distribution.
• Pre-shipment verification for export-grade packaging requiring conformance to buyer-specific abrasion thresholds (e.g., ≥50,000 cycles).

FAQ

What types of printing processes is the MCJ-03 validated for?
The instrument is designed and standardized for flexographic printing on paper-based substrates per GB/T 7706–2008. Use with other processes (e.g., offset, gravure, screen, or digital) requires independent method verification.
Can the friction block material be changed?
Yes—the standard block is rubber (Shore A 60 ± 5), but users may substitute blocks of specified durometer, texture, or composition (e.g., wool felt, nylon bristle) provided they maintain consistent geometry and mass.
Is calibration certification included with shipment?
A factory-issued calibration report verifying load cell accuracy (±0.2 N) and stroke repeatability (±0.1 mm) is supplied. Annual recalibration using NIST-traceable deadweight standards is recommended.
Does the MCJ-03 meet ISO/IEC 17025 requirements for accredited testing labs?
The instrument supports ISO/IEC 17025 implementation through documented procedures, environmental monitoring, and operator training—but accreditation rests with the lab’s overall management system, not the device alone.
What maintenance is required?
Monthly inspection of guide rails and drive belt tension; biannual lubrication of linear bearings with silicone-free grease; annual verification of load cell linearity and LCD contrast.
