SUNJUNE VS-Q Series Vacuum Sealing System for Quartz Ampoules

Overview

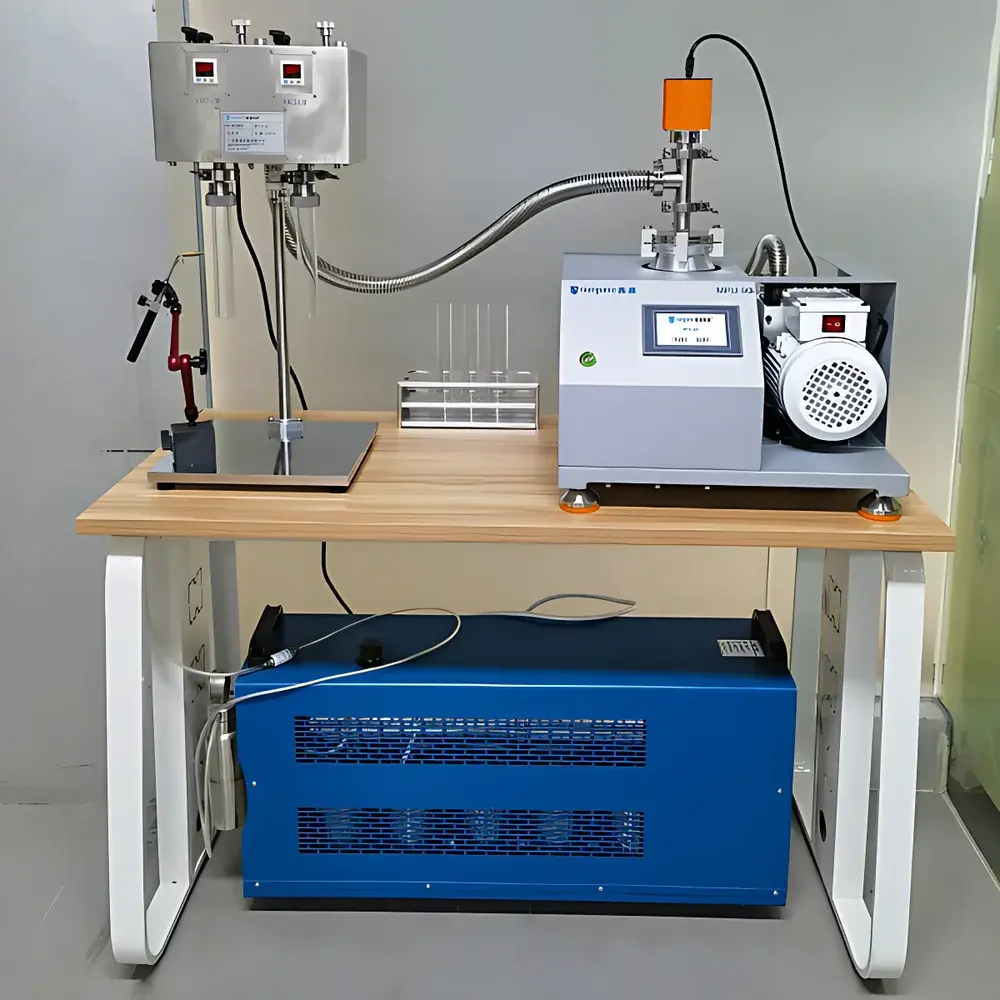

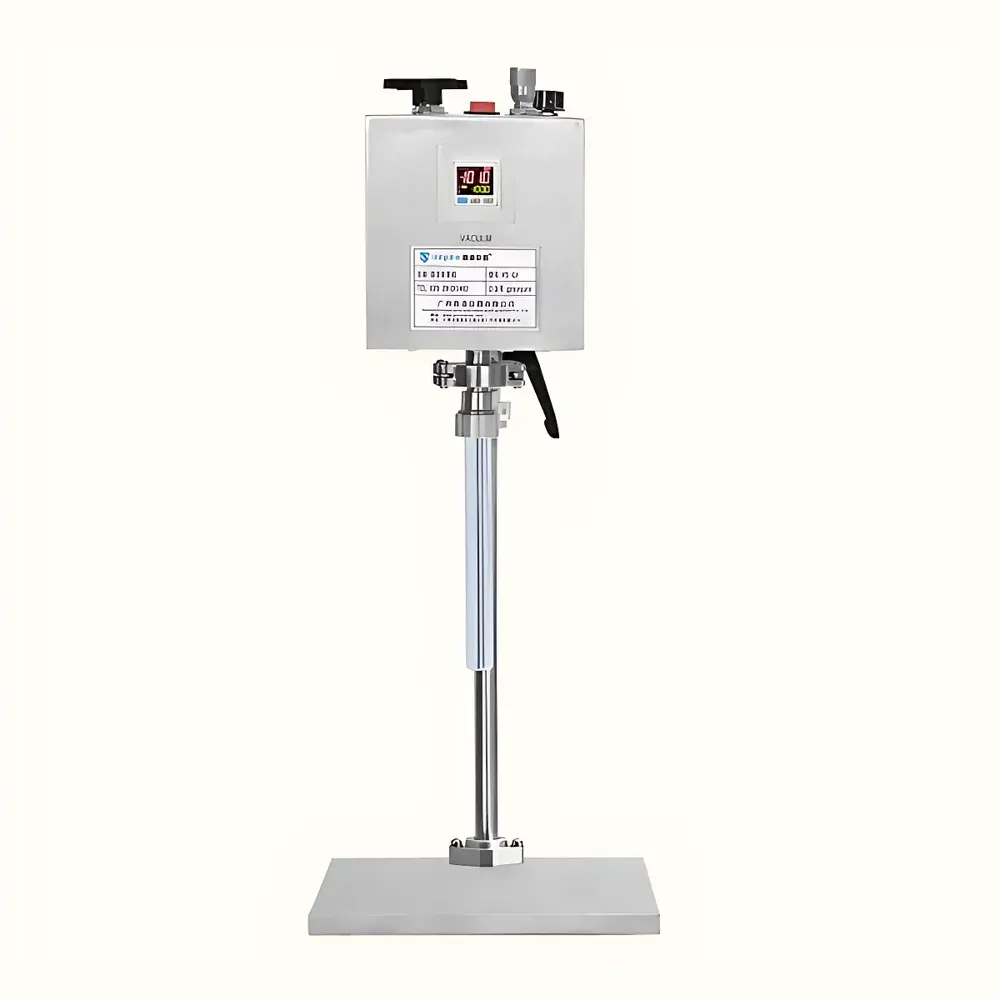

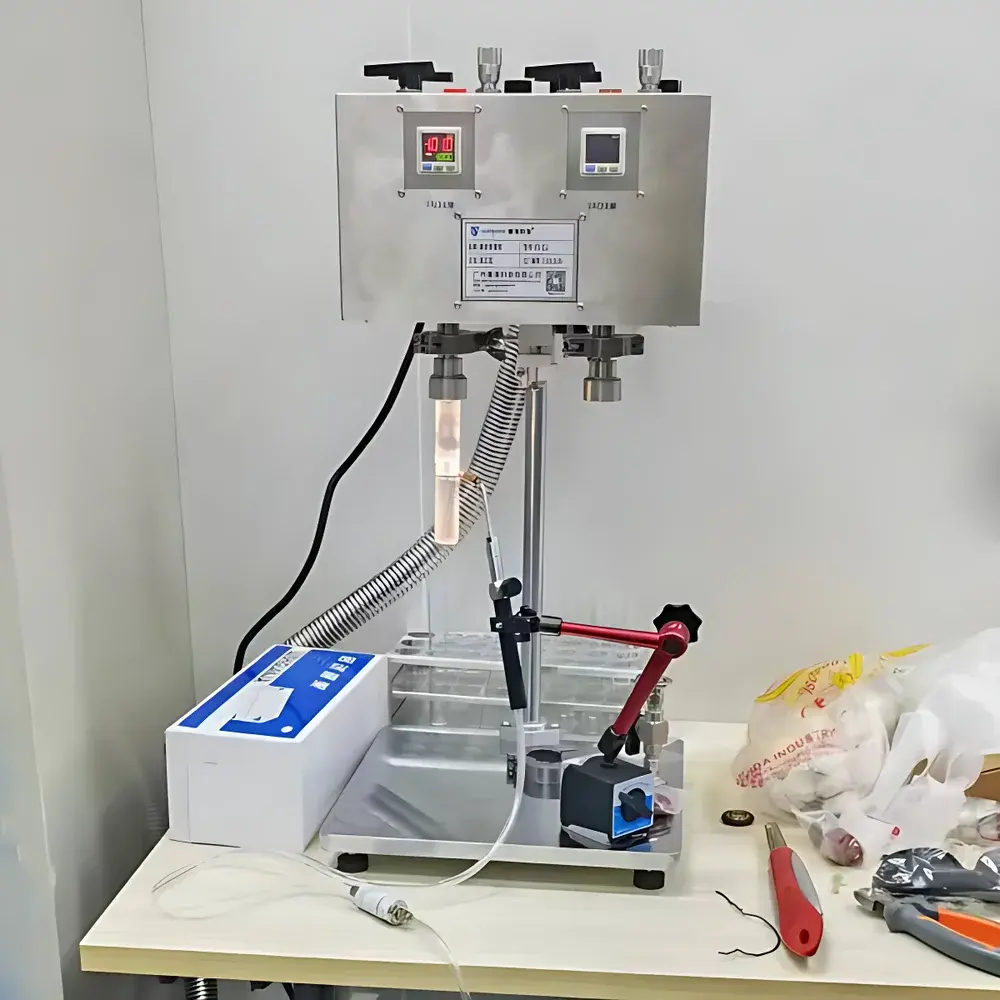

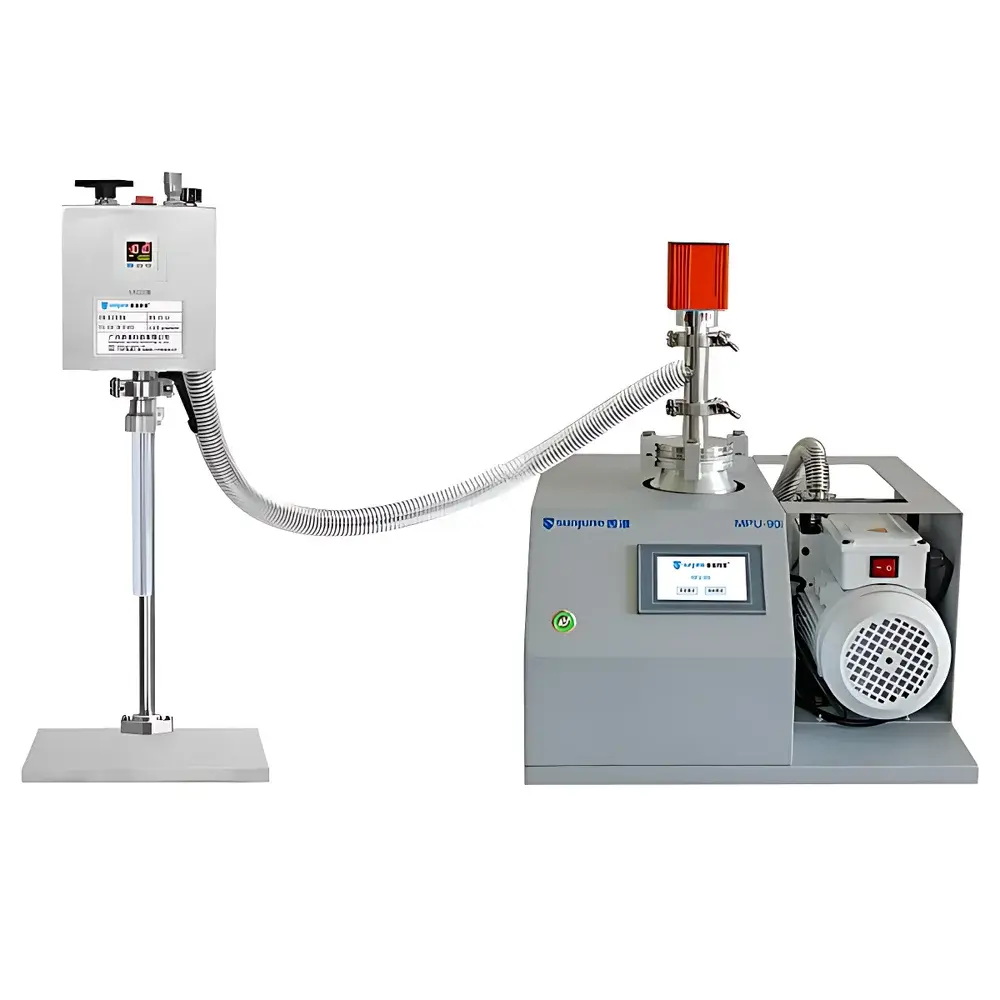

The SUNJUNE VS-Q Series Vacuum Sealing System is an integrated, benchtop-grade apparatus engineered for high-reproducibility vacuum encapsulation of reactive or air-sensitive materials inside fused quartz ampoules. It operates on the principle of dynamic rotational sealing under controlled vacuum and inert or reducing atmosphere—enabling precise thermal processing of precursors prior to crystal growth, solid-state synthesis, or thermoelectric material fabrication. Unlike static sealing methods, the VS-Q system employs synchronized rotation of the quartz tube during hydrogen–oxygen flame fusion, ensuring uniform wall thickness, minimized thermal stress gradients, and hermetic seal integrity. The system comprises three core subsystems: a stainless steel vacuum sealing station with precision rotary actuation, a dedicated hydrogen–oxygen gas generator (H₂/O₂ ratio precisely regulated for stable flame chemistry), and a dual-stage vacuum pumping architecture—comprising a robust rotary vane mechanical pump and an optional MPU-90i turbomolecular pump unit with full-range capacitance manometer and intelligent interlock logic.

Key Features

• Monolithic 304 stainless steel enclosure with IP54-rated ingress protection, CNC-machined vacuum chamber flanges, and ISO-KF 40/63 standard ports for rapid component integration.
• Variable-speed quartz tube rotation (0–60 rpm, stepless adjustment) synchronized with flame position to ensure concentric neck formation and eliminate localized overheating.
• Dual-mode vacuum control: manual mode permits independent operation of the mechanical pump for rough vacuum applications (e.g., pre-bake, degassing); automatic mode initiates staged pumping—mechanical pump first, then seamless handover to the MPU-90i molecular pump upon reaching 10⁻² Pa threshold.
• IL Intelligent Logic software embedded in the 7-inch resistive touchscreen provides real-time vacuum curve logging, programmable ramp-hold sequences, and event-triggered alarms (e.g., overtemperature, pressure overshoot, rotation stall).

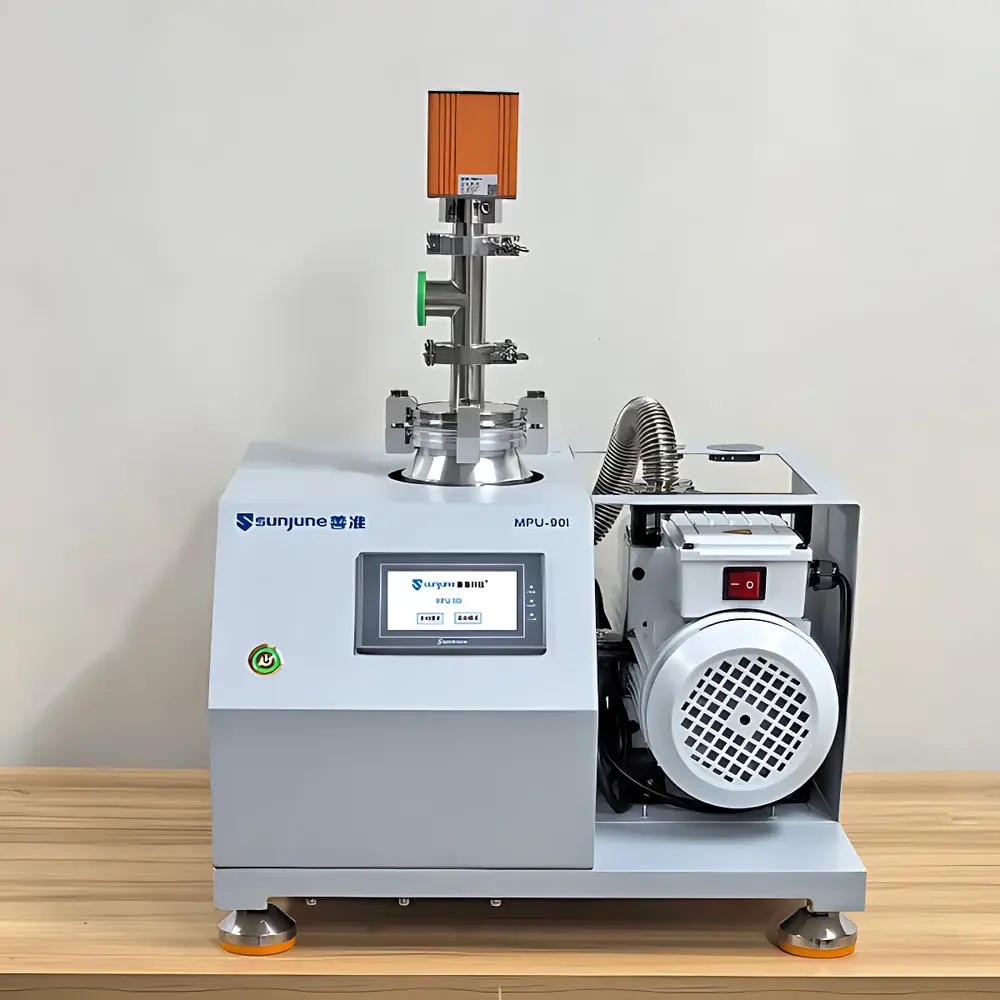

• MPU-90i molecular pump unit includes active bearing temperature monitoring, automatic venting with N₂ purge, and anti-backstreaming barrier design compliant with ISO 21028-1 for ultra-high vacuum integrity.
• Adjustable H₂/O₂ flow rates (0.1–2.0 L/min each, mass-flow controlled) enable flame tuning from reducing (black phosphorus synthesis) to neutral (oxide crystal growth) conditions.

Sample Compatibility & Compliance

The VS-Q system accommodates quartz tubes ranging from 5 mm to 50 mm outer diameter and 80 mm to 1500 mm total length—supporting both batch-loaded powder precursors and single-crystal seed rods. Its validated sealing protocol meets ASTM E29 requirements for significant figures in vacuum measurement reporting and supports GLP documentation workflows via timestamped CSV export of all vacuum, rotation, and gas flow parameters. When operated with the MPU-90i unit, the system achieves base pressures <1×10⁻⁶ Pa—sufficient for preparing oxygen-sensitive black phosphorus crystals and enabling reproducible solid-state reactions in thermoelectric (e.g., SnSe, Bi₂Te₃) and battery cathode (e.g., Li-rich layered oxides) precursor synthesis. All electrical components conform to IEC 61000-6-3 EMC standards; gas lines meet ISO 8573-1 Class 2 purity specifications.

Software & Data Management

The IL Intelligent Logic interface logs all operational parameters—including chamber pressure (1×10⁵ Pa to 1×10⁻⁷ Pa), rotational speed (±0.1 rpm resolution), H₂/O₂ mass flows (±0.01 L/min), and elapsed time—at user-defined intervals (100 ms to 10 s). Data files are stored internally (32 GB eMMC) and exportable via USB 2.0 to CSV or MATLAB-compatible .mat formats. Audit trails include operator ID (optional RFID login), method name, and digital signature—supporting 21 CFR Part 11 compliance when deployed in regulated R&D environments. Firmware updates are delivered via secure HTTPS channel with SHA-256 signature verification.

Applications

• Growth of air-sensitive 2D crystals (black phosphorus, ReS₂, TaS₂) via chemical vapor transport (CVT) or flux methods.
• Preparation of stoichiometrically precise thermoelectric ingots (e.g., Mg₃Sb₂, Yb₁₄MnSb₁₁) requiring oxygen-free annealing.
• Encapsulation of lithium metal anodes and sulfide-based solid electrolytes for all-solid-state battery prototyping.
• Thermal treatment of perovskite precursors under controlled N₂/Ar/H₂ atmospheres for optoelectronic thin-film development.
• Sealing of microfluidic glass substrates containing biological reagents for long-term stability testing.
• High-purity metal alloy synthesis (e.g., Ni–Fe–Cr superalloys) where trace oxidation must be suppressed below 10 ppb O₂ equivalent.

FAQ

What vacuum level is required for black phosphorus crystal growth?
Black phosphorus synthesis typically requires base pressures ≤1×10⁻⁵ Pa to suppress P₄ sublimation and oxide formation; the VS-Q system with MPU-90i achieves ≤1×10⁻⁶ Pa, satisfying this requirement.
Can the VS-Q seal quartz tubes containing volatile halide precursors?
Yes—the H₂/O₂ flame chemistry and adjustable rotation speed allow controlled neck-down without precursor decomposition; users report successful sealing of SnI₄-, GeI₄-, and PbI₂-based CVT ampoules.
Is remote monitoring supported?
The system includes Ethernet port and Modbus TCP protocol support for integration into LabView or custom SCADA platforms; no cloud connectivity is enabled by default.
How is pump maintenance tracked?
The IL software logs cumulative operating hours for both mechanical and molecular pumps, triggers service alerts at predefined thresholds (e.g., 5000 h for mechanical pump oil change), and stores calibration history for the full-range vacuum gauge.
Does the system comply with EU CE marking requirements?
Yes—the mechanical pump, hydrogen generator, and control electronics carry CE certification under Machinery Directive 2006/42/EC and ATEX 2014/34/EU for Group II, Category 3G (non-mining hazardous areas).
