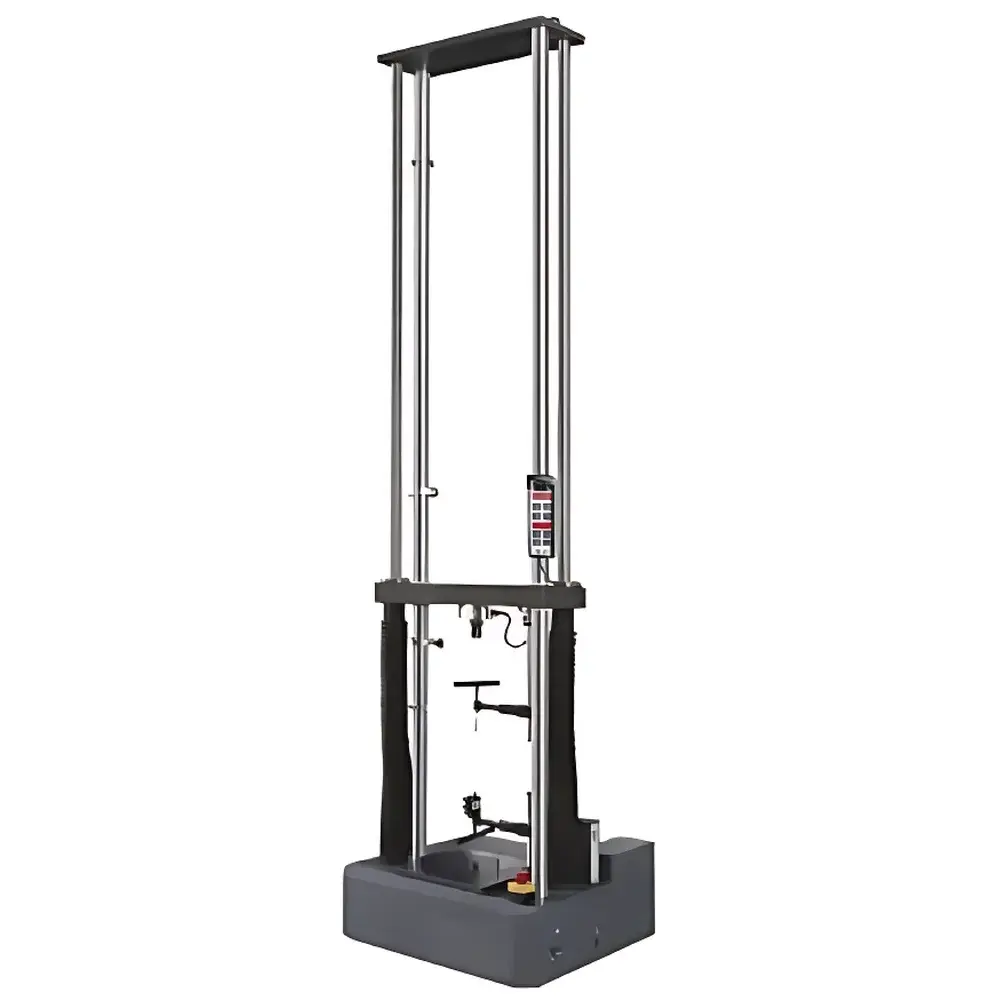

SUNS SUNS-RT Series Ring Stiffness Testing Machine for Pipes
| Key | Brand: SUNS |
|---|---|
| Origin | Shenzhen, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic |
| Model | SUNS-RT Series |
| Max Test Force | 30–100 kN |
| Accuracy Class | 0.5 |
| Test Space Height | 2100 mm |
| Displacement Resolution | 0.04 µm |
| Effective Test Width | 600 mm |
| Speed Range | 0.001–500 mm/min |
| Pipe ID Measurement Range | 50–200 mm / 200–2000 mm |
| ID Measurement Accuracy | ±1% |
| ID Measurement Resolution | 0.01 mm |
Overview
The SUNS SUNS-RT Series Ring Stiffness Testing Machine is a purpose-engineered mechanical testing system designed specifically for the standardized determination of ring stiffness (kN/m²) in thermoplastic and composite pipes used in municipal infrastructure, drainage, and industrial fluid conveyance applications. It operates in strict compliance with ISO 9969, ASTM D2412, GB/T 9647, and EN 1996-1, applying controlled compressive force to a pipe segment supported on two parallel knife-edge supports while simultaneously measuring radial deformation under load. The machine integrates a high-rigidity dual-column frame, precision ball-screw actuation, and closed-loop servo control to ensure repeatable loading profiles and minimal thermal drift during extended test cycles. Its modular design accommodates both small-diameter pressure pipes (e.g., PE80/PE100 water mains) and large-diameter structural conduits (e.g., HDPE corrugated stormwater pipes), supporting full-scale validation required for product certification and quality assurance in regulated supply chains.
Key Features
- Load frame engineered for axial stability and lateral rigidity, minimizing deflection-induced measurement error during high-force ring compression tests up to 100 kN.
- Dedicated ring stiffness fixture set including hardened steel knife-edge supports, adjustable support spacing (500–2000 mm), and self-aligning top compression plate with spherical seating.
- Integrated digital pipe inner diameter (ID) measurement module using high-resolution optical displacement sensors (0.01 mm resolution, ±1% accuracy), eliminating manual caliper dependency and reducing operator-induced variability.
- Real-time displacement feedback loop with 0.04 µm resolution encoder, enabling precise tracking of radial deformation at low strain rates (e.g., 0.001 mm/min for creep-sensitive materials).
- Wide-speed servo drive system (0.001–500 mm/min) supporting both quasi-static stiffness evaluation and dynamic load ramping per ASTM D2412 Annex A.
- Thermally stable load cell mounting architecture with temperature-compensated strain gauge technology, certified to ISO 7500-1 Class 0.5 accuracy across the full 30–100 kN range.
Sample Compatibility & Compliance
The SUNS-RT Series accommodates rigid and semi-rigid thermoplastic pipes (PVC-U, PP-R, PE, HDPE, PEX) as well as fiber-reinforced polymer (FRP) and multi-layer composite conduits. Sample lengths range from 300 mm to 1200 mm, with inner diameters spanning 50 mm to 2000 mm—covering standard SDR series (SDR 7.4 to SDR 41) and non-standard structural wall profiles. All mechanical and software functions conform to metrological traceability requirements under ISO/IEC 17025. Test reports include full audit trails compliant with GLP and GMP documentation standards, with optional 21 CFR Part 11–enabled electronic signatures for regulated laboratories.
Software & Data Management
Control and analysis are executed via SUNS TestMaster™ v5.2 software, a Windows-based platform featuring real-time force–deformation curve visualization, automatic calculation of ring stiffness (S = 0.0083 × F / y, per ISO 9969), and batch reporting with customizable templates (PDF, Excel, XML). The software logs all raw sensor data—including load cell output, encoder position, ID measurement timestamps, and environmental metadata—at 100 Hz sampling rate. Data integrity is enforced through role-based access control, encrypted database storage, and tamper-evident audit logs meeting ISO 17025 clause 7.7 and FDA ALCOA+ principles. Export modules support direct integration with LIMS platforms via ODBC and HL7 protocols.
Applications
- Validation of ring stiffness performance for PE100 pressure pipe certification per EN 12201-2 and AS/NZS 4130.
- Quality control testing of corrugated HDPE drainage pipes prior to municipal tender submission (e.g., ASTM D3034, AASHTO M294).
- R&D characterization of novel composite pipe formulations under sustained load conditions (creep modulus estimation).
- Third-party inspection services for ISO 9001-certified manufacturers requiring documented conformance to GB/T 19472.1–2019.
- Failure analysis of field-installed pipes exhibiting ovalization or buckling under soil load simulation.
FAQ
What international standards does this machine directly support?
It natively implements test sequences and calculation algorithms for ISO 9969, ASTM D2412, EN 1996-1, GB/T 9647, and DIN 16961, with preloaded parameter sets and pass/fail criteria per standard edition.
Can the system perform sequential multi-point ring stiffness tests on a single specimen?
Yes—the software supports automated stepwise loading protocols, including intermediate unloading and re-loading cycles to assess elastic recovery and hysteresis behavior.
Is calibration traceable to national metrology institutes?
All load cells and displacement sensors are supplied with UKAS-accredited calibration certificates (NIST-traceable), and the system includes built-in verification routines per ISO 376 and ISO 9513.
Does the ID measurement module require physical contact with the pipe interior?
No—it employs non-contact laser triangulation and edge-detection imaging, ensuring measurement integrity without surface marking or internal probe insertion.
What maintenance intervals are recommended for long-term accuracy retention?
Biannual verification of load cell linearity and encoder resolution is advised; annual recalibration by an ISO/IEC 17025-accredited service provider ensures continued compliance with Class 0.5 metrological requirements.
