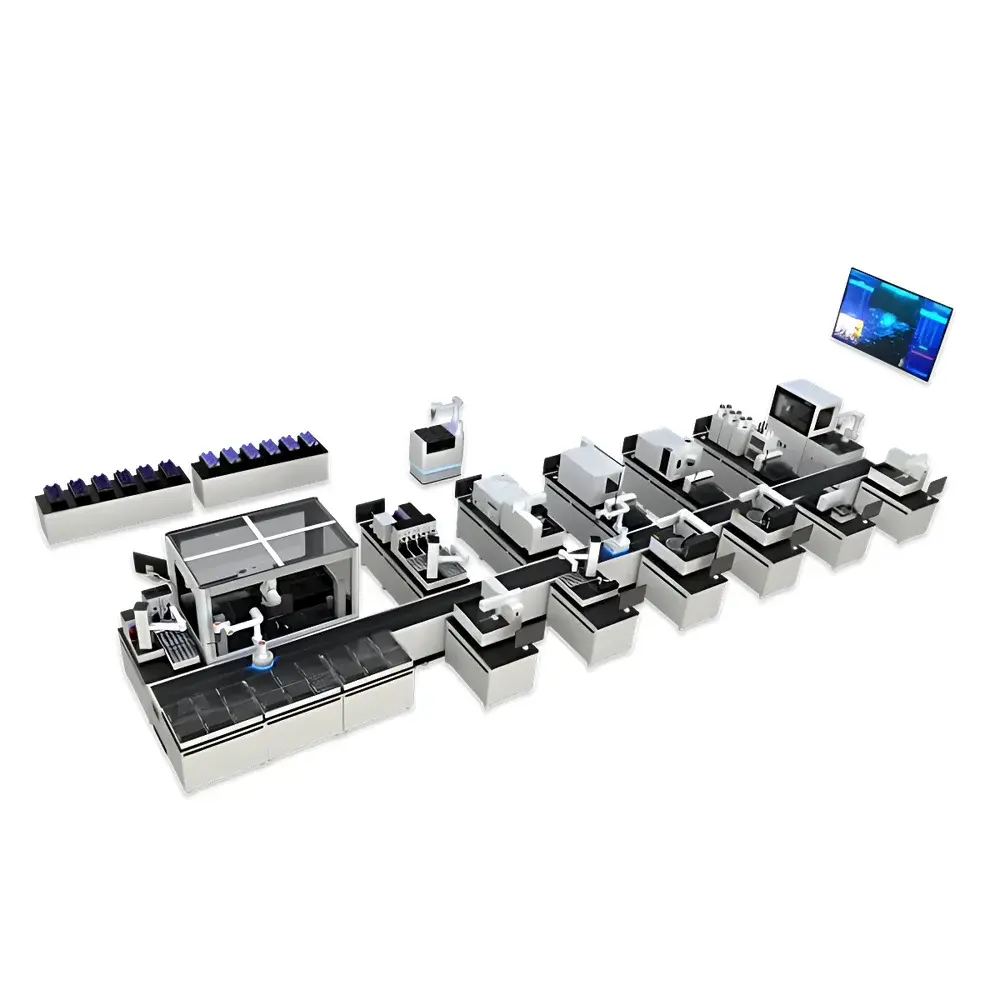

SUPEC 8000 Intelligent Unmanned Water Quality Laboratory System by EXPEC

Overview

The SUPEC 8000 Intelligent Unmanned Water Quality Laboratory System is a fully integrated, modular automation platform engineered for high-throughput, regulatory-compliant water quality analysis in municipal, industrial, and environmental monitoring laboratories. Built upon a unified robotic workflow architecture, the system implements standardized liquid handling, sample tracking, thermal processing (e.g., digestion), instrumental measurement, data validation, and post-analysis cleaning—without manual intervention. Its core operational principle relies on synchronized coordination among six autonomous subsystems: (1) automated sample management with temperature-controlled storage and barcode-based traceability; (2) precision liquid dispensing via gravimetric or volumetric pipetting stations; (3) robotic sample transfer and carousel-based routing across analytical instruments; (4) automated retention sampling with time-stamped vial sealing; (5) validated cleaning protocols compliant with ISO/IEC 17025 method blank requirements; and (6) real-time quality control integration—including spike recovery, duplicate analysis, and CRM calibration verification. Designed for 24/7 unattended operation, the SUPEC 8000 supports batch processing of up to 200+ samples per day while maintaining full audit trails aligned with GLP and ISO 17025 documentation requirements.

Key Features

• Fully robotic sample handling with dual-arm collaborative robotics and ISO Class 5 clean-air sample transfer zones
• Modular instrument agnosticism: interfaces seamlessly with ICP-MS, IC, UV-Vis spectrophotometers, TOC analyzers, and ion-selective electrode systems via standardized RS-232/Modbus TCP protocols
• Integrated thermal control module supporting programmable digestion (up to 180 °C, ±0.5 °C stability) and controlled cooling cycles
• Embedded LIMS-ready data engine with built-in validation rules, automatic flagging of outliers per ASTM D5847 criteria, and electronic signature support per FDA 21 CFR Part 11
• Redundant safety architecture including leak detection sensors, emergency stop interlocks, and chemical fume extraction synchronization
• Self-diagnostic firmware with predictive maintenance alerts based on actuator cycle counts and fluid path pressure profiles

Sample Compatibility & Compliance

The SUPEC 8000 accommodates aqueous matrices ranging from raw surface water and wastewater effluents to drinking water and groundwater extracts. It handles sample volumes from 5 mL to 500 mL, supports turbid and suspended-solid-laden samples (up to 100 mg/L TSS) via integrated filtration modules, and maintains compatibility with EPA Methods 200.7, 300.0, 311.1, and ISO 11929 for uncertainty propagation. All hardware components comply with CE marking requirements (EN 61000-6-2/6-4), RoHS Directive 2011/65/EU, and IEC 61000-4-2 ESD immunity standards. The software stack meets ISO/IEC 17025:2017 clause 7.7.1 for data integrity and supports GxP-aligned audit trail generation with immutable timestamps and user-action attribution.

Software & Data Management

The EXPEC LabOS™ control suite provides centralized orchestration of all subsystems through a role-based web interface accessible via TLS 1.2–secured HTTPS. It features dynamic workflow scripting (Python 3.9 embedded), real-time dashboard visualization of instrument status, sample queue depth, and QC metric trends (e.g., %RSD, recovery %), and automated report generation in PDF/A-2b and Excel (.xlsx) formats compliant with ISO/IEC 17025 Annex A.5. Data archiving follows a three-tier model: volatile RAM cache → encrypted SSD buffer → optional SFTP push to enterprise NAS or cloud-based LIMS (e.g., LabVantage, Thermo Fisher SampleManager). All electronic records include cryptographic hash signatures and are retained for ≥10 years per internal QA policy.

Applications

• Regulatory compliance testing for municipal water utilities under China’s GB 5749-2022 and US EPA Safe Drinking Water Act requirements
• Industrial wastewater discharge monitoring per GB 8978-1996 and EU Industrial Emissions Directive (2010/75/EU)
• Long-term environmental surveillance programs targeting heavy metals (As, Cd, Pb, Hg), nutrients (NO₃⁻, PO₄³⁻), organic pollutants (PAHs, PCBs), and microbiological surrogates
• Method validation studies requiring high-repetition precision (n ≥ 10) and cross-instrument comparability
• Emergency response deployment for rapid contaminant screening during accidental spills or natural disasters

FAQ

What types of water samples can the SUPEC 8000 process without pre-filtration?
Raw surface water and treated effluent with total suspended solids ≤50 mg/L may be analyzed directly; higher-TSS samples require inline 0.45-µm membrane filtration, which is optionally integrated.
Does the system support remote diagnostics and over-the-air firmware updates?
Yes—via secure VPN tunneling and authenticated SSH access; all updates undergo SHA-256 integrity verification prior to installation.
How is data integrity ensured during power failure or network interruption?
Critical state variables are mirrored to non-volatile FRAM memory every 200 ms; unfinished workflows resume from last validated checkpoint upon recovery.
Can third-party instruments be added to the automation sequence after initial commissioning?
Yes—through the open API framework (RESTful JSON endpoints) and vendor-provided instrument driver SDK, subject to protocol compatibility assessment.
Is the system validated for use in accredited testing laboratories?
EXPEC provides IQ/OQ documentation packages aligned with ISO/IEC 17025:2017 Annex A.2 and supports PQ execution using client-defined test cases and reference materials.
