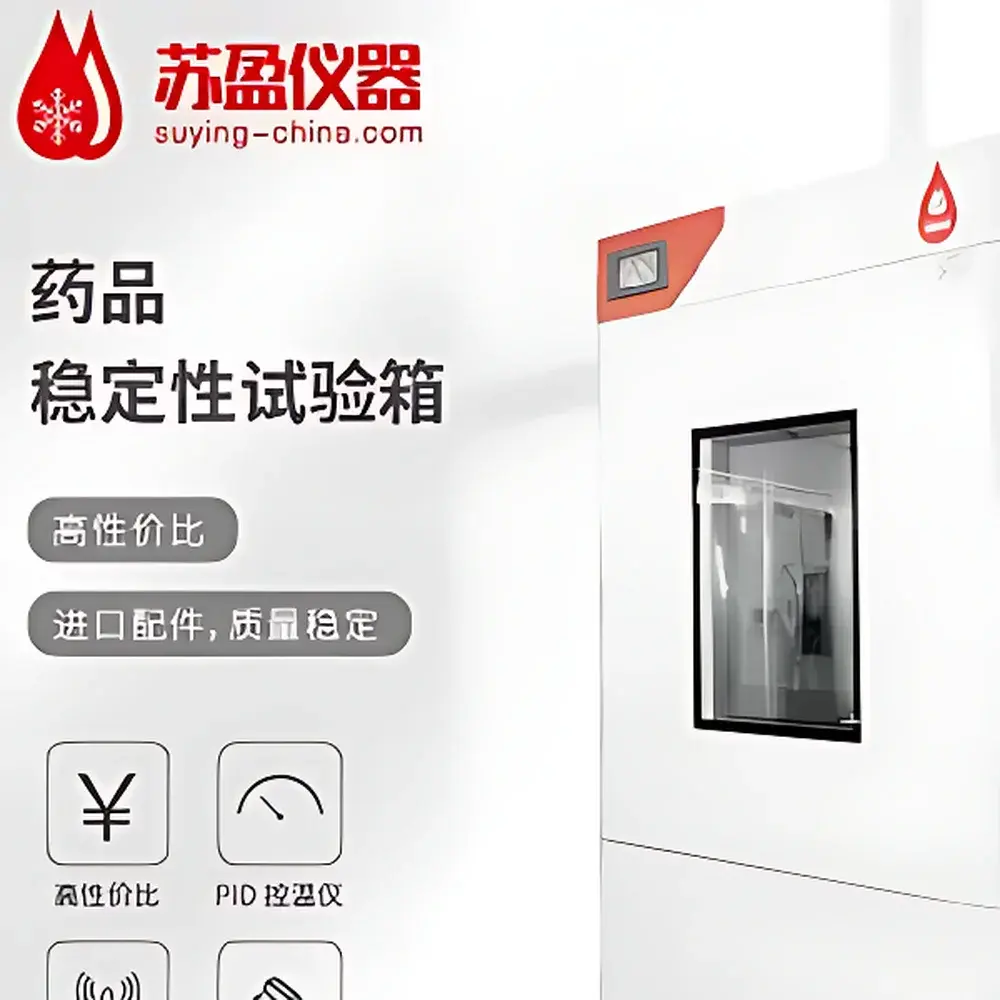

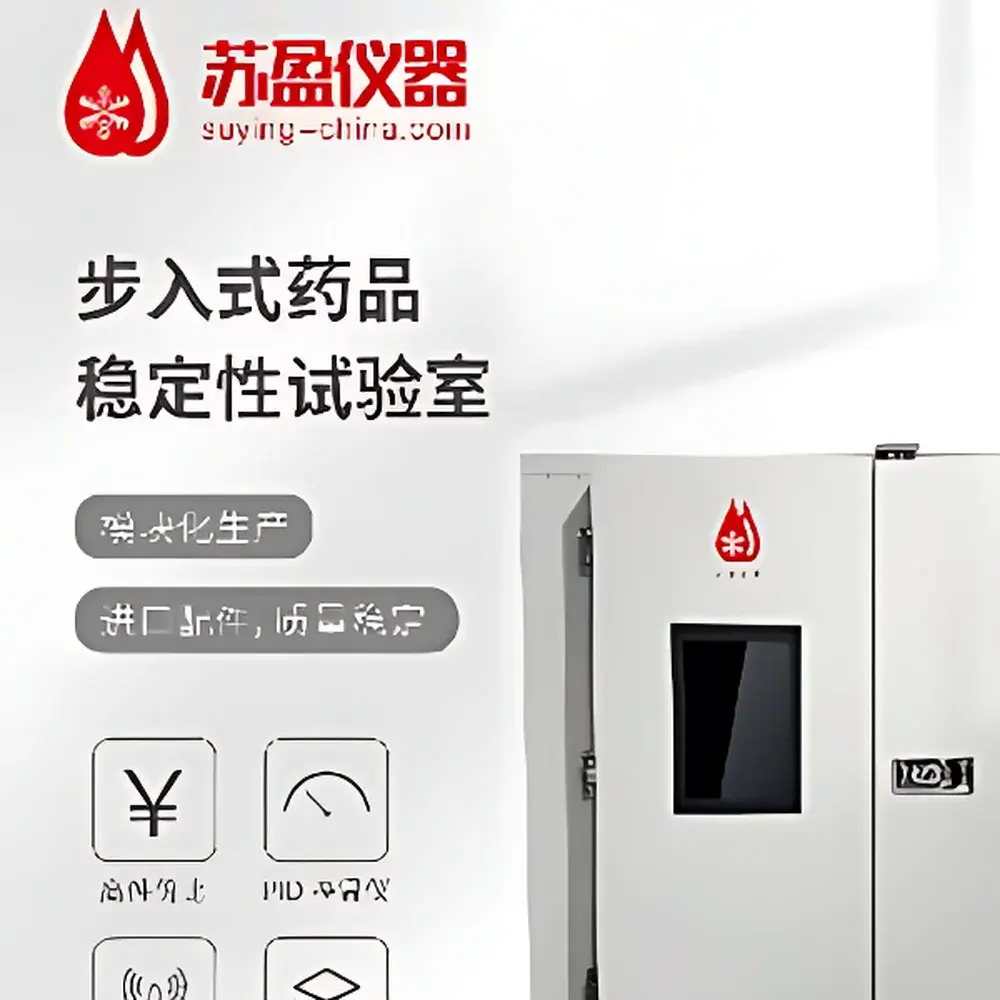

Suying SY-100/250/1000 Pharmaceutical Stability Chambers

Overview

The Suying SY-Series Pharmaceutical Stability Chambers are precision-engineered environmental simulation systems designed to meet the stringent requirements of regulatory-compliant drug stability testing. These chambers operate on the fundamental principle of controlled climatic conditioning—maintaining highly stable, uniform, and traceable temperature (±0.5 °C), relative humidity (±3% RH), and UV/visible light irradiance profiles over extended durations (weeks to months). They are purpose-built for ICH Q1A(R3), Q1B, Q5C, and WHO TRS 953 Annex 2 compliance, supporting long-term storage studies at 25 °C / 60% RH, accelerated conditions at 40 °C / 75% RH (6-month protocol), intermediate conditions (30 °C / 65% RH), and photostability assessments per ICH Q1B (Option A: near-UV and visible light exposure). The chamber architecture integrates dual-wall insulation, microprocessor-controlled PID feedback loops, and independent humidity generation via steam injection or ultrasonic humidification—ensuring minimal spatial gradient (<±0.8 °C, <±5% RH across working volume) and long-term drift stability (<0.1 °C/day).

Key Features

• Three scalable working volumes: SY-100 (100 L), SY-250 (250 L), and SY-1000 (1000 L)—each validated for uniformity per ISO 14644-1 Class 5 cleanroom-equivalent airflow distribution
• Independent, redundant control of temperature (range: 0–60 °C), humidity (10–95% RH), and light intensity (0–1.2 W/m² @ 320–400 nm UV-A; 0–1.0 W/m² @ 400–800 nm visible)
• Integrated real-time monitoring with NIST-traceable Pt100 sensors (temperature) and capacitive RH probes (calibration certificate included)
• Compliance-ready data logging: 1-second sampling interval, encrypted binary storage, audit trail with user authentication (FDA 21 CFR Part 11–compatible configuration available)
• Double-door design with magnetic gasket seal and internal LED lighting—minimizing thermal/humidity perturbation during sample access
• Optional features: Ethernet/IP-based remote supervision, GLP-compliant electronic signature module, and integrated photometric calibration port for radiometer validation

Sample Compatibility & Compliance

The SY-Series accommodates standard pharmaceutical packaging formats—including blister packs, HDPE bottles, glass vials (2–100 mL), and secondary cartons—without compromising chamber uniformity. All models are pre-validated for IQ/OQ/PQ protocols per ASTM E2500-13 and EU Annex 15. Chamber qualification includes mapping per ISO 14160:2021 (sterile product storage environments) and humidity uniformity verification using calibrated hygrometers at ≥9 grid points. Documentation packages include full validation reports, uncertainty budgets for sensor chains, and a Declaration of Conformity to IEC 61000-6-3 (EMC) and IEC 61010-1 (safety). The system supports GMP-aligned change control, deviation management, and periodic requalification intervals aligned with WHO Technical Report Series No. 992.

Software & Data Management

Suying Stability Suite™ (v3.2+) provides a secure, role-based interface for method setup, real-time trending, alarm management, and automated report generation (PDF/CSV/XLSX). The software logs all operator actions—including parameter edits, door openings, and calibration events—with immutable timestamps and digital signatures. Data integrity safeguards include automatic backup to external NAS, SHA-256 file hashing, and configurable retention policies (up to 10 years). Exported datasets comply with CDISC SDTM standards for submission-ready stability databases. Optional integration with LIMS (e.g., LabWare, Thermo Fisher SampleManager) enables bidirectional workflow synchronization and electronic batch record linkage.

Applications

• ICH Q1A(R3)-mandated long-term stability studies (25 °C/60% RH for up to 36 months)
• Accelerated stability assessment (40 °C/75% RH for 6 months) to predict shelf life and degradation pathways
• Intermediate condition testing (30 °C/65% RH) for tropical climate labeling
• Photostability screening per ICH Q1B Option A (near-UV + visible light, total exposure ≥1.2 million lux·hr)
• Forced degradation studies under controlled stress conditions (e.g., 60 °C dry heat, 75% RH cyclic humidity)
• Stability protocol execution for ANDAs, NDAs, MAAs, and biosimilar filings requiring WHO, FDA, EMA, or PMDA acceptance

FAQ

What regulatory standards does the SY-Series support out-of-the-box?
The chambers are factory-configured to meet ICH Q1–Q5, WHO TRS 953 Annex 2, USP <1151>, and EU GMP Annex 15 requirements—including built-in test templates and validation documentation frameworks.
Can the system be qualified for 21 CFR Part 11 compliance?
Yes—when equipped with the optional Electronic Signature Module and configured with password-protected user roles, audit trail logging, and electronic record archiving, it satisfies Part 11 technical and procedural criteria.
How is temperature and humidity uniformity verified across the chamber volume?
Each unit undergoes 3D thermal-hygrometric mapping using ≥16 calibrated sensors during final factory qualification, with results documented in the IQ/OQ report per ISO 14644-1 and ASTM E2500.
Is remote monitoring supported without on-site IT infrastructure?
Yes—via embedded cellular (4G LTE) or Wi-Fi connectivity with TLS 1.2–encrypted telemetry, enabling secure cloud-based dashboard access and SMS/email alerting for critical excursions.
What maintenance intervals are recommended for sustained accuracy?
Annual recalibration of all sensors (traceable to NIST or equivalent NMIs) and biannual performance verification using reference standards (e.g., NIST SRM 2365 for humidity) are advised per ISO/IEC 17025 guidelines.
