SYC Sycs SCQ-1002C 105L Benchtop Ultrasonic Cleaner with Triple-Frequency Operation & Programmable Temperature/Time Control

Overview

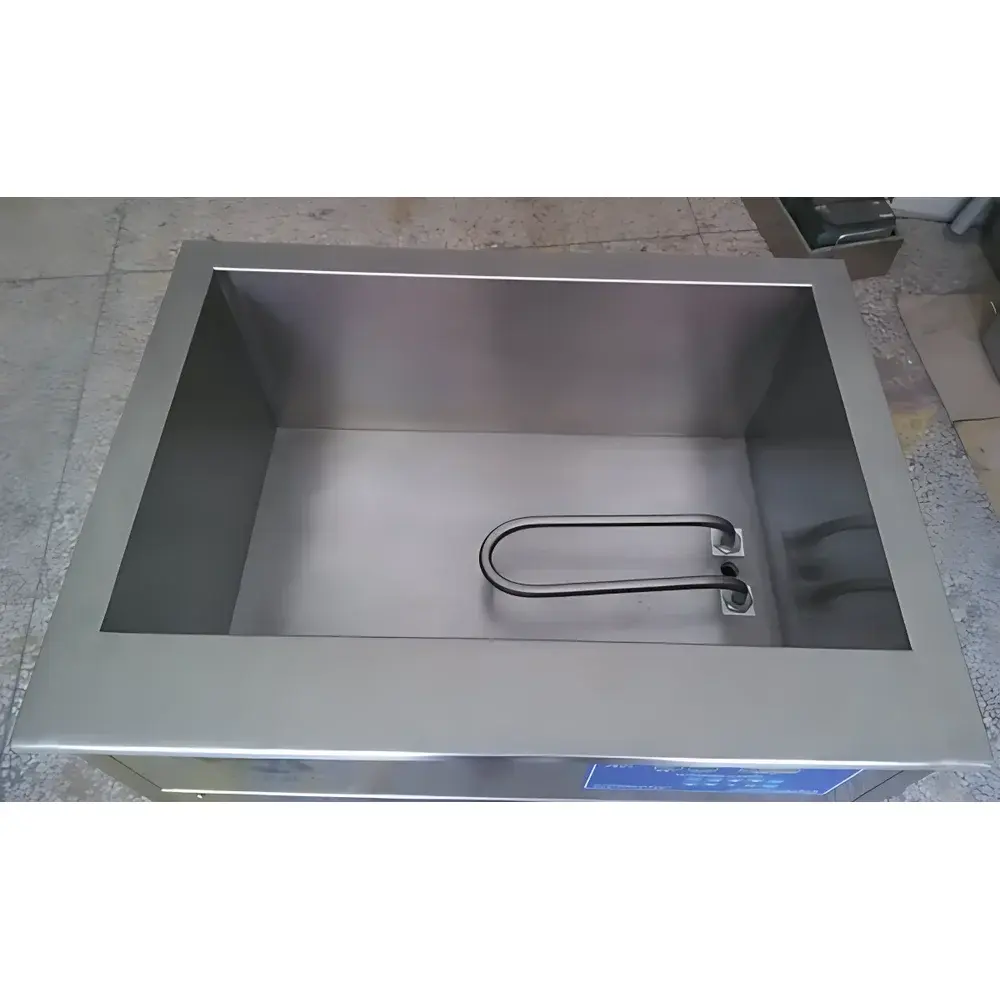

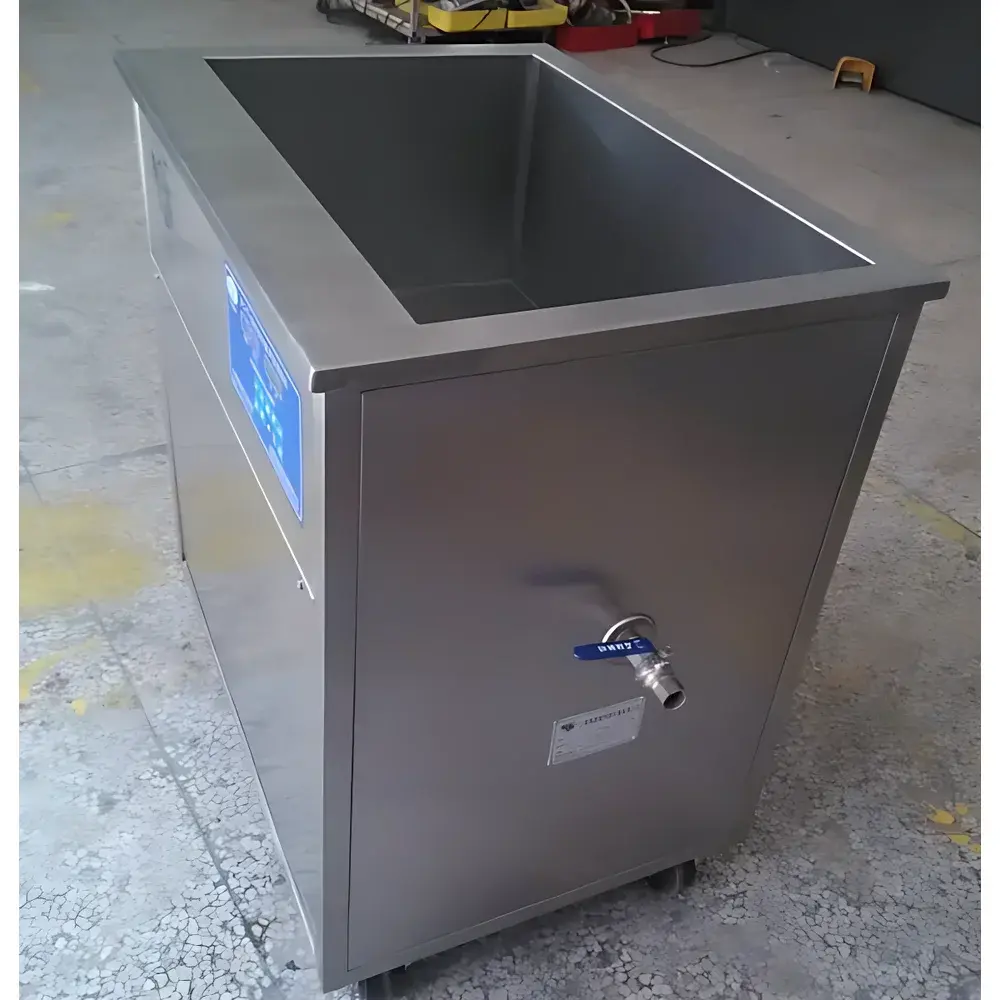

The SYC Sycs SCQ-1002C is a heavy-duty, benchtop ultrasonic cleaner engineered for laboratories, quality control facilities, and industrial R&D environments requiring reliable, high-volume cleaning of delicate and complex components. Operating on the principle of cavitation—where high-frequency acoustic energy generates microscopic vacuum bubbles in liquid media that implode with localized energy—the SCQ-1002C delivers consistent mechanical scrubbing action without mechanical abrasion or thermal degradation. Its 105 L stainless steel tank (700 × 500 × 300 mm internal dimensions) accommodates large batches of glassware, optical components, precision instrumentation parts, and multi-piece assemblies. The unit supports four discrete ultrasonic frequencies (25, 28, 40, and 60 kHz), enabling users to optimize cleaning efficacy based on contaminant type (e.g., particulate vs. organic residue), substrate geometry, and material sensitivity—critical for applications ranging from HPLC vial decontamination to semiconductor wafer pre-bond cleaning.

Key Features

• Triple-frequency selection (25/28/40/60 kHz) with independent power calibration per frequency band for process-specific optimization
• 1800 W ultrasonic output, continuously adjustable from 10% to 100% to prevent sample damage during low-energy degassing or high-intensity particle removal
• Precise digital temperature control (ambient to 100 °C) supported by 3000 W heating element; maintains ±1 °C stability over full range for thermally assisted cleaning protocols
• Programmable timer (1–600 minutes) with auto-shutdown and audible end-of-cycle alert
• Full SUS304 stainless steel construction—including tank, basket, rack, and lid—ensuring long-term corrosion resistance in aqueous, alkaline, and mild solvent-based cleaning solutions
• Integrated safety architecture: dry-run detection (prevents transducer overheating when fluid level drops below operational threshold), thermal cut-off at 110 °C, and current-limiting circuitry compliant with IEC 61000-4 EMC standards

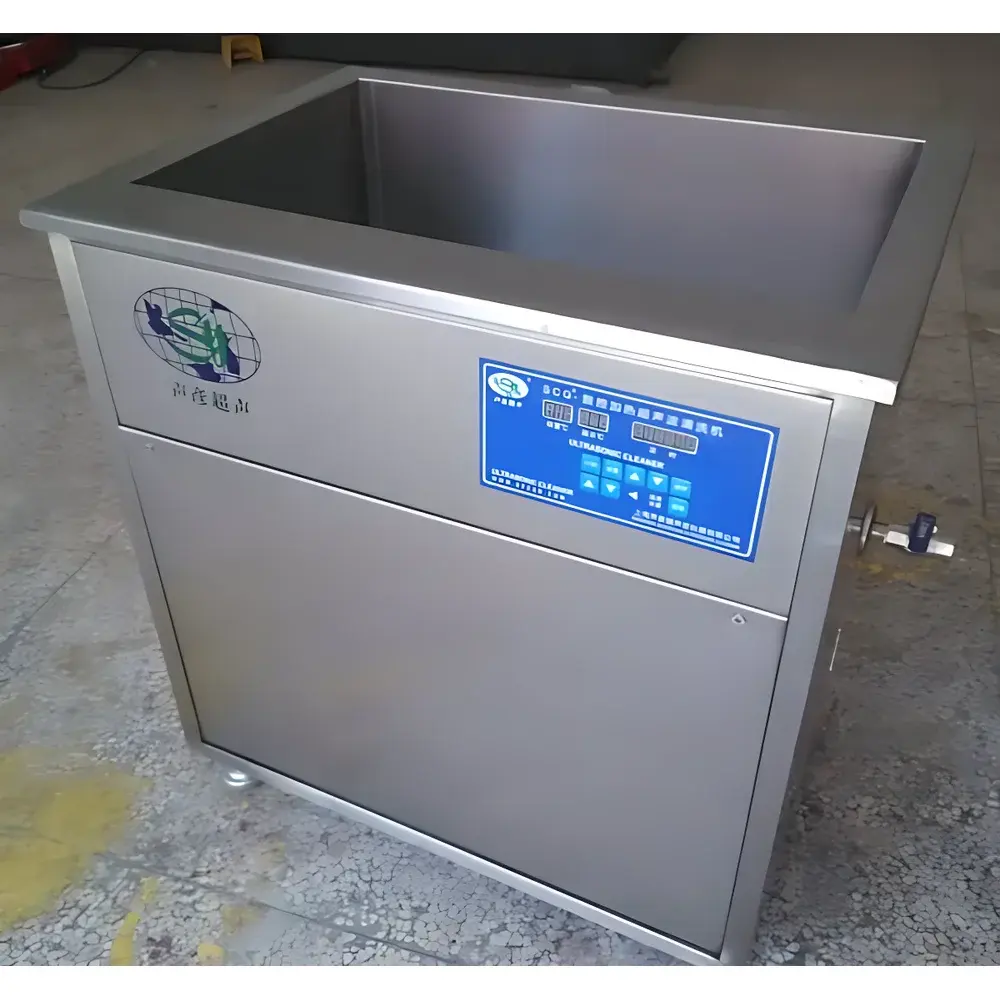

• Ergonomic front-panel interface with LED display, tactile membrane keys, and intuitive parameter navigation—designed for glove-compatible operation in controlled laboratory settings

Sample Compatibility & Compliance

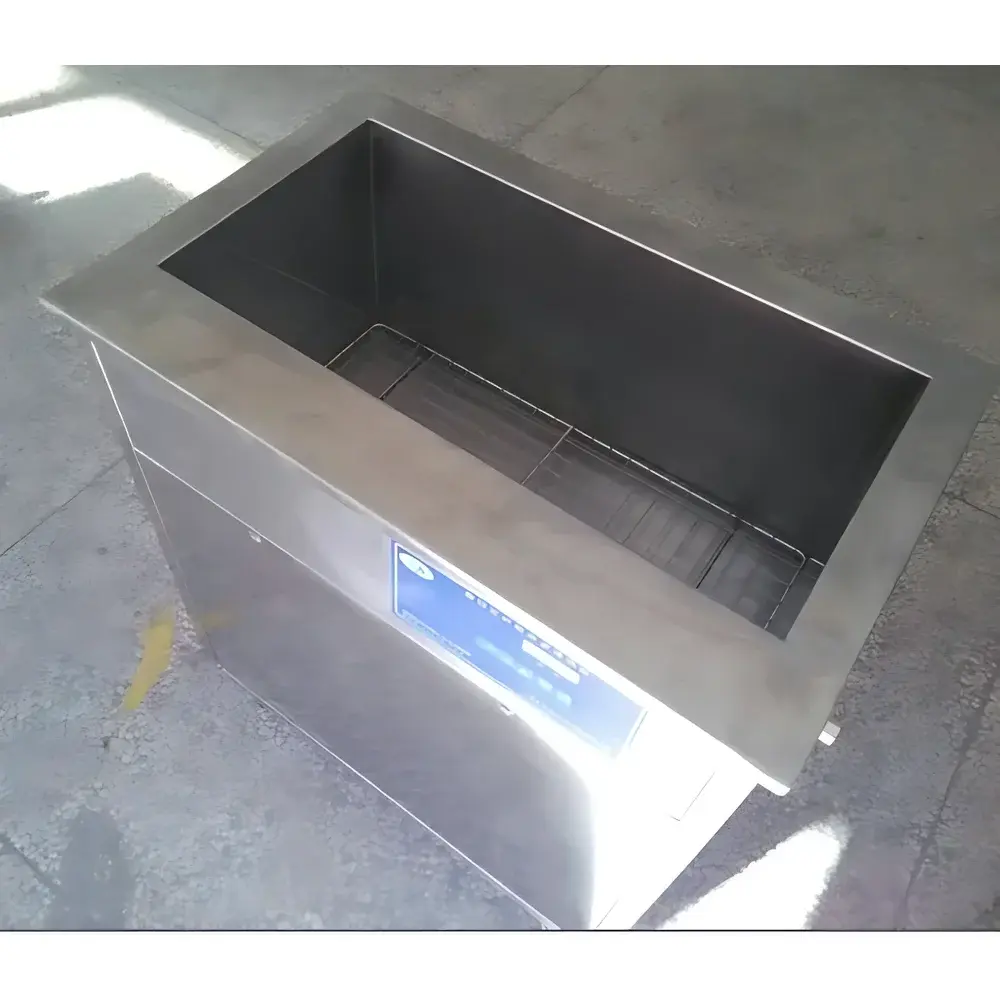

The SCQ-1002C is validated for use with standard laboratory cleaning chemistries including aqueous alkaline detergents (e.g., Alconox®, Tergazyme®), ethanol/water mixtures, and low-volatility solvents compatible with stainless steel wetted surfaces. Its open-tank configuration and removable SUS304 basket support heterogeneous loading of irregularly shaped items such as volumetric flasks, chromatography columns, microtiter plates, surgical instruments, and printed circuit boards. The system complies with ISO 13485 requirements for cleaning validation documentation support and meets key elements of ASTM D2603 (Standard Test Method for Sonic Shear Stability of Polymer Solutions) for reproducible cavitation intensity assessment. While not certified to UL/CSA for standalone medical device reprocessing, it is routinely deployed in GLP-compliant labs for pre-analytical sample preparation under documented SOPs aligned with USP and ISO 15883-1 guidelines.

Software & Data Management

The SCQ-1002C operates via embedded firmware without external PC dependency, ensuring deterministic real-time control and immunity to network vulnerabilities. All operating parameters—including frequency selection, power setpoint, temperature setpoint, and elapsed time—are logged internally with timestamping for up to 1,000 cycles. Optional RS-232 serial interface enables integration into centralized lab equipment monitoring systems (e.g., LabVantage, STARLIMS) for audit-ready data export. Configuration files can be saved and recalled via password-protected user profiles, supporting multi-shift operation while maintaining traceability per FDA 21 CFR Part 11 Annex 11 principles (electronic records integrity, operator authentication, and change history). No proprietary software installation is required; raw log files export as CSV for downstream statistical process control (SPC) analysis.

Applications

• Removal of polishing compounds, flux residues, and metal oxides from optical lenses, mirrors, and laser components
• Depyrogenation and bioburden reduction of reusable glassware prior to sterile filtration or cell culture use
• Pre-assembly cleaning of MEMS devices, microfluidic chips, and sensor housings where particle counts must remain below ISO Class 5 thresholds
• Extraction support for solid-phase microextraction (SPME) and accelerated solvent extraction (ASE) workflows
• De-gassing of viscous media (e.g., silicone oils, polymer precursors) prior to casting or coating processes
• Routine maintenance cleaning of HPLC autosampler needles, syringe filters, and column frits to extend service life and minimize baseline drift

FAQ

What is the maximum recommended operating temperature for aqueous cleaning solutions?
The unit supports continuous operation up to 100 °C; however, for prolonged exposure (>30 min), we recommend limiting aqueous solutions to ≤80 °C to preserve detergent efficacy and minimize evaporation rate.
Can the SCQ-1002C be used with flammable solvents?
No. This model lacks explosion-proof certification and is intended exclusively for aqueous or water-miscible non-flammable solutions. Solvent use requires ATEX-certified alternatives.
Is the ultrasonic transducer array serviceable in the field?
Yes. Transducers are mounted externally on the tank bottom with standardized M6 fasteners and IP67-rated connectors, enabling replacement without tank disassembly or welding.
Does the unit include calibration documentation?
Factory calibration certificates for temperature sensor (NIST-traceable RTD) and timer accuracy (±0.5%) are provided with each shipment, along with instructions for user-performed verification per ISO/IEC 17025 Annex A.3.
How is acoustic uniformity verified across the 105 L tank volume?
Each unit undergoes aluminum foil erosion testing per ASTM E1755-00 at nine standardized locations (center + eight quadrants); minimum erosion depth deviation across positions is ≤12% of mean value.
