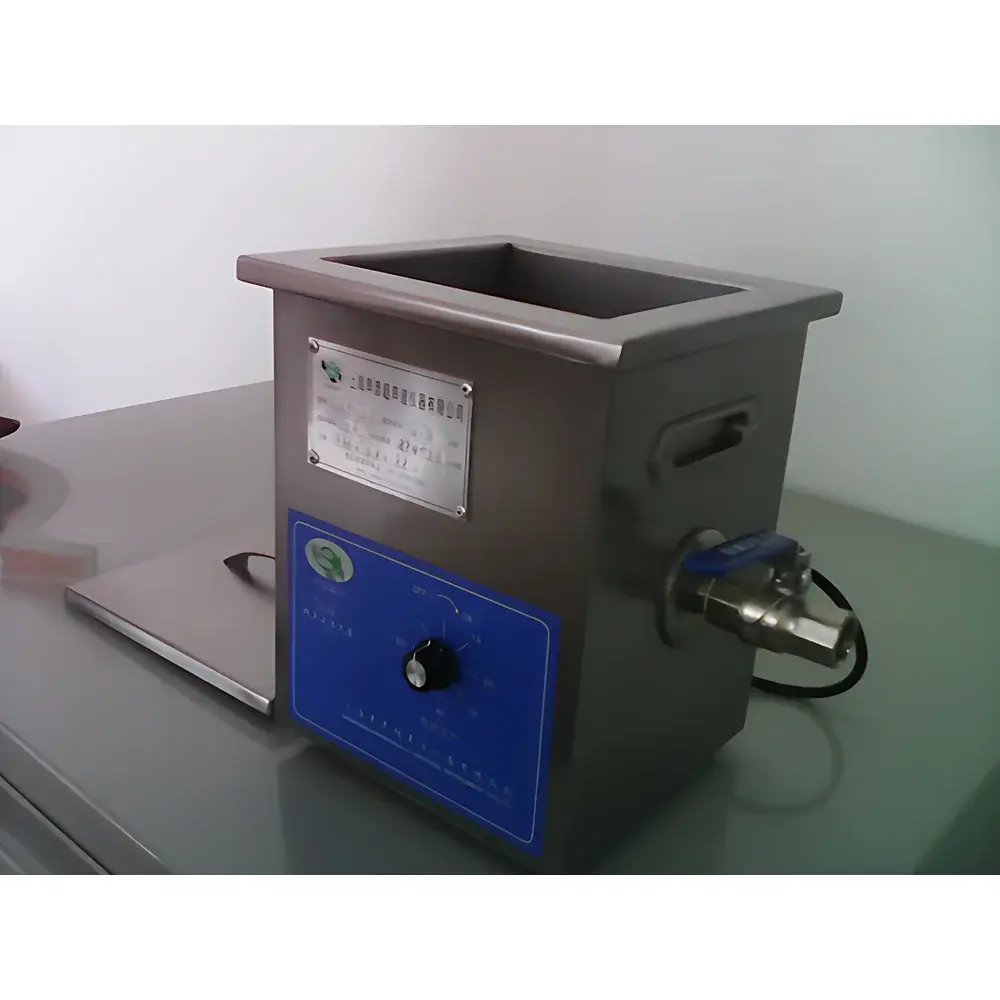

SYC Sycs SCQ-2A 2L Benchtop Ultrasonic Cleaner

Overview

The SYC Sycs SCQ-2A is a compact, dedicated benchtop ultrasonic cleaner engineered for routine cleaning of small laboratory components—including glassware (vials, pipettes, cuvettes), metal parts (tweezers, forceps, surgical instruments), and precision optics—where consistent cavitation energy delivery and operator safety are prioritized. Operating at a fixed frequency of 40 kHz, the unit generates high-intensity acoustic pressure waves in aqueous or mild solvent-based cleaning baths, inducing controlled micro-cavitation that dislodges particulate contaminants, organic residues, and loosely adhered biofilms from complex surface geometries without mechanical abrasion. Its 2 L stainless steel tank (155 × 140 × 100 mm internal dimensions) provides sufficient volume for batch processing of multiple small items while maintaining optimal transducer-to-load coupling efficiency. Designed for low-maintenance operation in QC labs, R&D environments, and teaching laboratories, the SCQ-2A delivers reproducible cleaning performance under standardized time-controlled cycles.

Key Features

• Stainless steel tank with corrosion-resistant 304-grade construction and rounded interior corners to minimize residue accumulation and simplify decontamination.
• Dedicated 40 kHz piezoelectric transducer array mounted directly to the tank base, ensuring uniform energy distribution across the entire bath volume.
• Precise digital timer (1–60 minute range) with audible end-of-cycle alert; non-volatile memory retains last-used setting after power interruption.
• Integrated sound-dampening lid reduces ambient noise to ≤55 dB(A) at 1 m distance, complying with ISO 7779 for laboratory acoustic emission limits.
• Removable stainless steel mesh rack with elevated support feet ensures full immersion clearance and prevents direct contact between delicate items and tank bottom.
• Manual fill-and-drain system with threaded drain port (¼” NPT) and silicone-tipped stopper enables controlled fluid exchange without external pumps or plumbing.

Sample Compatibility & Compliance

The SCQ-2A accommodates standard laboratory consumables and instrumentation components up to 140 mm in width and 100 mm in height. It is compatible with water, aqueous alkaline or neutral detergents (e.g., Alconox®, Liquinox®), and low-boiling solvents such as isopropanol or ethanol—provided vapor containment and ventilation protocols are observed per OSHA 1910.1200 and local chemical hygiene plans. While not certified to IEC 61000-6-3 (EMC) or EN 61000-6-2 for industrial-grade electromagnetic immunity, the device meets GB/T 14710–2009 environmental testing requirements for domestic laboratory equipment. It supports GLP-aligned documentation practices through manual logbook recording of cycle parameters (time, bath composition, lot numbers), though it does not provide electronic audit trails or 21 CFR Part 11-compliant data integrity features.

Software & Data Management

The SCQ-2A operates via a standalone electromechanical control interface with no embedded firmware, network connectivity, or software dependency. All operational parameters—including timer activation and reset—are managed locally using tactile push-button controls. No drivers, configuration utilities, or data export functions are provided. Users are expected to maintain manual records of cleaning cycles in accordance with institutional SOPs. For laboratories requiring automated data capture, integration with external environmental monitoring systems (e.g., Vaisala viewLinc, DeltaTRAK) may be achieved via optional dry-contact relay output (not included; requires third-party interface module).

Applications

• Routine pre-analytical preparation of HPLC vials, GC autosampler inserts, and spectrophotometer cells to eliminate carryover and baseline interference.
• Cleaning of microfluidic chips and MEMS devices prior to bonding or functional testing, where particle-free surfaces are critical.
• Decontamination of reusable PPE components (e.g., face shield frames, goggle straps) in biosafety level 1–2 facilities following CDC-recommended disinfection protocols.
• Removal of polishing compounds and machining oils from calibration standards and metrology artifacts prior to dimensional inspection.
• Supporting ASTM D2240 (Shore A hardness) and ISO 48-4 (rubber hardness) sample conditioning by eliminating surface contaminants that affect indentation consistency.

FAQ

Is the SCQ-2A suitable for cleaning delicate optical lenses or coated substrates?
Yes—when used with low-surface-tension, non-ionic aqueous solutions and limited exposure durations (≤5 min), it effectively removes dust and fingerprint residues without damaging anti-reflective or hydrophobic coatings.
Can the unit be operated continuously for extended periods?
No. Continuous operation beyond 60 minutes is not recommended; thermal buildup may reduce transducer efficiency and accelerate seal degradation. A minimum 15-minute cooldown interval is advised between successive cycles.
Does the SCQ-2A meet international sterilization standards such as ISO 17664?
No. This device performs cleaning—not sterilization—and does not validate microbial reduction. It serves only as a preparatory step preceding autoclaving, ethylene oxide treatment, or other validated terminal sterilization processes.
What maintenance is required to ensure long-term reliability?
Monthly inspection of the drain port seal, quarterly descaling of the tank interior using 5% citric acid solution, and annual verification of timer accuracy using a calibrated stopwatch are recommended per manufacturer guidelines.
Is the mesh rack autoclavable?
Yes—the included 304 stainless steel rack is rated for repeated autoclaving at 121°C, 15 psi for 20 minutes, provided it is fully dried before reuse to prevent water spotting.
