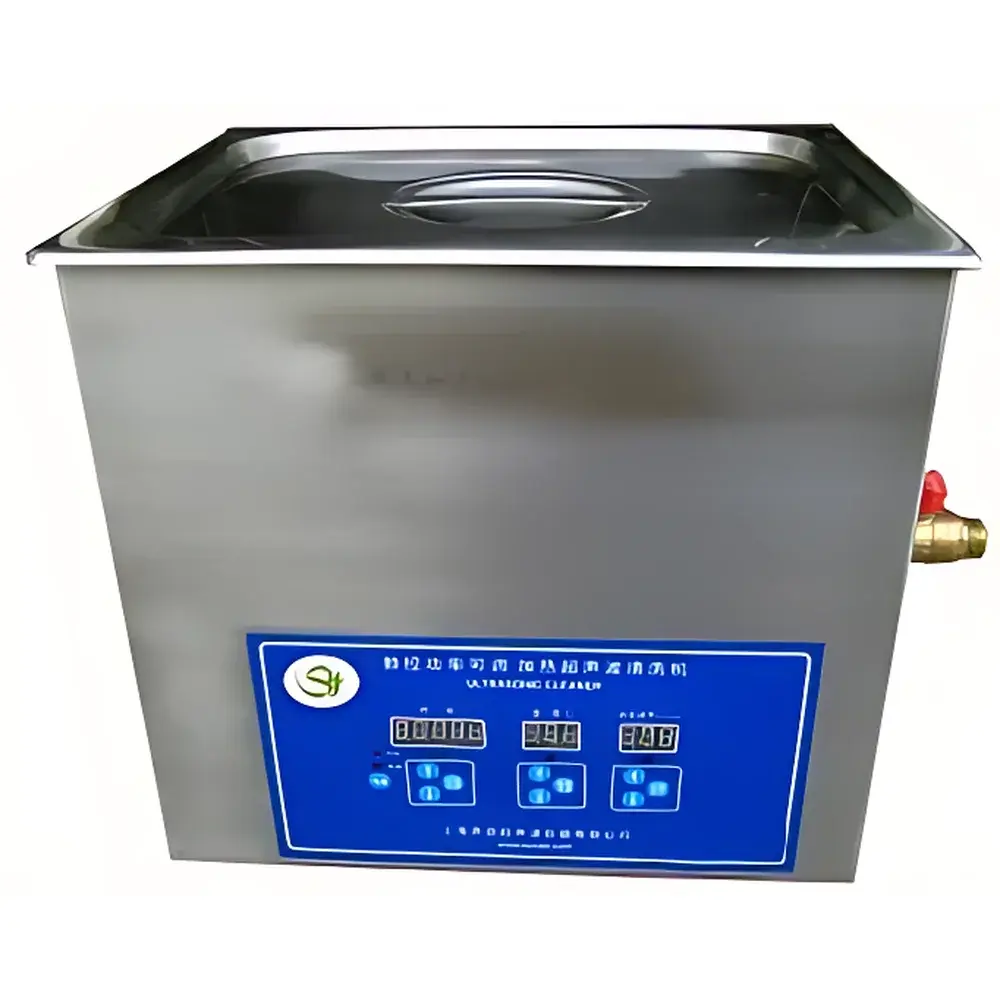

SYC Sycs SCQ-5211C 14L Benchtop Ultrasonic Cleaner

Overview

The SYC Sycs SCQ-5211C is a benchtop ultrasonic cleaner engineered for precision cleaning of delicate laboratory components—including glassware, pipette tips, filtration membranes, microplates, optical lenses, and small metal or ceramic parts—without mechanical abrasion. It operates on the principle of cavitation: high-frequency sound waves (40 kHz) generate microscopic vacuum bubbles in the cleaning solution; upon collapse, these bubbles release localized energy sufficient to dislodge particulate contaminants, organic residues, and biofilms from surfaces. The unit features a robust 304 stainless steel tank (300 × 240 × 200 mm internal dimensions), integrated heating, digitally controlled timing, and adjustable ultrasonic intensity—enabling reproducible, protocol-driven cleaning across academic, pharmaceutical, and quality control laboratories.

Key Features

• 14-liter capacity tank optimized for medium-batch processing of labware and instrumentation components.
• Fixed 40 kHz ultrasonic frequency—selected for balanced penetration depth and surface cleaning efficiency in aqueous and mild solvent-based solutions.
• 320 W ultrasonic transducer output with continuous 10–100% power adjustment, allowing optimization for sensitive substrates (e.g., coated optics or microfluidic chips) or heavily soiled items.
• 600 W heating system with digital temperature control (ambient to 80 °C), supporting thermally enhanced cleaning protocols per ASTM D2297 and ISO 15528 standards.
• Precision timer (1–600 minutes) with automatic shutdown and audible end-of-cycle alert.
• Integrated sound-dampening lid reduces ambient noise to ≤55 dB(A) at 1 m distance—meeting OSHA-recommended exposure limits for continuous operation in shared lab environments.
• Manual drain valve enables safe, residue-free solution exchange without tilting or lifting the unit.
• Included stainless steel mesh basket (304 grade) ensures uniform part suspension and protects tank bottom from impact damage.

Sample Compatibility & Compliance

The SCQ-5211C accommodates a broad range of sample geometries and materials, including borosilicate glass, fused silica, anodized aluminum, titanium alloys, PTFE, and polypropylene. Its non-aggressive cleaning mechanism preserves surface integrity and dimensional stability—critical for calibration tools, reference standards, and metrology-grade components. The unit complies with IEC 61000-6-3 (EMC emission limits) and IEC 61000-6-2 (immunity requirements). While not certified for sterile processing under ISO 13485 or FDA 21 CFR Part 820, it supports GxP-aligned cleaning validation when integrated into documented SOPs—including traceable temperature logging, cycle parameter recording, and operator authentication via external LIMS interfaces.

Software & Data Management

This model operates via an intuitive front-panel interface with LED display, offering direct access to all core parameters without software dependency. For laboratories requiring audit-ready documentation, optional RS-232 or USB data export modules (sold separately) enable timestamped logging of cycle start/stop times, set temperature, applied power level, and elapsed duration. When paired with SYC’s optional LabControl Suite (v3.2+), users can define, store, and recall up to 20 user-defined cleaning protocols—including ramped temperature profiles and multi-stage power modulation. All exported logs conform to ALCOA+ principles and support retrospective review during GLP/GMP inspections.

Applications

• Cleaning of HPLC vials, autosampler trays, and column frits prior to analytical runs.
• Removal of solder flux, oxide layers, and polishing compounds from semiconductor wafers and MEMS devices.
• Decontamination of reusable surgical instruments and dental tools in research animal facilities (non-sterile prep only).
• Preparation of TEM grids and AFM cantilevers by eliminating hydrocarbon adsorption layers.
• Routine maintenance of viscometers, density meters, and refractometer prisms.
• Supporting ASTM E1212 (standard practice for ultrasonic cleaning) and USP (cleaning validation guidance) workflows.

FAQ

Is the SCQ-5211C suitable for use with flammable solvents?
No. This unit is designed exclusively for aqueous solutions and water-miscible detergents. Flammable solvents require explosion-proof ultrasonic cleaners certified to ATEX or UL 1203 standards.
Can the ultrasonic frequency be changed on this model?
No. The SCQ-5211C operates at a fixed 40 kHz frequency. Models with selectable frequencies (25/28/40/60 kHz) are available under the SCQ-X2XXC series but require separate ordering.
Does the unit include temperature calibration documentation?
Factory calibration certificate (traceable to NIST standards) is provided with each shipment. Optional annual recalibration service is available through authorized SYC service centers in APAC and EU regions.
What maintenance is required to ensure long-term performance?
Routine maintenance includes weekly tank inspection for debris accumulation, monthly transducer surface cleaning with isopropyl alcohol, and biannual verification of heater element resistance and timer accuracy using calibrated test equipment.
Is remote monitoring or Ethernet connectivity supported?
Not natively. Networked operation requires integration via third-party industrial IoT gateways or SYC’s optional Ethernet module (SCQ-ETH-01), which enables Modbus TCP communication and integration into centralized facility management systems.
