SYCEN Ultrasonic Cleaner SCQ-Series | Basic Mechanical-Timer Benchtop Ultrasonic Cleaner

Overview

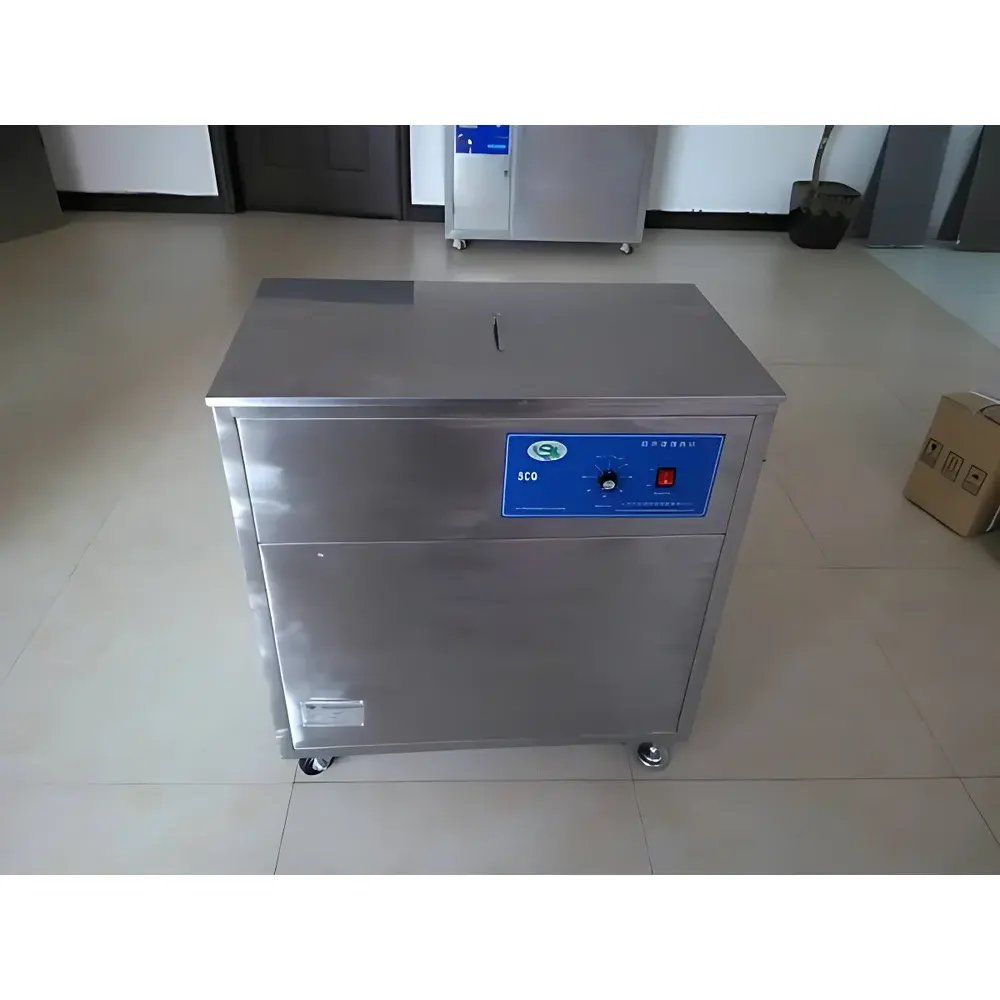

The SYCEN SCQ-Series Ultrasonic Cleaner is a mechanically timed, benchtop-to-freestanding ultrasonic cleaning system engineered for reproducible cavitation-based cleaning in academic, industrial QC, and clinical laboratory environments. It operates on the principle of high-frequency acoustic energy transmission into aqueous or mild solvent-based cleaning solutions, generating controlled micro-cavitation bubbles that collapse near submerged surfaces—mechanically dislodging particulate contaminants, oxides, organic residues, and biofilms from delicate instrumentation, glassware, surgical tools, electronic components, and precision mechanical parts. Unlike digitally controlled units, the SCQ-Series prioritizes operational simplicity and long-term reliability through robust electromechanical timing and direct-drive transducer architecture. Its fixed-frequency transducers (28/40/60/80 kHz options) are selected based on application requirements: lower frequencies (28–40 kHz) deliver higher cavitation intensity suitable for heavy particulate removal from metal parts; higher frequencies (60–80 kHz) provide finer, gentler cleaning ideal for fragile optics, semiconductor wafers, or MEMS devices. All models comply with IEC 61000-6-3 (EMC emissions) and feature UL/CSA-recognized power supplies.

Key Features

• Stainless steel 304 tanks with reinforced corner welds and polished interior surfaces for corrosion resistance and easy decontamination
• Dual-frequency transducer mounting (28/40/60/80 kHz)—factory-configured per model to match typical cleaning load profiles

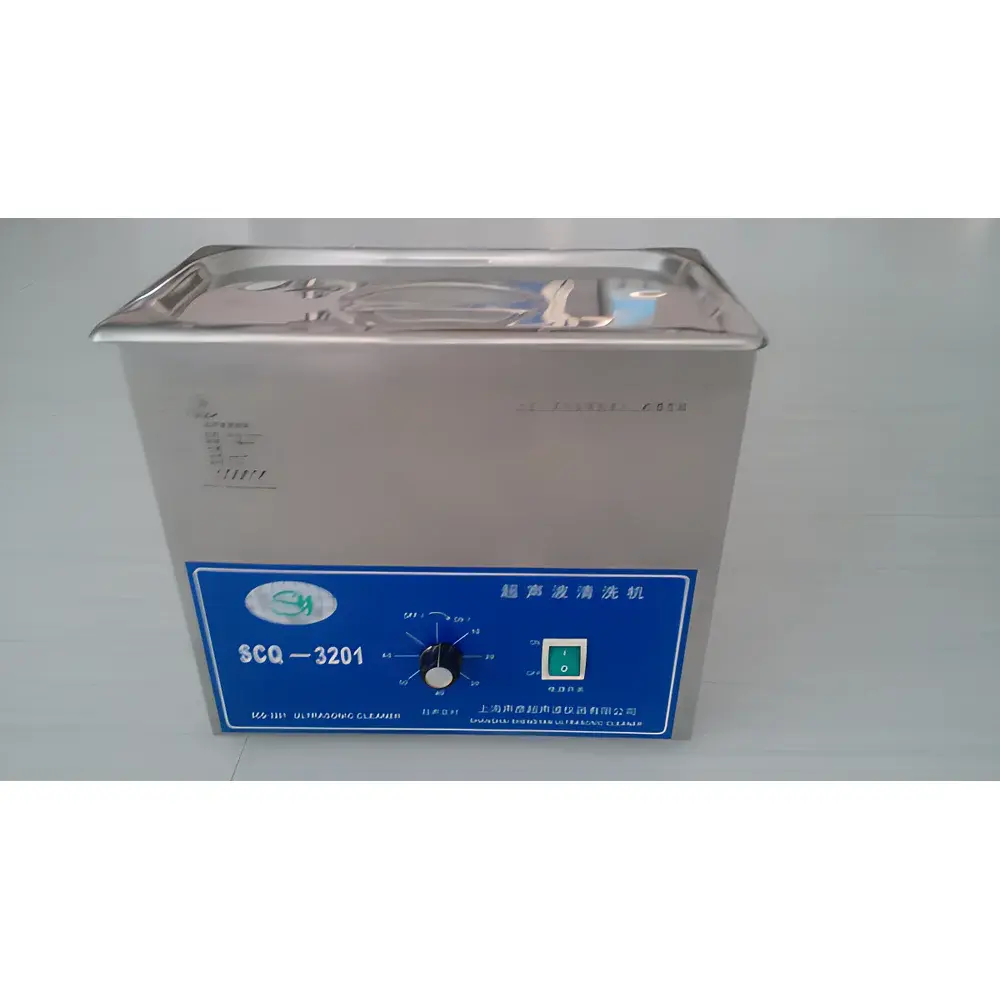

• Mechanical timer with tactile dial interface (1–60 min range), rated for >100,000 actuation cycles and immune to electromagnetic interference

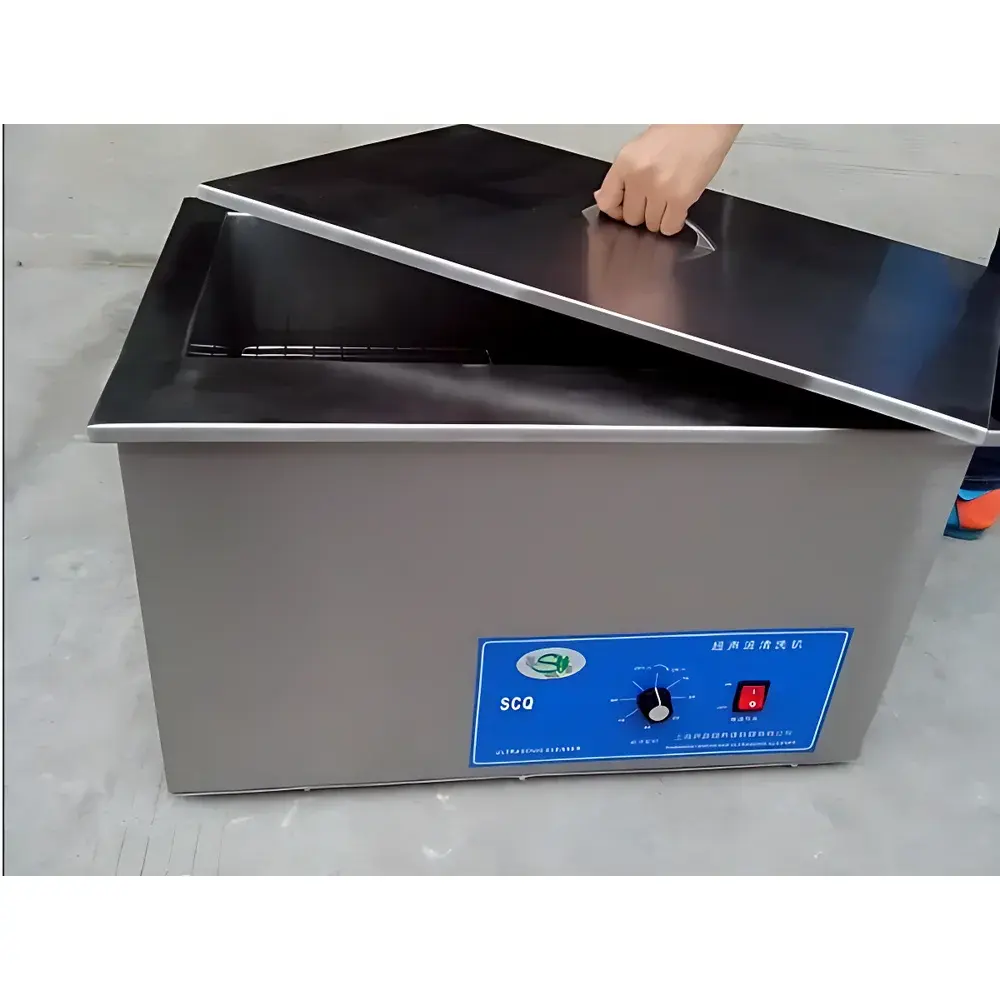

• Integrated sound-dampening lid with ergonomic handle and vapor containment gasket—reduces ambient noise to ≤65 dB(A) at 1 m

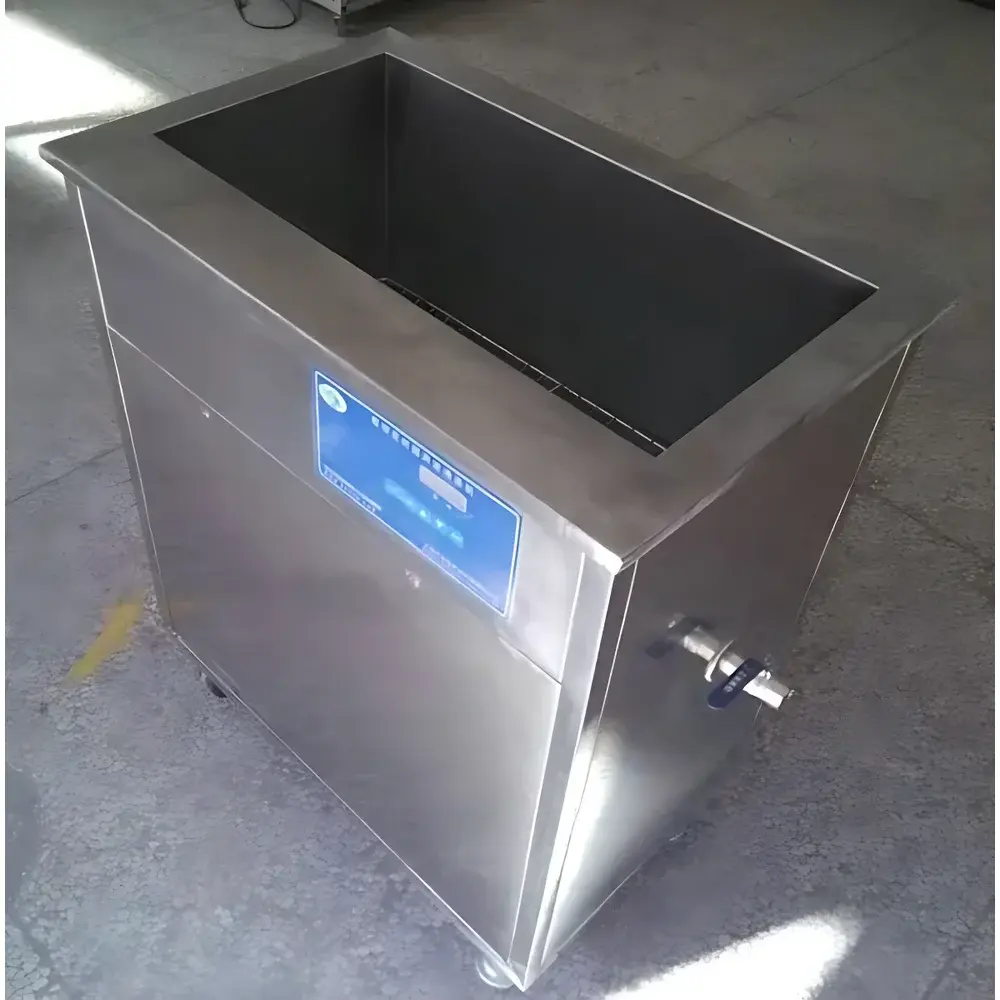

• Manual drain valve with brass body and EPDM sealing—enables full tank evacuation without disassembly
• Front-panel status indicator (power-on LED) and over-temperature cut-off protection (thermal fuse at 85 °C)
• Modular transducer array design allows field replacement without tank penetration or vacuum resealing

Sample Compatibility & Compliance

The SCQ-Series accommodates a broad range of sample geometries—from microcentrifuge tubes and pipette tips to large-volume reactor vessels and multi-tier instrument trays—via optional stainless steel mesh baskets (included on models ≥4 L). Tanks are certified for use with water, alkaline detergents (pH 9–11), and low-volatility solvents (e.g., isopropanol, ethanol, terpenes) under ISO 13485-aligned handling protocols. While not equipped with heating or degassing functions, its cavitation efficiency remains stable across ambient temperatures (10–35 °C), making it suitable for GLP-compliant routine cleaning where thermal variability must be minimized. Units meet CE safety directives (2014/35/EU Low Voltage Directive, 2014/30/EU EMC Directive) and are documented for inclusion in FDA-regulated facility SOPs as ancillary cleaning equipment per USP “Cleaning and Sanitization of Laboratory Equipment”.

Software & Data Management

As a non-programmable, analog-timed platform, the SCQ-Series does not incorporate embedded firmware, touchscreen interfaces, or data logging capabilities. This architecture eliminates validation overhead associated with electronic recordkeeping (e.g., FDA 21 CFR Part 11 compliance), making it inherently suitable for regulated environments where audit trails for cleaning parameters are maintained manually via logbooks or LIMS-integrated batch records. Time settings are verified using NIST-traceable stopwatches during IQ/OQ qualification. Calibration documentation includes transducer resonance verification (impedance sweep at nominal frequency ±5%) and tank fill-level consistency testing (±2% volume tolerance at marked capacity lines).

Applications

• Routine cleaning of HPLC vials, GC autosampler trays, and spectrophotometer cuvettes prior to analysis
• Pre-sterilization debridement of stainless steel forceps, biopsy punches, and laparoscopic instruments in hospital CSSDs
• Removal of solder flux and rosin residues from PCB assemblies in electronics manufacturing QA labs
• Surface preparation of metallurgical samples prior to SEM/EDS imaging or optical microscopy
• Cleaning of quartz crystal microbalance (QCM) sensors and piezoelectric transducers without coating damage
• Decontamination of reusable PPE components (e.g., respirator valves, face shield mounts) per ISO 15883-5 standards

FAQ

Is temperature control available on SCQ-Series units?
No. These models operate at ambient bath temperature only. For thermally assisted cleaning, external water baths or heated rinse stations must be used downstream.
Can I use flammable solvents in this cleaner?
Not recommended. The SCQ-Series lacks explosion-proof certification and solvent recovery systems. Only aqueous or low-flashpoint (<60 °C) solvents with proper ventilation are permitted.
What maintenance is required for long-term reliability?
Monthly inspection of transducer mounting bolts, quarterly descaling of tank interior with citric acid solution, and annual verification of timer accuracy against reference chronometer.
Are custom frequency configurations available?
Yes—special-order variants with 25 kHz or dual-frequency (40+80 kHz) transducer stacks can be supplied upon engineering review and minimum order quantity agreement.
Does SYCEN provide IQ/OQ documentation packages?
Standard units ship with Factory Acceptance Test (FAT) reports. Full GMP-compliant IQ/OQ templates and on-site protocol execution are available as optional services through authorized regional partners.
